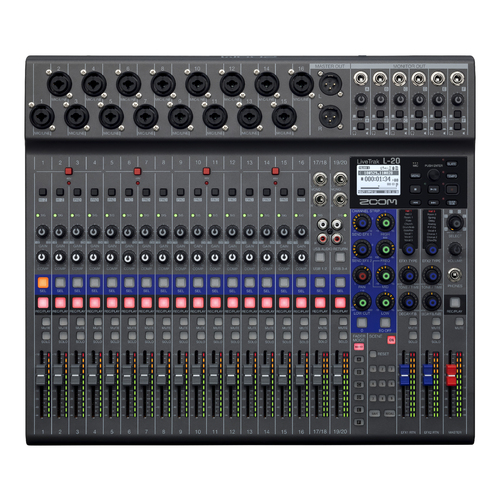

Zoom LiveTrak L-20
20-Input Digital Mixer & Multitrack Recorder
MORE BOARD. MORE MUSIC.
The LiveTrak™ L-20 is the new digital console offering everything creators need to mix, monitor, and record complex productions. With 20 discrete audio channels and six individual custom monitor mixes, it’s built for bigger, bolder arrangements.
The LiveTrak L-20 is designed to mix bigger. It features 20 inputs
(16 mono mic/line inputs and two stereo inputs), all with independent
3-band mid-parametric EQ. The 16 mono inputs offer stand-alone compressor control.
22 Tracks of Recording
Record 20 discrete channels plus a stereo mix directly to an SD card. The LiveTrak L-20 captures pristine audio in resolutions up to 24-bit/96 kHz.* At -128 dBu EIN with +60 dB maximum input gain, the L-20 is equipped with our quietest and most advanced preamps ever. Mix down finished songs on the L-20 or transfer your discrete tracks to a DAW to perfect later.
*Effects, EQ, overdub, audio interface, and fader modes A-F are not available in 96 kHz.
Create Six Custom Monitor Mixes
With six independent monitor outputs for musicians, each output can have its own custom mix, complete with effects, that can easily be switched from a powerful headphone output, to a balanced line output for stage monitors.
- 20 discrete channels (16 mono plus 2 stereo) with XLR or ¼-inch connectivity
- 22-track simultaneous recording, 20-track playback
- 22-in/4-out USB audio interface connectivity
- Records up to 24bit/96kHz audio to SD card
- 48V phantom power
- Hi-Z connectivity (channels 1-2)
- 26dB pad (channels 3-16)
- Built-in compression control (Channels 1-16)
- Solo buttons for individual channels
- Variable frequency low-cut control
- Main outputs plus 6 customizable monitor outputs
- Dedicated headphone output for sound engineer
- Scene saving function, up to 9 scenes saved at a time
- 20 built-in chorus, delay and reverb effects with adjustable parameters
- Two effect busses
- Built-in slate mic
- Class-compliant mode (for iOS compatibility)
- Compatible with Remote Mixer app for iPad
- Automatic recording starting/stopping capability
- Pre-record function
- Import/export projects with USB 2.0 host port
- Compatible functions for ZOOM FS01 footswitch
- Automatic power-save function
-
What's in the BoxIncluded with the L-20
- LiveTrak L-20
- AD-19 AC Adapter
- USB 2.0 Cable
- Quick Guide
