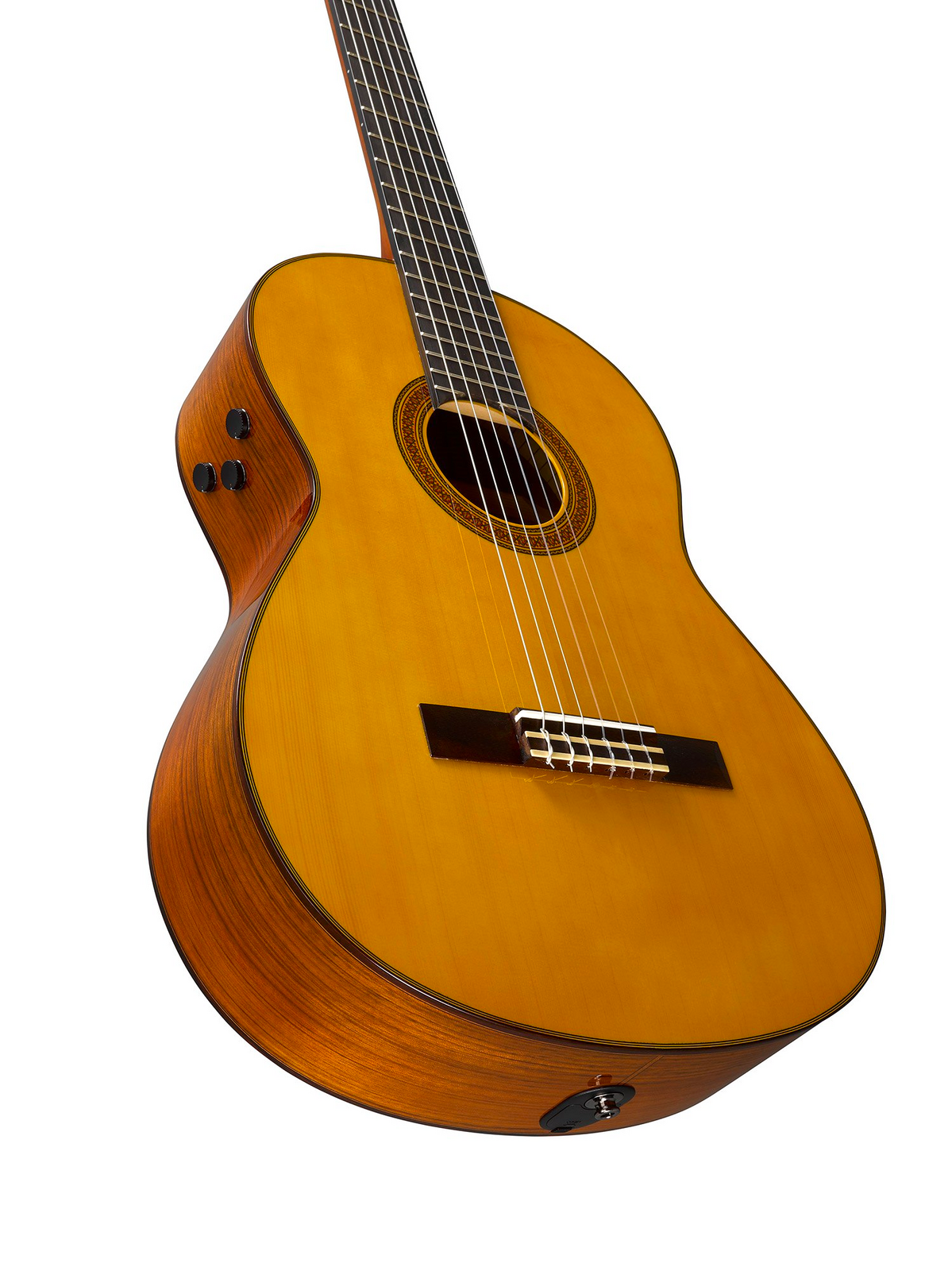

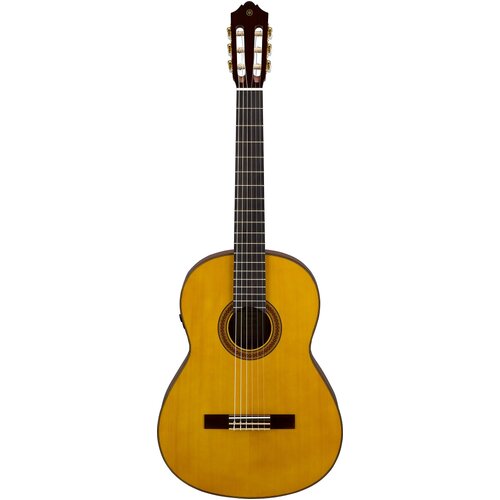

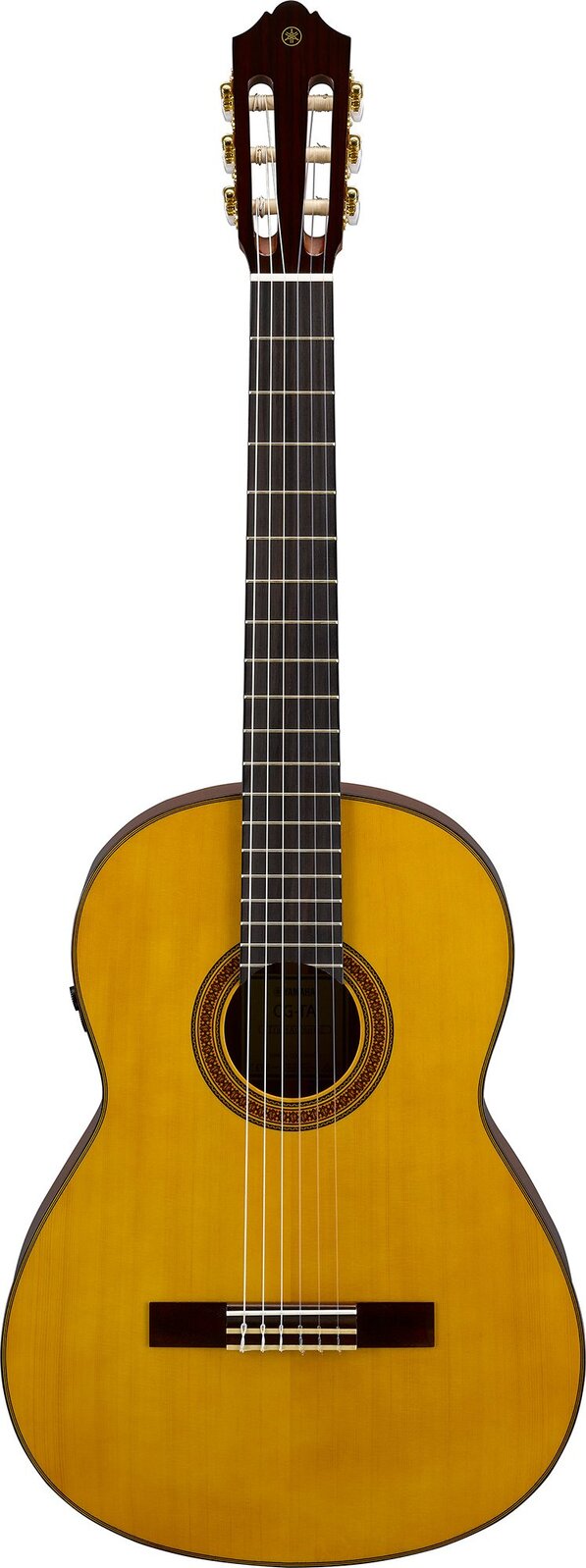

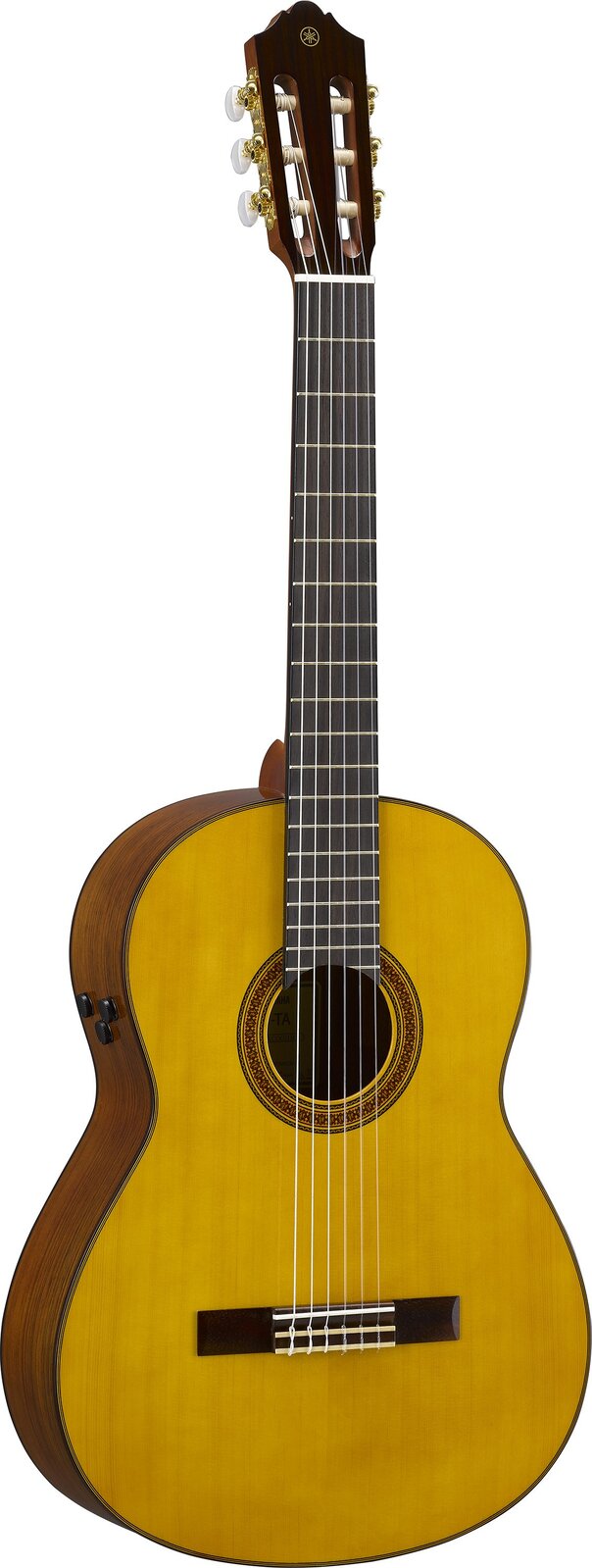

Yamaha TransAcoustic CG-TA - Natural

Playing guitar in a great sounding room is the most inspiring, engaging playing experience imaginable – far more enjoyable than in a dry-sounding room like a lounge, office or den. Yamaha’s TransAcoustic Guitar recreates the incredible experience of playing in a rich, live room without needing any external amplification or effects – just the guitar itself. Whether you’re practicing, writing, recording or just playing for fun, the TransAcoustic Guitar will make you play better, longer and with more creativity. Once you’ve experienced it, you’ll never want to play another acoustic guitar again.

Yamaha CG-TA TransAcoustic classical nylon-string guitars transport you to new creative spaces with immersive reverb and lush chorus effects, without needing an amp or other external gear. The only nylon-string TransAcoustic model, the CG-TA has ovangkol back and sides, yielding rich, focused tone and traditional elegance. Comfortable string height and neck design offer superior playability.

• Classical body with nylon strings

• Solid spruce top

• Ovangkol back and sides

• Built-in reverb and chorus effects – no need for an amp or other external gear

FEATURES

Actuator
An actuator installed on the inner surface of the guitar back resonates in response to the vibrations of the strings. The vibrations generated by the actuator are then transmitted to the body of the guitar and to the air in and around it, resulting in authentic reverb and chorus sounds that actually radiate from within the body.

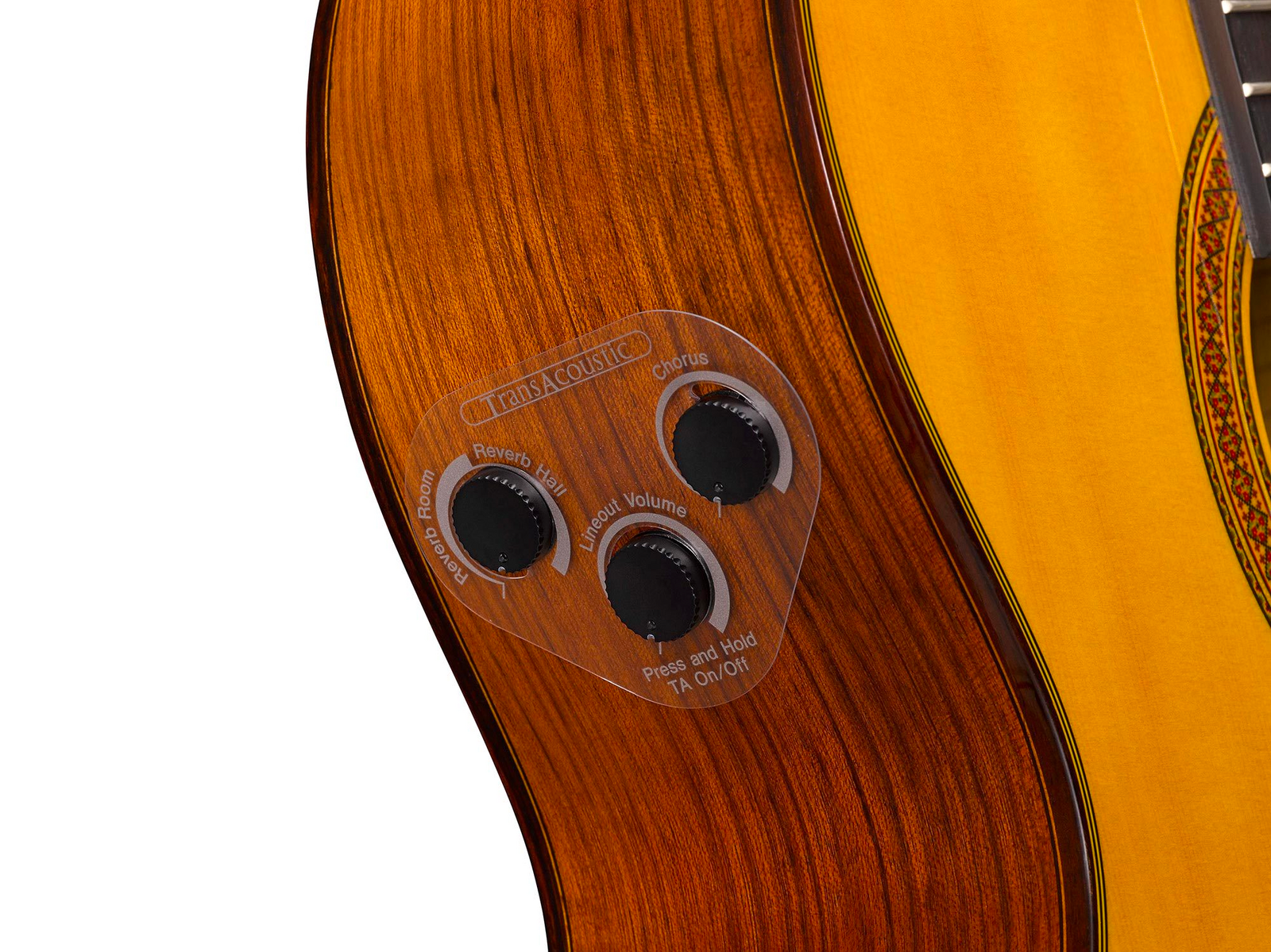

Simple Controls
Three simple controls adjust the effects levels and line out volume level. The small knobs occupy less space, reducing the acoustic sound loss that results from removing body wood.

(A) Chorus Control

(B) Reverb Control (Room / Hall)

(C) TA Switch / Line Out Volume Control

* Pressing the TA Switch for longer than 0.3 seconds activates the TA function.

* When a cable is connected to the Line Out jack, the volume can be adjusted by rotating knob (C).

* The reverb type switches from Room to Hall around the 12:00 position.

Battery Box
The battery box is integrated into the end-pin jack, requiring fewer holes in the body and thus reducing acoustic sound loss. Connect a cable from the jack to a PA or amp to use the TA instrument as an acoustic-electric guitar.

SPECIFICATIONS

Body Shape: CG
Scale Length: 650mm (25 9/16”)
Body Length: 490mm (19 5/16")
Total Length: 995mm (39 3/16")
Body Width: 370mm (14 9/16")
Body Depth: 94-100mm (3 11/16-3 15/16")
Nut Width: 52mm (2 1/16")
String Spacing: 11.8mm
Top Material: Solid Spruce
Back Material: Ovankol
Side Material: Ovankol
Neck Material: Nato
Fingerboard Material: Rosewood
Fingerboard Radius: Flat
Bridge Material: Rosewood
Nut Material: Urea
Saddle Material: Urea
Bridge Pins: None
Tuners: Gold
Body Binding: Rosewood + Natural + Black
Soundhole Inlay: Rosette
Pickguard: None
Body Finish: Gloss
Neck Finish: Matte
Electronics: TransAcoustic (SYSTEM70)
Controls: Reverb / Chorus / Line Out Vol (TA Effect On/Off)
Connections: LINE OUT
Strings: Trebles:High / Basses:Medium(Yamaha S10)
Case: None
