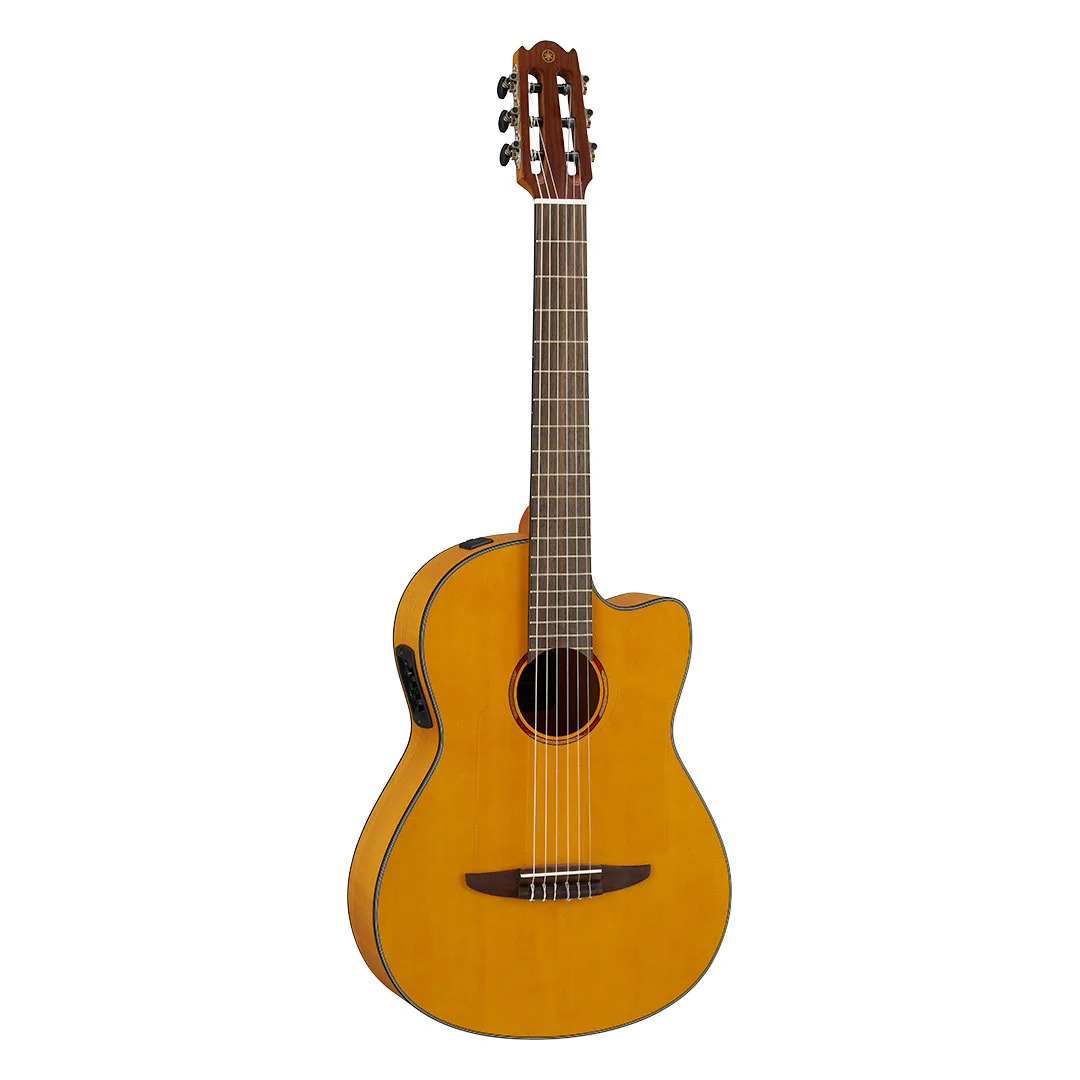

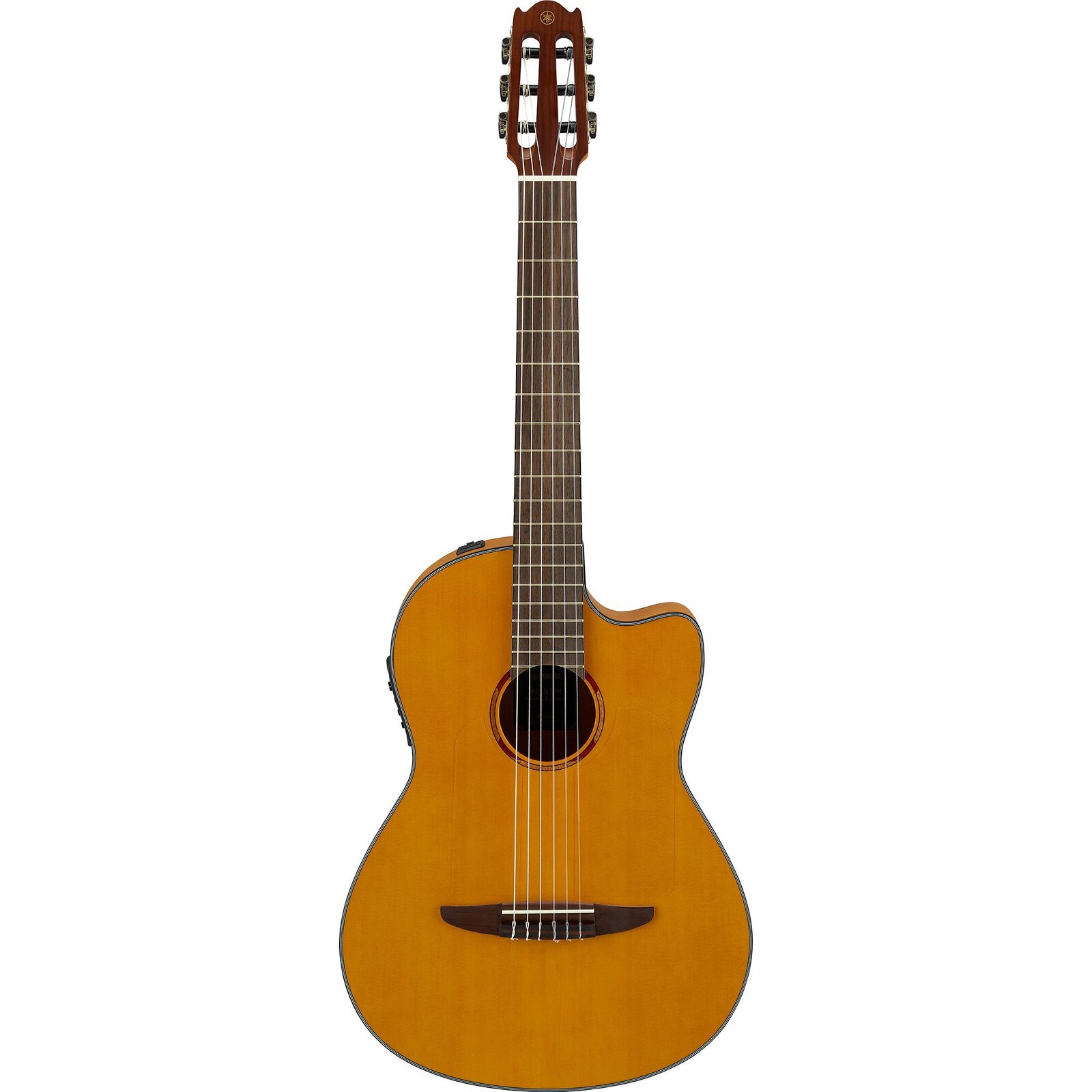

Yamaha NCX1FM Flamed Maple

The NCX1 acoustic-electric guitar’s contemporary appearance, traditional neck profile, and advanced electronics make it an excellent choice for nylon-string players seeking superior amplified sound, while its strap buttons and exceptional amplified sound make it especially appealing to performing guitarists.

• Contemporary style with traditional neck profile

• Advanced preamp and pickup system with onboard tuner

• Solid Sitka spruce top

• Flamed maple back and sides

• Walnut fingerboard

• Performance-friendly strap buttons

SPECIFICATIONS

Body Shape: Yamaha CG Cutaway Shape
Scale Length: 650mm (25 9/16”)
Body Length: 490mm (19 5/16")
Total Length: 990mm (39")
Body Width: 370mm (14 9/16")
Body Depth: 94-100mm (3 11/16" - 3 15/16")
Nut Width: 52mm (2 1/16")
String Spacing: 11.8mm
Top Material: Solid Sitka Spruce
Back Material: Flame Maple​​​​​​​
Side Material: Flame Maple​​​​​​​
Neck Material: Nato​​​​​​​
Fingerboard Material: Walnut​​​​​​​
Fingerboard Radius: Flat​​​​​​​
Bridge Material: Ebony + Walnut​​​​​​​
Nut Material: Urea​​​​​​​
Saddle Material: Urea​​​​​​​
Bridge Pins: None
Tuners: Chrome w/ Matt Black Shaft (RM1188NB-B06)​​​​​​​
Body Binding: Black + White​​​​​​​
Soundhole Inlay: Mahogany + Padauk
Pickguard: Clear Tap Plate
Body Finish: Matt​​​​​​​
Neck Finish: Matt​​​​​​​
Electronics: SYSTEM73​​​​​​​
Controls: Vol/3-band EQ/Adjustable Mid Frequency/Tuner​​​​​​​
Connections: LINE OUT​​​​​​​
Strings: Medium (Yamaha S10)​​​​​​​
Accessories: Hex Wrench​​​​​​​
Case: None
