Yamaha MS101-4

Please note: This product is expected to land April 2022.

The de facto standard for compact monitoring in a simple form

The standard model in our range of desktop utility powered monitors, the MS101-4 offers portability in a compact design and simple but comprehensive functions for outstanding usability. The MS101-4 comes with a 3/8-16 threaded female mounting for direct attachment to a Euro microphone stand, and optional accessories can also be added for use in a wide range of applications.

FEATURES

• 30W of amplifier power provides clean, high output sound

• Redesigned enclosure for an even lower profile

• Combo Input jack accepts both XLR and 1/4" connectors

• Directly mountable on Euro microphone stands (Optional mic stand adaptor BMS-10A is available for adjusting tilt angle)

A compact, convenient approach to high-quality monitoring anywhere
Yamaha's smallest powered monitor speaker compatible with both line and mic inputs, the MS101-4 powered monitor speaker offers the flexibility needed for temporary or permanent use in applications requiring simple, compact monitors.

Simple, portable, durable design

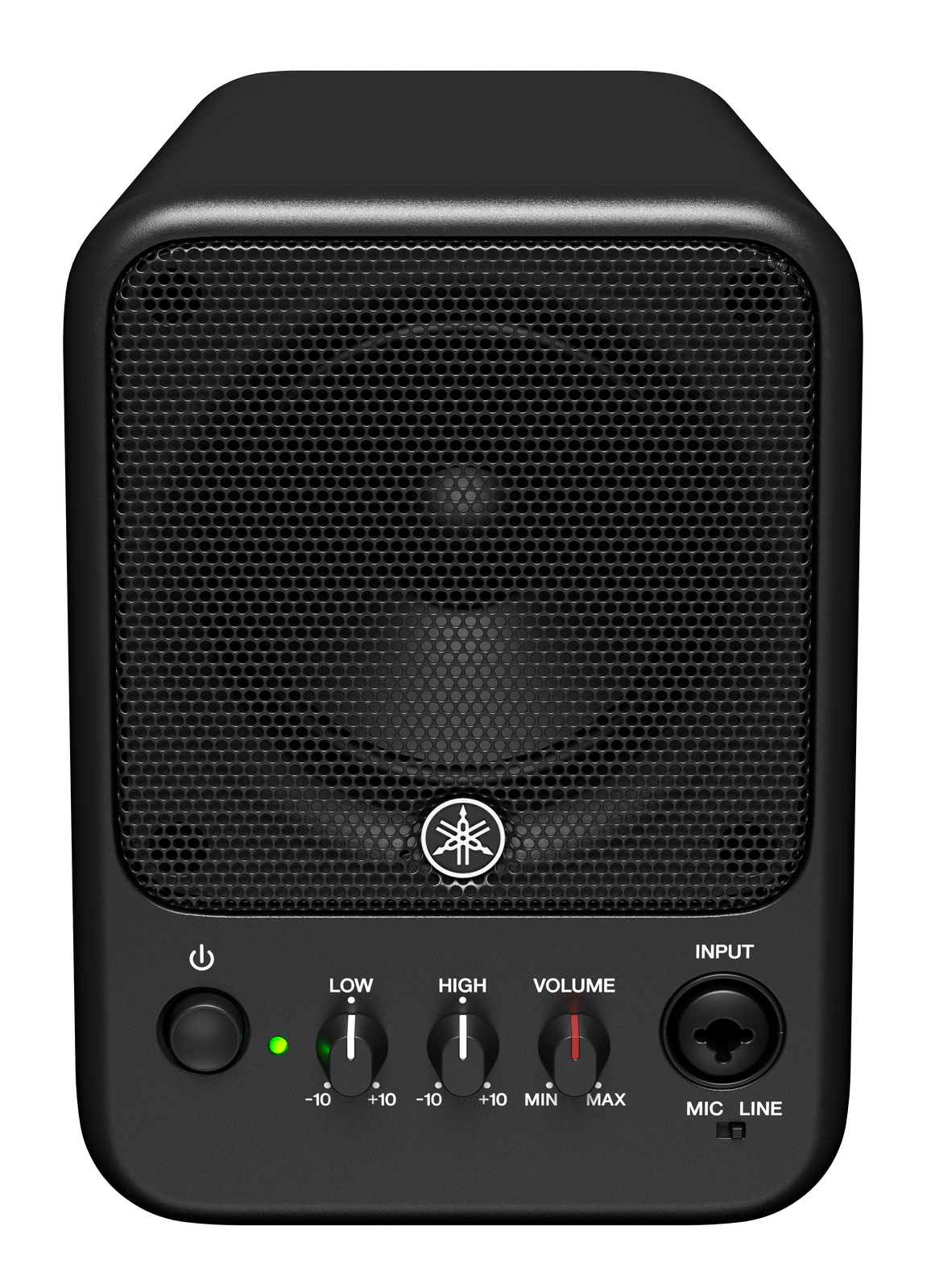

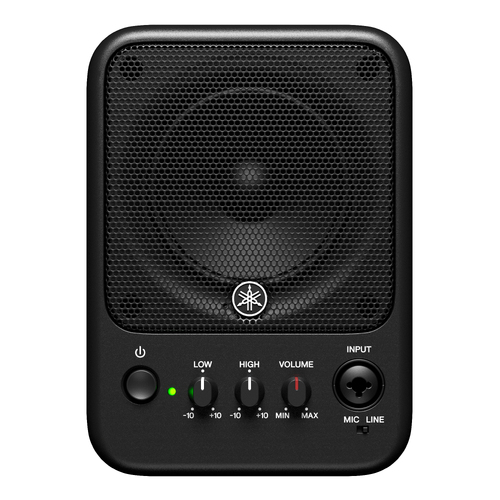

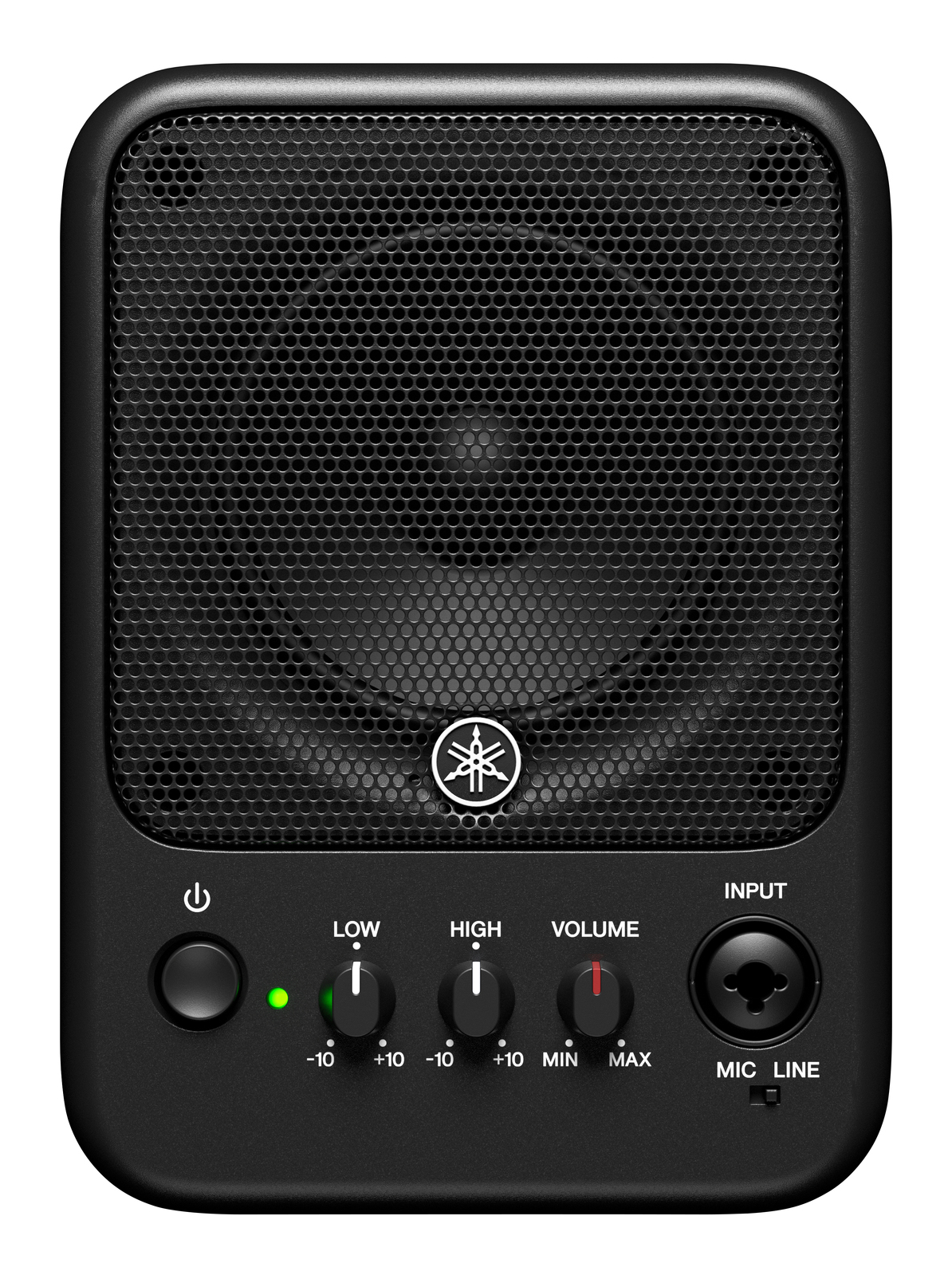

With the controls (power switch, volume and tone controls) and the combo jack input on the lower front panel, the MS101-4 is simple and easy to operate.

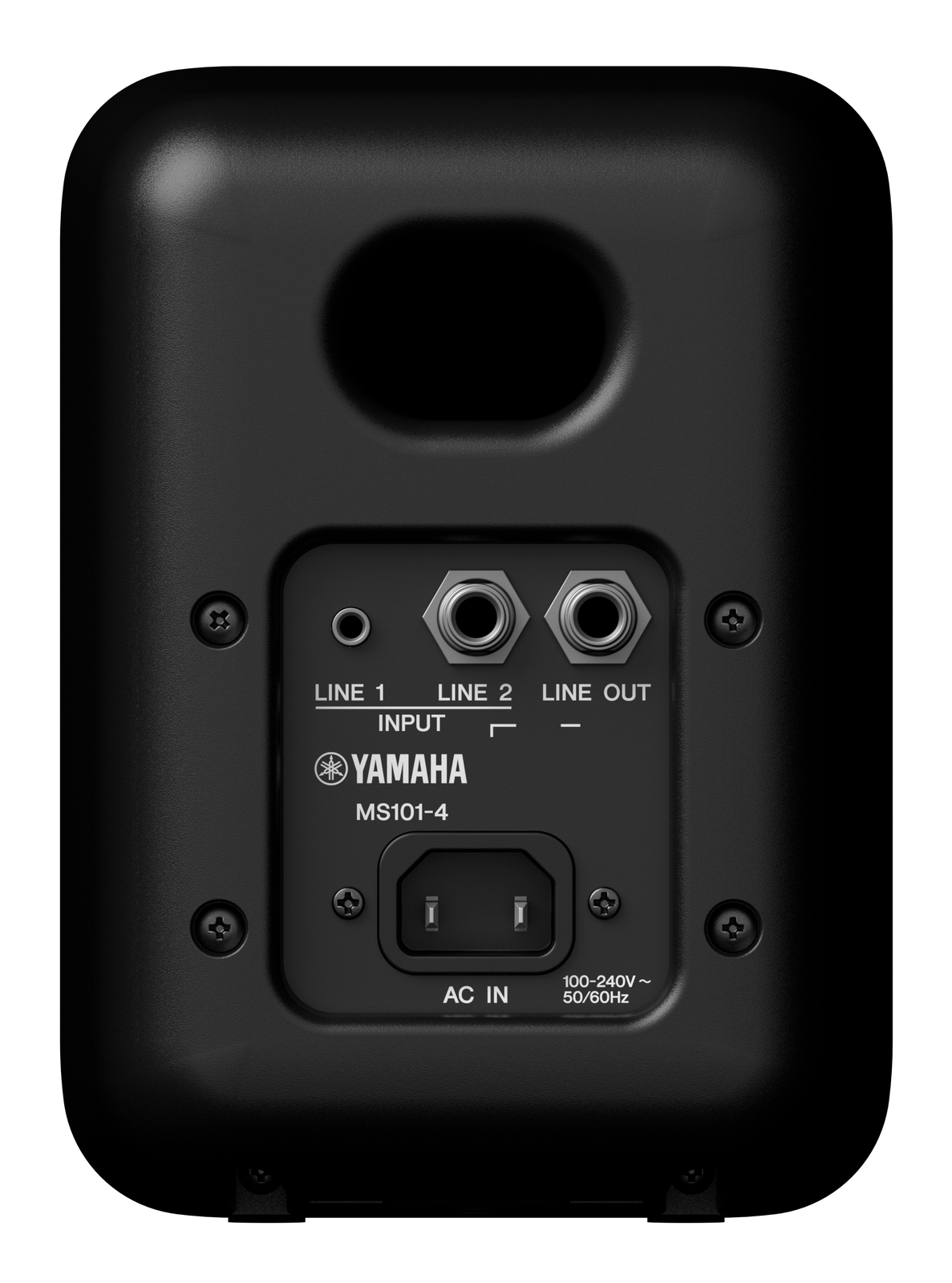

The sturdy metal grill offers complete protection for the four-inch cone driver, while the rear panel is equipped with one stereo mini and two TRS Phone input connectors, and an AC inlet for excellent portability. The bass reflex port is also located on the rear surface, resulting in a more compact chassis.

The MS101-4 offers a compact, lightweight form that is both portable and durable.

SPECIFICATIONS

Speaker type: Full range Powered Speaker, Bass-reflex Type
Frequency range (-10dB): 77 Hz–20 kHz
Maximum output level (1m; on axis): 115 dB SPL *1
Components: LF-HF: 4" Cone, 1" Voice coil, Ferrite magnet
Dimensions: W: 142 mm, H:196 mm, D: 187 mm
Net weight: 2.1 kg (4.6 lbs)

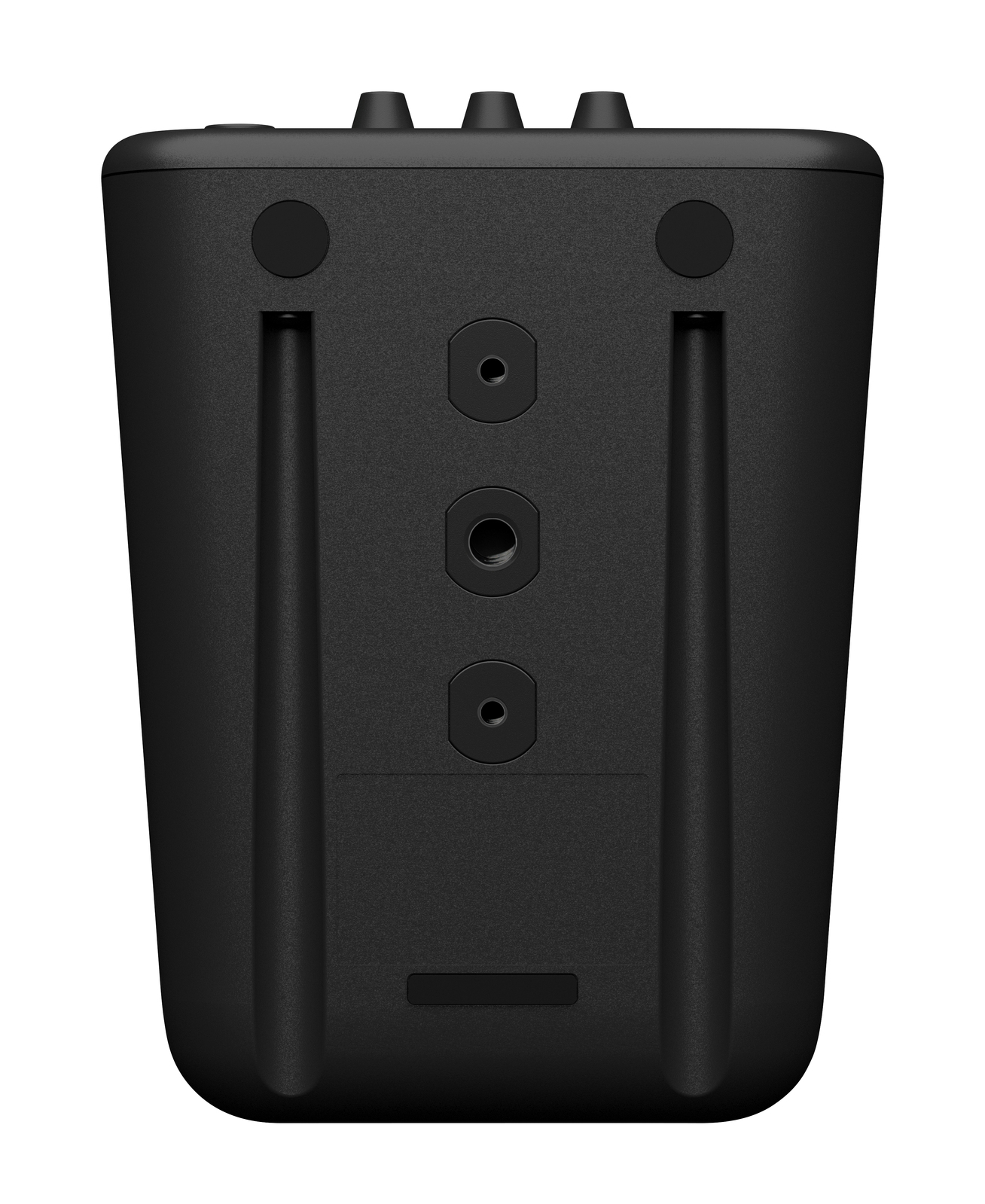

Flying and mounting hardware: Screw threads (bottom): 2 x M5 depth 11 mm pitch 60 mm (for 2, M5 x 6-10 mm screws), 1 x 3/8" depth 12 mm (for 1 x 3/8" x 9-11 mm screw)
Amplifier class: Class-D
Power rating: Dynamic: 30 W, Continuous: 20 W
Cooling: Natural cooling (no fan)
I/O Connectors
Mic Input: [Front] INPUT: Combo, [Rear] INPUT LINE 1: Stereo Mini, INPUT LINE 2: Phone (TRS)
Line Out: 1 x Phone (TRS)
AC: 1 x AC inlet
Input impedance: [Front] INPUT: LINE=5.4 kΩ / MIC= 5.4 kΩ, [Rear] INPUT LINE 1,2: 10 kΩ
Input sensitivity: [Front] INPUT: LINE=-10 dBu / MIC=-40 dBu, [Rear] INPUT LINE 1, 2: -10 dBu (VOLUME: Maximum)
Input Level: [Front] INPUT: LINE=+5 dBu / MIC=-25 dBu, [Rear] INPUT LINE 1, 2: +5 dBu (Nominal Input Level / VOLUME: Center), [Front] INPUT: LINE=+20 dBu / MIC=-10 dBu, [Rear] INPUT LINE 1, 2: +20 dBu (Maximum Input Level)
Others: Controls: 1 x VOLUME, 1 x LOW CONTROL, 1 x HIGH CONTROL, POWER
Indicators: POWER (Green LED)
Power consumption: 1/8 Power Consumption: 10 W, Idle Power Consumption: 3 W
Power requirements: 100 V - 240 V, 50/60 Hz
Options: Mic stand adaptor BMS-10A, Free-angle clamp BAS-10, Wall mounting bracket BWS20-190, Ceiling bracket BCS20-150 / BCS20-210
