Xvive U3C

The Xvive U3C wireless aims to take the complexity and frustration out of traditional wireless microphone systems. Creating a flexible, all in-one solution that makes any of your condenser microphones into wireless.

FEATURES

• High-fidelity plug-and-play wireless system for condenser microphones

• Provides 12V or 48V phantom power to any connected condenser microphone

• 24-bit / 48 kHz digital audio with low distortion and wide frequency response

• Stable 2.4 GHz wireless connection with a range of up to 90 feet

Discover the freedom of wireless—live, at home or in the studio—and roam free with your favorite microphone!

The System

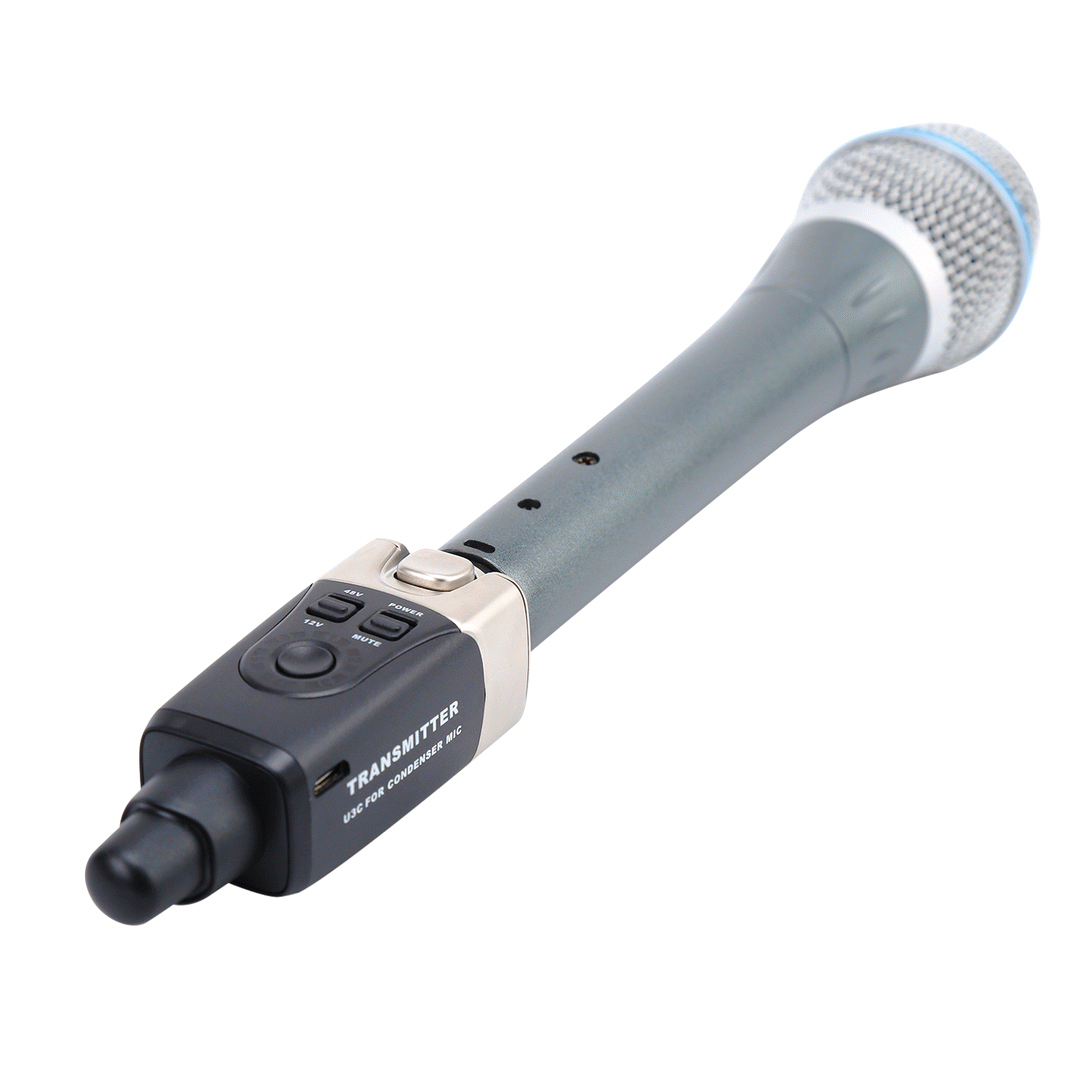

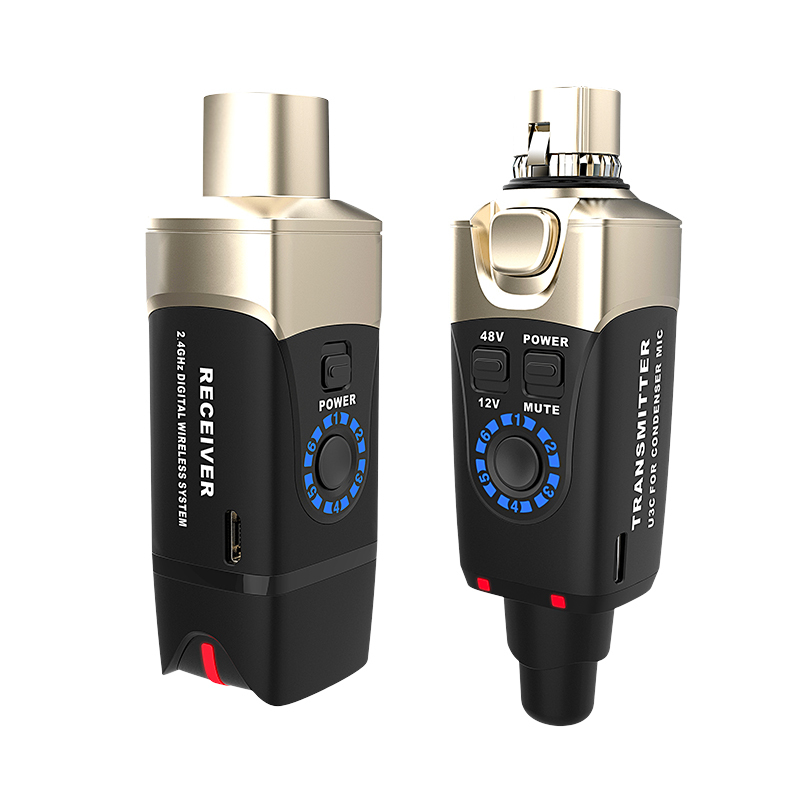

The system is comprised of a transmitter unit, which connects to your microphone; and a receiver, which connects to a mixer, sound interface, preamp, XLR cable or snake.

Your True Voice
The U3 system features high-resolution, 24-bit / 48 kHz audio, with a very wide and smooth frequency response between 20 Hz and 20 kHz and a signal-to-noise ratio of 107 decibels. Sing or speak without compromising the quality of your voice or your microphone!

Hold On To Power
The internal battery in both the transmitter and the receiver lasts for 5 hours. Both units can be easily charged at the same time using the included dual-USB cable and any standard 5V USB charger—and charging takes between 1.5 and 2.5 hours depending on the current of the charger being used.

SPECIFICATIONS

Wireless Type: 2.4 GHz ISM worldwide open band
Bit Depth / Sample Rate: 24-bit / 48 kHz
Switchable Channels: 6
Simultaneous Channels: 6
Mode: Phantom Power: 12V / 48V
Frequency Response: 20 Hz – 20 kHz (-3dB)
Dynamic Range: 103 dB (-3 dB)
Microphone Compatibility: Condenser microphones
Signal-To-Noise Ratio: 110 dB
Total Harmonic Distortion: 0.2%
Latency: 5 ms
Operating Range: 27.5 m / 90 ft (line-of-sight)

Battery
Type: Rechargeable Lithium-ion (internal)
Battery Life: 3-7 hrs
Charging Time: 2.5 hrs (full charge)
Charging Voltage: 5V (USB)
Usable While Charging: Yes

Transmitter
Model: U3CT
Power: 12V / 48V (onboard phantom)
Mode: Phantom Power: 12V / 48V​​​​​​​
Connector: XLR (female)
Dimensions: 31 x 29 x 98 mm / 3.9" x 1.2" x 1.1"
Weight: 107.73 g / 3.8 oz
Mute: Yes

Receiver
Model: U3CR
Connector: XLR (male)
Dimensions: 98 x 31 x 29 mm / 3.9" x 1.2" x 1.1"
Weight: 92 g / 3.2 oz
