Xvive U3

Designed for professional dynamic microphones to be wireless, the U3 has a recording-level sound transmission quality, provides stable and reliable wireless transmission, and a flexible and portable wireless solution that allows you to use your favorite microphones with different frequency characteristics. It is suitable for recording studios, theatrical, speaking, outdoor use and Active Loudspeaker Wireless.

FEATURES

• High-fidelity plug-and-play wireless system for dynamic microphones

• 24-bit / 48 kHz digital audio with low distortion and wide frequency response

• Stable 2.4 GHz wireless connection with a range of up to 90 feet

Discover the freedom of wireless—live, at home or in the studio—and roam free with your favorite microphone!

The System

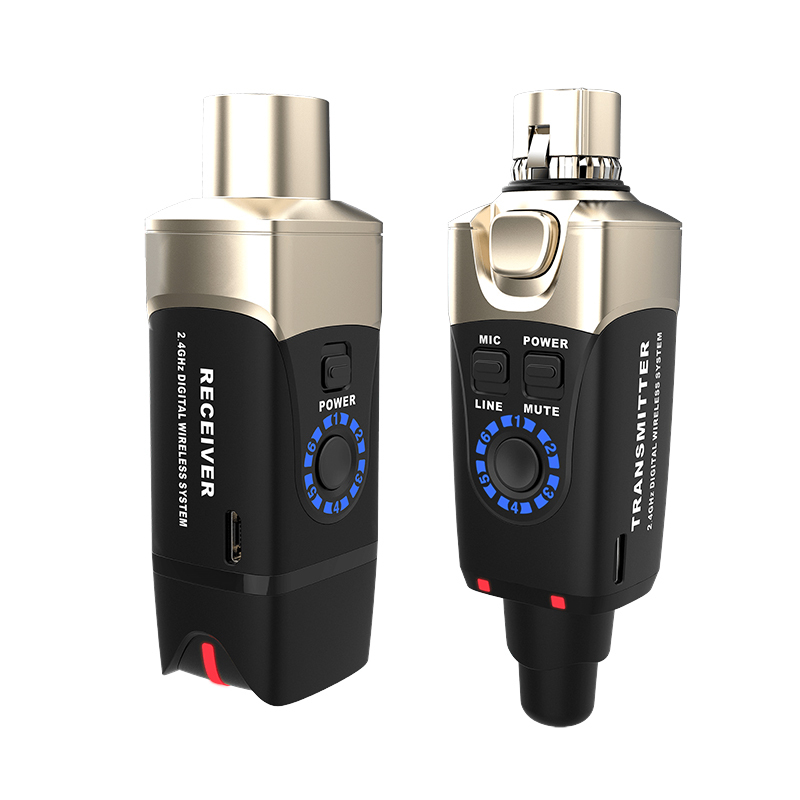

The system is comprised of a transmitter unit, which connects to your microphone; and a receiver, which connects to a mixer, sound interface, preamp, XLR cable or snake.

Your True Voice
The U3 system features high-resolution, 24-bit / 48 kHz audio, with a very wide and smooth frequency response between 20 Hz and 20 kHz and a signal-to-noise ratio of 107 decibels. Sing or speak without compromising the quality of your voice or your microphone!

Hold On To Power
The internal battery in both the transmitter and the receiver lasts for 5 hours. Both units can be easily charged at the same time using the included dual-USB cable and any standard 5V USB charger—and charging takes between 1.5 and 2.5 hours depending on the current of the charger being used.

Applications
The basic application is to run wirelessly from a dynamic microphone to a soundboard—live, at home or in the studio. But there’s a lot more you can do with the U3 System!

• Free Voice
  The U3 system is not only great for singers and rappers. Wireless freedom is liberating for harmonica players, public speakers, DJs, preachers, auctioneers, actors, politicians… anyone who wants to move freely while speaking or performing to an audience!

• Bypass the Mixer
  If you need to address a crowd through powered speaker cabinets, not only do you not need a cable, you don’t need a mixer! Just connect your U3 receiver directly to the XLR input of the cabinet.

• Control Your Range
  The U3 receiver can be connected to an XLR cable or snake, meaning that the transmitter’s signal doesn’t have to reach all the way to the soundboard or monitor desk—it can broadcast to the front of the stage, or any central and convenient location.

• Get Amped
  Beyond all the vocal applications, the U3 system can also be used with microphones for guitar amplifiers, as well as direct audio signals from balanced XLR outputs, for example from multi-effect processors or keyboards.

• PA Friend
  Run wirelessly from a PA mixing console to a powered main speaker, avoiding the hassles and risks of running speaker cables across a crowded venue! You can also run wirelessly between powered mains or between powered monitors.

• Free Instruments
  Use the U3 to roam free with any instrument that requires a microphone or clip-on microphone, such as harmonicas, violins, trumpets, saxophones and accordions! Make sure to choose the U3C if you use a condenser microphone.

• Freedom On Video
  The U3 system can be used to connect microphones to DSLR cameras—provided you have an adapter to run between the XLR receiver and the camera’s (usually 3.5 mm) audio input. Remember to use the U3C when connecting condenser microphones.

SPECIFICATIONS

Wireless Type: 2.4 GHz ISM worldwide open band
Bit Depth / Sample Rate: 24-bit / 48 kHz
Switchable Channels: 6
Simultaneous Channels: 6
Mode: Input: Mic / Line
Frequency Response: 20 Hz – 20 kHz (-3dB)
Dynamic Range: 110 dB (-3 dB)
Microphone Compatibility: Dynamic and battery-powered condenser microphones
Signal-To-Noise Ratio: 110 dB
Total Harmonic Distortion: 0.2%
Latency: 5 ms
Operating Range: 27.5 m / 90 ft (line-of-sight)

Battery
Type: Rechargeable Lithium-ion (internal)
Battery Life: 5 hrs
Charging Time: 2.5 hrs (full charge)
Charging Voltage: 5V (USB)
Usable While Charging: Yes

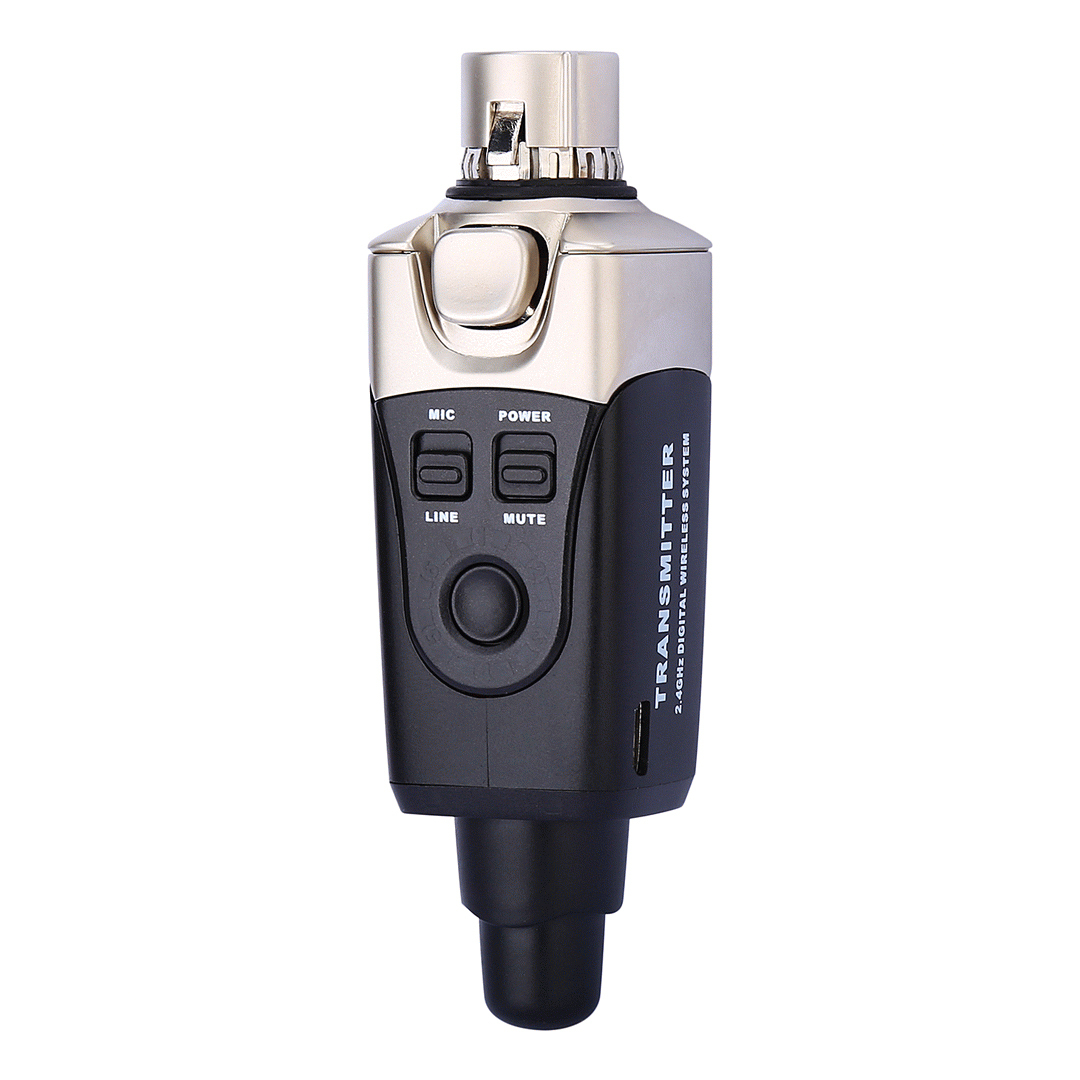

Transmitter
Model: U3T
Power: N/A
Mode: Input: Mic / Line
Connector: XLR (female)
Dimensions: 31 x 29 x 98 mm / 3.9" x 1.2" x 1.1"
Weight: 93 g / 3.3 oz
Mute: Yes

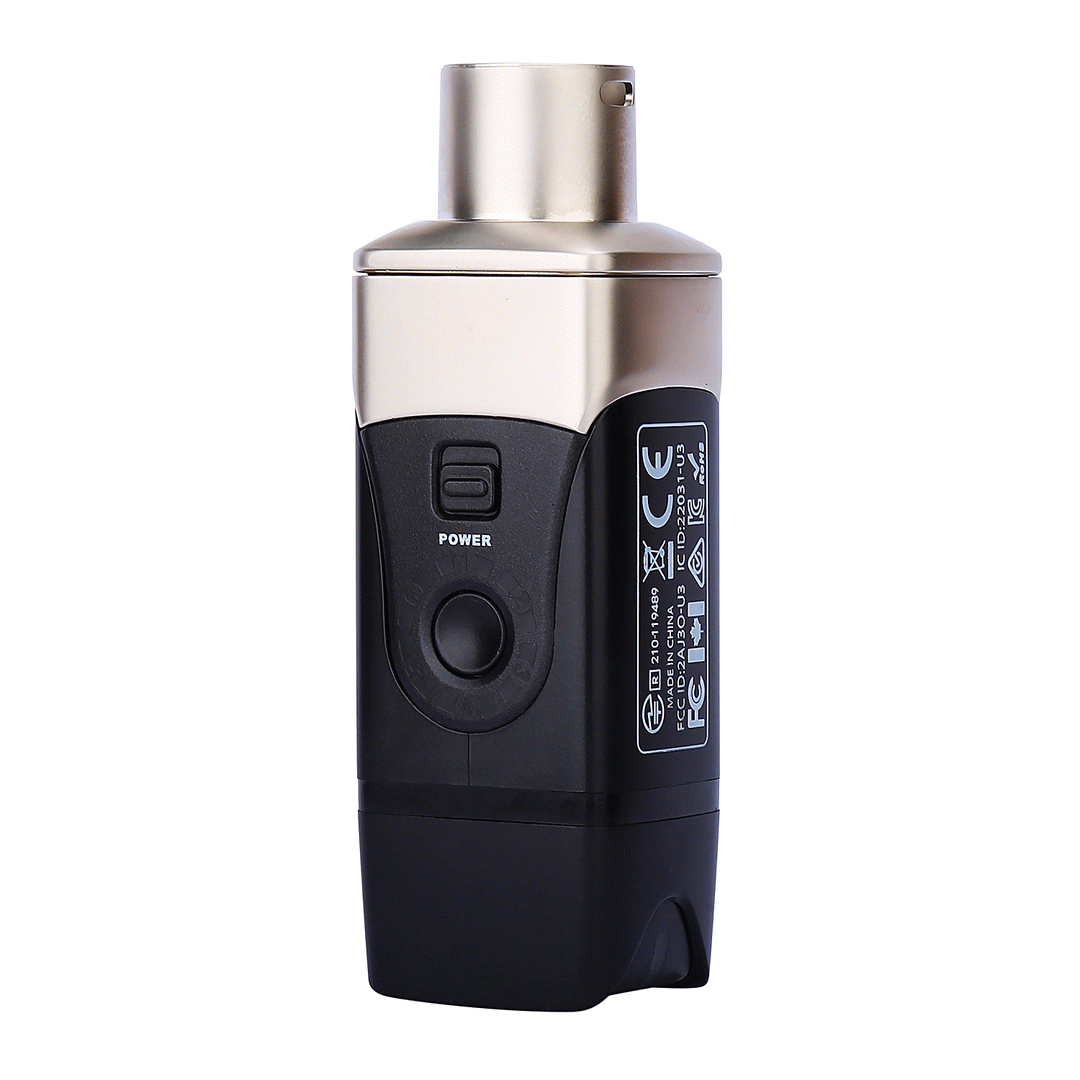

Receiver
Model: U3R
Connector: XLR (male)
Dimensions: 98 x 31 x 29 mm / 3.9" x 1.2" x 1.1"
Weight: 92 g / 3.2 oz
