Tascam FR-AV2

Compact 32-bit Float Field Recorder and Timecode Generator with Mixer

The TASCAM FR-AV2 is a compact and comprehensive audio recording solution for videographers, combining enhanced 32-bit float point recording with built-in timecode generation to greatly improve efficiency.  Ultimate Timecode allows you to integrate industry-standard videography gear, with no need for an external timecode device. And you can wirelessly monitor your audio signals with the optional AT-BK2 Bluetooth adapter.

FEATURES

• Dual ADCs with enhanced 32-bit float recording for fast setup and worry-free capture

• 2 XLR/TRS Combo inputs with Ultra HDDA Preamps, EIN -127dbu, and 3.5 mm input

• Rec format: 48k/96k/192kHz supported

• Timecode IN/OUT and timecode generation/sync function with high accuracy TCXO

• Wireless audio monitoring with the optional AK-BT2 Bluetooth adapter (sold separately)

• 2-in/2-out USB-C audio interface for Mac/Windows/iOS devices supporting 32-bit float

No-Clip Recordings
The FR-AV2’s enhanced 32-bit float recording up to 192kHz means you'll never have to scrap a recording due to distorted or weak audio levels. When recording at lower bit depths like 24-bit and 16-bit, loud sound sources can cause digital clipping that cannot be fixed during editing. By using dual analog-to-digital converter technology, recordings are captured with greater dynamic range and clarity — you can increase the level of dialog without creating a distracting change in tone or dynamics.

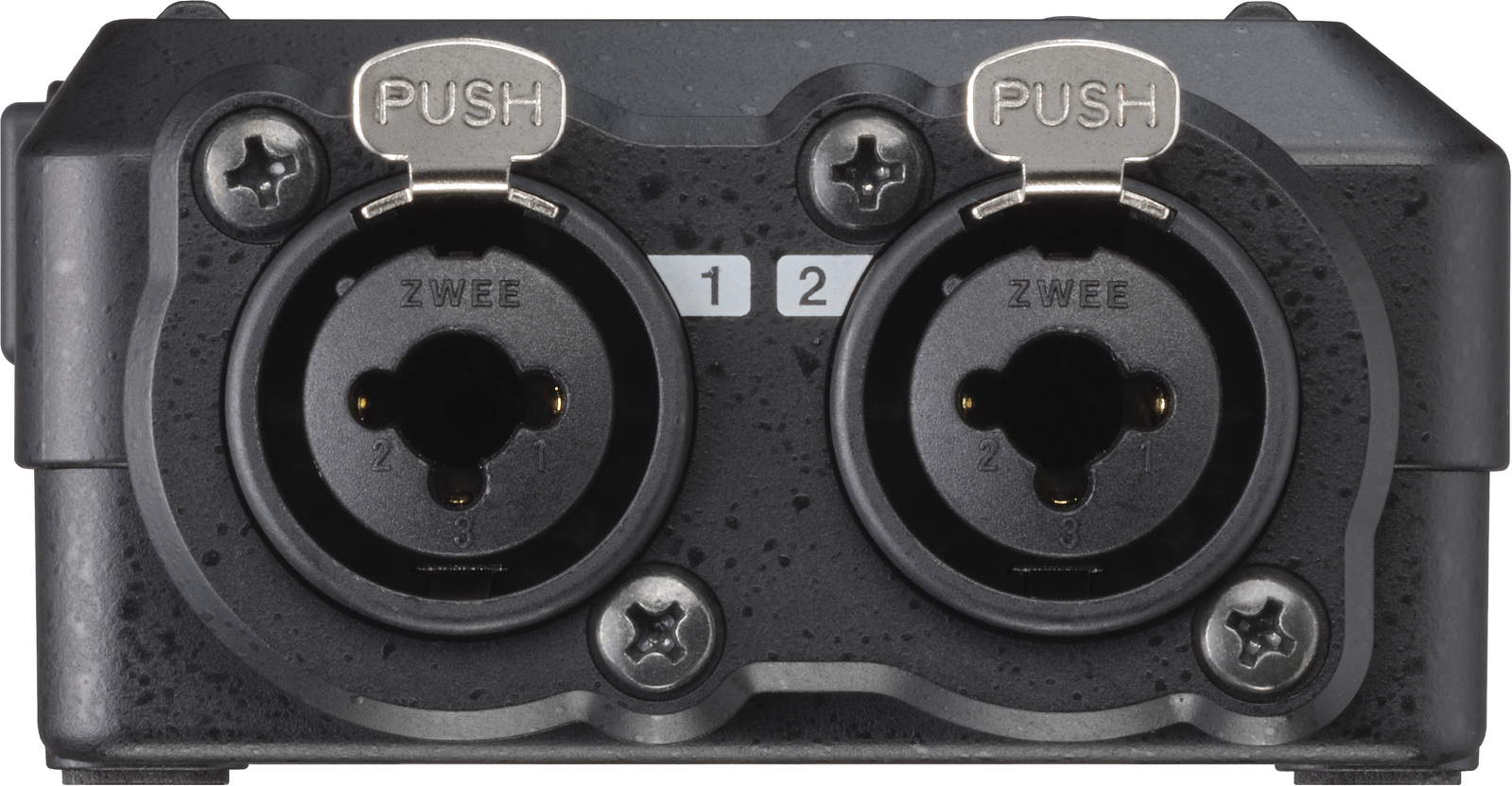

Premium XLR/TRS Combo Inputs
Connect microphones and professional line-level sources directly to the FR-AV2 dual Ultra HDDA preamps. Capture audio with maximum clarity and ultra-quiet with an EIN of -127dBu. In addition, the 3.5mm stereo input supports the use of wireless microphones, lavalier mics, and any other audio sources you might have in your arsenal.

Ultimate Timecode Generation
You’ll be able to streamline your videography rig and take less gear to shoots with the FR-AV2. FR-AV2 generates and reads timecode via 3.5 mm IN/OUT for DSLR cameras and also supports Jam-Sync for any external timecode devices. Using the optional AK-BT2 Bluetooth adapter, you can also wirelessly sync timecode with supported Atomos UltraSync BLUE devices.

Wireless Audio Monitoring
Adding the optional AT-BT2 Bluetooth adapter allows you to wirelessly monitor audio signals on the fly. Depending on your recording environment, choose one of three modes to confirm you are receiving the best signal possible including connectivity, monitoring quality and latency settings. Dual wired and wireless monitoring work in parallel, which means 2 users can monitor the audio simultaneously.

iPhone Filmmaker, Meet Your Professional Audio Interface
Whether you’re always on-the-go or find yourself creating impromptu content, the FR-AV2 can easily fit into your iPhone video rig with a USB-C cable. This allows high quality audio from professional XLR inputs and the ability to send and sync timecode. Via TC OUT/IN, with your phone, the FR-AV2 transforms your mobile videos into pro-grade productions.

You won’t find a more comprehensive audio recorder for videography — the FR-AV2 allows you to focus more on your video shoot and less on your audio gear. With the FR-AV2 mounted to your camera you have dual audio inputs, 32-bit float recording, onboard timecode generation and sync, and wireless audio monitoring capability — all in a single rugged housing.

High-Precision Sync in Demanding Environments
The FR-AV2 is equipped with a high-accuracy temperature-compensated crystal oscillator (TXCO), designed for ultra-precise and consistent sync performance even in high-temperature environments.

Advanced Input Processing
Fine-tune your audio before capture with onboard low-cut filter, compressor, limiter, and noise gate.

High-Capacity Audio Recording
Even when using 32-bit recording mode, the FR-AV2 provides the recording capacity you need to handle long video shoots. With support for up to 512GB SDXC recording media, you’ll spend less time swapping cards and more time creating content.

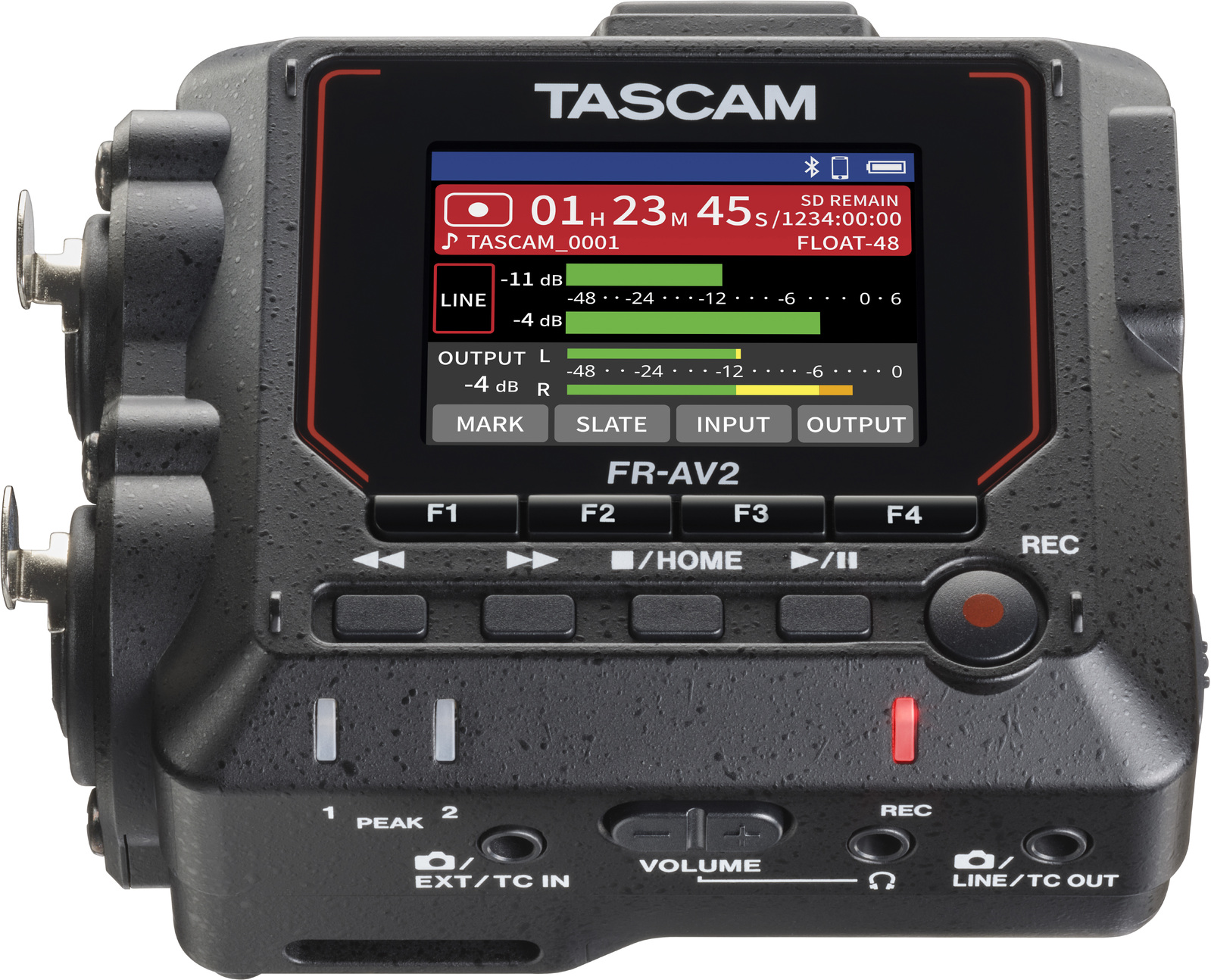

Color LCD Control
A vibrant 2-inch color LCD display maximizes visibility and operability when managing your shoot.

AK-BT2 Bluetooth Adapter
The optional Bluetooth adapter can be used for wireless timecode, to sync multiple FR-AV2 units, to monitor audio wirelessly or even sync multiple FR-AV2 and DR-10L Pro units simultaneously with the TASCAM Recorder Connect app.

App Control
The free, downloadable TASCAM Recorder Connect app for iOS, iPad OS and Android allows you to simultaneously control multiple FR-AV2 and DR-10L Pro units from your portable device (requires AK-BT2 Bluetooth adapter, sold separately)

32-bit Float Audio Interface
The FR-AV2 functions as a 2-in/2-out USB-C audio interface for Mac/Windows/iOS devices supporting 32-bit float.

Additional Features

• Supports up to SDXC 512 GB recording media

• Free TASCAM RECORDER CONNECT app for iOS, iPadOS and Android allows you to control multiple units including FR-AV2 and DR-10L Pro with the optional AK-BT2 Bluetooth adapter (sold separately)

• 2-inch color LCD screen for easy visibility and operability

• Multiple functions on inputs, including low-cut, compressor, limiter, and noise gate

• Adjustable input delay to compensate for distance between microphones [0-300 ms].

• Output delay adjustment available to compensate for camera video and audio output [0-300 ms].

• Mark and auto-slate tone functions

• 3.5mm stereo headphone jack

• Camera/EXT input with plug-in power (+2.5V/+5.0V) function and Camera/Line outputs

• Wireless timecode synchronization with Atomos UltraSync Blue

• 3 AA batteries or USB bus power

• Supports capturing metadata (WAV file BEXT and iXML) when recording

• Compact, lightweight fiberglass enclosure designed for use with camera rigs

What’s in the Box

• FR-AV2 x 1

• Safety Guide (with warranty) x 1

• TASCAM ID registration guide x 1

Weight & Dimensions
Dimensions: 99 × 80.4 × 40.3 mm (W x H x D, including protrusions)
Weight: 195 g (with/without batteries)
