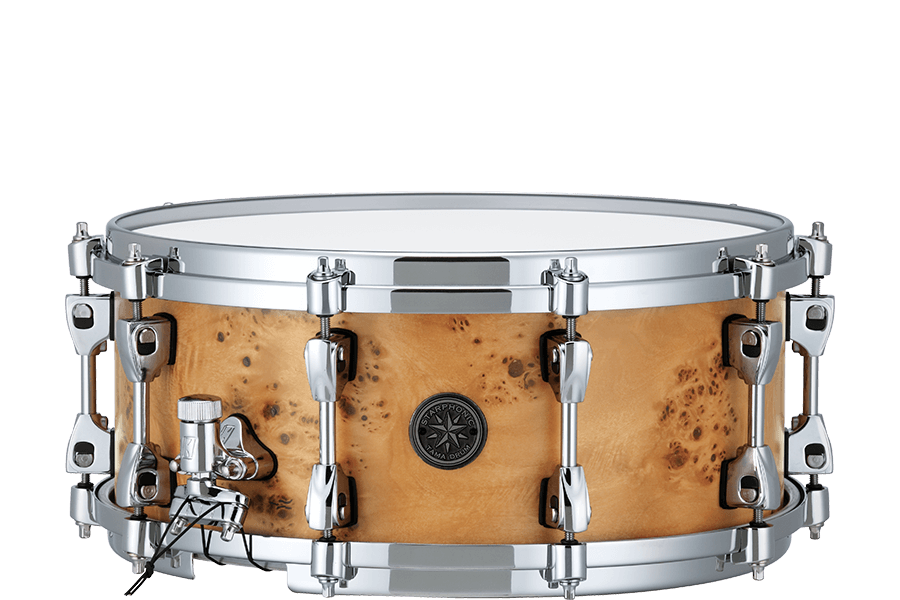

Tama PMM146 STARPHONIC Maple 14"x6"

The combination of Maple's open, resonant sound with the Grooved Hoop and super sensitive Hi-Carbon Snappy gives this drum a rich, open, crisp sound reminiscent of prized vintage snares

Bearing Edge

The shape of the edge is one of the most important factors which affect drum sound. Because the drumheads provide the important source of vibration, the shape of the contact point of the head and shell determines and defines the sound. This is why TAMA has worked so extensively on achieving the most functional shape for the drum head and edge.
Picture shows a sectional view of the drum's bearing edge. As shown in Part A, the angle of the top edge is set 2.5mm inside from the outer surface of the shell. The edge is cut to a round collar so as to follow the natural shape of the drumhead (B). This design, which creates a better fit between the drumhead and bearing edge, maximizes the resonance of drum.This bearing edge shape is part of our TAMA tradition and is crucial in providing TAMA's unique drum sound.

Super Sensitive Hi-Carbon Snare Wire

In order to provide a more crisp and sensitve sound, we redesigned our snappy snare, using new materials and customizing the shape of the plate and the wire coil's winding pattern. As a result of these modifications, the new "Super Sensitive Hi-Carbon Snappy Snare" fits more closely to the snare side head, demonstrating greater sensitivity and brighter, crisper sound.

Non-Loosening Rubber Gasket (US.PAT.NO. 7825318)

STARPHONIC's claw hooks have a rubber block inside to prevent the tension bolts from loosening during playing. Once the tension bolt is tightened, the claw hook is pressed towards the hoop. This also presses the rubber block inside the claw hook and adds pressure to the tension rod inside.

Ratchet Style Snappy Tension Adjuster

To prevent the snappy snares from loosening, TAMA incorporated a ratchet system on the strainer's tension adjustment mechanism. Much like an adjustment tool with fine gears, it achieves high-pressure retension, even with extreme settings. Single click adjustments offer a vertical pull of 0.083mm of wire motion, which allows you to achieve ltra sensitive micro-adjustments.

Detachable Butt Plate

The Detachable Strainer Butt allows you to change your snare side head, but keeps the snare wire tension in its original state. Just loosen the two screws and detach the butt plate with the snappy snares still on. When you reattach tha butt plate, the snare wire tension will be restored to its original position and calibration. The Grooved Snare Side Hoop features an open frame for simpler operation.

Model No.: PMM146

Size: 14"×6"

Shell Material: 6mm/6ply maple + outer 1ply mappa burl

Hoops: Grooved Hoop

Lugs: Freedom Lug

Strainer/Butt: "Linear-Drive" Strainer/Detachable Butt

Snare Wire: MS20RL14C

Inlay Option: -
