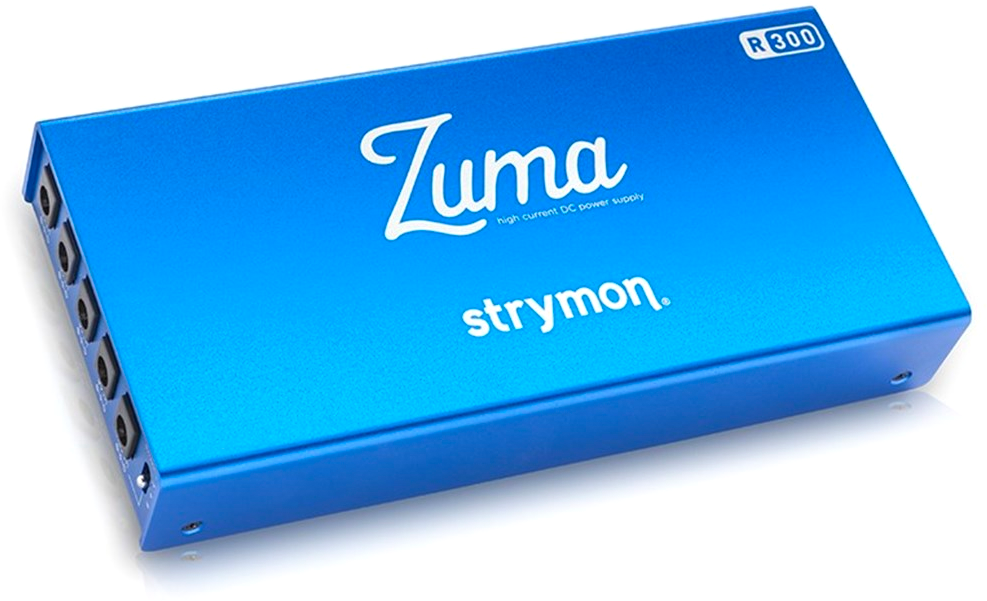

Strymon Zuma R300

High Horsepower, Low Profile.

Zuma R300 is the highest horsepower, most technologically advanced low profile effects pedal power supply. You get clean, rock-steady power for your 9V, 12V and 18V effects pedals in a pedalboard friendly, expandable package, giving you room to grow. Zuma R300’s ultra-low profile design means that it can fit under just about any pedalboard.

Dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering result in a power supply that allows your pedals to achieve their highest possible dynamic range.

Dual isolation.
Zuma R300’s all analog circuitry offers two stages of isolation, completely eliminating ground loop and AC line noise issues, allowing your pedals to sound like they were designed to sound.

Ultra-low profile.
Zuma R300’s ultra-low profile design means that it can fit under just about any pedalboard. With built in threaded hardware, mounting to your board is simple.

FEATURES

Never run out of outputs.
Is your pedalboard growing? Add more outputs to your Zuma R300 by connecting a Strymon Ojai or Ojai R30 (sold separately) with the 24V Out jack.

Zuma R300 is part of a truly expandable, modular power distribution system that can grow with your pedalboard.

Hear your pedals, not your power.
Many popular guitar pedals were originally designed to work with batteries. Since batteries are inherently very low noise and not susceptible to ground loops, these pedals often were not designed to be resistant to noise from power supplies.

Our ultra-low-noise design prevents power noise from bleeding into the audio signal, allowing your pedals to deliver the highest possible dynamic range.

12V & 18V Options
Do you have a pedal that requires 12V or 18V? Zuma R300 has you covered. One channel has selectable 9, 12, or 18V output voltages.

Some analog pedals designed for 9V operation may provide higher output and/or more clean headroom when run at higher voltages such as 12V or 18V. However, others will simply start smoking and melting, so please check with the manufacturer of your pedal before operating at a higher-than-standard voltage!

Dual Isolation
Zuma R300’s all analog circuitry offers two stages of isolation. Each of the five output channels is individually isolated from the 24V DC, and the 24V DC is isolated from the AC input power, eliminating ground loop and AC line noise issues.

Zuma R300 also provides dual power regulation: Wide-bandwidth optically isolated feedback loops on each channel, as well as on the input, allow both the input and outputs to adjust for changes, ensuring solid output under changing load conditions.

World Tour Ready
Playing gigs all around the world? No need to purchase separate power supplies for your international tour.

Zuma R300 has automatic worldwide power compatibility built-in (when connected with the appropriate IEC cable). Whether you’re on 120V, 240V, 100V, or any variation in between, Zuma R300 will deliver clean, reliable power to your pedals, even if the venue has dirty power.

Energy Efficient
Don’t let the blue chassis fool you: Zuma R300 is green at heart.

Significantly more efficient than linear power supplies, Zuma R300 is able to deliver substantially more current while handling a much wider range of input voltages.

The high efficiency design delivers high-current power distribution in a compact unit, for a small carbon footprint and a small pedalboard footprint.

Pedalboard Friendly
Zuma R300’s ultra-low profile design means that it can fit under just about any pedalboard.

It also features built in threaded hardware for easy mounting.

SPECIFICATIONS

Ins & Outs

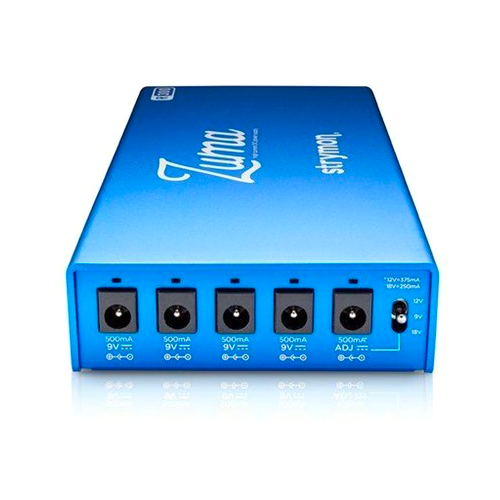

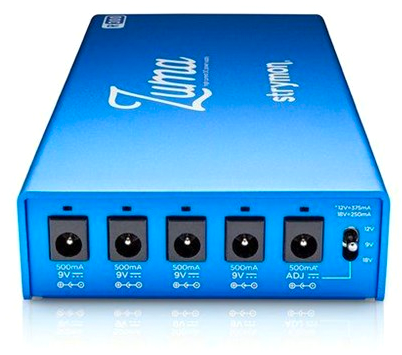

• 5 high-current, fully isolated outputs with center-negative polarity
  • 4 dedicated 9V outputs (500mA)
  • 1 adjustable output offers 9V (500mA), 12V (375mA), or 18V (250mA) DC options
• 500mA per 9V output powers nearly any pedal
• Delivers a maximum of 36W
• 5 pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to right angle, 18″ length)
• IEC cable included
• 24V Thru jack allows connection to Strymon Ojai or Ojai R30 (sold separately)

Technology

• 5 individual custom transformers (one per channel) deliver clean, consistent power
• Worldwide power compatibility ensures no-hassle international touring
• Energy efficient, compact design

Construction

• Lightweight and rugged anodized midnight blue aluminum chassis
• Ultra low profile design fits under nearly any pedalboard
• Designed and built in the USA

Frequently Asked Questions

What are the dimensions and weight of Zuma R300?
Zuma R300 Dimensions: 7.25″ x 3.5″ x 1.18″ (184mm x 88mm x 30mm)
Zuma R300 Weight: 0.9 lbs. (400g)

When Zuma R300 is linked together with Ojai or Ojai R30 units, how many pedals can I power?
Is your pedalboard growing? Gain more outputs by linking as many as 5 Ojai units to your Zuma R300, powering up to 30 effects pedals. While it’s unlikely that anyone would go to such extremes, we wanted to ensure Zuma delivers maximum flexibility and expandability. A much more likely scenario would be to link 1 or 2 Ojai units to your Zuma R300, powering a combination of up to 15 high and low current draw pedals.

How can I mount Zuma R300 to my pedalboard?
Zuma R300 features built in threaded hardware for easy mounting to the top or bottom of most pedalboards. A drill template and mounting screws are included in the box.

Don’t want to drill? Zuma R300 is incredibly lightweight, and can also be mounted to the bottom or top of most pedalboards using VELCRO® or Dual Lock™.
