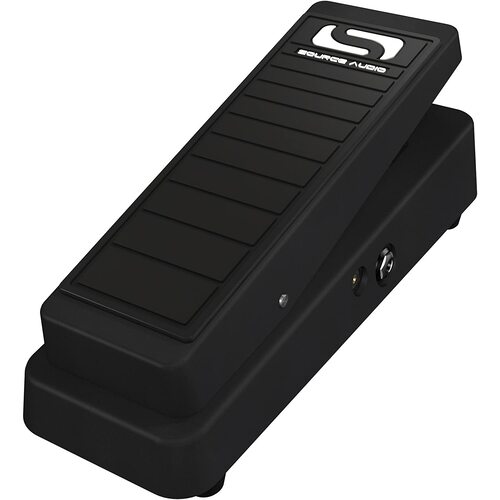

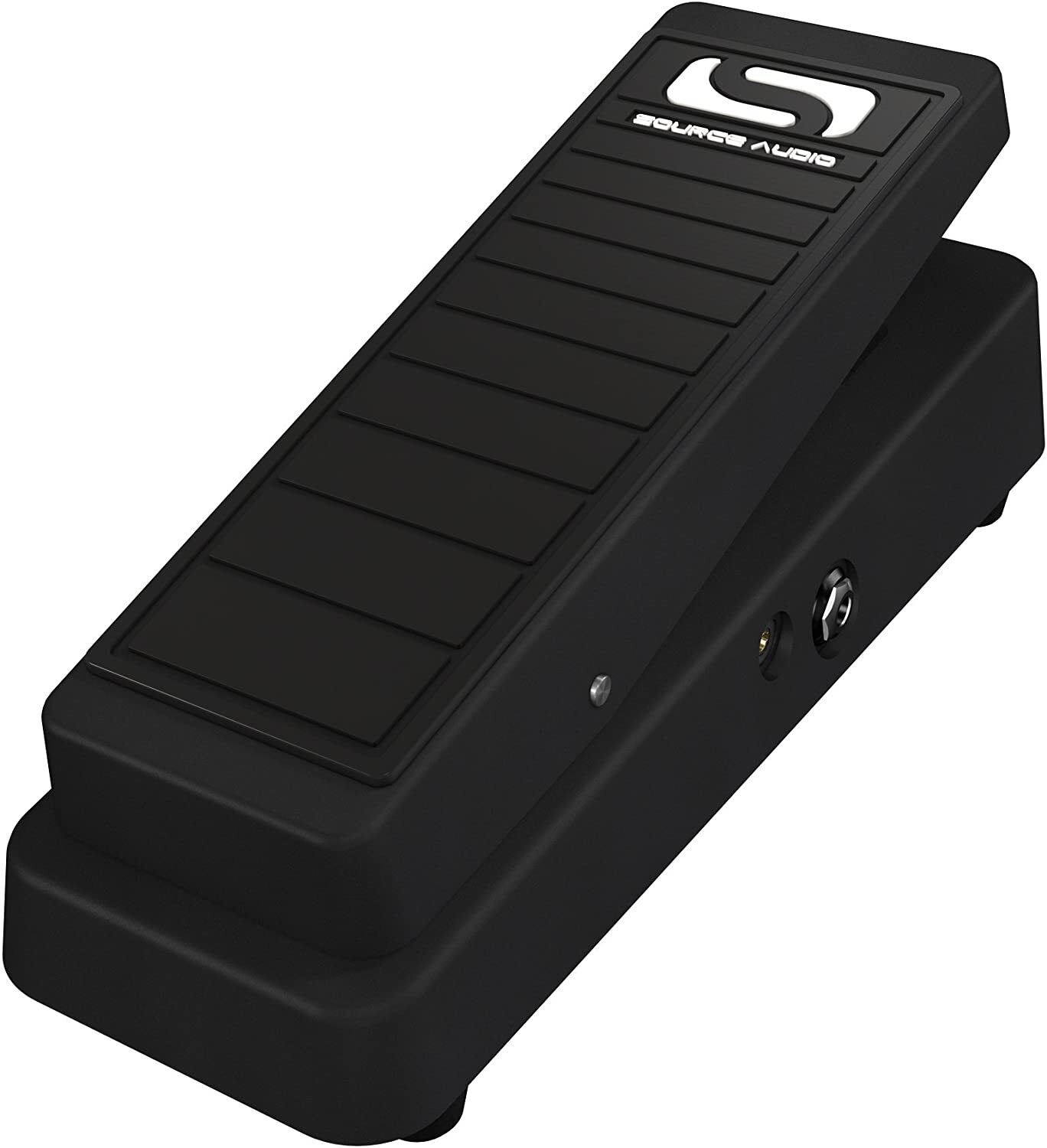

Source Audio Dual Expression Pedal
Dual Expression Pedal
THE SOURCE AUDIO DUAL EXPRESSION PEDAL DELIVERS PRECISION RESPONSE AND SMOOTH ACTION IN A DURABLE CAST ALUMINUM HOUSING.
Dual TRS expression outputs make it possible to control two effects units simultaneously.
The pedal is compatible with the very common Boss/Roland style (“tip hot”) expression input.
The Range Adjust Knob sets the bottom point of the expression range.
Plus, a special Sensor Output connects directly to any Hot Hand®, Soundblox®, Soundblox 2, or Soundblox Pro pedal for real-time control over filter sweeps, effect modulation, LFO speeds, wet/dry mixes, drive levels and more.
Additional Features and Specifications
- Two Isolated TRS Expression Outputs – simultaneous control over multiple effect pedals or rack systems.
- Sensor Output — 1/8-inch; four conductor output compatible with all Soundblox, Soundblox 2, or Soundblox Pro pedals.
- Range Adjust Knob — Adjusts the range of expression signal sent through the outputs.
- OUTPUT 1: sends expression signal out via either 1/4 inch TRS cable or 4 conductor Soundblox compatible 1/8 inch sensor cable.
- OUTPUT 2: sends expression signal out via 1/4 inch TRS cable.
- Rugged, cast aluminum housing.
- Includes one 1/4-inch TRS connector cable and one 1/8 inch four conductor Sensor Output cable
- Dimensions: 25.4cm (Length) x10.2cm (width) 7.6cm (height)
