Sonarworks SoundID Reference w/ Measurement Mic

A speaker and headphone calibration software delivering consistently accurate studio reference sound.

In less than 20 minutes you can calibrate your existing studio speakers with the included SoundID Reference measurement microphone and calibrate your existing headphones with more than 400 headphone calibration profiles built in to the software as ready-to-use presets.

With an applied calibration profile the software sets the frequency response target to be completely flat across all audible frequencies so you can make music that sounds great everywhere.
You can also now make custom adjustments to the target curve in real time with the new custom target feature.

With accurate studio reference sound you can seamlessly switch between speakers, headphones, and rooms. Finally, ensure continuity of your workflow regardless of distance, your gear or set-up.

FEATURES

• Speaker calibration: save as many profiles as needed

• Headphone calibration profiles for 400+ supported models

• Custom target: target curve adjustments in real time

• Translation Check: simulating 20+ different devices and device types for accurate mix translation results everywhere without leaving the workstation

• 3 filter modes: Zero Latency, Mixed and Linear Phase

• Additional DSP processing controls: Mono, Dry/Wet and Safe Headroom

• MIDI mapping in the SoundID Reference app for various controls

• User Presets in the SoundID Reference app for switching quickly between predefined output device/channel pair combinations

What’s Included:

• SoundID Reference app for Speakers & Headphones

• SoundID Reference DAW plugin (AU, VST, AAX)

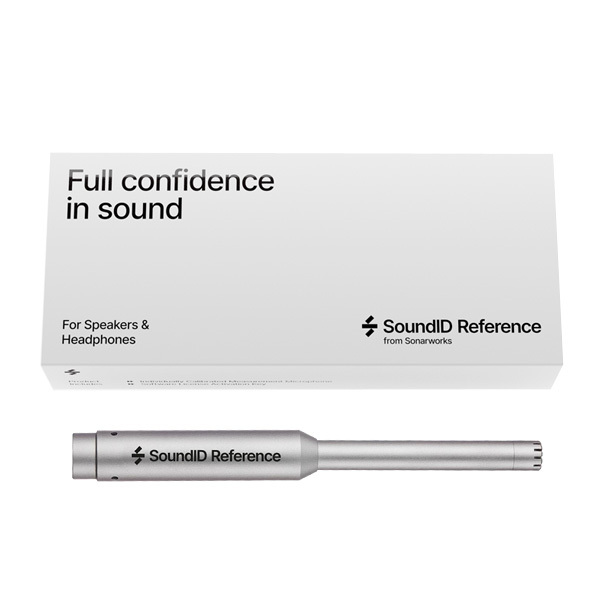

• SoundID Reference Measurement Microphone with an XLR connection and individual calibration profile

• Averaged profiles for 400+ supported headphone models

• Activation key for the product license: the product can be activated and used on 3 machines

System Requirements:

• Mac: macOS 10.12 or later

• PC: Windows 8 (64-bit) or later

• Sonarworks supported or Sonarworks individually calibrated headphones

• 2.0 or 2.1 stereo speaker system

• An audio interface featuring +48V Phantom Power and 44.1 kHz sample rate capability

• During the speaker measurement process, the audio hardware setup must consist only of a single external hardware device

• XLR to XLR audio cable

Microphone Specifications:

• Houses a pre-polarized electret-condenser capsule

• Frequency response: 20 Hz – 20 kHz with a supplied calibration profile

• Omnidirectional polar pattern

• Sensitivity is rated at -37 dB/Pa (14 mV)

• Self noise: 24 dB

• S/N ratio: 70 dB

• Dynamic range: 106 dB

• Maximum SPL: 132 dB
