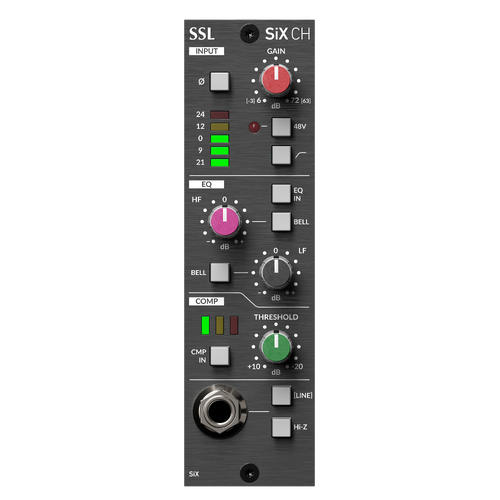

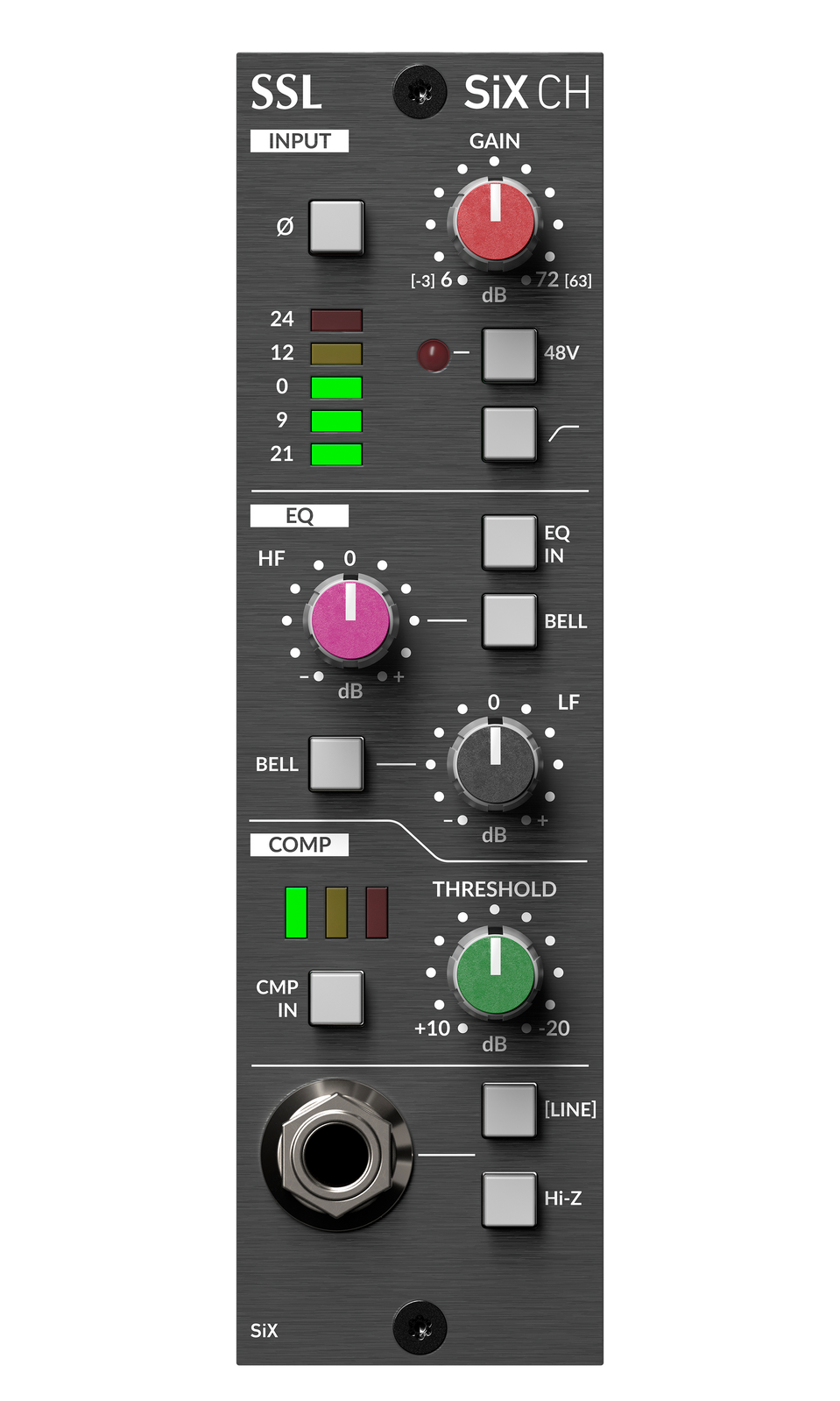

Solid State Logic SiX CH

Deceptively simply, extremely effective

SiX Channel Strip (SiX CH) is a single-width 500 Series channel strip using the SuperAnalogueTM channel processing features from SSL’s SiX console including the Mic-pre, low and high frequency EQ, as well as the single knob compressor.

FEATURES

• SSL SuperAnalogueTM  mic pre

• +48V phantom power

• Phase invert switch

• 5 segment LED meter in dBu

• Switched 12 dB/oct, 75 Hz High Pass Filter (HPF)

• Classic SSL HF and LF EQ

• Switch from shelf to bell curve

• Single knob Channel Compressor with variable Threshold.

• Front Panel TRS Line Input with 1MΩ Hi-Z switch.

• Dedicated output Trim

SuperAnalogue
Using the same technology as SiX and large-format SSL consoles, SiX CH features a SuperAnalogueTM mic pre, offering wide gain range and ultra-low noise. It’s clean, fast and punchy - the perfect preamplifier for any source material.

SSL HF and LF EQ
SiX CH EQ is a classic SSL style gentle, broad stroke two-band design with high and low shelving filters at 3.5 kHz and 60 Hz, +/-15 dB gain range. Each band can be independently switched between shelving and bell curves. The bell curves change centre frequency to operate at 5 kHz and 200 Hz giving greater versatility from the two controls.

Channel compressor
A ‘one knob’ channel compressor with features that give powerful and versatile performance from its deceptively simple controls. Using the tried and tested SSL feed-forward circuit design, program-dependant attack time and automatic make-up gain to maintain signal level.

TRS Line Input
The front facing TRS line input offers a convenient way to add instruments on the fly or use SiX CH as a feature packed summing module. 10 kΩ nominal Line Input impedance can be changed to 1 MΩ via the Hi-Z switch. The 1MΩ impedance makes this input suitable for very high impedance sources such as passive guitar pickups without the need for an external DI box.

SPECIFICATIONS

Module signal: Mono
Pre-Amp Gain: Variable from +6 to +72 dB (Mic), -3 to +63dB (Line)
Mic Pre EIN: Typically 129dB
THD+N: <0.0015%
CMRR: >80dB (Mic), >70dB (Line)
