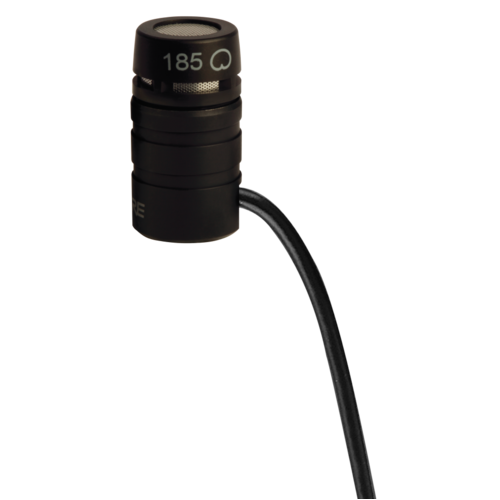

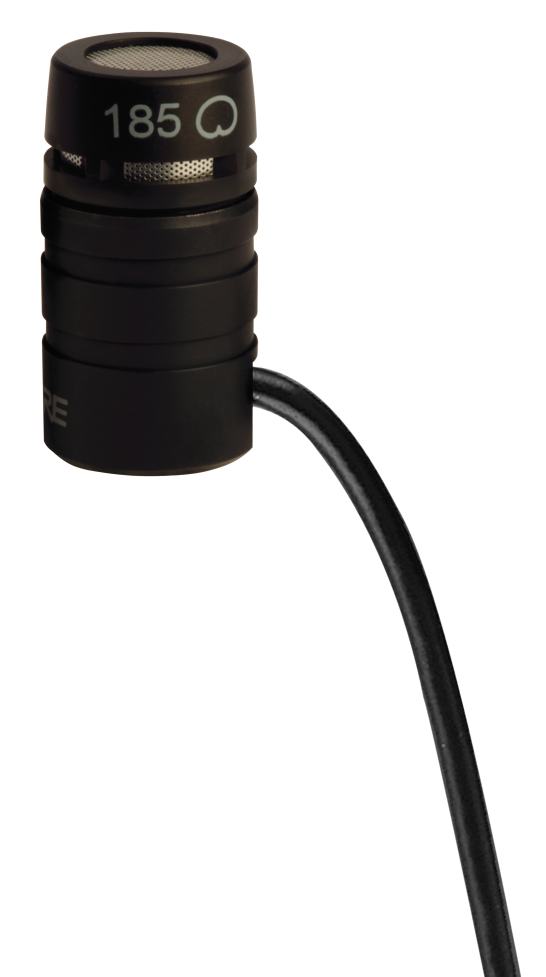

Shure WL185 Cardioid TQG Lavalier Microphone
Cardioid TQG lavalier microphone offers an interchangeable cartridge and consists of a tie clip, and foam windscreen. Features include wide dynamic range and frequency response for accurate sound reproduction and increased immunity to noise.
What is the WL185 best suited to?
The WL185 cardioid miniature lavalier condenser microphone is designed for use in speech applications such as broadcast presenting, speeches, lectures and for use in houses of worship.
What is an interchangeable cartridge?
All the microflex series of microphones use interchangeable cartridges (sold seperately) which means you can swap between cardioid, supercardioid and omnidirectional condenser cartridges simply by screwing them on to the top of the lavalier mic.
Want to use it wired?
The WL185 is designed for wireless use with a bodypack transmitter. If you wish to use it wired, choose the MX185 which is the same microphone but including an in-line preamplifier and a 1.2m cable with TA4F connector.
FEATURES
-
Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
-
Interchangeable cartridges that provide an optimal choice for each application
-
Rotatable tie-clip that pivots in 90 degree increments for placement flexibility
-
Supplied snap-fit foam windscreen that controls breath noise and stays on securely
-
Supplied dual tie clip holds two microphones for dual miking applications
SPECIFICATIONS
Type: Condenser (electret bias)
Frequency Response: 50 to 17,000 Hz
Output Impedance: 1800 Ω
Sensitivity: -45.5 dBV/Pa
Maximum SPL: 130.5 dB SPL
Self Noise (A-Weighted): 28.0 dB SPL
Dynamic Range: 102.5 dB
Polarity: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
Power Requirements: Regulated nominal +5 Vdc (1.5 Vdc to 10 Vdc) provided at microphone connector pin 2 relative to pin 1 of a Shure wireless microphone transmitter
