Shure SM4 Home Recording Microphone Kit

Bring the studio home with the new SM4 Home Recording Microphone. Capture professional recordings of vocals and instruments with mix-ready audio and interference protection. The 1” brass dual-diaphragm capsule is engineered to consistently reproduce every element of your performance with remarkable accuracy and exceptional low-frequency control. Patent-Pending Interference Shielding Technology blocks unwanted RF noise from wireless devices including cellphones, laptops and wi-fi routers, while the internal pop filter minimizes plosives. A sleek, low-profile design with all-metal construction delivers the perfect upgrade for your home studio.

Your Home Studio, Upgraded.

Smooth and Natural Audio Reproduction
Equipped with a brass 1-inch dual-diaphragm capsule, the SM4 captures clean, controlled low-end and smooth, detailed highs. The uniform cardioid polar pattern provides superior off-axis rejection of unwanted noise, and the large “sweet spot” reduces proximity effect.

Patent-Pending Interference Shielding Technology
Block unwanted RF noise from common wireless devices including cell phones, laptops, and wi-fi routers. The proprietary system features an integrated pop-filter and woven mesh faraday cage that shields the microphone capsule for clean audio capture.  

Mix-Ready Sound, Effortlessly  
Internal pop filter enables clean, plosive and rumble-free recordings for easier post-production work. Compress or EQ to taste without bringing forward unwanted elements that can plague recordings and mixes.  Additionally, the SM4 works with any interface to achieve professional-quality recordings, no matter the environment.

Exceptional Flexibility for Vocal and Instrument Recording 
Optimized to capture a wide range of sound sources from soft vocals to loud instruments including drums, guitar amps, and horns with exceptionally high-SPL handling (max SPL of 140dB).

Legendary Durability & Camera-Ready Design
Rugged, all-metal construction and exceptionally high-SPL handling from a brand with decades of experience in producing reliable gear for the stage and studio.  A sleek, low-profile design won’t obscure the performer or environment. 

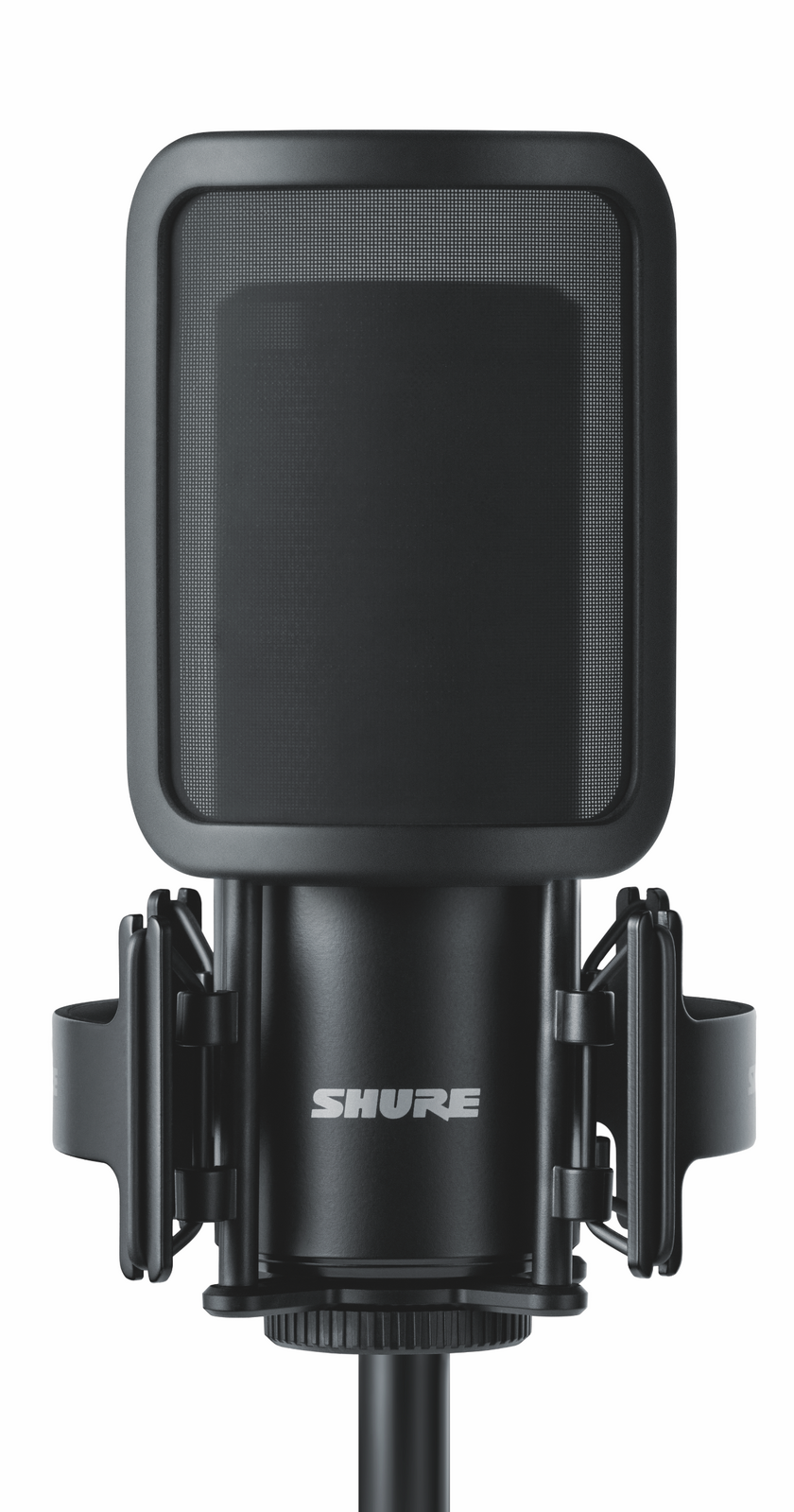

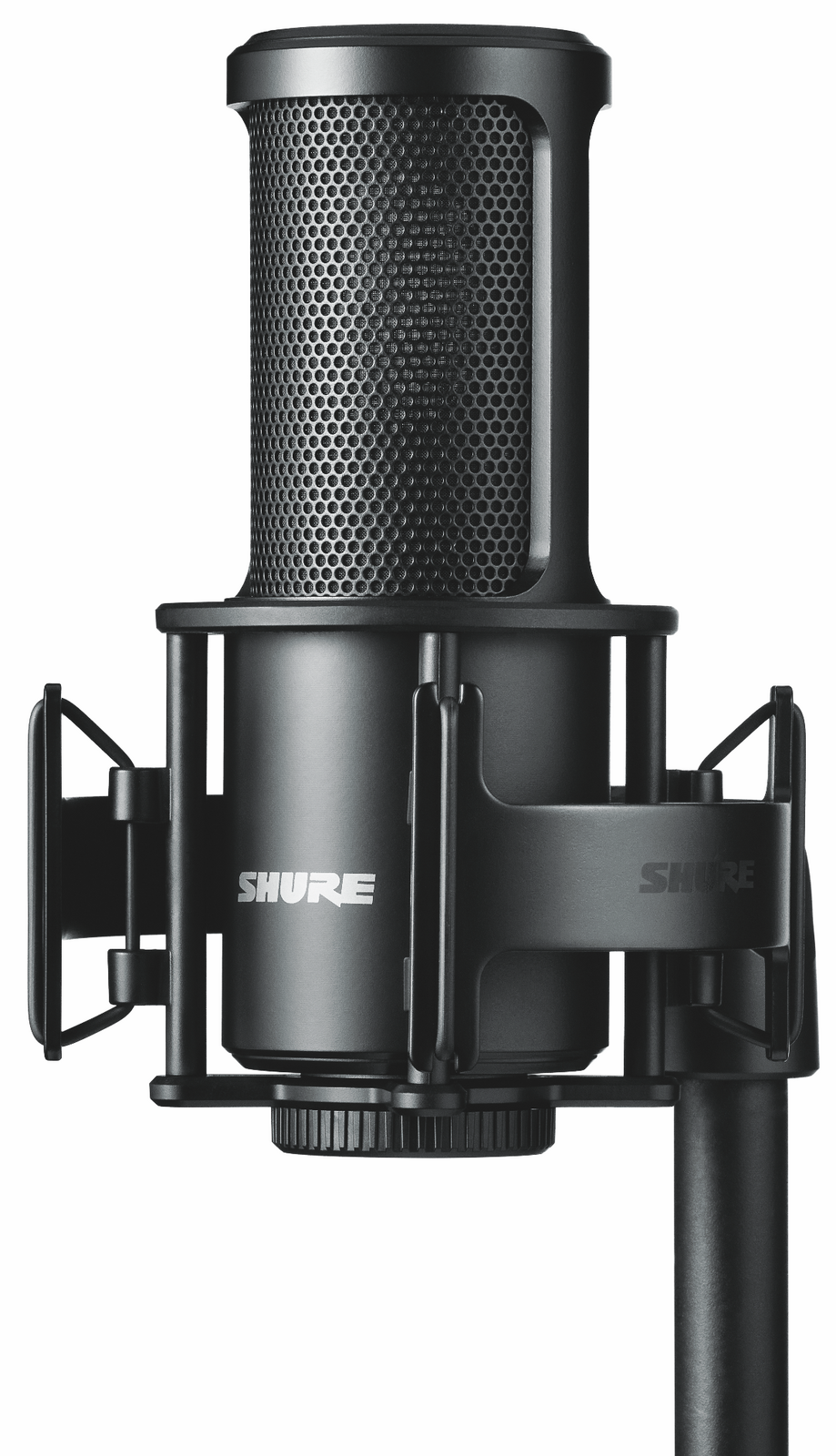

Shock Mount & Detachable Magnetic, Pop Filter
Included in this kit, the shock mount and detachable pop filter dampen undesired noises including rumbles, vibrations and plosive “pop” sounds. When combined with the internal pop filter of the microphone, the detachable pop filter creates a two-stage filtering system that dramatically increases the resistance of plosives. 

SPECIFICATION

Type: True Condenser
Polar Pattern: Cardioid
Frequency Response: 20Hz to 20kHz
Output Impedance: 150 Ω
Sensitivity (at 1kHz, open circuit voltage): -38 dbV/Pa, 1 Pascal=94 dB SPL
Maximum SPL (1kHz at 1% THD): 1000 Ω load: 140 dB SPL, 2500 Ω load: 145 dB SPL
Polarity: Positive pressure on diaphragm produces positive voltage on Pin 2 with respect to Pin 3
Connector: Three-pin professional audio (XLR), male
Net Weight: 463 g (1.02 lbs)
Housing: Cast Zinc
Power Requirements: [1] 1 Pa=94 dB SPL 48 V DC Phantom Power (5.3 mA)

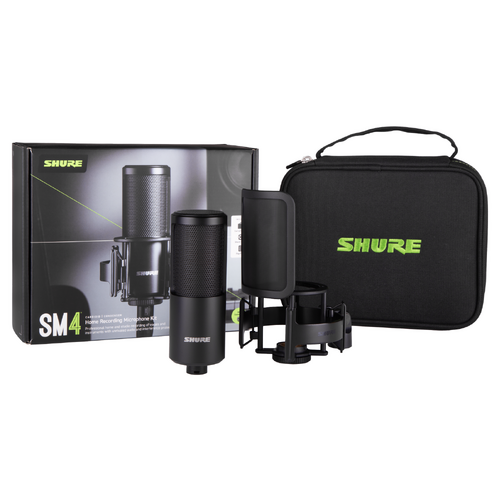

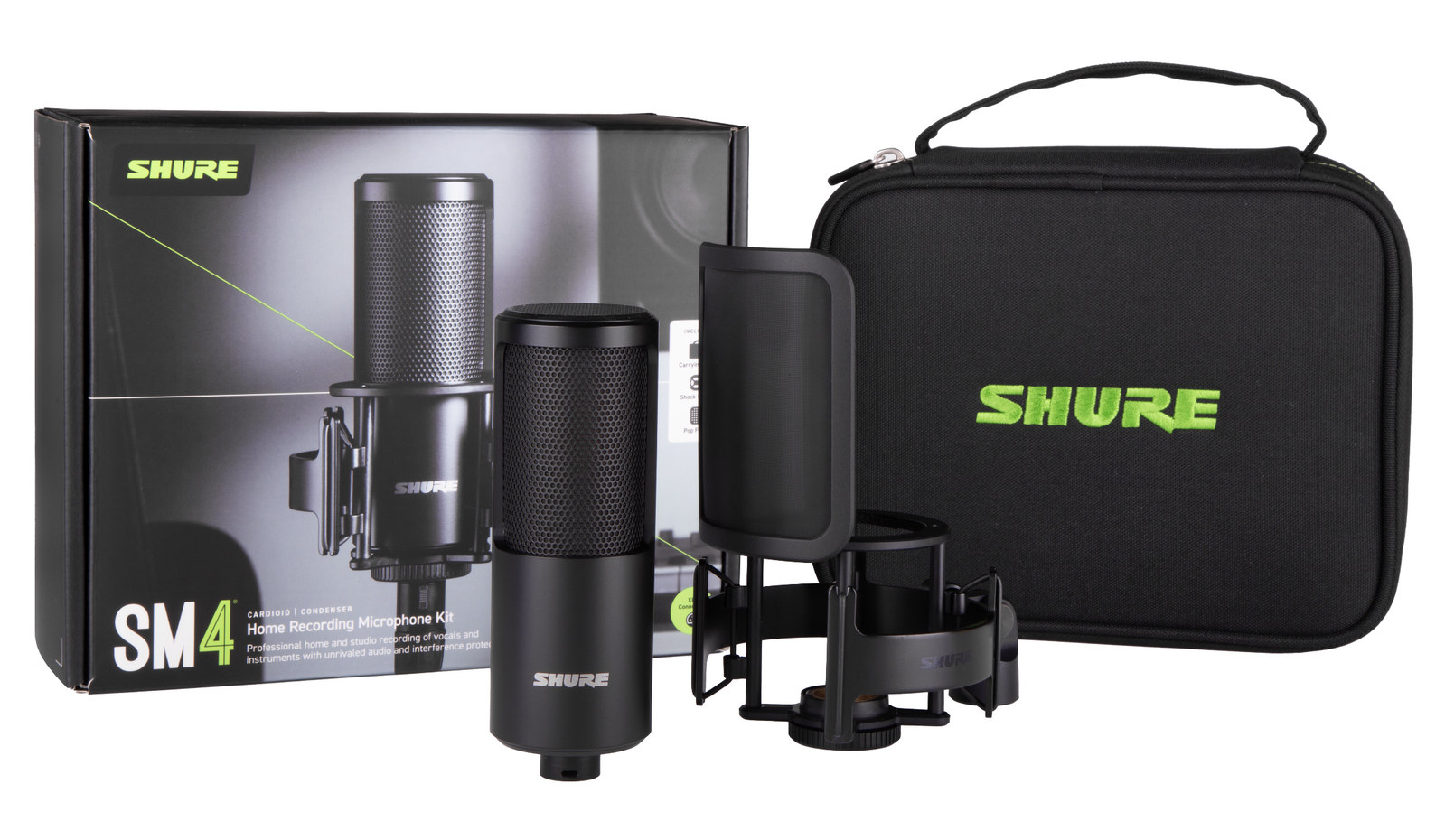

What's in the Box

• 1 SM4 Home Recording Microphone

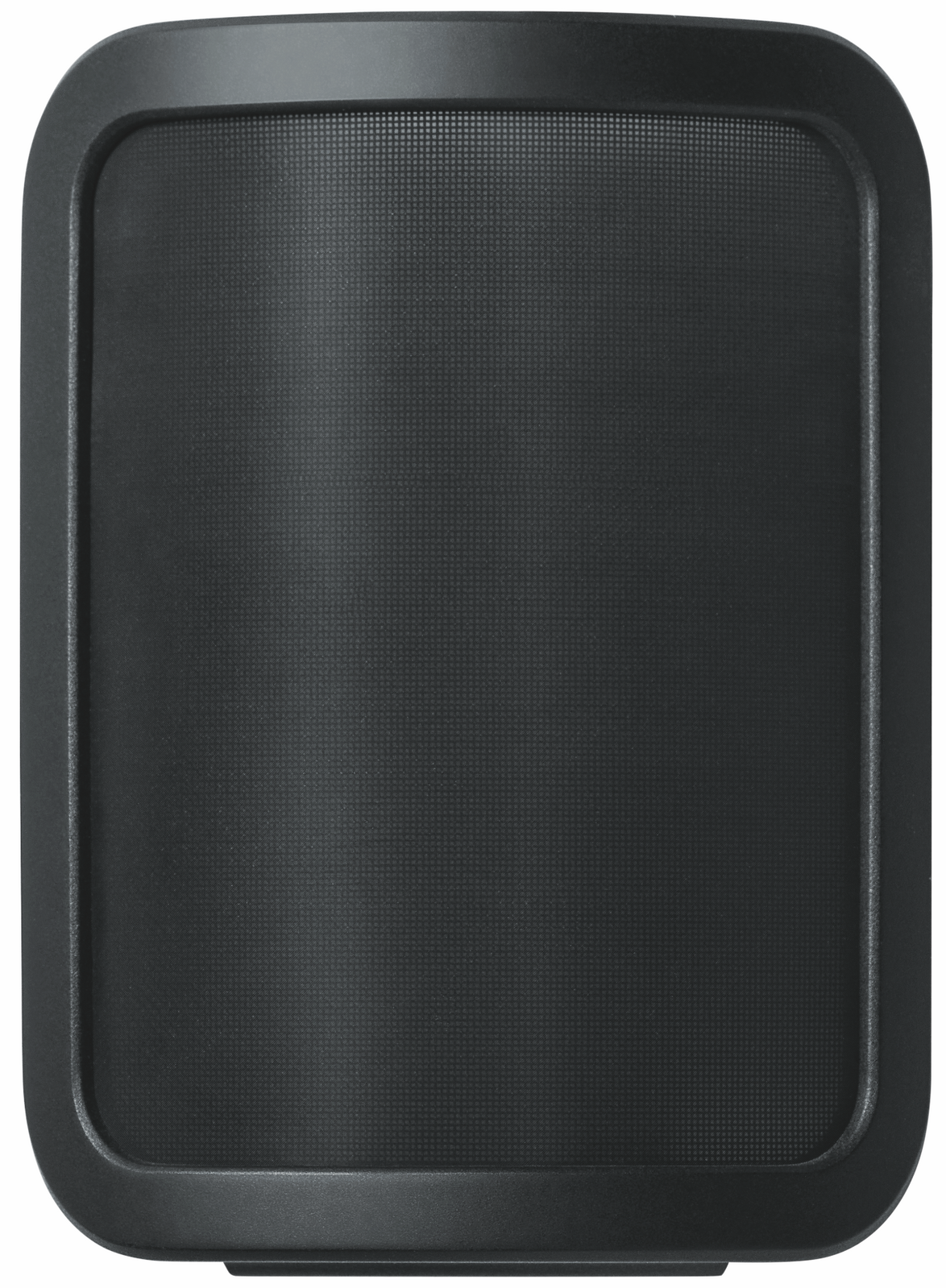

• 1 A4PF Detachable, magnetic pop filter

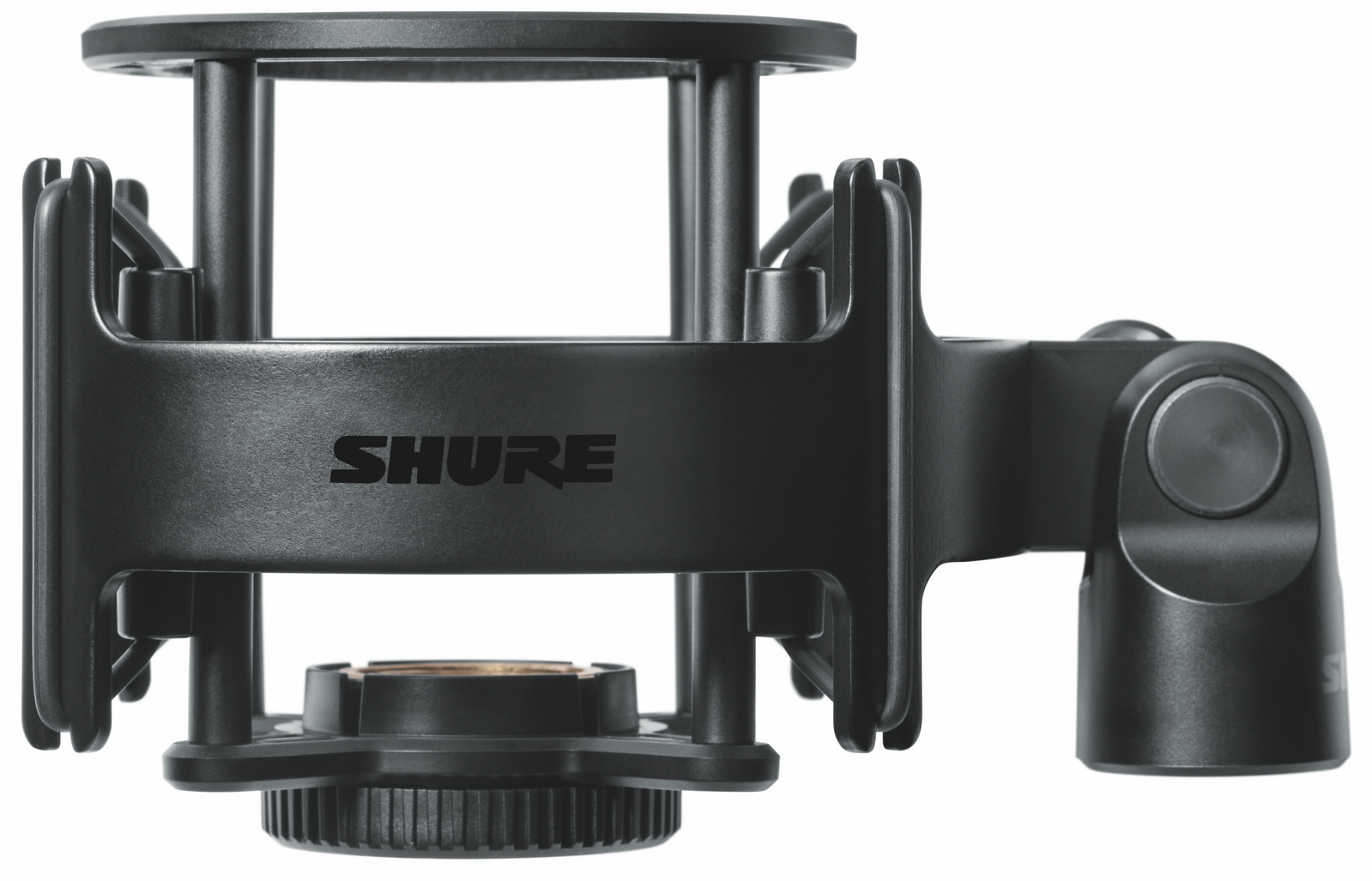

• 1 A4SM Shock Mount

• 1 Brass Mic Stand Adapter

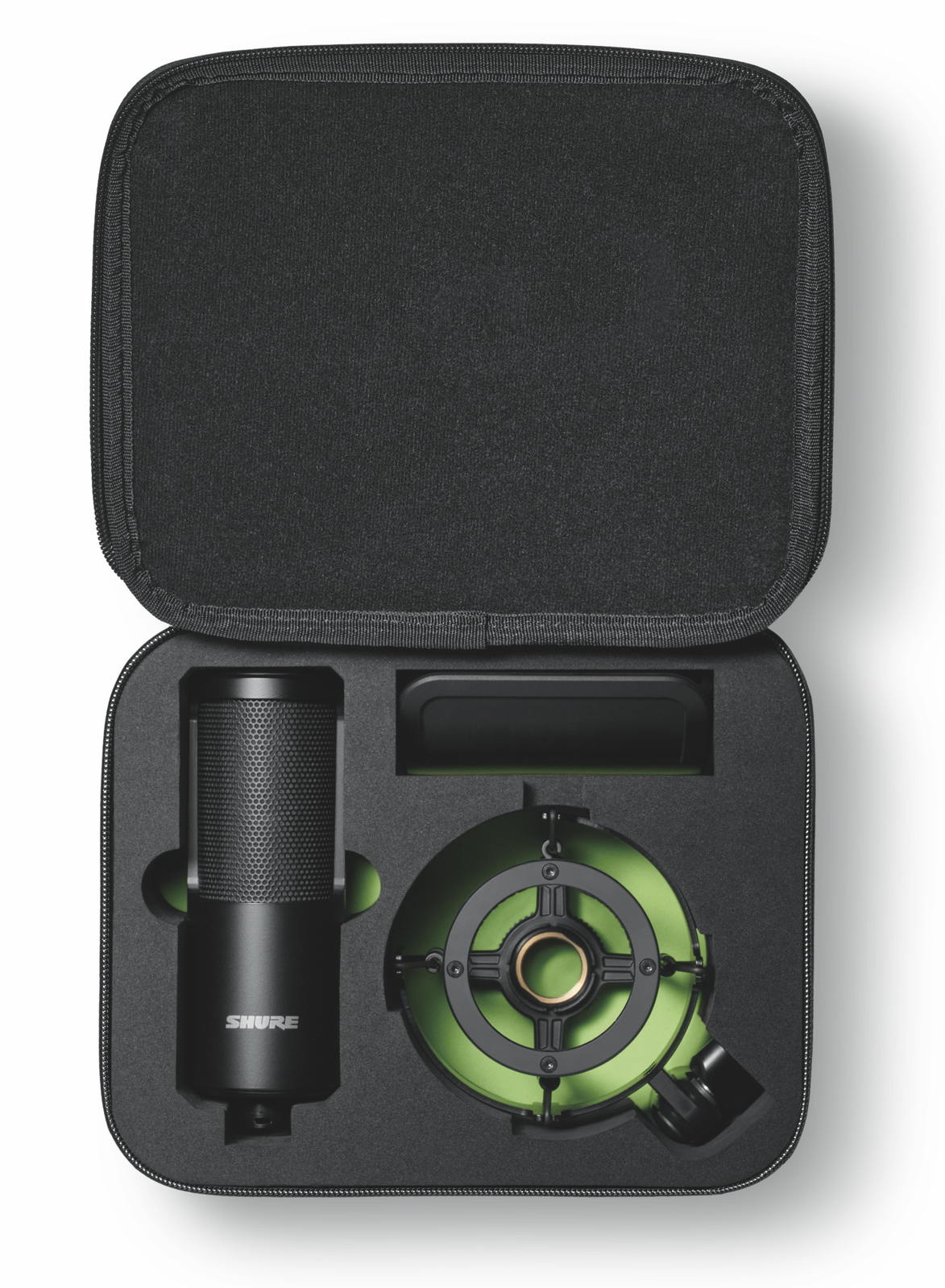

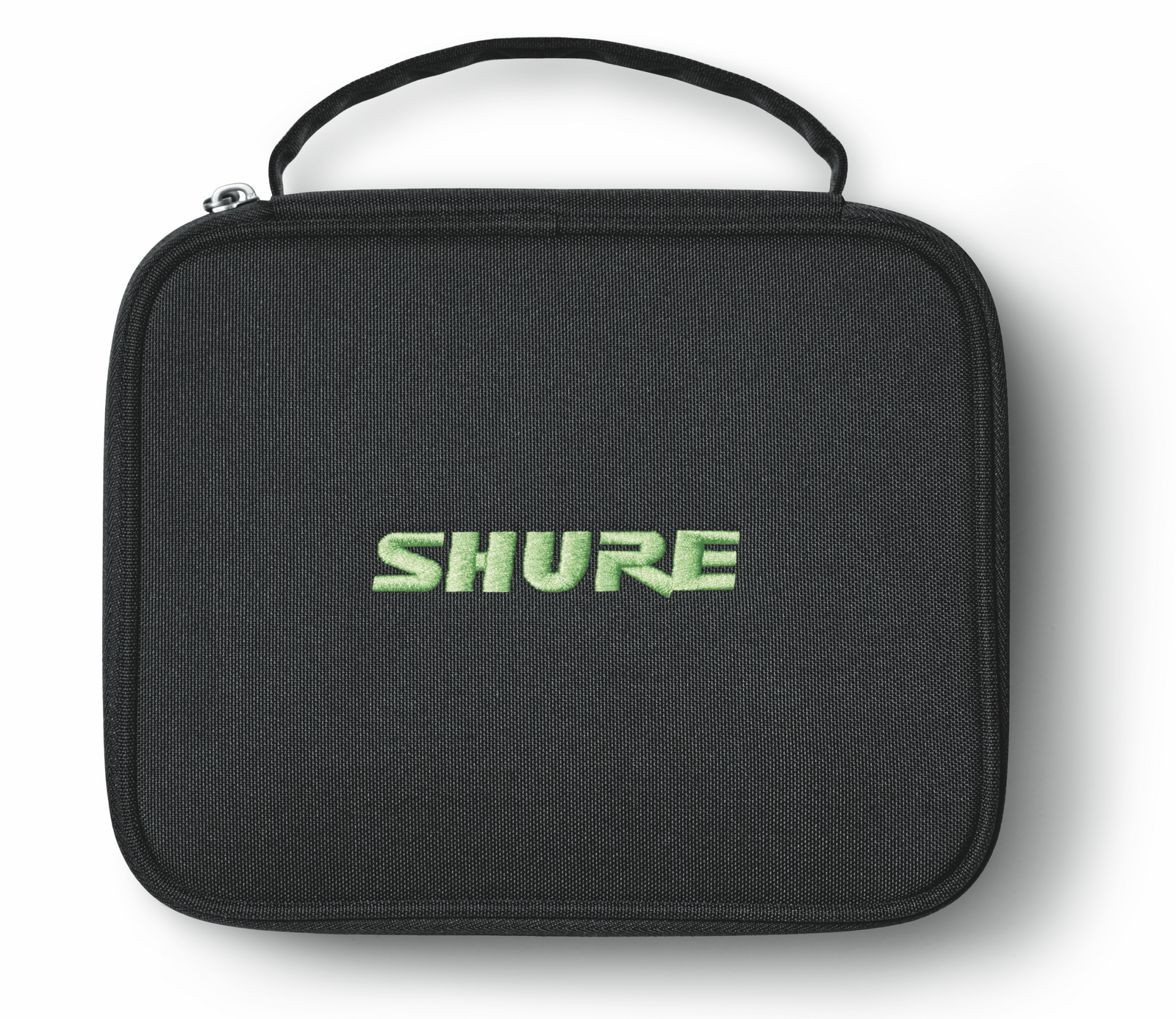

• 1 A4CC Zippered Carrying Case
