Shure PSM300 P3TR112G Personal Monitor System (J10)

This system operates in the J10 frequency band (584-608 MHz)

PSM®300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts.

Easy to setup and operate, PSM 300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume and use MixMode® technology or stereo mode to create a personal mix from two channels of audio.

Featuring SE112 Sound Isolating™ Earphones, P3TR112GR provides great sound and simple setup for entry-level users.

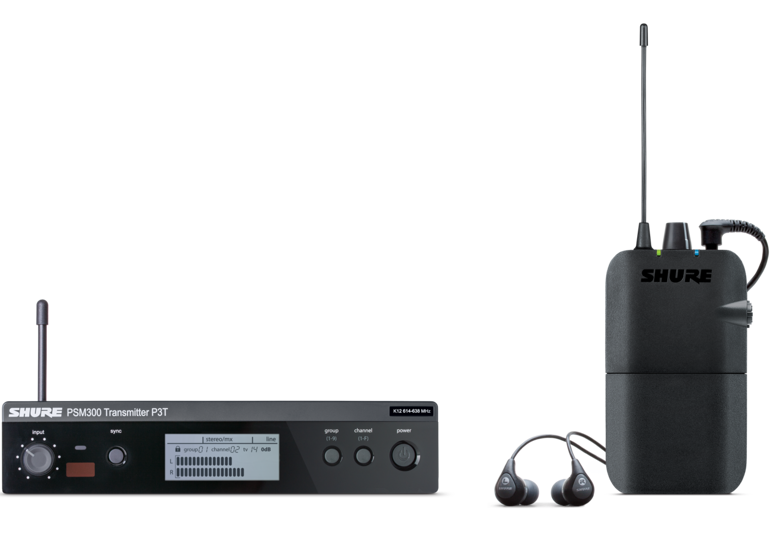

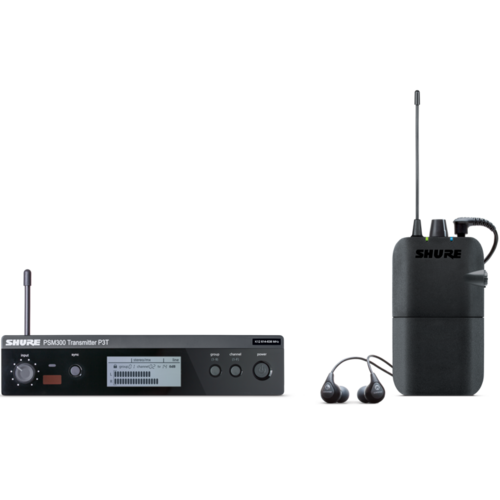

Includes P3R, P3T, SE112, rackmount and hardware kits, ¼ wave antenna, BNC bulkhead adapter, BNC cable, power supply, 2 AA batteries, zipper bag, and user guide.

P3T WIRELESS TRANSMITTER

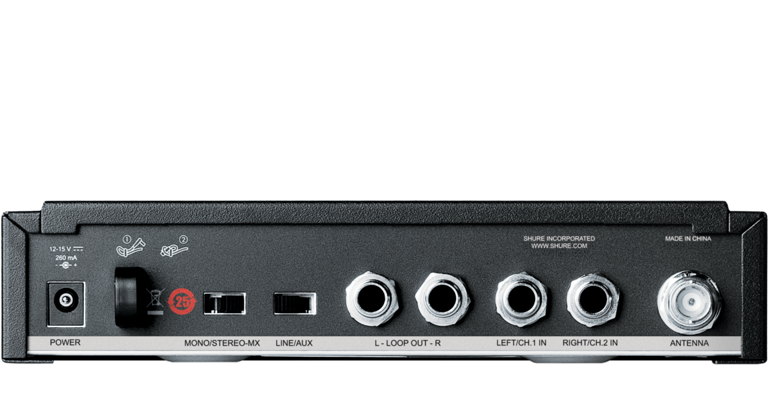

Dependable wireless analog transmission and 24-bit digital audio processing deliver a superior personal monitoring mix for every performance. Send 2 channels of audio to a bodypack receiver up to 300 feet away, with patented Audio Reference Companding to ensure transparent sound quality with no artifacts or dropouts. The rugged, half rack transmitter features easy front-panel controls including one-touch sync and input level knob to enable quick setup and easy operation. Rear-panel balanced inputs and loop outputs provide versatile connectivity to audio sources and other P3T units.

FEATURES

• Single channel, half-rack transmitter with included rack mount kit

• Sends a stereo or mono mix wirelessly to performers onstage

• Rock-solid wireless connection to PSM300 receivers over a 300 ft (90 m) range

• One-touch IR sync instantly links transmitter to receiver

• Up to 30 mW output power (region dependent)

• 24 MHz tuning range (region dependent)

• ¼ inch (6.3 mm) TRS balanced inputs and loop outputs

• High-contrast LCD screen with left/right audio output meters

• Detachable ¼ wave antenna

• External power supply

• Selectable line/aux level

SPECIFICATIONS

RF Output Power: 10, 20, 30 mW (varies by region)

RF Output Impedance: 50 Ω (typical)

Net Weight: 783 g(27.6 oz.)

Dimensions: 43 x 198 x 172 mm (1.7 x 7.8 x 6.8 in.), H x W x D

Power Requirement: 12-15V DC, 260 mA Maximum

Audio Input
Connector Type: 6.35 mm (1/4") TRS

Polarity: Tip positive with respect to ring

Configuration: Electronically balanced

Impedance: 40 kΩ (actual)

Nominal Input Level: switchable: +4 dBu, –10 dBV

Pin Assignments: Tip=hot, Ring=cold, Sleeve=ground

Phantom Power Protection: Up to 60 V DC

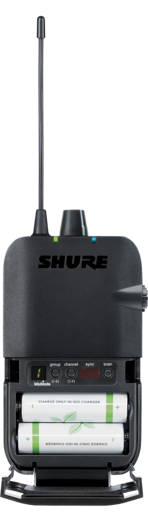

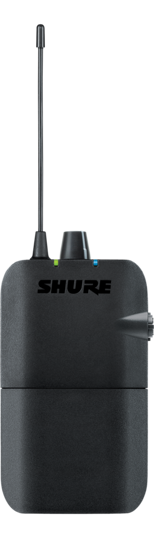

P3R WIRELESS BODYPACK RECEIVER

The P3R is a wireless stereo bodypack receiver for use with the PSM 300 Personal Monitor System. With 24-bit digital audio processing clarity and up to 300 ft of range (90 m), the P3R offers reliable wireless freedom that covers every corner of the stage. Simply connect a set of earphones and adjust the controls to create a wireless personal mix. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Use MixMode technology to customize the mono blend from two channels of audio, or select stereo mode and adjust the left/right balance as desired. One-touch frequency scan and automatic frequency selection enables quick setup and connection to a P3T transmitter via IR sync.

FEATURES

• Slim, lightweight, durable form factor

• Frequency scan and IR sync quickly finds and assigns a clean channel

• MixMode technology enables adjustment of two independent monitoring mix levels

• Stereo mode enables adjustment of left/right balance

• Easy to adjust volume knob and mix control

• 2 AA batteries provide up to 6 hours of continuous operation

• Power save mode preserves battery life when earphones are not connected

• Power and battery status LED

SPECIFICATIONS

Active RF Sensitivity at 20 dB SINAD: 2.2  µV

Image Rejection: >90 dB

Adjacent Channel Rejection: >60 dB

Intermodulation Attenuation: >50 dB

Blocking: >60 dB

Audio Output Power: 1kHz @ <1% distortion, peak power, @32Ω, 40 mW + 40 mW

Minimum Load Impedance: 4 Ω

Headphone Output: 3.5 mm (1/8″) stereo

Output Impedance: <2.5 Ω

Net Weight: 98 g(3.5 oz.) (without batteries)

Dimensions: 110 x 64 x 21 mm H x W x D

Battery Life: 5–7 hours (continuous use) AA batteries
