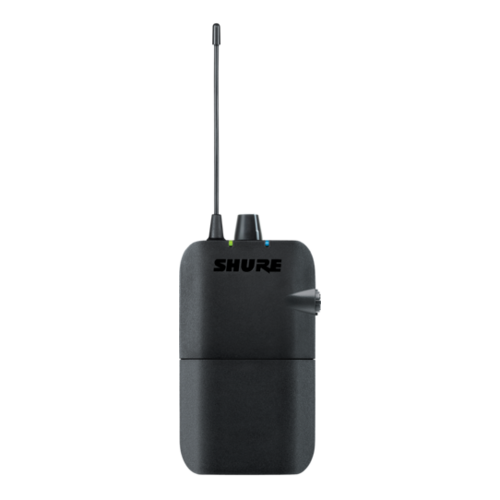

Shure PSM300 P3R Wireless Body Pack (L19)

This system operates in the L19 frequency band (630-654 MHz)

The P3R is a wireless stereo bodypack receiver for use with the PSM 300 Personal Monitor System. With 24-bit digital audio processing clarity and up to 300 ft of range (90 m), the P3R offers reliable wireless freedom that covers every corner of the stage. Simply connect a set of earphones and adjust the controls to create a wireless personal mix. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Use MixMode technology to customize the mono blend from two channels of audio, or select stereo mode and adjust the left/right balance as desired. One-touch frequency scan and automatic frequency selection enables quick setup and connection to a P3T transmitter via IR sync.

FEATURES

• Slim, lightweight, durable form factor

• Frequency scan and IR sync quickly finds and assigns a clean channel

• MixMode technology enables adjustment of two independent monitoring mix levels

• Stereo mode enables adjustment of left/right balance

• Easy to adjust volume knob and mix control

• 2 AA batteries provide up to 6 hours of continuous operation

• Power save mode preserves battery life when earphones are not connected

• Power and battery status LED

SPECIFICATIONS

Active RF Sensitivity at 20 dB SINAD: 2.2  µV

Image Rejection: >90 dB

Adjacent Channel Rejection: >60 dB

Intermodulation Attenuation: >50 dB

Blocking: >60 dB

Audio Output Power: 1kHz @ <1% distortion, peak power, @32Ω, 40 mW + 40 mW

Minimum Load Impedance: 4 Ω

Headphone Output: 3.5 mm (1/8″) stereo

Output Impedance: <2.5 Ω

Net Weight: 98 g(3.5 oz.) (without batteries)

Dimensions: 110 x 64 x 21 mm H x W x D

Battery Life: 5–7 hours (continuous use) AA batteries
