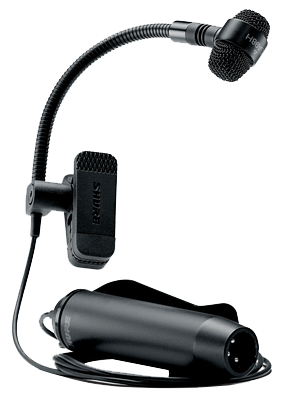

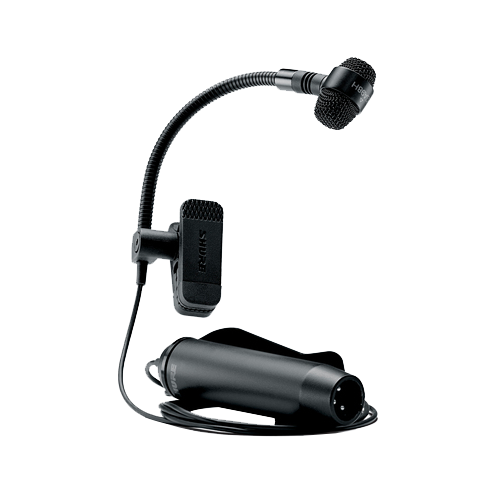

Shure PGA98H-XLR Instrument Condenser Microphone
The PGA98H is a professional quality wind instrument microphone with an updated industrial design that features a black metallic finish and grille offering an unobtrusive visual presence. Legendary Shure quality construction ensures exceptional performance in rigorous environments.
Additional features include a tailored microphone cartridge design for clear reproduction of wind instrument sound sources.
FEATURES
-
Tailored microphone cartridge design for clear reproduction of wind instrument sound sources.
-
Flexible gooseneck design makes accurate positioning quick and easy
-
Integrated horn clamp for quick and easy mounting
-
In-line preamplifier provides a direct XLR connection (11-52 VDC phantom power required)
-
Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
-
Updated industrial design with black metallic finish and grille for unobtrusive visual presence
-
With 15 ft (4.6 m) XLR-XLR cable (PGA98H-XLR; inline preamp and cable)
-
Zipper pouch included for additional protection during storage or transport
-
Legendary Shure quality design and construction for exceptional performance in rigorous environments
SPECIFICATIONS
Type: Electret Condenser
Polar Pattern: Cardioid
Frequency Response: 60 to 20,000 Hz
Output Impedance at 1 kHz, open circuit voltage: 850 Ω
Sensitivity at 1 kHz, open circuit voltage: -52 dBV/Pa[1] (2.51 mV)
Maximum SPL: 1 kHz at 1% THD, 1 kΩ load, typical, 130 dB SPL
Self Noise: A-weighted, typical, 27 dB SPL-A
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector: Three-pin professional audio (XLR), male
Weight: 245 g (0.5 lbs)
Housing: Cast Zinc
Power Requirements: 11 to 52 V DC phantom power (2 mA)
