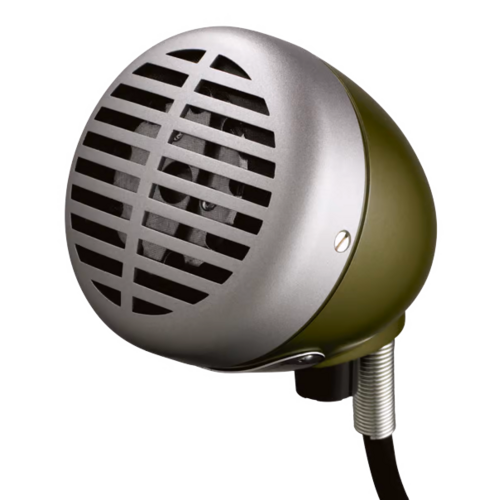

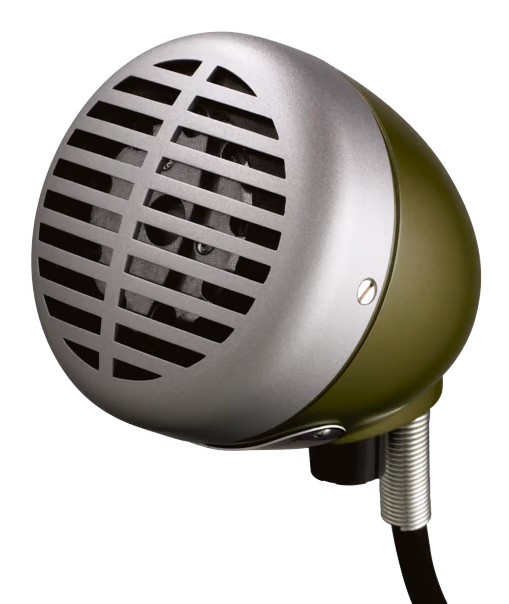

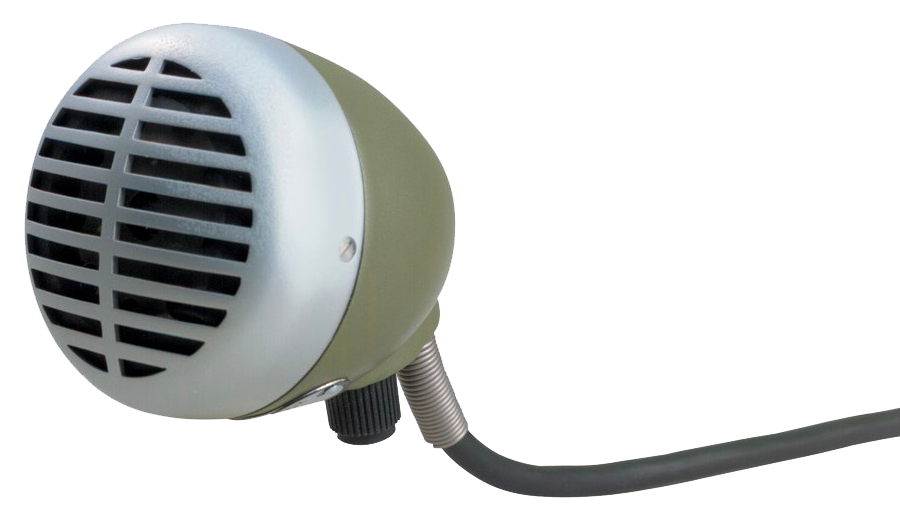

Shure 520DX Green Bullet Dynamic Microphone
Dynamic Omnidirectional Microphone
The 520DX features a volume control knob at the base of the microphone that allows users to make adjustments to suit their needs during live performance. An attached cable with a standard 1/4-inch plug allows the microphone to be connected to a high-impedance device.
What is this microphone best suited to?
The Shure 520DX has predominately been used for the harmonica, but can also be used for distinct, lo-fi vocals.
FEATURES
-
Volume control knob allows users to adjust the volume to fit each musical situation
-
Rugged, dynamic cartridge with improved response
-
High-impedance, omnidirectional
-
Supplied with 1/4 inch connector
-
Cable length 6.1 m (20 ft)
-
Frequency response 100 to 5,000 Hz
SPECIFICATIONS
Type: Dynamic (moving coil)
Frequency Response: 100 to 5,000 Hz
Polar Pattern: Omnidirectional
Impedance: High, unbalanced
Load Impedance Range: Minimum 100 kΩ
Output Clipping Level at 1kHz, open circuit voltage: -38.0 dBV/Pa (13 mV) [1]
Polarity: Positive pressure on diaphragm produces positive voltage on tip with respect to sleeve (ground) of microphone output phone plug connector
Cable: 6.1 m (20 ft) two conductor shielded with standard 1/4-inch phone plug attached (supplied wired for high-impedance, unbalanced connection)
Housing: Green and chrome finished die casting
Dimensions: 63 mm (2.5 in.) max diameter, 82.6 mm (3 1/4 in.) long
Net Weight with cable: 737 g (26 oz.)
