Sennheiser XSW IEM Set B

The XS Wireless IEM set includes everything you need for an easy start with personal monitoring. Defining new standards for simple, flexible, and reliable wireless in-ear monitoring, this system is designed to help you level up your sound, regardless of your tech experience. Whether a rehearsal or live performance, on a club stage or for a worship service: Benefit from renowned Sennheiser sound and solid pro-grade wireless UHF reliability packed in a convenient and rugged system – letting you focus on playing your best.

Out of the box, the XS Wireless IEM set has all the components you need to set up your personal monitoring in minutes. XS Wireless IEM is the entry to Sennheiser’s renowned in-ear monitoring sound. It delivers the whole potential of in-ear monitoring with an elegant, easy-to-use interface. No tech expertise is needed to get all the benefits: You hear yourself perfectly in any environment and can aim for new levels of perfection.

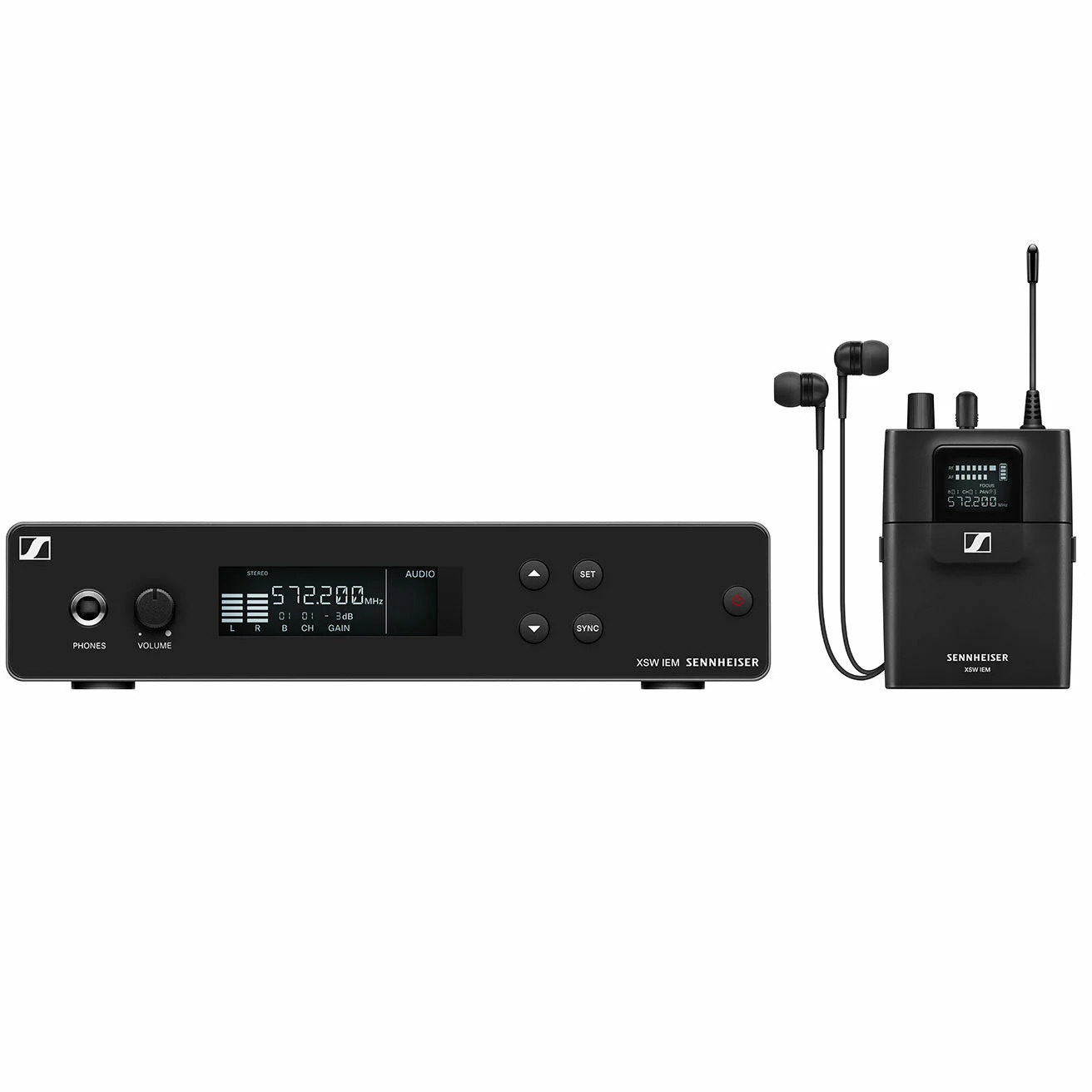

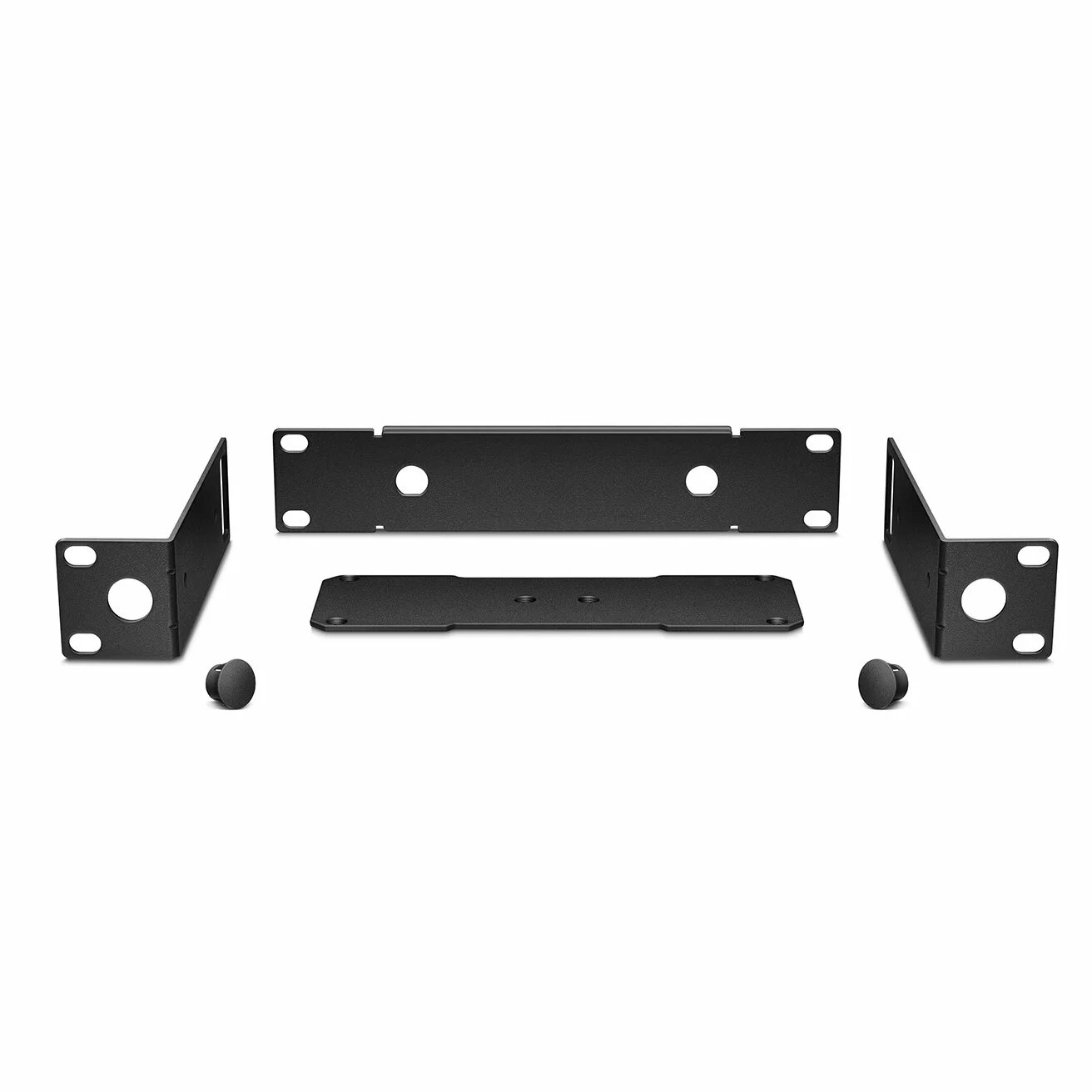

The system includes a rugged transmitter, a lightweight bodypack receiver, IE 4 in-ear starter headphones, batteries, a power supply with multi-voltage adapter, and a rack mount kit for the transmitter.

Eight pre-configured frequency banks in the professional UHF range (with 12 perfectly aligned channels each) keep your connection reliable and clear in every situation. Standard and advanced features make XS Wireless IEM flexible in both small and large applications. The series scales with your demands during rehearsals or live shows, on a club stage or for a worship service. Multiple audio modes match varying performances and mixing demands. You can easily change to mono, stereo, or a two-channel focus mode.

The stereo receiver bodypack, although lightweight, is designed with live stages in mind. Setting options are well secured behind a stage-proof panel. A status LED keeps you informed about battery and connection status, while the LC display offers access to further settings. You can fine-tune your preferred focus mode for in-ear monitoring, balance your mix, switch the EQ to enhance the higher frequencies, or select your channel or a manual frequency.

The stereo transmitter comes with a rugged metal housing. Fine-tuning the most important options has never been easier. Whether you want to increase gain, check the frequency setup, or sync some more receivers for your band setup: It all needs fewer clicks than the count-in of your drummer. A rack mount kit and a removable antenna allow for flexible setups and configurations.

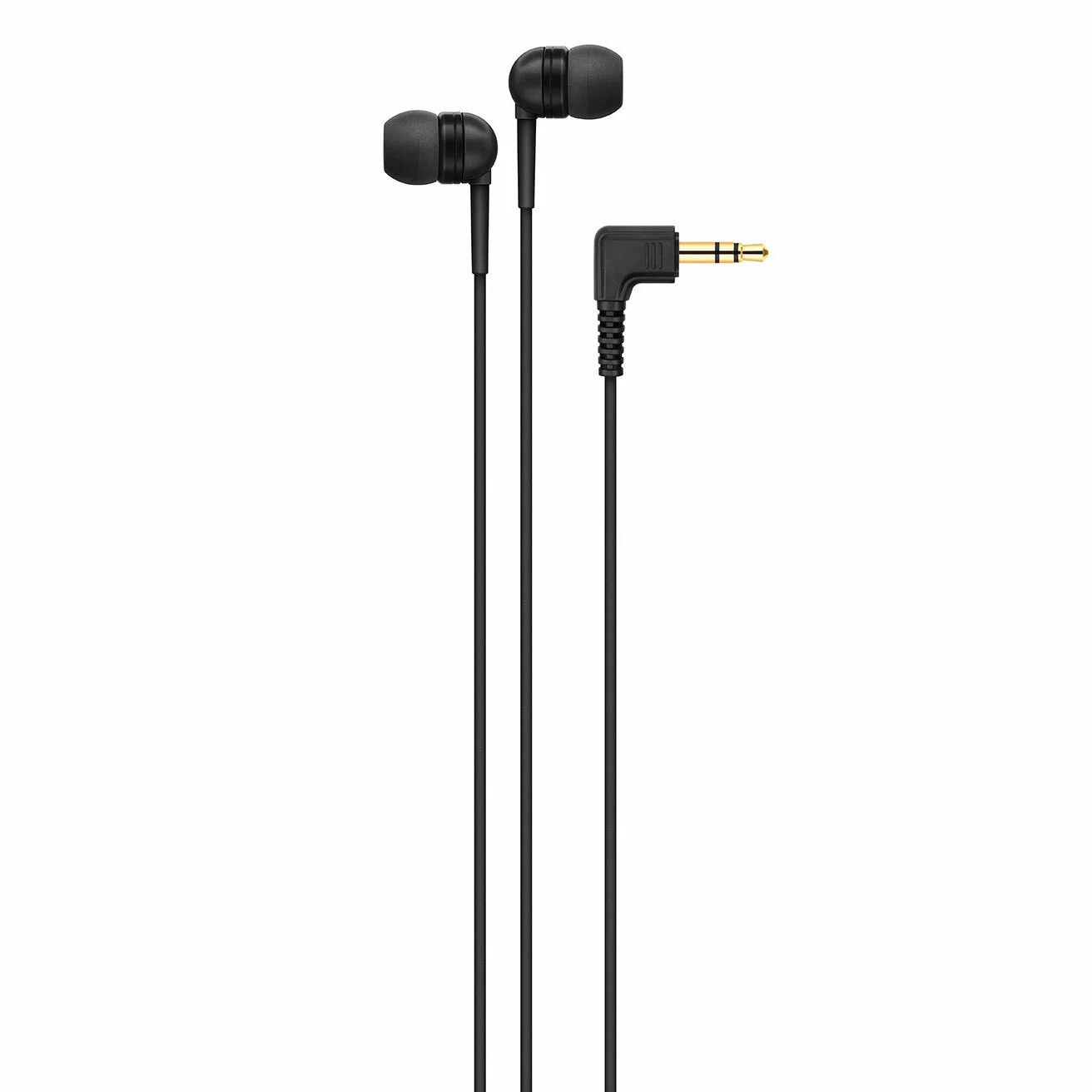

The set also includes a pair of IE 4 in-ear headphones. They reproduce outstanding sound quality and high dynamics, and are equipped with exchangeable ear sleeves to give a secure and comfortable fit. You get a good isolation from environmental noise as well as a very good bass response.

FEATURES

• Complete set – includes all components needed to start with wireless in-ear monitoring

• Reliable, easy-to-manage wireless connection in the professional UHF range

• Multiple audio modes for varying setups or performances and unique mixing options

• Focus mode allows the ability to prioritize one input over another directly from the bodypack receiver for a user-specific monitoring experience

• Advanced features like EQ and limiter

• Perfectly aligned frequency presets in 8 banks with 12 channels each – option for manual tuning

• An unlimited number of receivers can be used with one transmitter, allowing for cost-effective setups

• Infrared sensor to sync multiple receivers easily to one transmitter

The all-in-one starter kit on a pro level
Switching to in-ear monitoring is no longer overwhelming or needs lengthy equipment lists. The XS Wireless IEM set includes everything to get you started. You can now have the best near-field sound, full control of your mix, and good isolation, along with a rock-solid wireless connection. Focus on your new live sound on any stage or venue: XS Wireless IEM connects you to a set of rich options that leads talents on all stages to new levels of perfection. It’s that easy.

Adapts to any situation and setup
Are you a solo talent with a guitar and laptop? A duo with changing instruments, or a larger band, or somehow all of that? The XS Wireless IEM set has you covered. Every receiver can balance an individual mix thanks to its multiple audio modes and balancing options. Also, you can easily set up your whole band by simply linking additional receiver bodypacks to your transmitter.

It’s not about sound alone
Yes, XS Wireless IEM uses an advanced UHF design to deliver a reliable, clear sound – and the IE 4 in-ear headphones offer all the dynamics and bass levels. But there’s more. We’ve condensed decades of experience from stages big and small into the development of XS Wireless IEM. Most can be heard. Some can be felt. And others will only come to your attention once you need them. But all of them will guide you safely, whether live on stage or during lengthy rehearsal sessions.

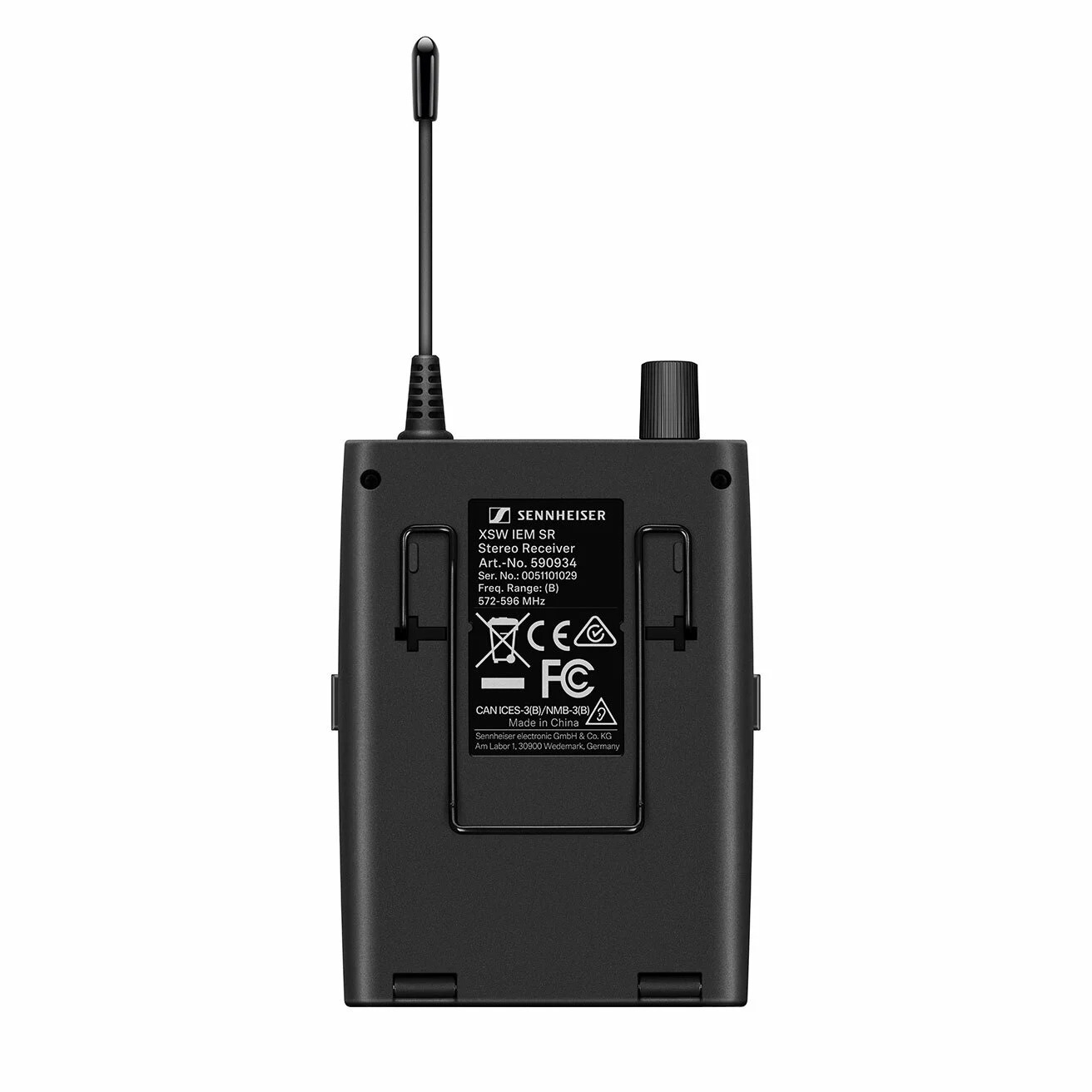

XSW IEM EK Stereo Receiver
Frequency range: B 572-596 MHz
Dimensions: Approx. 95 x 70 x 26 mm
Weight (incl. batteries): ca. 110 g
Switching bandwidth: up to 24 MHz
Temperature Range: 0 °C to +40 °C
AF frequency response: 45 Hz to 15 kHz
Modulation: Wideband FM
Signal-to-noise ratio (1 mV, peak deviation): ≥88 dB
AF output level at 3.5 mm: 2 x 1,25 Veff at 16 Ω
High Boost (EQ): +10 dB at 13 kHz
Total harmonic distortion (THD): ≤ 1 %
Limiter: -10 dB
Power supply: 2 AA batteries, 1.5  V
Operating time: Approx. 6 hrs

XSW IEM SR Stereo Transmitter
Frequency Ranges (RF Output Power): B 572-596 MHz (30 mW)
Dimensions: Approx. 200 x 128 x 42 mm
Weight: Approx. 700 g
Switching bandwidth: up to 24 MHz
Temperature Range: 0 °C to +40 °C
AF frequency response: 45 Hz to 15 kHz
Modulation: FM Stereo
Signal-to-noise ratio (at nominal load and peak deviation): ≥88 dB
Current consumption: Approx. 400mA (depending on volume level)
Input rating: +12 V DC
Input: 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
Antenna Output: BNC socket, 50 Ω

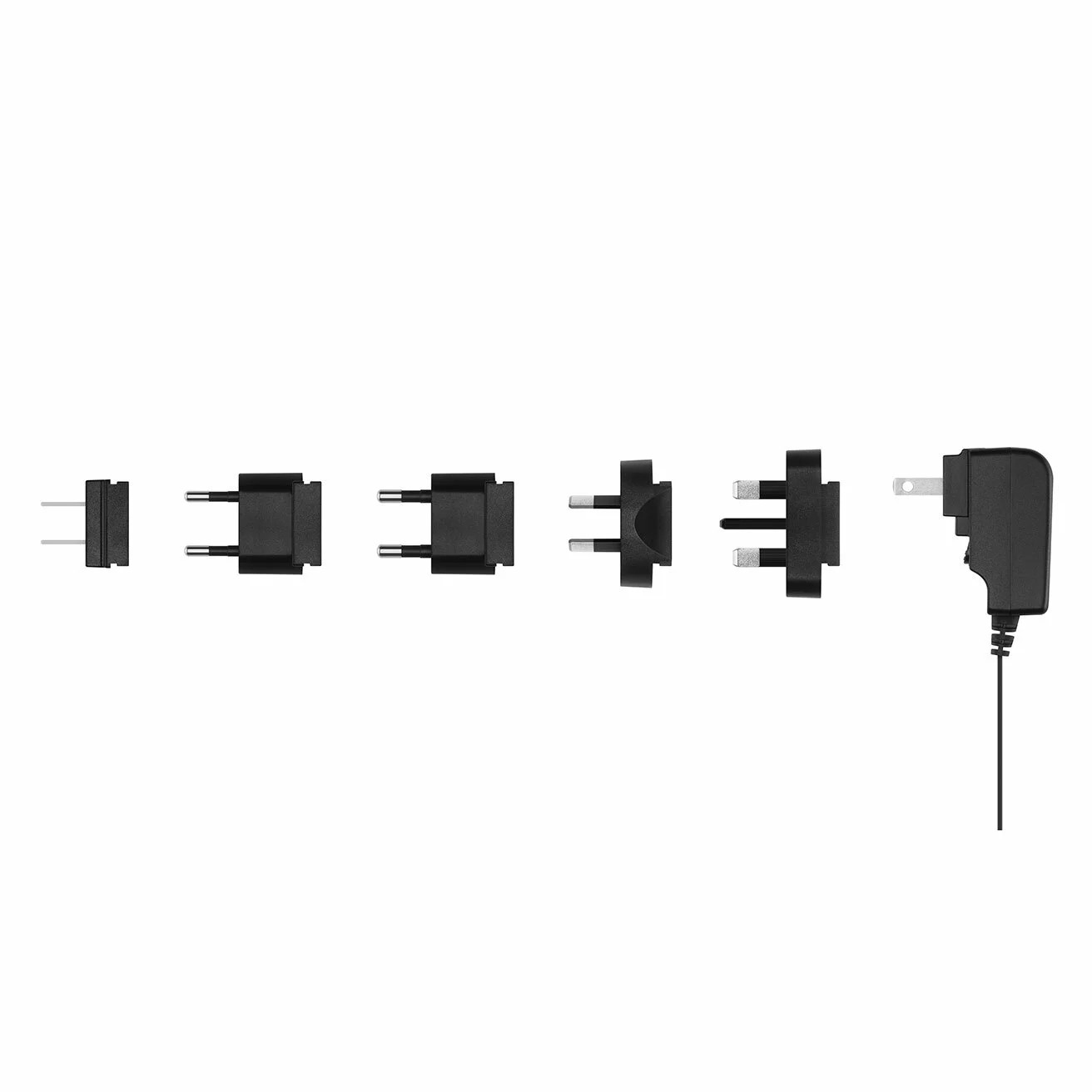

NT 12-5CW Power supply
Input voltage range: 100 to 240 V~200mA, 50/60 Hz
Storage temperature: -20 °C ... +60 °C (4 °F ... +140 °F)
Output voltage: +12 V DC
Temperature Range: 0 °C ... +40 °C (32 °F ... +104 °F)
Current consumption: Max. 200 mA
Secondary output current: 500 mA
