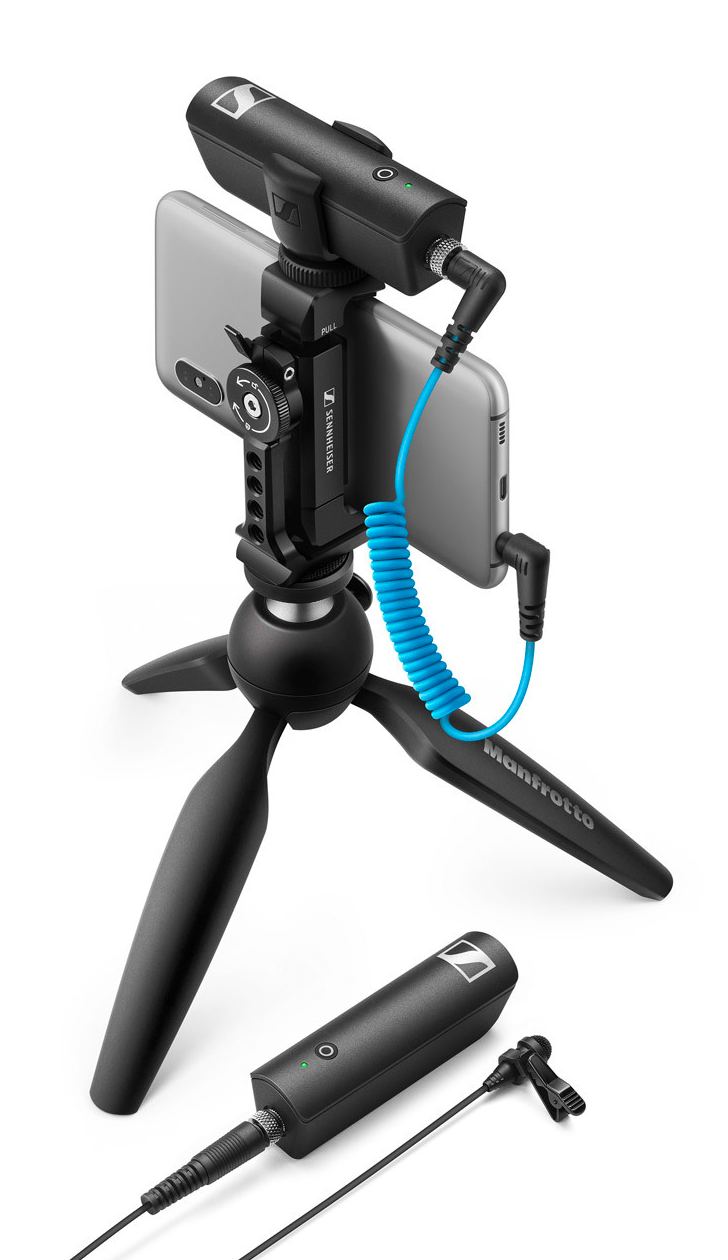

Sennheiser XSW-D Portable Lav Mobile Kit

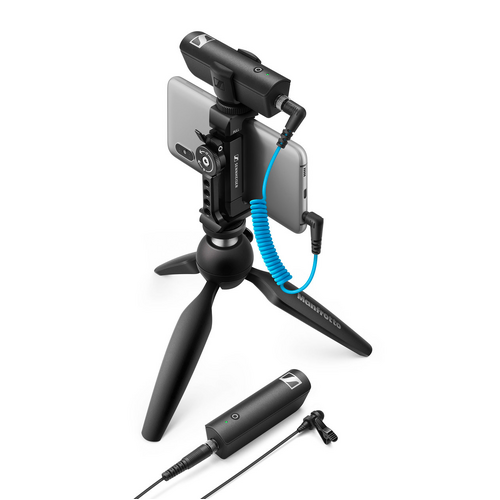

Designed for vloggers and content creators on the move, the XSW-D Portable Lav Mobile Kit includes Sennheiser’s XSW-D Portable Lavalier Set and Smartphone Clamp, as well as the Manfrotto PIXI Mini Tripod. The XSW-D Portable Lavalier Set features a complete 2.4 GHz wireless lavalier system while the Smartphone Clamp allows for both portrait and landscape orientation. The Manfrotto PIXI features a locking ball head which can be adjusted with the push of a button so you can dial in your frame with ease.

The XSW-D Portable Lav Mobile Kit combines functionality with efficiency for the ultimate vlogging experience. Upgrade your audio and your video with these three essential tools.

The XSW-D Portable Lavalier Set includes a one-touch ease-of-use wireless audio system that utilizes a digital transmission to seamlessly link audio sources. Equipped with our ME2-II omnidirectional lavalier microphone, this elegant solution makes capturing dialogue on a DSLR/M easier than ever before while maintaining a reliable connection.

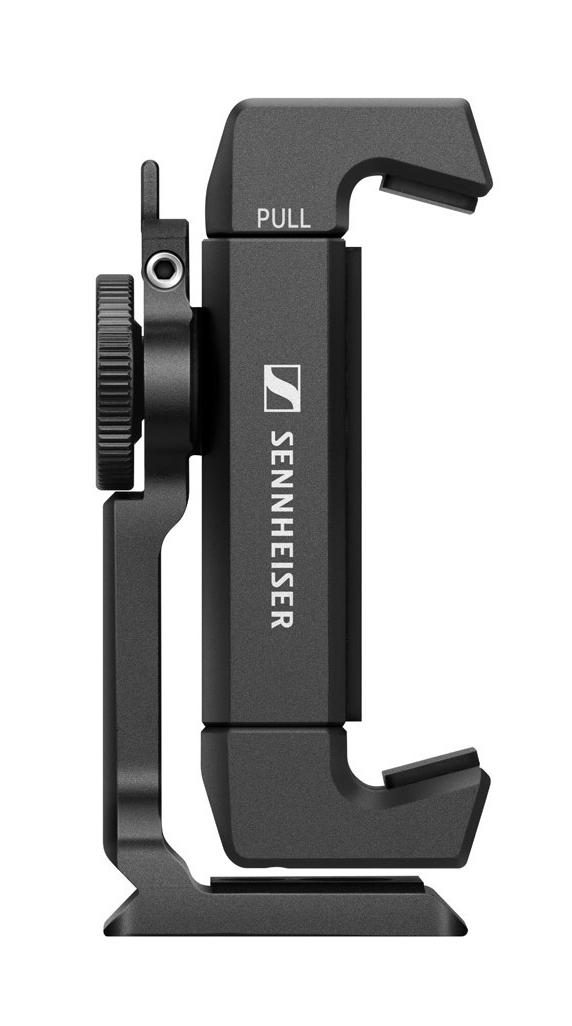

The Smartphone Clamp is made from solid aluminum and features soft rubber grips that provide a secure fit for nearly all mobile phones. A 180-degree locking dial allows for portrait or landscape positioning so you can switch from one aspect ratio to another with ease.

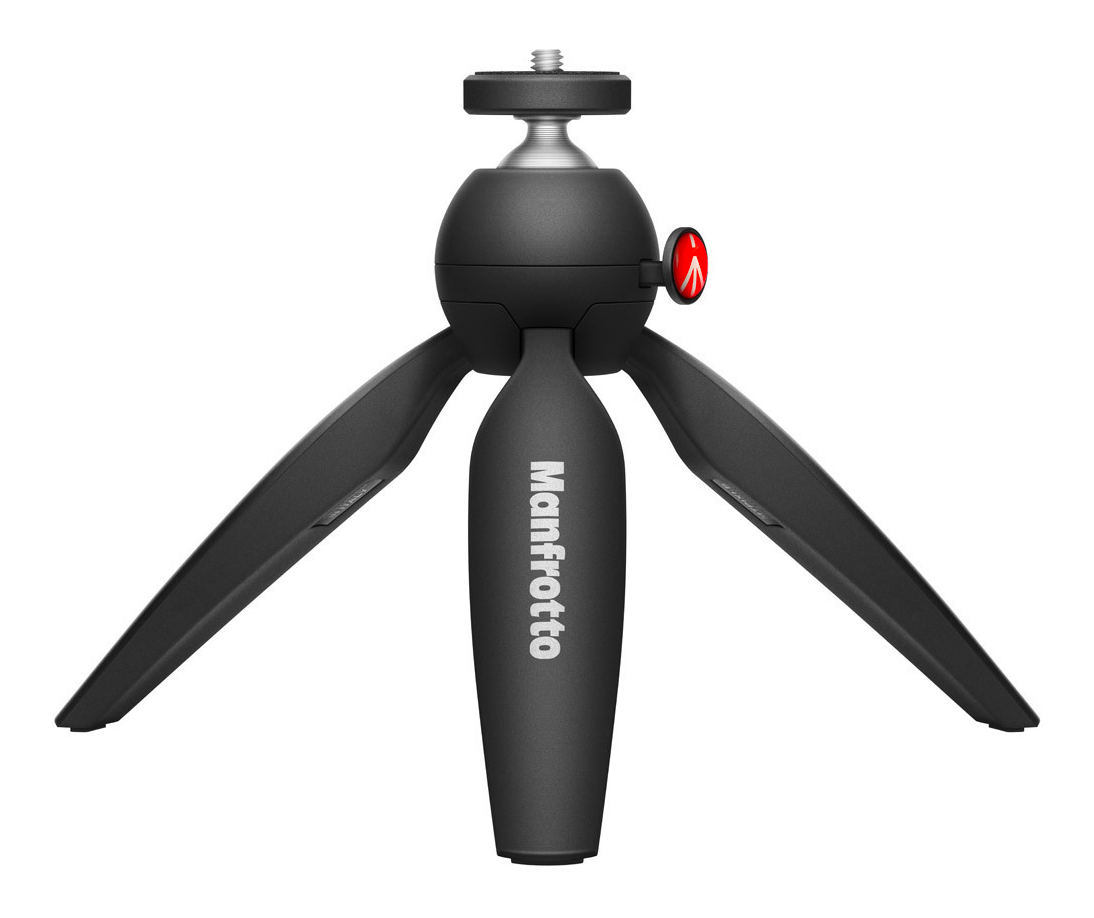

The Manfrotto PIXI is a durably constructed lightweight mini tripod that features a ball-joint head with a push-button locking mechanism that enables you to position and lock the ball head in one fluid, intuitive motion. Rubber feet ensure a slip-free grip on most surfaces and collapsible legs allow for convenient handheld vlogging that adds stability to your videos.

For creators that are looking for a great mobile solution, the XSW-D Portable Lav Mobile Kit provides the right set of tools to elevate your content.

FEATURES

• Mobile Kit ideal for vloggers and content creators on the move

• XSW-D Portable Lavalier Set features complete digital wireless lavalier system

• Smartphone Clamp with cold shoe mount offers portrait or landscape orientation

• Manfrotto PIXI Mini Tripod features push-button locking ball head for desired placement

• Durably constructed components built to withstand daily use

Designed to travel
Compact and convenient, the essentials in this kit are everyday companions for the creator on the move. The Smartphone Clamp and Manfrotto PIXI allow for a fast and stable set-up while the XSW-D Portable Lavalier Set enhances your audio in any environment. Small enough for pockets and pouches, the XSW-D Portable Lav Mobile Kit is designed to go everywhere you go.

Flexibility and control
Dialing in your frame is all about the details, and the adjustability of the smartphone clamp and Manfrotto PIXI make it easier than ever. A locking swivel-joint on the Smartphone Clamp allows for portrait or landscape orientation while the PIXI’s push-button ball head offer further fine-tuning. Simply mount your mobile phone vertically or horizontally and use the PIXI to adjust to your liking.

Quality above all else
Robustly constructed of solid aluminum with soft rubber grips, the Smartphone Clamp is made to compliment the quality of the XSW-D Portable Lavalier Set that Sennheiser is known for. Add the durability of the Adapto-coated stainless steel Manfrotto PIXI and take advantage of a mobile kit that’s built to last.

SPECIFICATIONS

Dimensions:XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm, XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
Connector: 3.5 mm jack
Frequency response (Microphone): 50 to 18,000 Hz
Transducer principle (Microphone): Pre-polarized condenser
Max. sound pressure level: 130 dB SPL
THD, total harmonic distortion: < 0.1 %
Cable length: approx. 1.60 m
Weight: XSW-D MINI JACK TX: approx. 73 g, XSW-D MINI JACK RX: approx. 73 g
Charging time: typ. 3 h
Audio output: max. 12 dBu
Pick-up pattern: Super cardioid
Sensitivity in free field, no load (1kHz): 20 mV/Pa
Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)
Signal-to-noise ratio: ≥ 106 dB
Equivalent noise level: 36 dB
Operating time: up to 5 h
Modulation: GFSK with TDMA
Codecs: aptX® Live
Frequency range: 2,400 - 2,483.5MHz
Transmission power: max. 10 mW
Latency: < 4 ms
Charging voltage: typ. 5.0 V
Audio frequency response: 3.5 mm Jack/XLR: 80 - 18,000 Hz, 6.3 mm Jack: 10 - 18,000 Hz

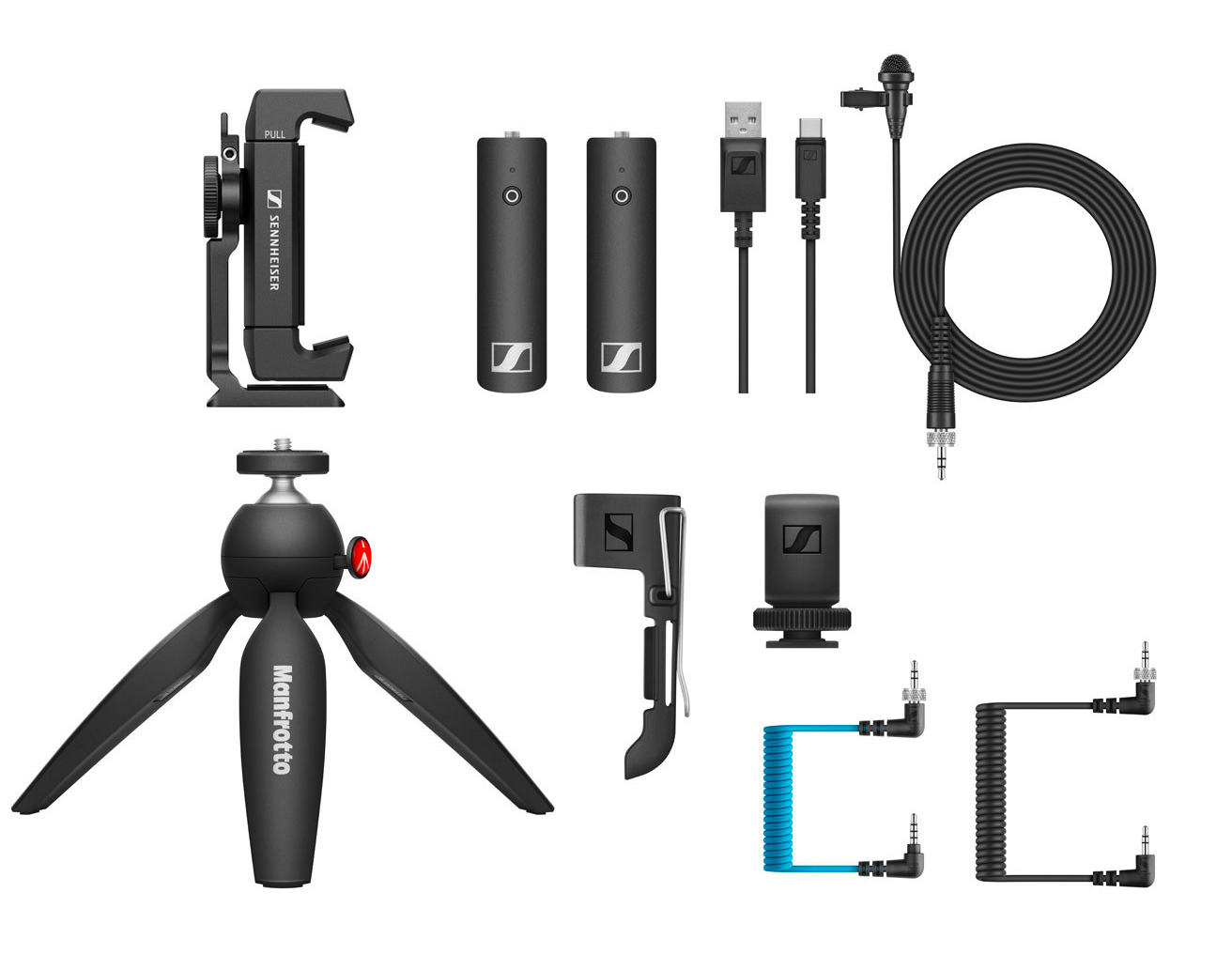

What's in the Box

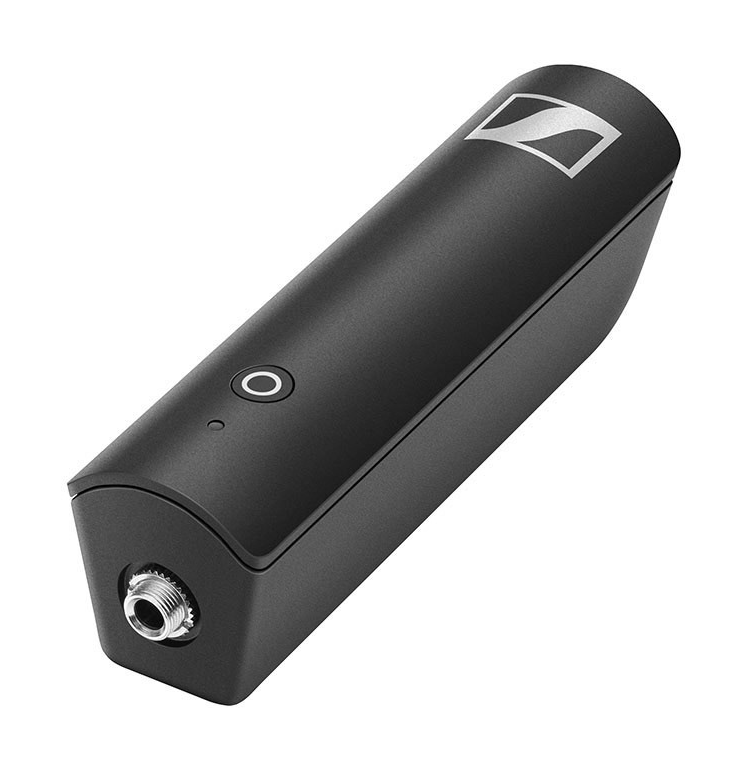

• XSW-D 3.5 mm (1/8“) transmitter

• XSW-D 3.5 mm (1/8“) receiver

• ME 2-II clip-on lavalier mic

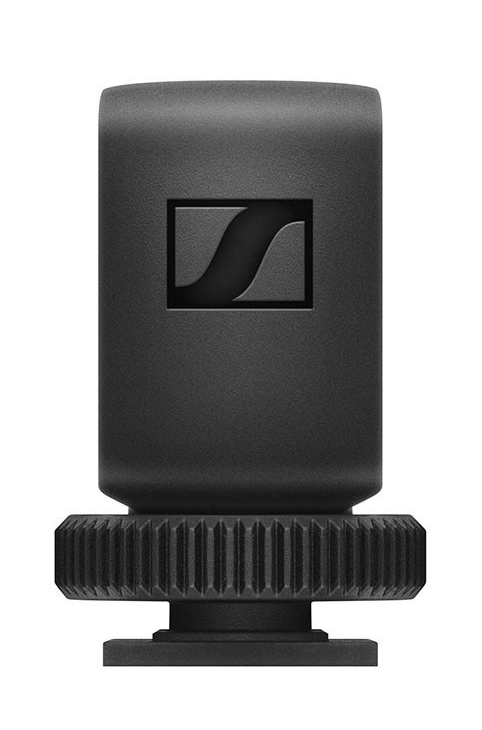

• Cold Shoe mount

• Belt clip

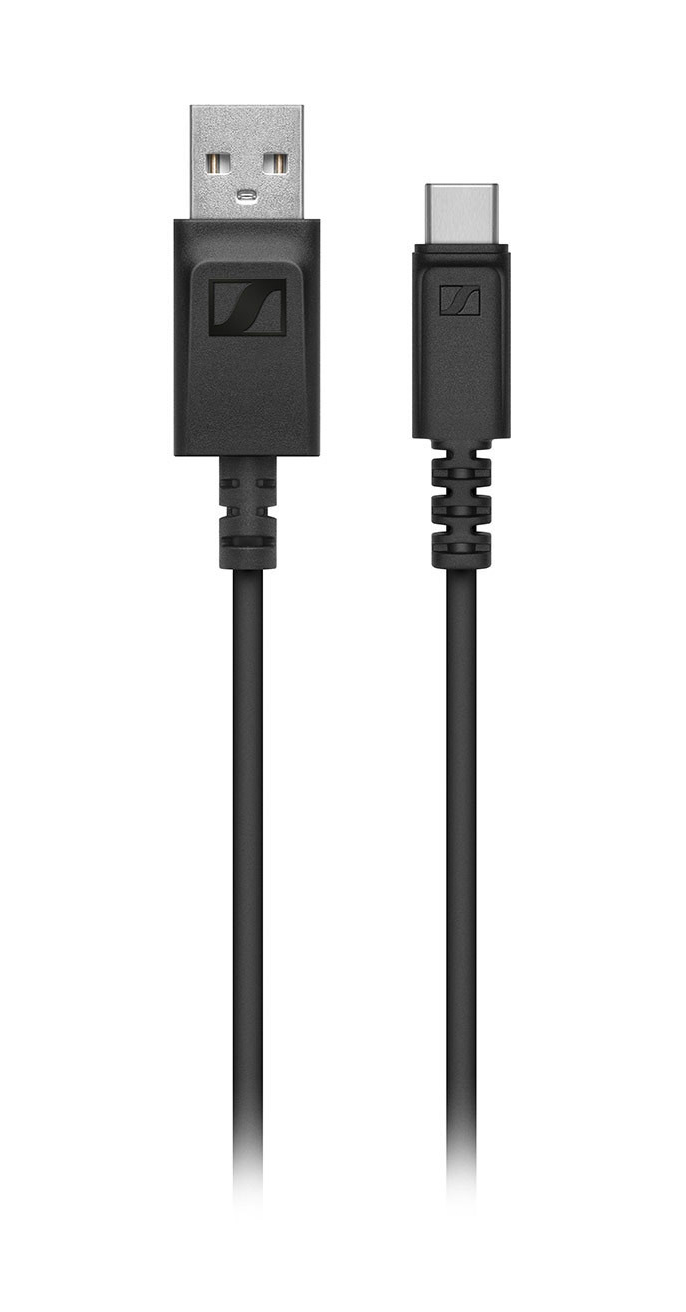

• USB-A to USB-C charging cable

• Manfrotto PIXI Mini Tripod

• Sennheiser Smartphone Clamp

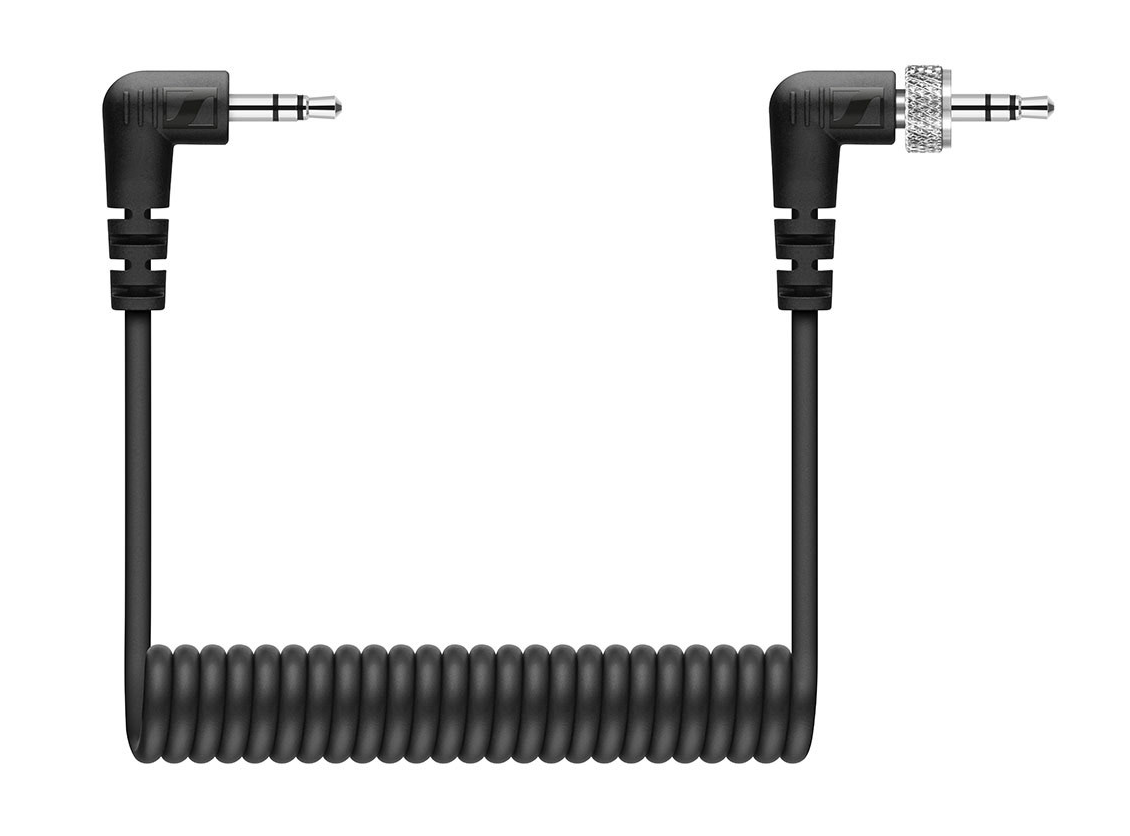

• Locking 3.5 mm TRS to TRS coiled cable

• Locking 3.5 mm TRS to TRRS coiled cable
