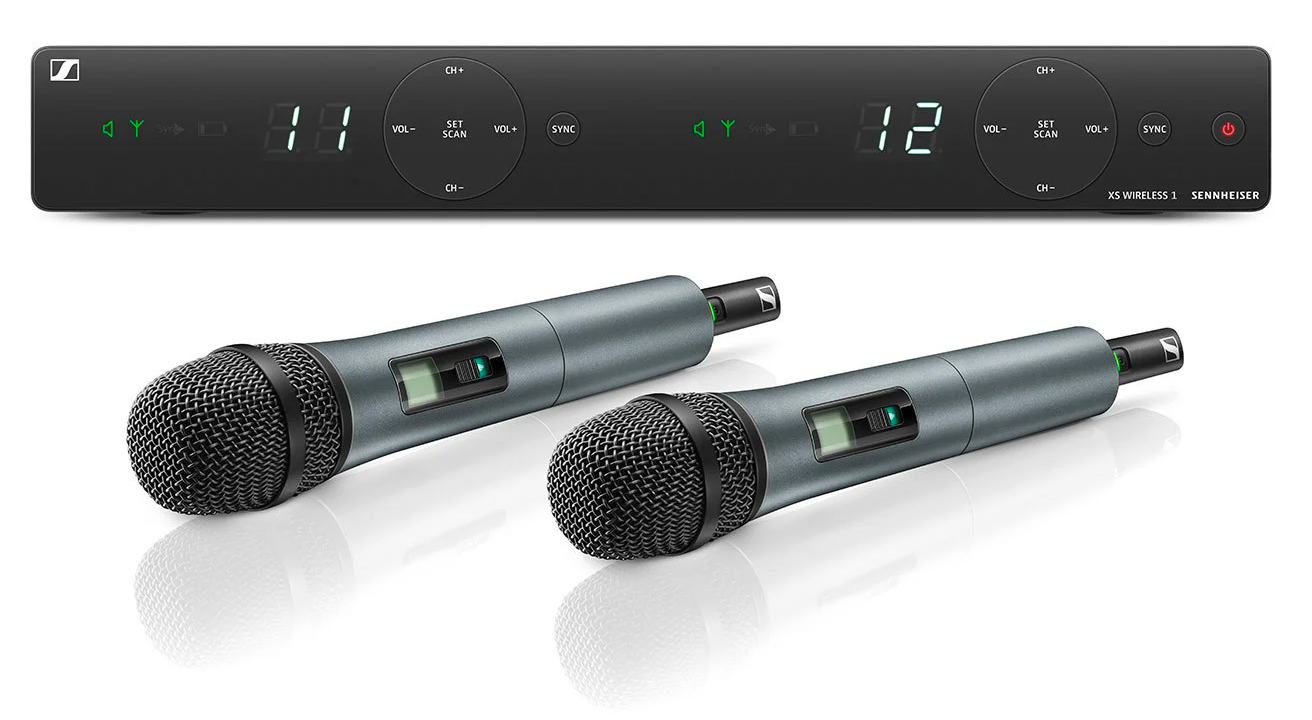

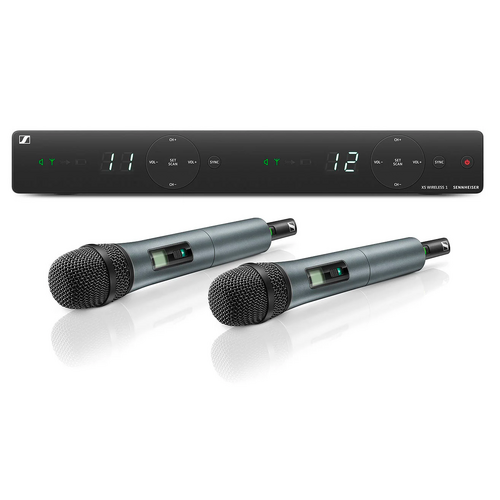

Sennheiser XSW 1-835 DUAL-A

2-channel wireless system for singers and presenters. Stable UHF band, built-in antennas and streamlined interface with great live sound.

XS Wireless 1 DUAL is a 2-channel wireless system for singers and presenters. Designed with ease of use in mind, these analog UHF systems feature a sleek dual-channel receiver with built-in antennas and the streamlined interface from Sennheiser's popular XS Wireless 1 series.

• Excellent live sound featuring Sennheiser's renowned evolution microphone capsules

• Antenna-switching 2-channel diversity reception

• Integrated antennas

• Automatic frequency management and synchronization via remote channel for easy setup

• Selectable UHF frequencies within a large bandwidth

• Up to 10 compatible channels

SPECIFICATIONS

System
Dimensions: Ø 48 x L 180 mm
Connector: XLR-3
Frequency response: 55 - 16,000 Hz
THD, total harmonic distortion: ≤ 0.9%
Transducer principle: dynamic
Weight: 330 g (0.73 lbs)
Pick-up pattern: cardioid
Nominal impedance: 300 Ω (at 1 kHz)
Min. terminating impedance: 1 kΩ
Storage temperature: –20°C to +70°C
Operating temperature: 0°C to +40°C
Signal-to-noise ratio: ≥ 103 dBA
Switching bandwidth: Up to 24 MHz
Modulation: Wideband FM
Frequency: 80 factory presets (8 banks of 10 channels each)
Sensitivity: 1.8 mV/Pa (free field, no load at 1 kHz)
Synchronization: Transmitter: 2.4 GHz, low power OQPSK (only active during synchronization)
Temperature Range: 0 °C ... +40 °C (+32 °F ... +104 °F)
Frequency range: 548-572 MHz

EM-XSW 1 DUAL
Dimensions: approx. 320 x 126.5 x 42 mm
Weight: approx. 620 g
Power supply: 12 V DC nom. / 300 mA
Output voltage: (at peak deviation, 1 kHz AF) 1/4“ (6.3 mm) socket (unbalanced): +6 dBu
Housing: Rugged ABS housing
Sensitivity: < 3 μV at 52 dB(A) rms S/N (at peak deviation)
Squelch: Adjustable from 3 dBμV to 28 dBμV
AF frequency response: 50 to 16,000 Hz (–3 dB)
Audio adjustment range: 45 dB, adjustable in 5 dB steps
Line / Mic level: 20 dB, switchable
Receiver Principle: Double superheterodyne
Diversity principle: Antenna switching diversity via internal antennas

SKM 835-XSW
Dimensions: Approx. 260 x 50 mm
Microphone: Dynamic
Weight: Approx. 245 g
Pick-up pattern: Cardioid
RF output power: 10 mW
Operating time: Approx. 10 hrs
Power supply: 2 AA size batteries, 1.5 V
Housing: Rugged ABS housing
Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
Input sensitivity: 1.5 mV / Pa
AF frequency response: 80-16,000 Hz
