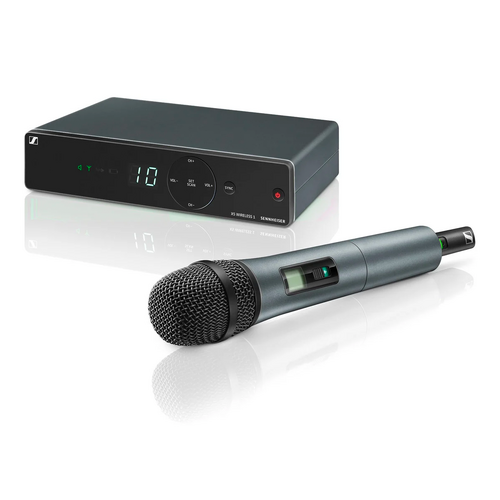

Sennheiser XSW 1-825-A

Raise your voice. Go for XS WIRELESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) or e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.

• Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e825 or e835)

• Antenna-switching diversity reception

• Integrated antennas

• Automatic frequency management and synchronization via remote channel for easy setup

• Selectable UHF frequencies within a large bandwidth

• Up to 10 compatible channels

Automatic Frequency Management so you can focus on your performance
We developed XS Wireless 1 for those that want to concentrate on the show and not so much on the gear. Simply turn on XSW 1 and let the Automatic Frequency Management do the rest. In optimal environments, you can operate up to 10 wireless connections simultaneously, all without having to search for frequencies or worry about interference.

825 or 835, that is the question…
You’ve decided on XS Wireless 1, but you aren’t sure which capsule to go with. In most cases, the 825 is everything you’d need in a vocal mic—quality sound packaged in a design built to last. While the 825 is ideal for speech, the 835 is for vocalists that want a little more help cutting through the mix. Featuring a gentle boost at 3kHz – 5kHz to help with vocal presence, and then enhanced frequencies up to 12kHz for added brightness, the 835 helps your voice shine right out of the box.

SPECIFICATIONS

Dimensions: approx. 200 x 42 x 127 mm
THD, total harmonic distortion: ≤ 0.9%
Pick-up pattern: cardioid
Signal-to-noise ratio: ≥ 103 dBA
RF output power: 10 mW
Switching bandwidth: up to 24 MHz
Operating time: approx. 10 hrs
Modulation: wideband FM
Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing: rugged ABS housing
Dynamic range: dynamic
Frequency: 8 frequency banks, each with up to 10 factory-preset channels
Frequency range: A: 548-572 MHz
Sensitivity: < 3 μV at 52 dB(A)rms S/N
Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity: 1.5 mV / Pa
Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range: 45 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle: double superheterodyne
Diversity principle: Antenna switching diversity via internal antennas

Receiver
Weight: approx. 340g
Power supply: Receiver: 12 V DC nom. / 300 mA
AF frequency response: Receiver: 50 to 16,000 Hz (–3 dB)

Microphone
Weight: approx. 245g
Power supply: Microphone: 2 AA size batteries, 1.5 V
AF frequency response: SKM 825: 80-14,000 Hz

What's in the Box

• 1 receiver EM-XSW 1

• 1 handheld transmitter SKM 825-XSW or SKM 835-XSW

• 1 microphone clamp MZQ 1

• 1 power supply NT 12-5 CW (adapter for the XSW 1-Cl1-GB only contains the UK changeable plug)

• 2 AA batteries
