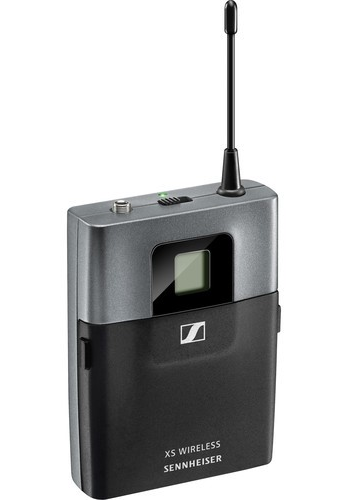

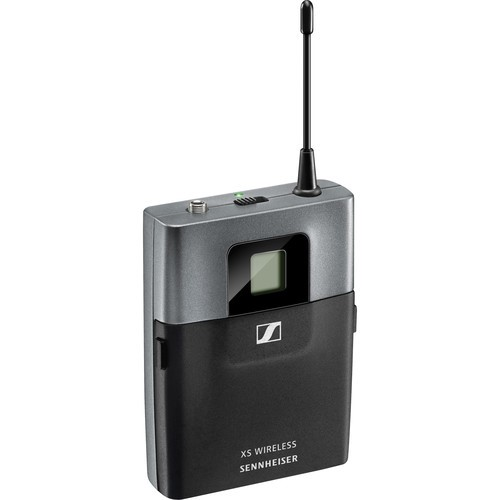

Sennheiser SK-XSW-A Wireless Bodypack Transmitter

The SK-XSW-A Bodypack Transmitter from Sennheiser is designed to be paired with an EM-XSW1-A receiver (sold separately). It can be used to capture audio for live stage applications and features automatic frequency management, which offers up to ten coordinated frequency presets for wireless connections. The transmitter is sweat-resistant and can withstand even the toughest stress in everyday on-stage use.

SPECIFICATIONS

• Modulation Wideband FM

• Frequency Range A: 548 to 572 MHz

• Switching Bandwidth Up to 24 MHz

• Frequencies 8 frequency banks, each with up to 10 factory-preset channels

• Signal to Noise Ratio ≥ 103 dBA

• Total Harmonic Distortion ≤ 0.9%

• Temperature Range Operation: 32 to 104°F (0 to +40°C)

• Storage -4 to 158°F (-20 to 70°C)

• Transmitter Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)

• Output Power 10 mW

• Frequency Response Line: 50 Hz to 16 kHz Mic: 50 Hz to 16 kHz

• Audio Input 1/8" (3.5 mm) jack socket

• Input Voltage Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain

• Power Supply 2 x AA batteries, 1.5 V

• Operating Time Approximately 10 hours

• Adjustment Range Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps

• Material of Construction Rugged ABS housing

• Dimensions (W x H x D) 2.8 x 3.8 x 1.1" (71 x 96 x 28 mm)

• Weight 3.4 oz (95 g)
