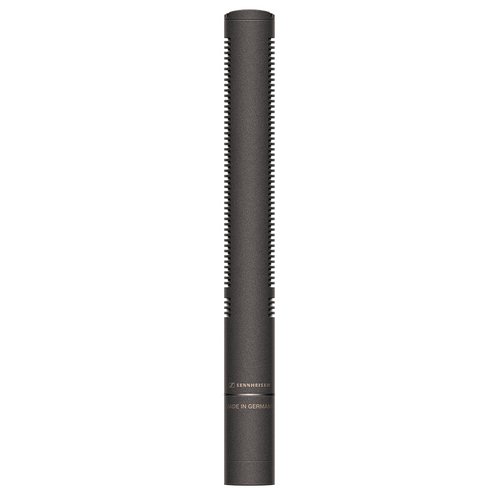

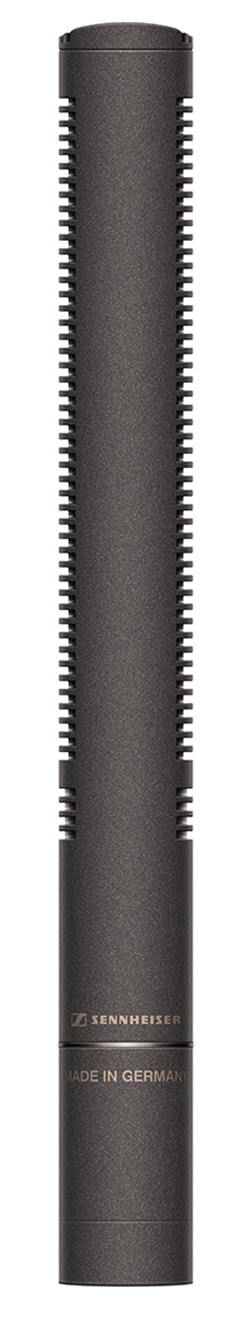

Sennheiser MKH 8060

Compact shotgun microphone. Provides great sound to feature films, documentaries, outdoor shoots or studio productions. Absolute natural sound and outstanding off-axis linearity. Ideal for camera mounting.

Whether it's a feature film, a documentary, an outdoor shoot or a studio production, the MKH 8060 will provide high quality sound to match your great pictures. Handily compact it shows its strengths as a professional shotgun microphone: The MKH 8060 delivers an absolute natural sound and outstanding off-axis linearity, attenuating sound coming from the side without coloration.

• Super-cardioid/lobar pick-up pattern

• Very natural sound

• Undistorted off-axis sound

• Exceptionally low inherent self-noise

• Extremely low distortion

• Transformerless and fully floating balanced output

• High output signal

• Rugged metal housing

• Non-reflective Nextel® coating

• Extremely weather-proof due to RF circuit

• Ideal for camera mounting due to compact design

• Timbrally identical with the other 8000-series microphones for optimum aural compatibility

SPECIFICATIONS

Dimensions: diameter 19 mm, length 175 mm (145 mm excluding XLR module)
Transducer principle (Microphone): RF condenser microphone
Frequency response: 50 - 25000 Hz
Weight: 112 g (80 g excluding XLR module)
Audio output: XLR-3M balanced, transformerless, floating
Pick-up pattern: super-cardioid/lobar
Sensitivity in free field, no load (1kHz): -24 dBV/Pa (63mV/Pa)
Nominal impedance: 25 Ohm
Min. terminating impedance: 2000 Ohm
Phantom powering: 48 V +/- 4 V
Equivalent noise level: 11 dB
Equivalent noise level weighted as per CCIR: 23 dB
Maximum sound pressure level (passive): 129 dB SPL
Current consumption: 3,3 mA

What's in the Box

• Shotgun microphone MKH 8060

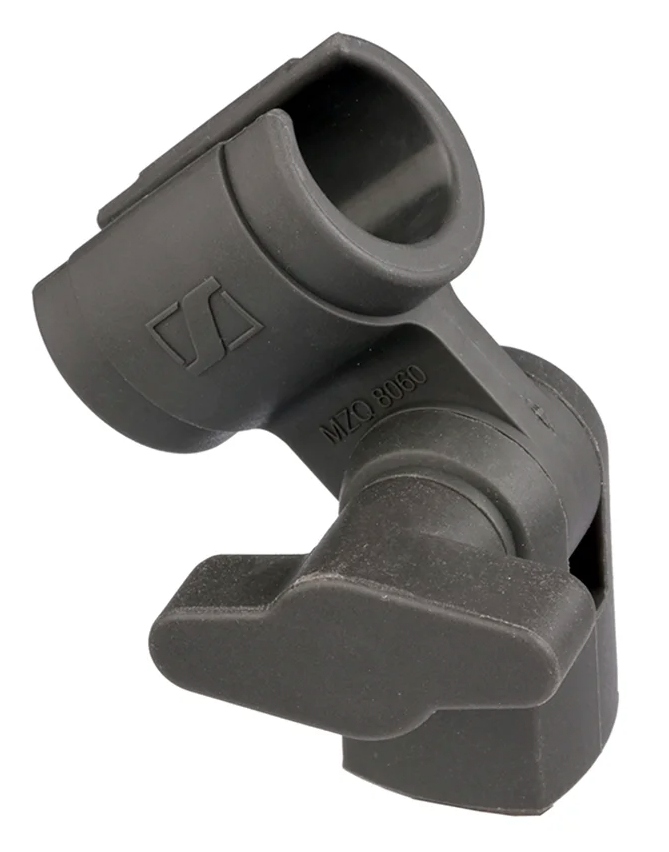

• Microphone clip

• Foamwindshield

• Threaded transport tube

• User manual
