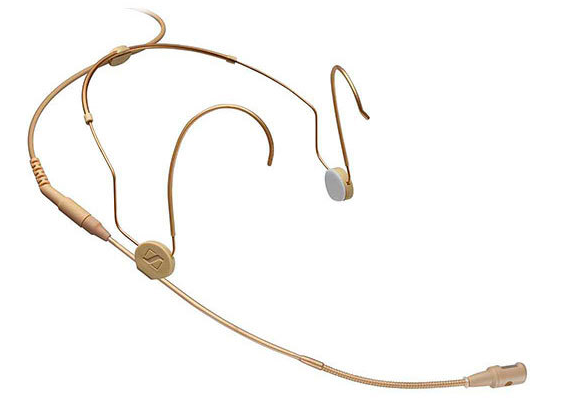

Sennheiser HSP 4-EW-3

High-quality condenser cardioid neckband mic for vocal and speech applications. Individually adjustable. Integral wind/pop shield . Easily interchangeable and combinable components thanks to modular design.

For wireless applications, the headmic can be used with different Sennheiser bodypack transmitters, depending on the connection cable (see "Variants"). For wired applications, the headmic can be used with the MZA 900 P / MZA 900 P-4 phantom power adapter.

The HSP 4 is now available in a revised version with a new attachment clip fort he microphone boom. The new clip has a very rugged, closable design, providing an extremely secure fit of the microphone boom.

HSP neckbands equipped with the previous attachment clips can be retrofitted with the new ones which are available as spare parts.

• Modular overall system, i.e. all system components are easily interchangeable and combinable

• Excellent feedback rejection

• Microphone includes a detachable cap as integral wind/popshield

• Individually adjustable to all head sizes

• Twist-proof microphone boom (Ø 2.0 mm), can be attached to the left or right side (removable attachment clip)

• Flexible gooseneck section

• Connection cable can easily be interchanged

• Attachment clip for microphone boom can be interchanged

• All metal parts coated in a physical vapour deposition process

SPECIFICATIONS

Transducer principle (Microphone): pre-polarised condenser microphone
Frequency response: 40 - 20 000 Hz
Cable length: 1,6 m Microphone
Weight: 9,2 g
Diameter: capsule: 8,4 mm
Diameter: boomarm: 2,4 mm
Pick-up pattern: cardioid
Sensitivity in free field, no load (1kHz): 4 mV/Pa
Nominal impedance: 1000 Ω
Min. terminating impedance: 4700 Ω
Equivalent noise level: 37 dB(A)
Maximum sound pressure level (passive): 150 dB
Current consumption: ca. 250 µA
Operating voltage (stand alone): 4,5 - 15 V

What's in the Box

• Boom microphone

• Neckband

• Clips for attaching the microphone boom

• Connection cable

• Foam windshield

• Plastic transport case, foam-lined with cut-outs

• Operating instructions
