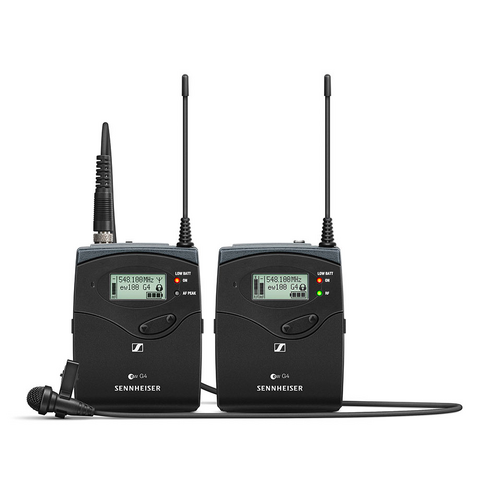

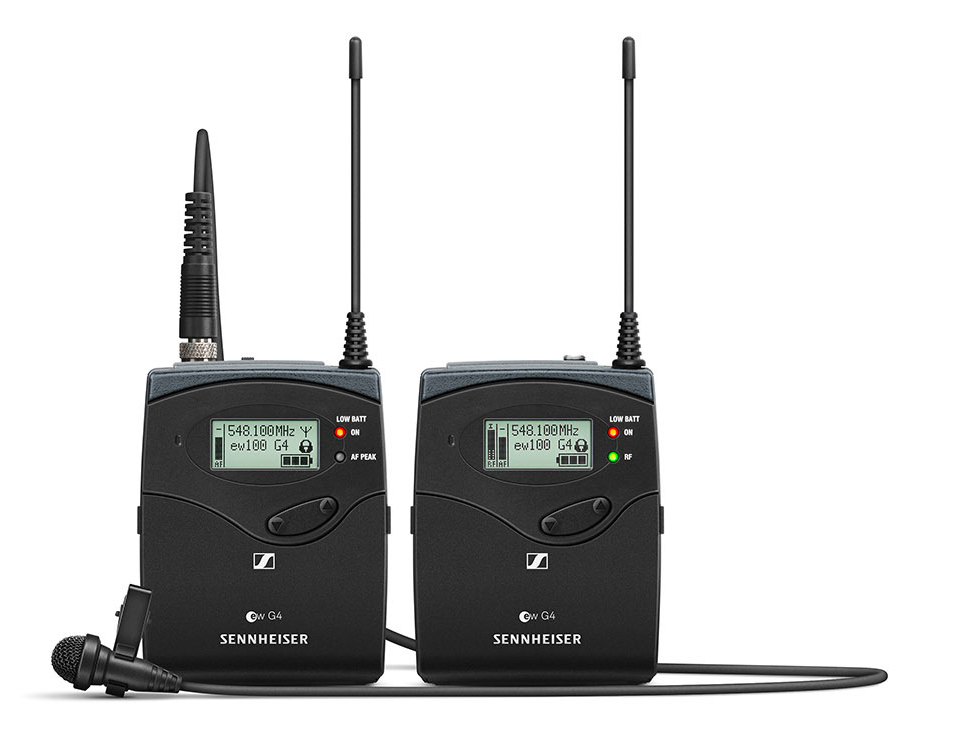

Sennheiser EW 112P G4-B

Wireless omni-directional lavalier for performers, speakers and reporters. Providing the highest flexibility for outdoor shoots and field recordings.

A broadcast quality sound solution. Providing the highest flexibility for your outdoor shoots and field recording applications. A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.

• Rugged all-in-one wireless system with high flexibility for broadcast quality sound

• Excellent sound and construction quality

• Easy to use and fast setup time

• Powerful and reliable wireless transmission

• Range: up to 100 meters / 330 feet

• Up to 8 hours of operation time

Reliability and performance
Eventually, you’ll most likely get to a point in your filmmaking career when you realize that audio quality is just as important as video quality when it comes to creating compelling content. And at a certain point, reliability and consistency become the top priorities when recording wireless audio while on set or in the field. Enter the evolution wireless G4 100 Series—the next level in your journey as a professional filmmaker.

Feature-rich and built to last
The evolution wireless G4 100 Series is packed with features that make it possible to get you up and running fast and efficiently. Use the Easy Setup function to automatically scan and select the best frequencies around you and take full advantage of the UHF spectrum. With up to 100 meters of range and a battery life of 8 hours, it’s easy to see how the durably constructed ewG4 transmitters and receivers will perform when you need them to.

Differences between the sets
The 112P, 122P, 135P and 100 ENG sets are all great options and vary depending on your needs. The 112P features our omni-directional ME 2-II lavalier microphone while the 122P features our cardioid ME 4 lavalier microphone. The 135P swaps the bodypack transmitter and lavalier mic for the SKM 100 handheld transmitter and MMD 835 cardioid capsule. For those that need a combination of both for a range of Electronic News Gathering applications, the EW 100 ENG G4 set includes the ME 2-II lavalier and adds the SKP 100 plug-on transmitter for your existing dynamic XLR microphone or a battery powered shotgun mic like the MKE 600.

SPECIFICATIONS

EK 100 G4
Frequency range: B: 626 - 668 MHz
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: ≤ 0.9 %
Weight: (incl. batteries) approx. 160 g
Audio output: 3.5 mm jack socket: +12 dBu (mono, unbalanced)
Signal-to-noise ratio: ≥ 110 dBA
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption: at nominal voltage: typ. 180 mA, with receiver switched off: ≤ 25 µA
Adjacent channel rejection: ≥ 65 dB
Intermodulation attenuation: ≥ 65 dB
Powering: 3 V battery / 2.4 V rechargeable battery
Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
RF sensitivity: < 1.6 μV for 52 dBA eff S/N
Squelch: low: 5 dBµV middle: 15 dBµV high: 25 dBμV
Temperature Range: -10 °C to +55 °C
Receiver Principle: Adaptive diversity
Blocking: ≥ 70 dB

SK 100 G4
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: ≤ 0.9 %
Weight: (incl. batteries) approx. 160 g
Signal-to-noise ratio: ≥ 110 dBA
RF output power: Max. 30 mW
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption: at nominal voltage: typ. 180 mA. with transmitter switched off: ≤ 25 µA
Input impedance: 40 kΩ, unbalanced / 1 MΩ
Max. Input voltage: 3 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response: Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
Temperature Range: -10 °C to +55 °C
Frequency stability: ≤ ±15 ppm

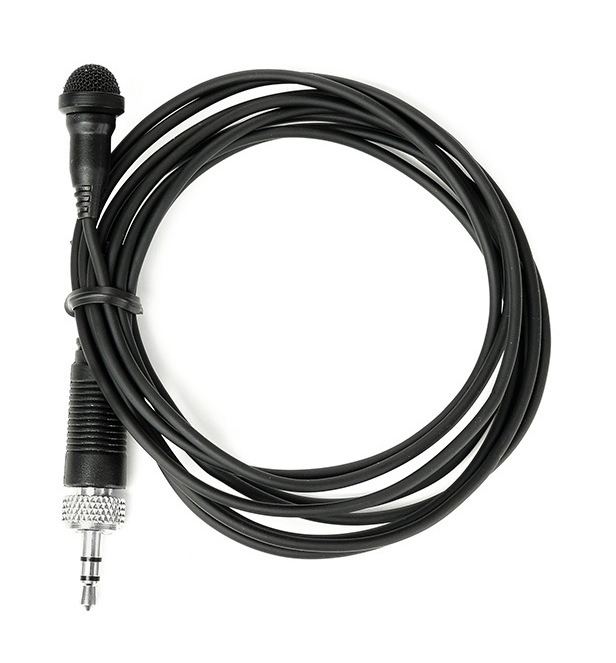

ME 2
Connector: 3.5 mm jack
Frequency response: 50 to 18,000 Hz (ME 2-II)
Max. sound pressure level: 130 dB
Cable length: approx. 1.60 m
Transducer principle: pre-polarized condensor microphone
Pick-up pattern: omni-directional
Sensitivity in free field, no load (1kHz): 20 mV/Pa
Equivalent noise level: 36 dB
