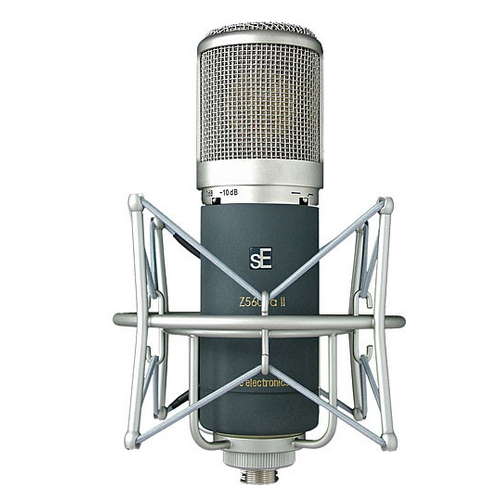

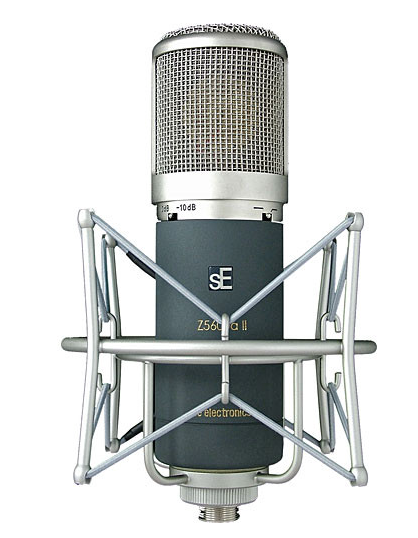

sE Electronics Z5600a II
Condenser Microphone
THICK, RICH TUBE MIC THAT WILL FLATTER ANY SOURCE
The Z5600a II large-diaphragm condenser is one of the most versatile tube mics in today's market. With 9 graded steps through omni, cardioid and figure-eight patterns, -10dB pad and bass-cut, the Z5600a II finds uses in a huge number of applications, from miking a live drum kit to overheads on a choir. Above all, though, this excellent mic has won its praise on delivering superb vocal recordings with natural warmth and incredible detail.
RECOMMENDED USE
Vocals, drum kit, OH, room, acoustic guitar, electric guitar cab, orchestral + strings, piano, woodwinds, brass
HIGHLIGHTS
- Hand-crafted 1” true condenser capsule individually tuned in our own factory
- Ready to record absolutely anything
- 9-position polar pattern switch for precise balance between direct and ambient sound
- Hand-made metal housing and gold-sputtered diaphragms
- 50 Hz bass-cut filter and -10dB pad useful for loud and heavy sources
Components
CapsuleHand-crafted 1 1/4" True Condenser
Tube complement1x 12AX7 / ECC83
DiaphragmGold-sputtered mylar
Power
Electrical impedance200 Ohms
Recommended load impedance> 1kOhms
Connectivity3-pin male XLR connector
PoweringProvided by power supply unit (included)
Sound
Polar patterns9 (Omni, Cardioid, Figure-8 with three additional steps between each)
Frequency range20 - 20,000 Hz
Sensitivity25 mV / Pa (-32 dBV)
Max SPL127 / 137 dB (0 / 10 dB attenuation pad)
Equivalent noise level13 dB
Dynamic range114 / 124 dB (0 / 10 dB attenuation pad)
Signal to noise ratio81 dB
Low-cut filter50 Hz, 6 dB / Oct, switchable
Attenuation pad10 dB, switchabl
Dimensions
Mic Diameter62 mm (2.44 in.)
Mic length220 mm (8.66 in.)
Mic weight850 g (29.98 oz.)
Floor box dimensions186 x 157 x 81 mm (7.32 x 6.18 x 3.19 in.)
Floor box weight1970 g (69.49 oz.)
What's in the box
Z5600a II microphone
8-pin microphone cable
Custom shockmount
Power supply
IEC power cable
For more information, click here to visit the manufacturers website.
