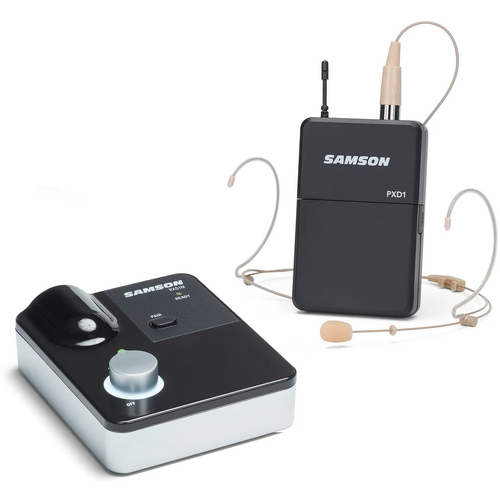

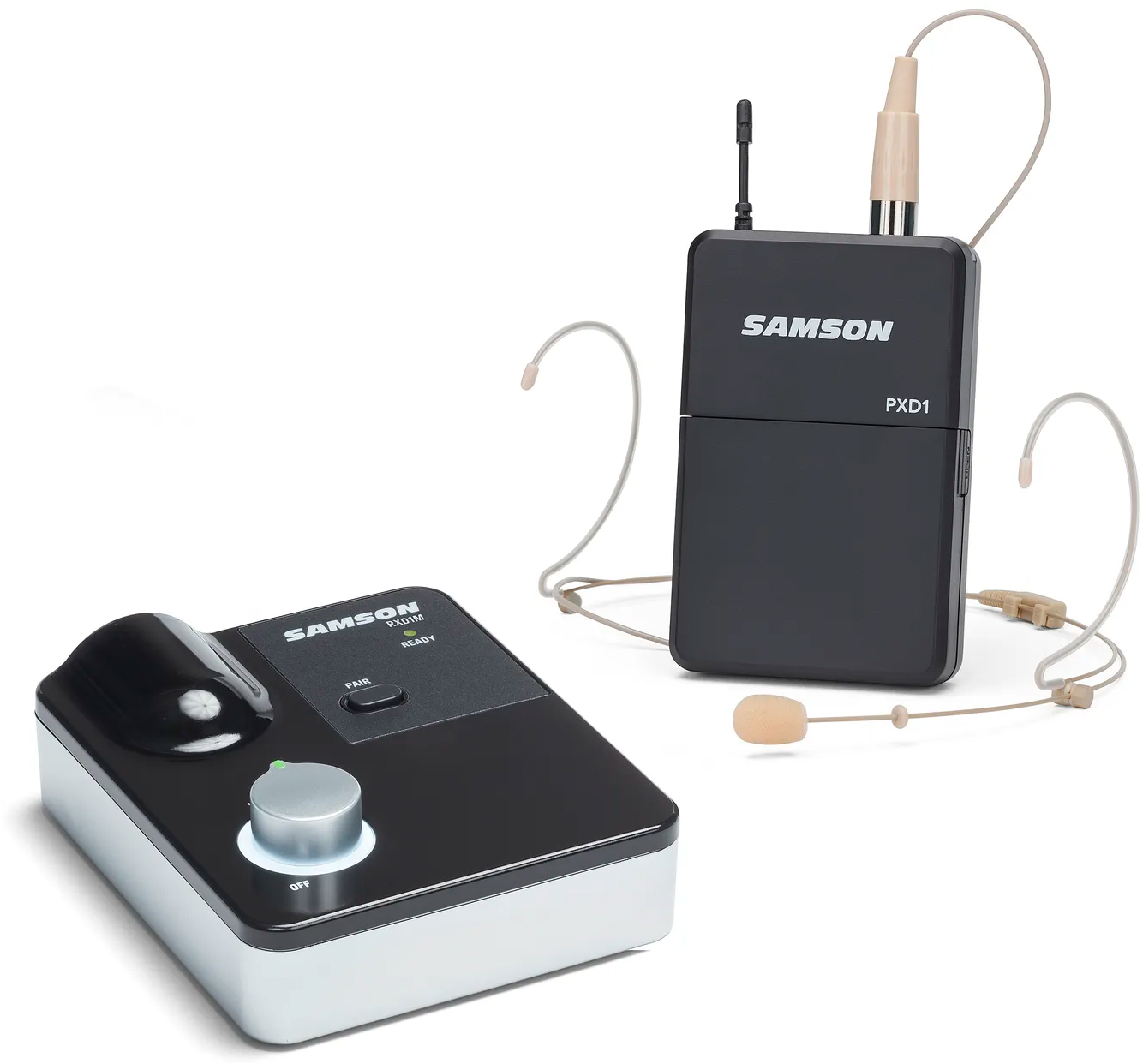

Samson XPDm Headset

Digital Wireless System with DE5

Going wireless has never been easier with the XPDm Headset Digital Wireless System, a unique wireless microphone solution ideal for presenters, fitness instructors, educators and interviewers. Operating on the license-free 2.4 GHz frequency, this digital wireless system offers professional full-range audio and 100' of wireless operation at an unbeatable price.

Digital Wireless Technology
The XPDm Headset system delivers high-quality audio using 2.4 GHz digital transmission. This wireless technology allows the microphone transmitter to send an uncompressed signal to the receiver, providing a higher signal-to-noise ratio than traditional wireless systems.

Ready Set Headset

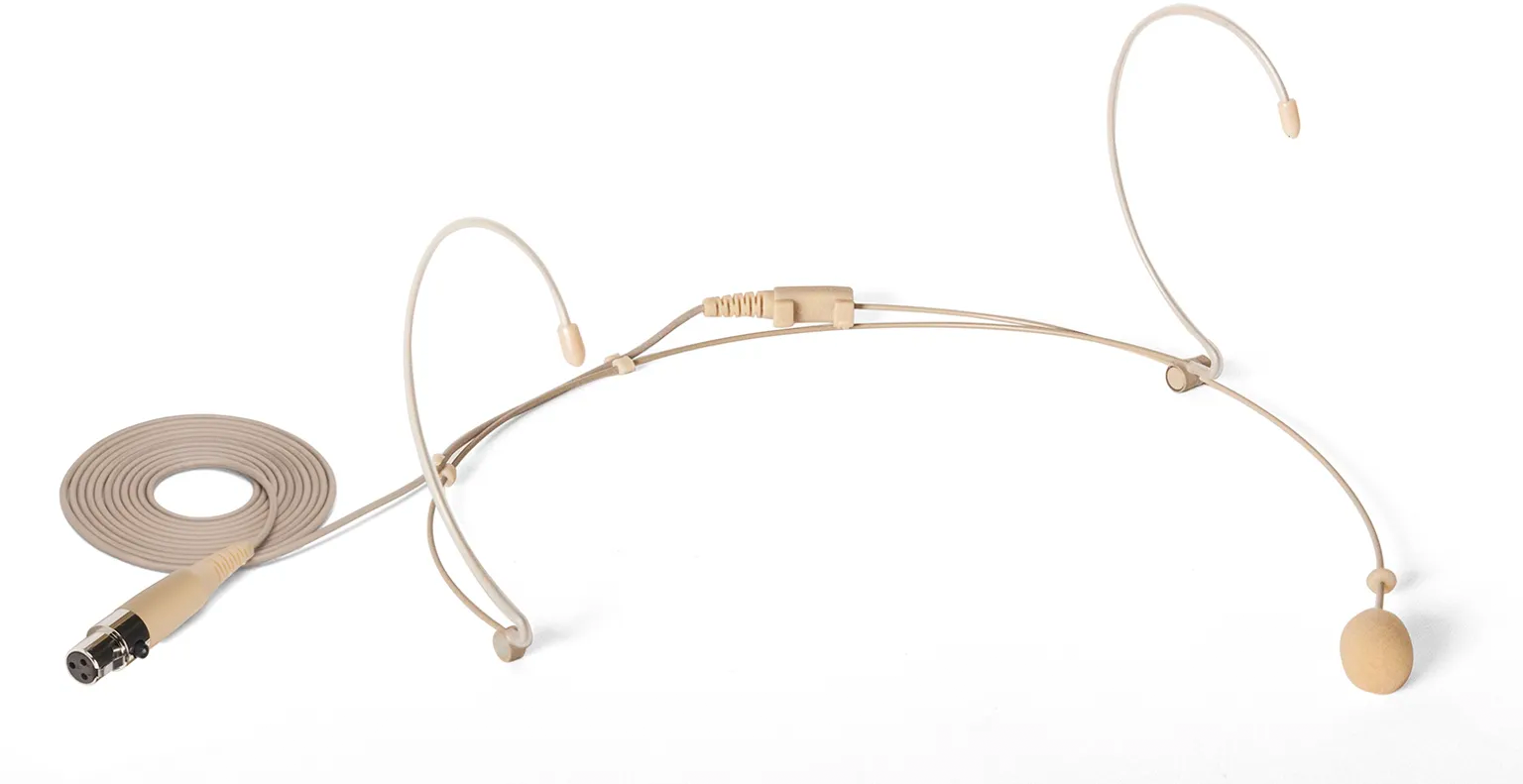

The PXD1 beltpack transmitter provides 100' of wireless range and up to 20 hours of use on two AA batteries. The DE5 Omnidirectional Headset Microphone is a unique binaural headset designed to keep the microphone in place while the user is moving. The omnidirectional pickup pattern captures vocals for clear and articulate sound regardless of the capsule's position relative to the sound source. A clothing cable clip is included for discreet and unobtrusive cable placement, and a windscreen is included to reduce wind noise and p-pops.

Simple Addition
Easily integrate the XPDm Headset System into your audio setup with a lightweight and portable RXD1M receiver that has XLR, 1/4” and 1/8” outputs. Simply pair the handheld PXD1 transmitter to the receiver via the pair button for straightforward synching.

FEATURES

XPDm Headset Digital Wireless System

• High performance digital wireless system

• Operates on 2.4GHz License-free frequency

PXD1 Beltpack Transmitter

• Includes DE5 Omnidirectional Headset Microphone

• Offers up to 20 hours of battery life using two AA batteries

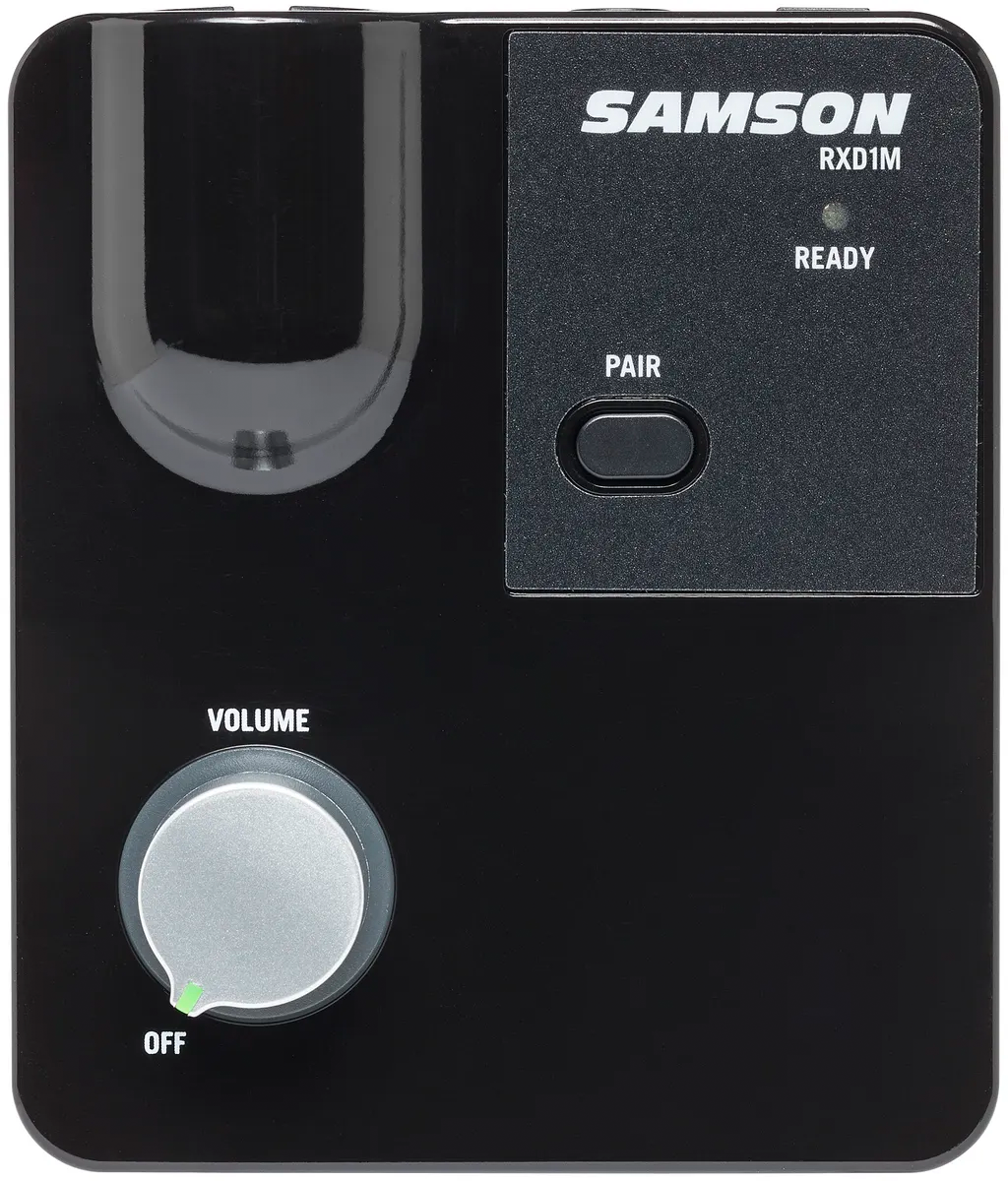

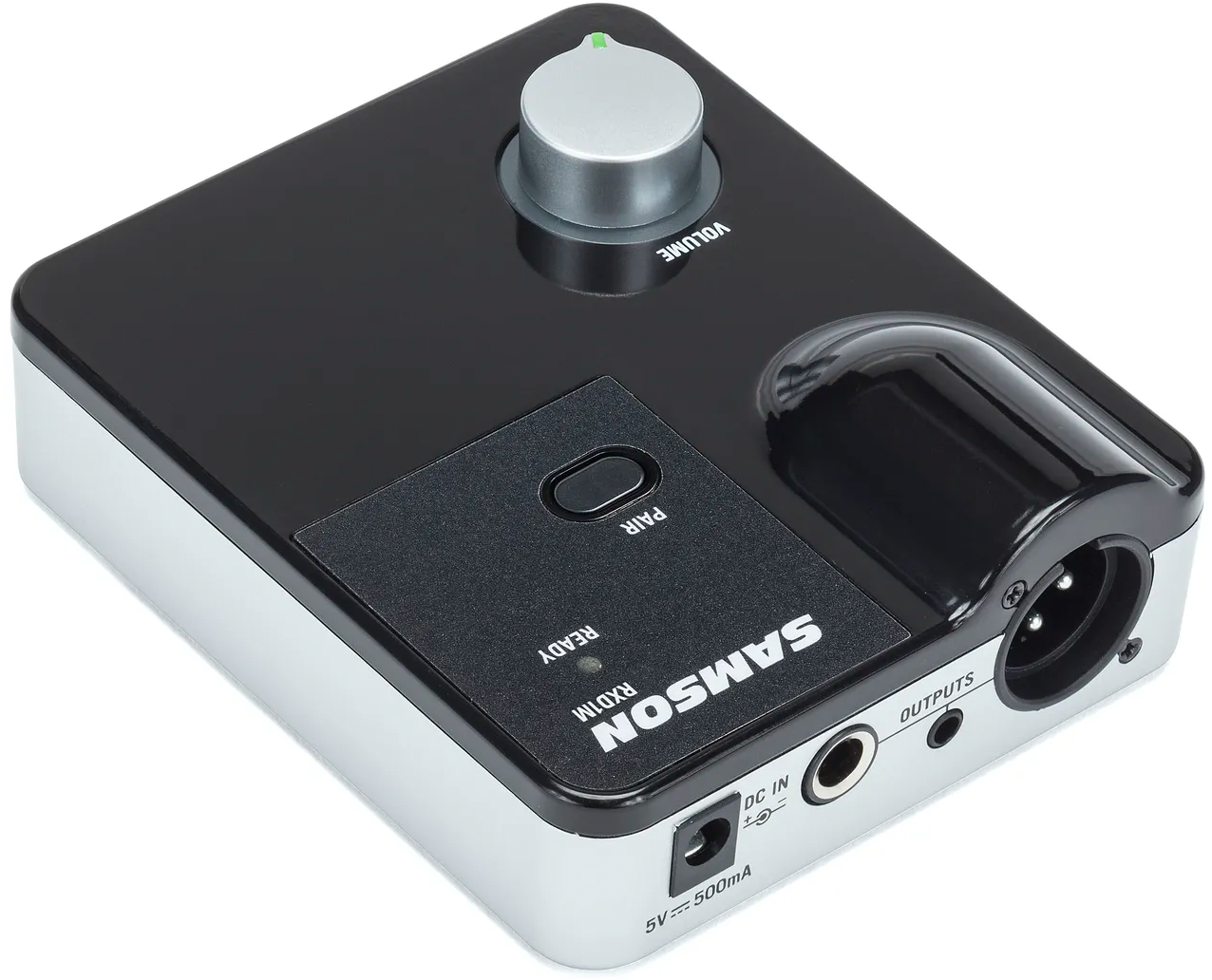

RXD1M Tabletop Receiver

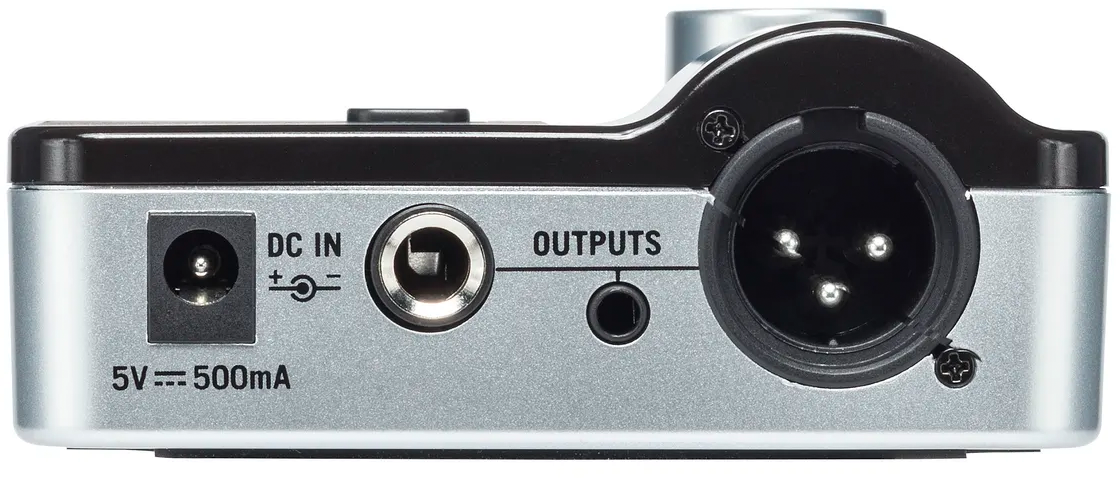

• Balanced XLR, unbalanced 1/4” and unbalanced 1/8” outputs

• One-touch pairing button

• Rotary volume knob with integral power switch

SPECIFICATIONS

System
Simultaneous Systems: 2
Working Range: 100’ line of sight
Working Frequency: 2.404~2.476 GHz
Modulation type: GFSK
Audio Frequency Response: 20 Hz – 17 kHz (-1 dB)
T.H.D: <0.1% (at 1 kHz, -10 dBu)
Signal to Noise: >85 dB

PXD1 Transmitter
Microphone: Samson DE5 micro headset mic
Input Connector: Mini-XLR (P3)
RF Power: <10 mW EIRP
Power Requirements: Two AA (LR6) alkaline batteries
Battery Life: 20 hours
Audio Sample Rate: 32 kHz
Dimensions: 0.75” x 2.44” x 0.75” / 96mm x 62mm x 18.5mm
Weight: 0.2lb / 93g

RXD1M Tabletop Receiver
Audio Output Level 1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced): +4 dBu, 1 kHz, <0.6% THD+N
Audio Output Level XLR jack (balanced): +4 dBu, 1 kHz, <0.6% THD+N
Audio Output Impedance 1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced): 110 ohms @ 1kHz
Audio Output Impedance XLR output jack (balanced): 2.4Kohms @ 1kHz
RF Sensitivity: -78dBm/20dB SINAD
Image Rejection: >50dB
Operating Voltage: 5VDC 500mA
Dimensions: 4.3” x 3.7” x 1.5” / 110mm x 95mm x 39mm
Weight: 0.33lb / 152g
