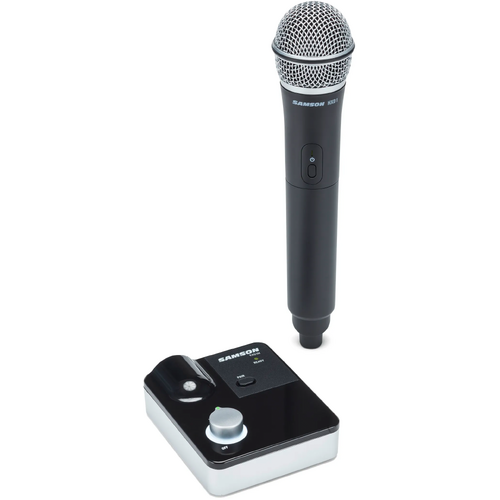

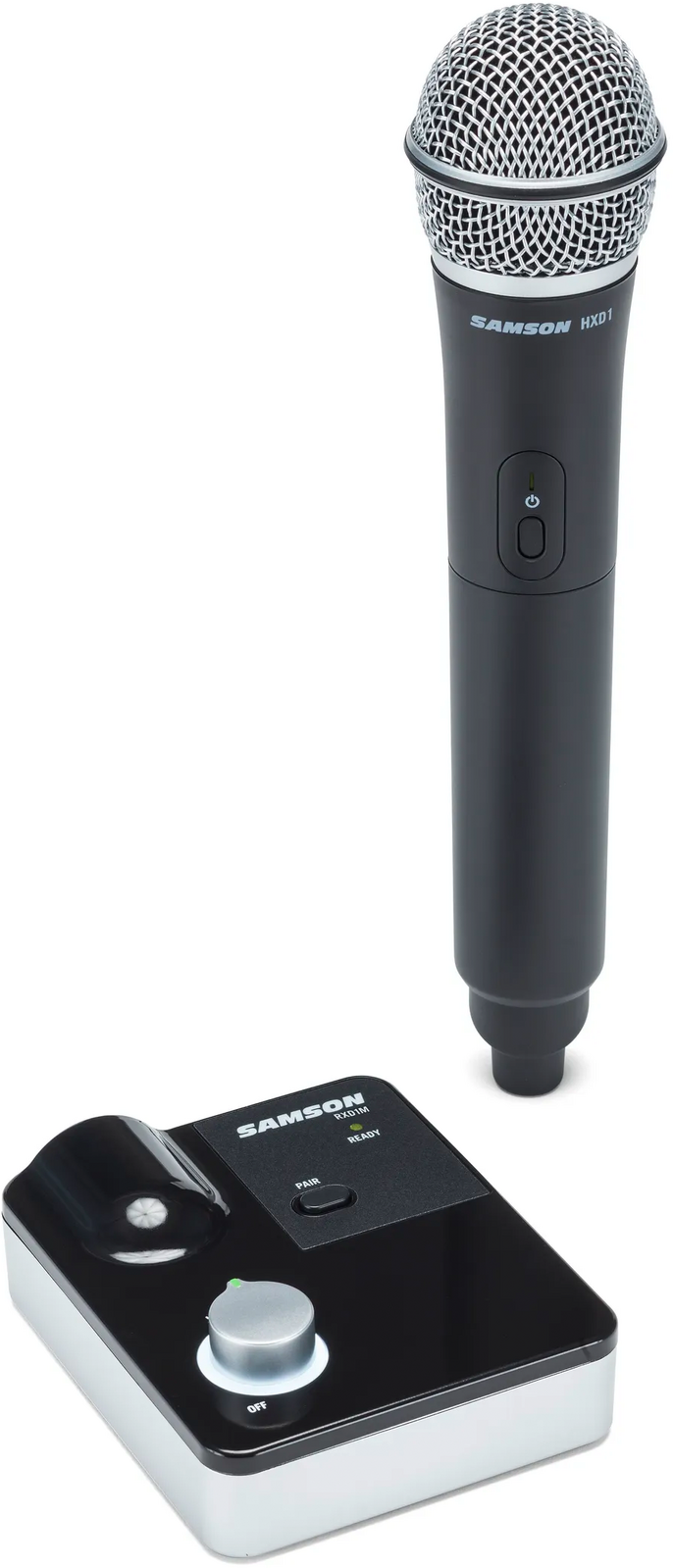

Samson XPDm Handheld

Digital Handheld Wireless System

Going wireless has never been easier with the XPDm handheld system, a unique wireless microphone solution ideal for singers, presenters, educators and interviewers. Operating on the license-free 2.4 GHz frequency, this digital wireless system offers easy setup and rock-solid wireless operation at an unbeatable price.

Digital Wireless
The XPDm Digital Wireless System delivers high-quality audio using digital transmission at 2.4 GHz, with results that sound as good as a traditional wired microphone. This wireless technology allows the microphone transmitter to send an uncompressed signal to the receiver, providing a higher signal-to-noise ratio than other wireless systems.

Completely Cordless
The HXD1 handheld transmitter provides completely wireless performance and captures vocals with absolute clarity. With 20 hours of operation on two AA batteries and an impressive 100' of wireless range, the HXD1 delivers reliable performance in any application. A Q6 microphone element provides wide dynamic range, and a multi-axis shock-mounted capsule minimizes handling noise for a reliable, professional-sounding wireless microphone solution.

More Ways to Connect

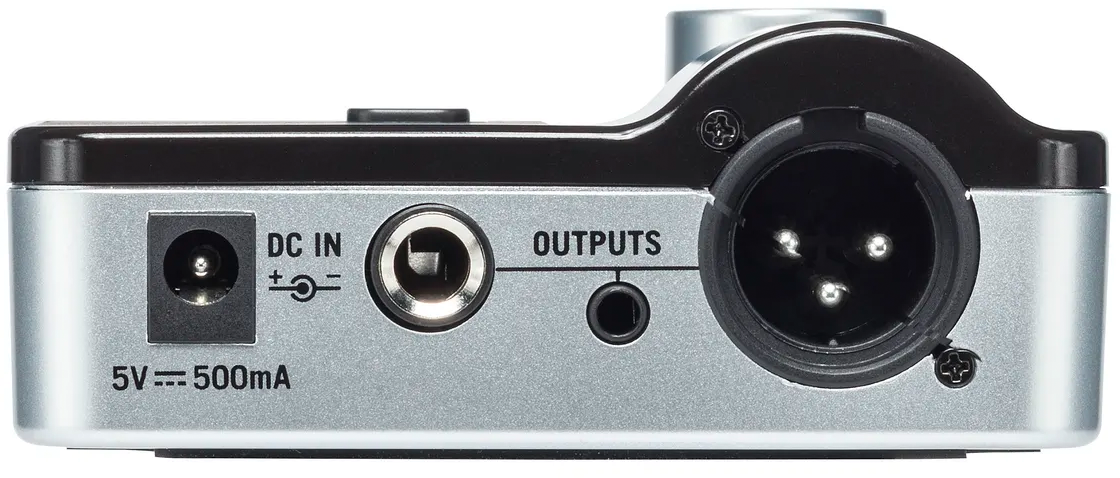

Easily integrate the XPDm handheld system into your audio setup with the lightweight and portable RXD1M receiver, which features XLR, 1/4", and 1/8" outputs.

FEATURES

XPDm Handheld System

• High performance digital wireless system

• Operates on 2.4GHz License-free frequency

• 100’ (30m) line-of-sight operating range

HXD1 Handheld Transmitter

• Q6 Dynamic Microphone capsule

• Offers up to 20 hours of battery life using two AA batteries

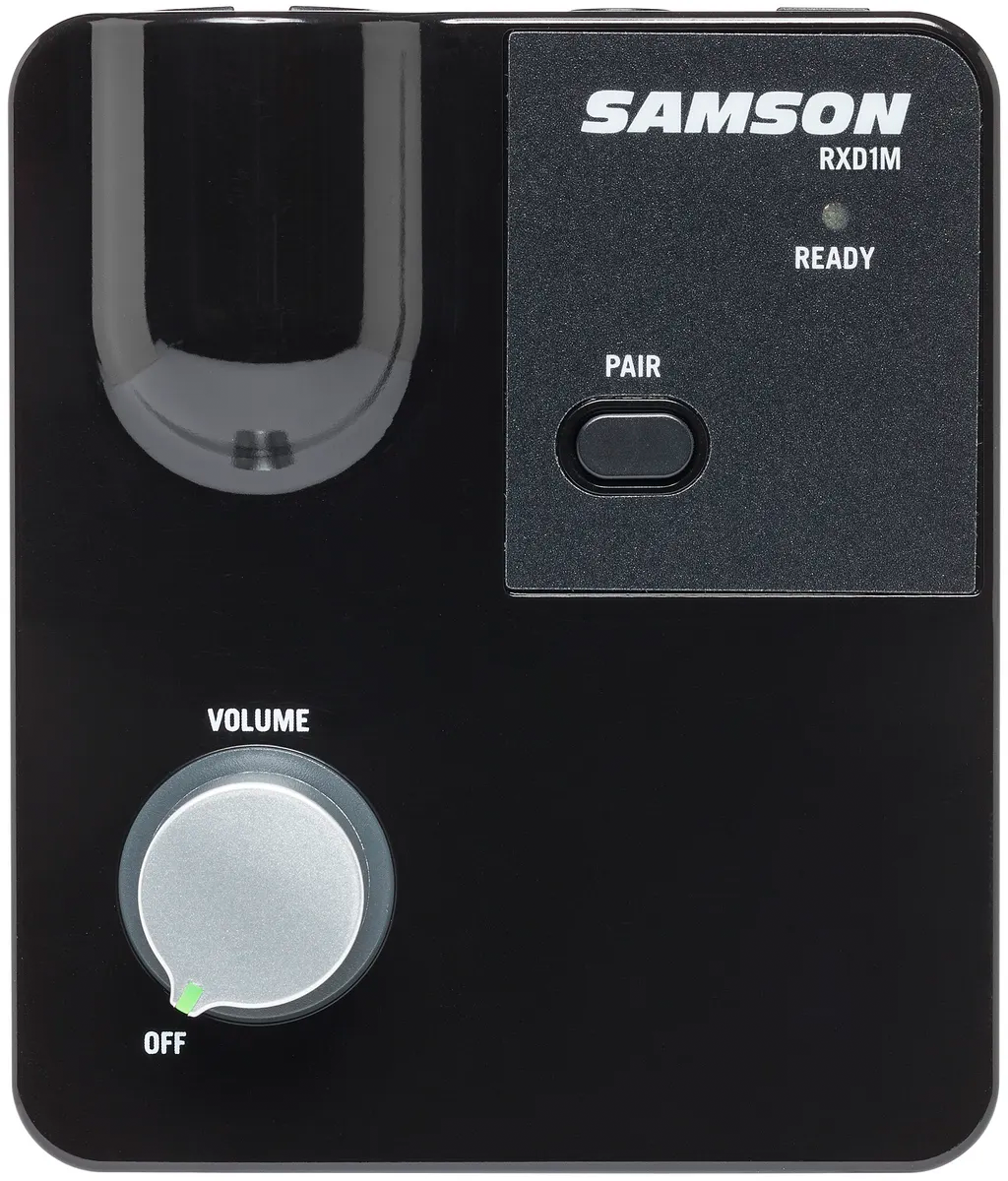

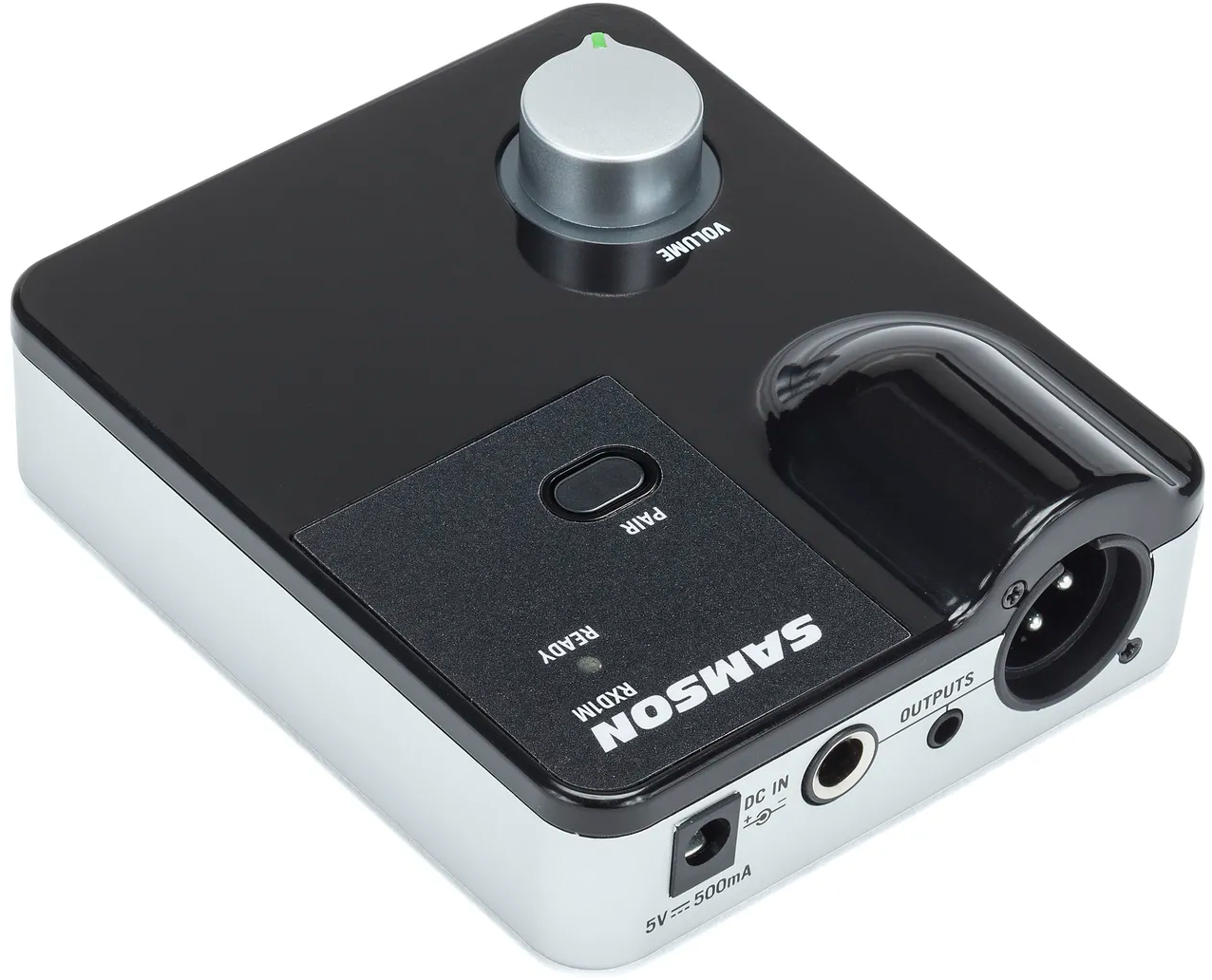

RXD1M Tabletop Receiver

• Balanced XLR, unbalanced 1/4” and unbalanced 1/8” outputs

• One-touch pairing button

• Rotary volume knob with integral power switch

SPECIFICATIONS

System
Simultaneous Systems: 2
Working Range: 100’ line of sight
Working Frequency: 2.404~2.476 GHz
Modulation type: GFSK
Audio Frequency Response: 20Hz–16KHz
T.H.D: <0.1% (at 1 kHz, -10 dBu)
Signal to Noise: >85 dB

HXD1 Transmitter
Microphone Element: Q6 Dynamic
RF Power: <10 mW EIRP
Power Requirements: Two AA (LR6) alkaline batteries
Battery Life: 20 hours
Audio Sample Rate: 32 kHz
Dimensions: 10.2” x ø2.1” / 260 mm x ø54 mm
Weight: 0.5 lb / 218 g

RXD1M Tabletop Receiver
Audio Output Level 1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced): +4 dBu, 1 kHz, <0.6% THD+N
Audio Output Level XLR jack (balanced): +4 dBu, 1 kHz, <0.6% THD+N
Audio Output Impedance 1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced): 110 ohms @ 1kHz
Audio Output Impedance XLR output jack (balanced): 2.4Kohms @ 1kHz
RF Sensitivity: -78dBm/20dB SINAD
Image Rejection: >50dB
Operating Voltage: 5VDC 500mA
Dimensions: 4.3” x 3.7” x 1.5” / 110mm x 95mm x 39mm
Weight: 0.33lb / 152g
