Roland VH-10

IDEAL FOR PERFECTING HI-HAT TECHNIQUES

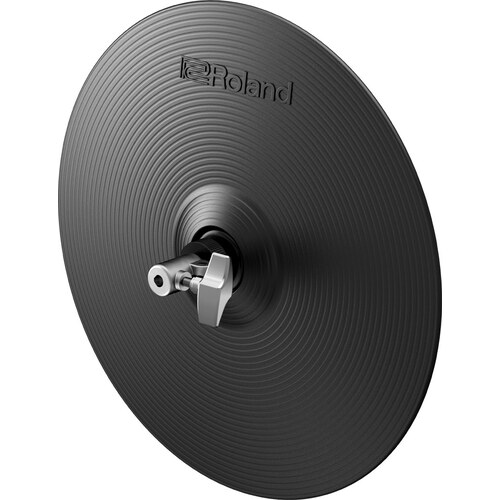

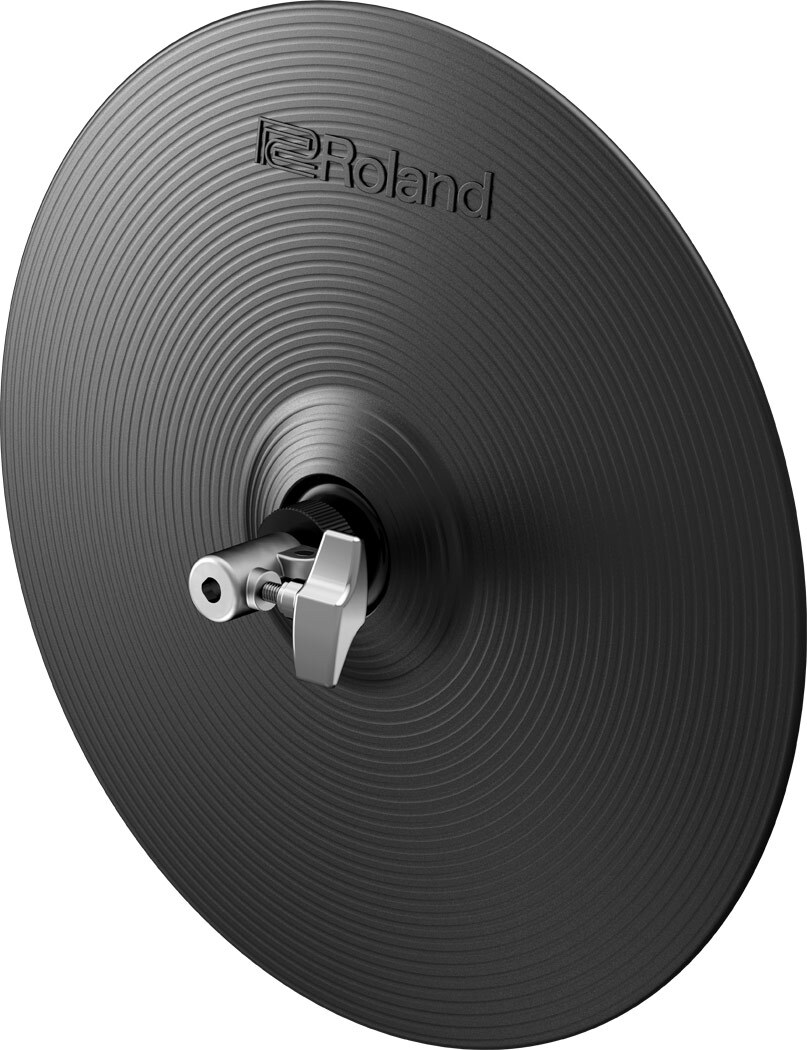

The VH-10 V-Hi-Hat uses a single-cymbal floating design that can be mounted and played on a traditional acoustic hi-hat stand. It provides the same playing feel as an acoustic hi-hat with natural rebound feel and swinging motion of the hi-hat cymbal. The depth at which you advance the pedal of the hi-hat stand smoothly varies the tonal character from open to closed, and you can also use hi-hat techniques such as half-closed playing and foot-splash. The VH-10 allows you to express the tonal change that occurs when you strike the hi-hat in the closed state before immediately opening it. You can even differentiate between strikes on the bow and edge of the cymbal, too.

FEATURES

• Replicates the natural swinging motion of an authentic hi-hat cymbal

• Light-weight cymbal, perfect for foot splash techniques and quick pedal control

• Differentiate between strikes on the bow and edge

• Striking surface uses rubber for silencing

• Can be mounted on a traditional acoustic hi-hat stand

SPECIFICATIONS

Size: 12 inches
Triggers: 2 (Bow, Edge)
Connectors:

• TRIGGER OUTPUT jack

• CONTROL OUTPUT jack

Acceptable rod diameters: 6.0–7.0 mm (1/4–5/16 inches) (Rod bushes: Max. 11.7 mm (1/2 inches))

Accessories:

• Insulating plate

• Connection cable x 2

• Drum key

• Tie with lock

• Owner's Manual

• Leaflet “USING THE UNIT SAFELY”

Options (sold separately):

• Noise eater (NE-10, NE-1)

• Hi-hat stand

Size and Weight (Hi-Hat)
Width: 314 mm / 12-3/8 inches
Depth: 314 mm / 12-3/8 inches
Height: 103 mm / 4-1/16 inches
Weight: 1.2 kg / 2 lbs 11 oz

Size and Weight (Motion Sensor Unit)
Width: 77 mm / 3-1/16 inches
Depth: 74 mm / 2-15/16 inches
Height: 71 mm / 2-13/16 inches
Weight: 0.2kg / 8 oz
