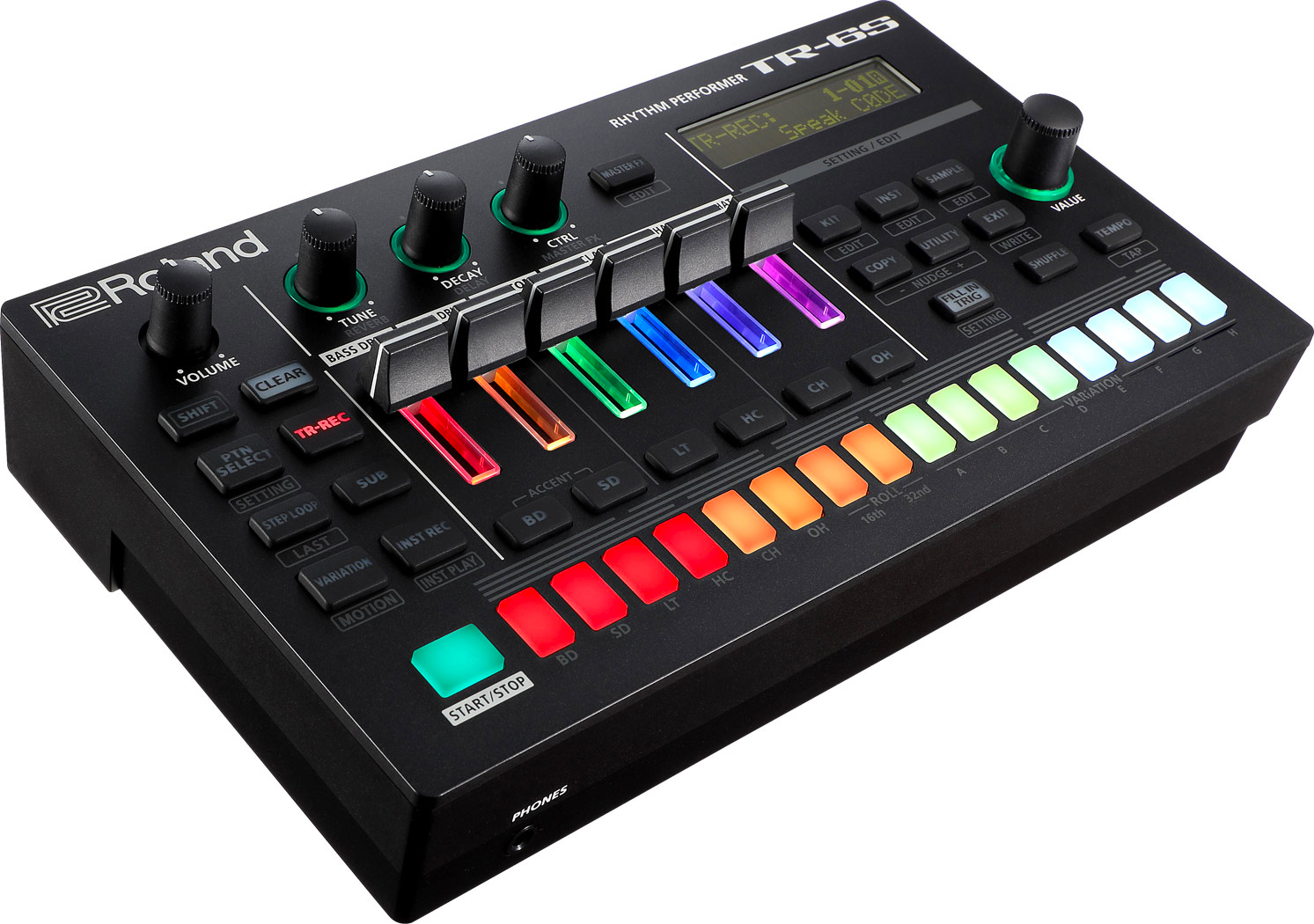

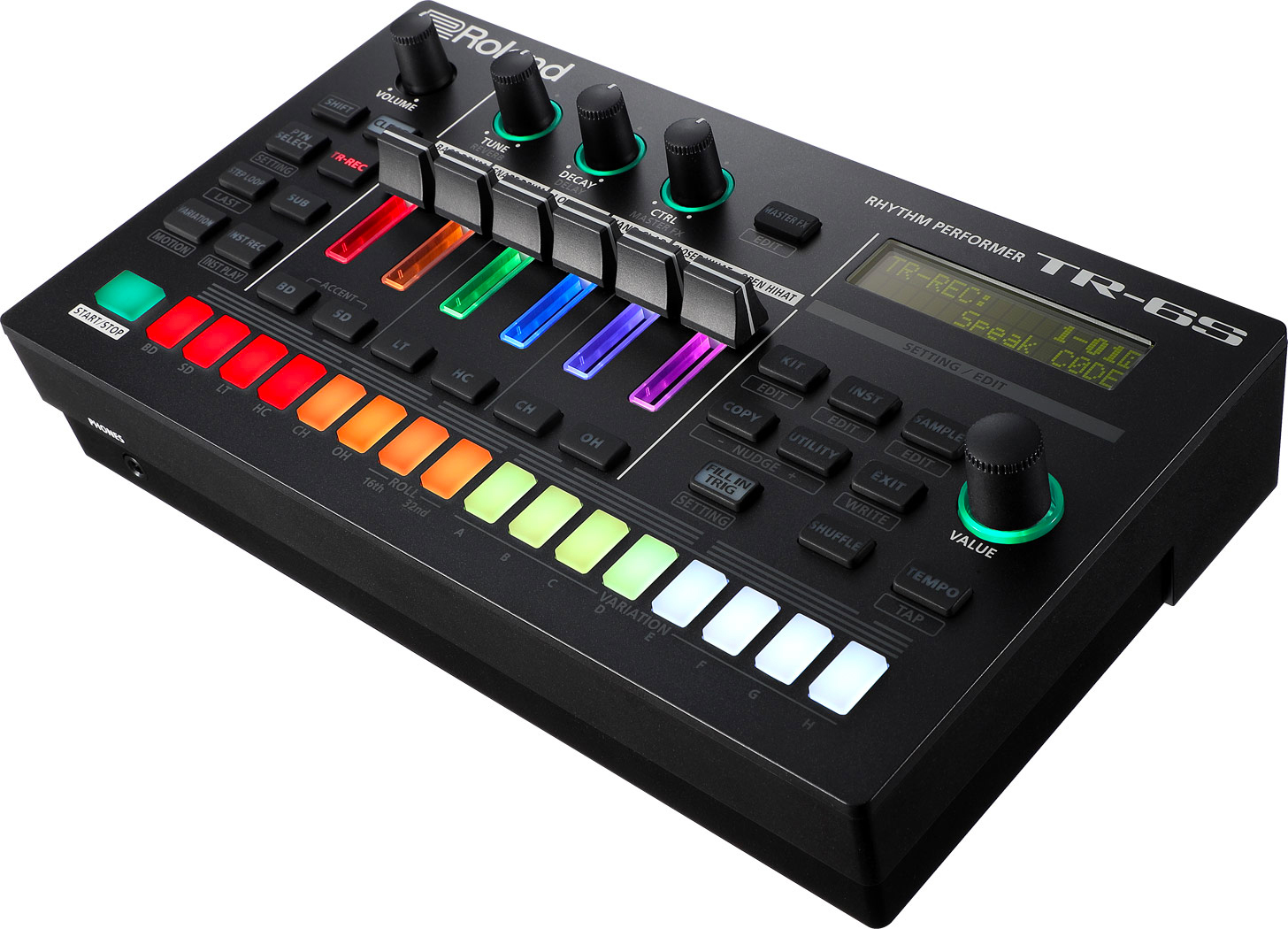

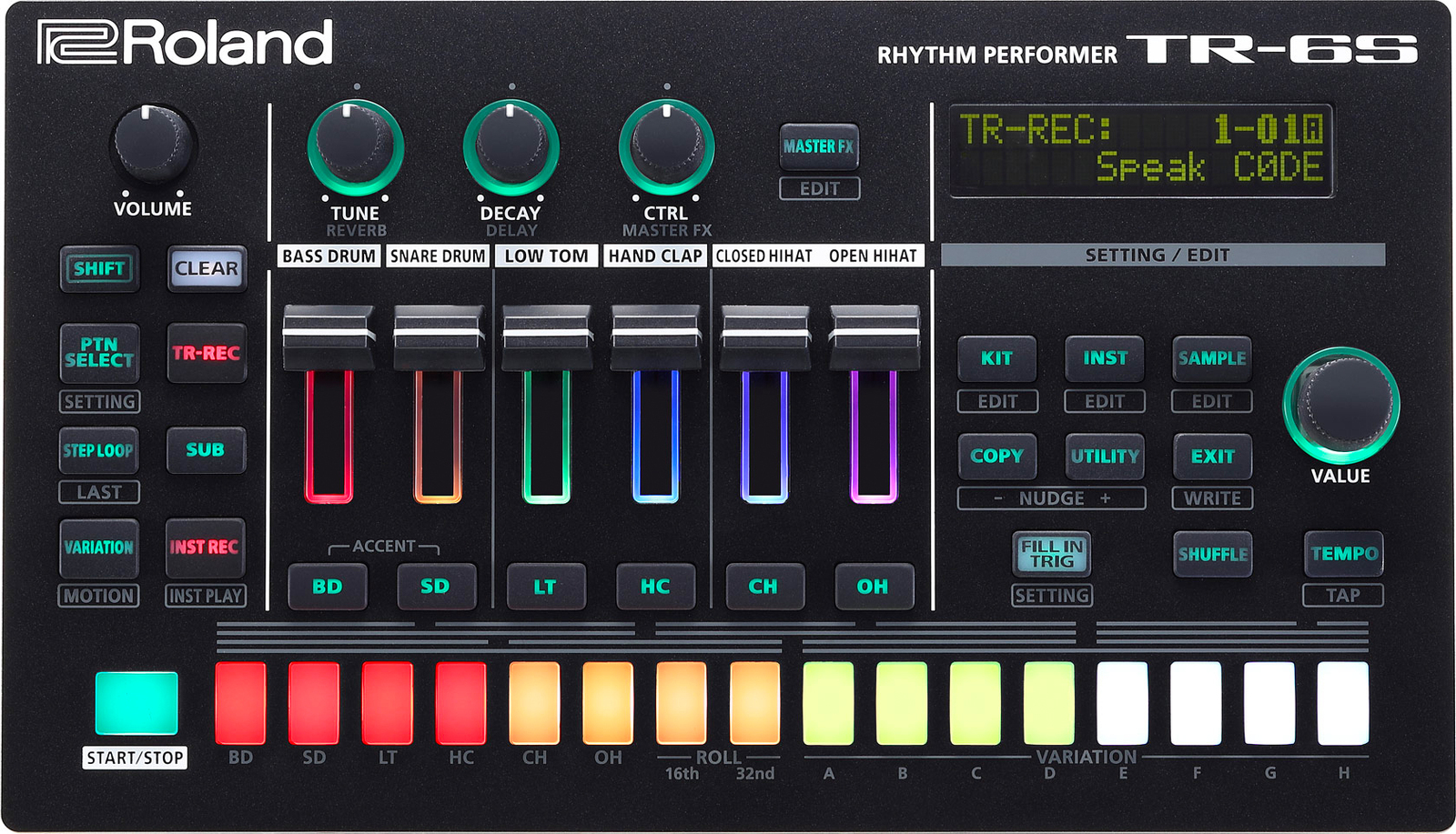

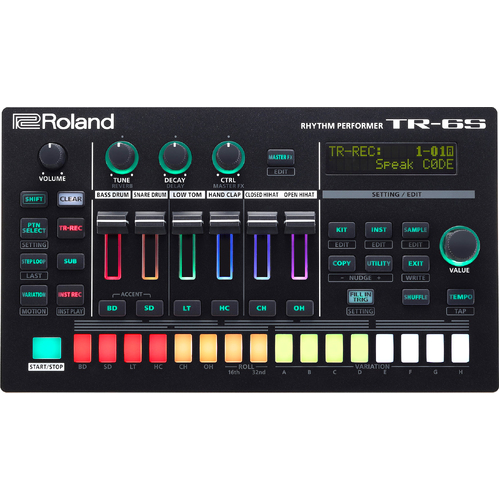

Roland TR-6S

Small Size. Big Beats.

Roland TR drum machines have impacted music for over 40 years—and they’re as influential now as ever. Based on the much-loved TR-8S, the compact and affordable TR-6S has the same speaker-pummeling, window-rattling, body-moving sound of its bigger sibling. Elevate your drum tracks, make beats on the go, and experience the joy of hands-on production. With the TR-6S, the sound of classic tracks, today’s trends, and tomorrow’s hits are always within reach.

FEATURES

• Six-track version of the TR-8S in a compact and affordable package

• Detailed circuit models of the Roland TR-808, TR-909, TR-606, TR-707, CR-78, and more

• Large preset sample library with support for custom user samples

• Editable FM sound engine for futuristic tones

• Program basslines with the newly developed TR-808 chromatic bass instrument

• Mix and match sounds for exotic hybrid drum kits

• Advanced sequencer with sub steps, flam, step loop, motion recording, probability, sub step probability, master probability, and more

• Runs on four AA batteries or USB bus power

• Also functions as a high-quality USB audio/MIDI interface

Six tracks of rhythmic bliss.
With the TR-6S, you get six tracks of advanced drum sequencing and the most iconic rhythm sounds in music history—all in a battery-powered box that fits just about anywhere. And like other Roland drum machines, it’s fun and inspiring. With the familiar step sequencer plus dedicated faders and knobs, it’s easy to craft custom beats with visceral, hands-on control.

All the sounds and more.
The TR-6S includes faithful recreations of the TR-808, TR-606, TR-909, TR-707, and TR-727, along with several modified versions. You also get the CR-78 CompuRhythm, a direct predecessor of the TR-808 that’s left its own indelible footprint on pop classics from the 1980s and beyond. And these aren't sample packs or cheap knock-offs—they're living, breathing replicas that sound and behave just like their vintage counterparts. Going further, you can mix and match these sounds with preset and custom samples and futuristic FM tones, creating exotic hybrid kits that reflect your unique taste and style.

The gold standard in drum programming.
The sound of today's music owes a lot to the classic step sequencer—particularly the “TR-REC” variety found in early Roland drum machines. The TR-6S employs the same tried-and-true approach, enhanced with real-time recording and modern features like sub steps for ratcheted parts, probability for creating unpredictability, and motion recording for 808 basslines that bounce and rhythms that move.

Positive effects.
Create punch, space, warmth, or grit with the array of high-quality effects in the TR-6S. Vital compressors and EQs are at your fingertips, along with lush reverb, delay, and modulation effects. Push your creative boundaries with filters, LFOs, and wild new effects that incite sonic mayhem.

Convenience and flexibility.
The TR-6S is a also a high-quality USB audio/MIDI interface, perfect for mobile or minimal production setups. And it fits in even the most space-starved studios or live rigs, so you can turn life into music whenever inspiration strikes.

Hardware meets software.
Enhance your workflow with TR-EDITOR, a fluid computer-based editor and librarian for the TR-6S. Nimbly design and edit patterns and kits with the intuitive graphic interface, which features a wide array of onscreen parameters and access to deeper FM editing. And with the large display, it’s easy to manage your entire library. Download TR-EDITOR for free today through Roland Cloud Manager, the software interface for Roland Cloud content.

SPECIFICATIONS

User Drum Kit: 128
User Patterns: 128
Step Sequencer:

• 6 instrument parts

• 16 steps per 1 variation

• 8 (A - H) variations per 1 pattern

• 2 Fill-in patterns per 1 pattern

INST tone (Tone can be assigned to each 6 instrument parts freely.)
BASS DRUM: 11 ACB tones
SNARE DRUM: 8 ACB tones
TOM: 19 ACB tones
RIM SHOT: 3 ACB tones
HAND CLAP: 5 ACB tones
HI HAT: 8 ACB tones
CYMBAL: 8 ACB tones
PERCUSSION: 24 ACB tones
FM: 72 tones
PRESET SAMPLE: 300 tones or greater
USER SAMPLE (imported form SD CARD for playback): Avarable format: WAV, AIFF
Total time for all samples: Approximately 600 sec (at 44.1 kHz, mono)
* The maximum length of a single audio file that can be imported is approximately 180 seconds (at 44.1 kHz).
* Available format of Sample:

• WAV 96 kHz maximum/8bits, 16 bits, 24 bits, 32 bits, 32 bits float (mono, stereo)

• AIFF 44.1kHz, 48kHz, 96 kHz/8bits, 16 bits, 24 bits, 32 bits, 32 bits float (mono, stereo)

Effects
Inst FX: THRU, HPF, LPF, LPF/HPF, H BOOST, L BOOST, L/H BOOST, ISOLATOR, TRANSIENT, COMPRESSOR, DRIVE, COMP+DRV, CRUSHER, SATURATOR, FREQ SHIFT, RING MOD, SPREAD
REVERB: AMBI, ROOM, HALL1, HALL2, PLATE, MOD, HA-DOU
DELAY: DLY, PAN, TAPE ECHO, PITCH SHIFT
Master FX: HPF, LPF, LPF/HPF, H BOOST, L BOOST, L/H BOOST, ISOLATOR, TRANSIENT, TRANSIENT2, COMPRESSOR, DRIVE, OVERDRIVE, DISTORTION, FUZZ, CRUSHER, PHASER, FLANGER, SBF, NOISE, FATTENER, VINYL SIM
Other: SCATTER (as one of AUTO FILL IN function), SIDE CHAIN
Display: 16 characters, 2 line (backlit LCD)
External Storage: SD Card (SDHC supported) for backup/restore function and import sample data
Connectors:

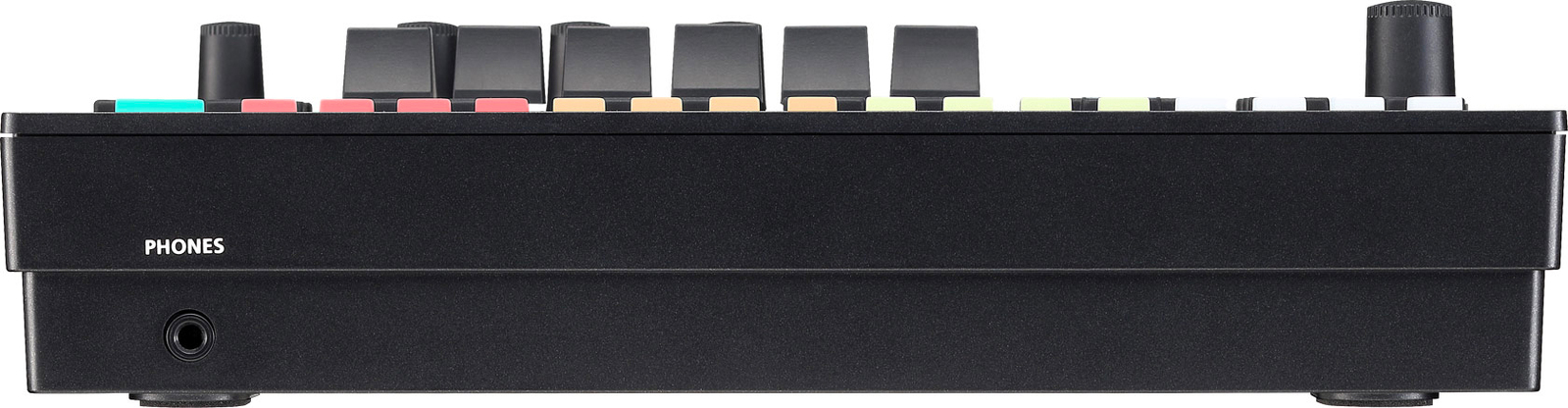

• PHONES jack: Stereo miniature phone type

• OUT(L/MONO, R) jacks: 1/4-inch phone type

• MIDI(IN, OUT) connectors

• USB port: USB B type (Audio, MIDI)

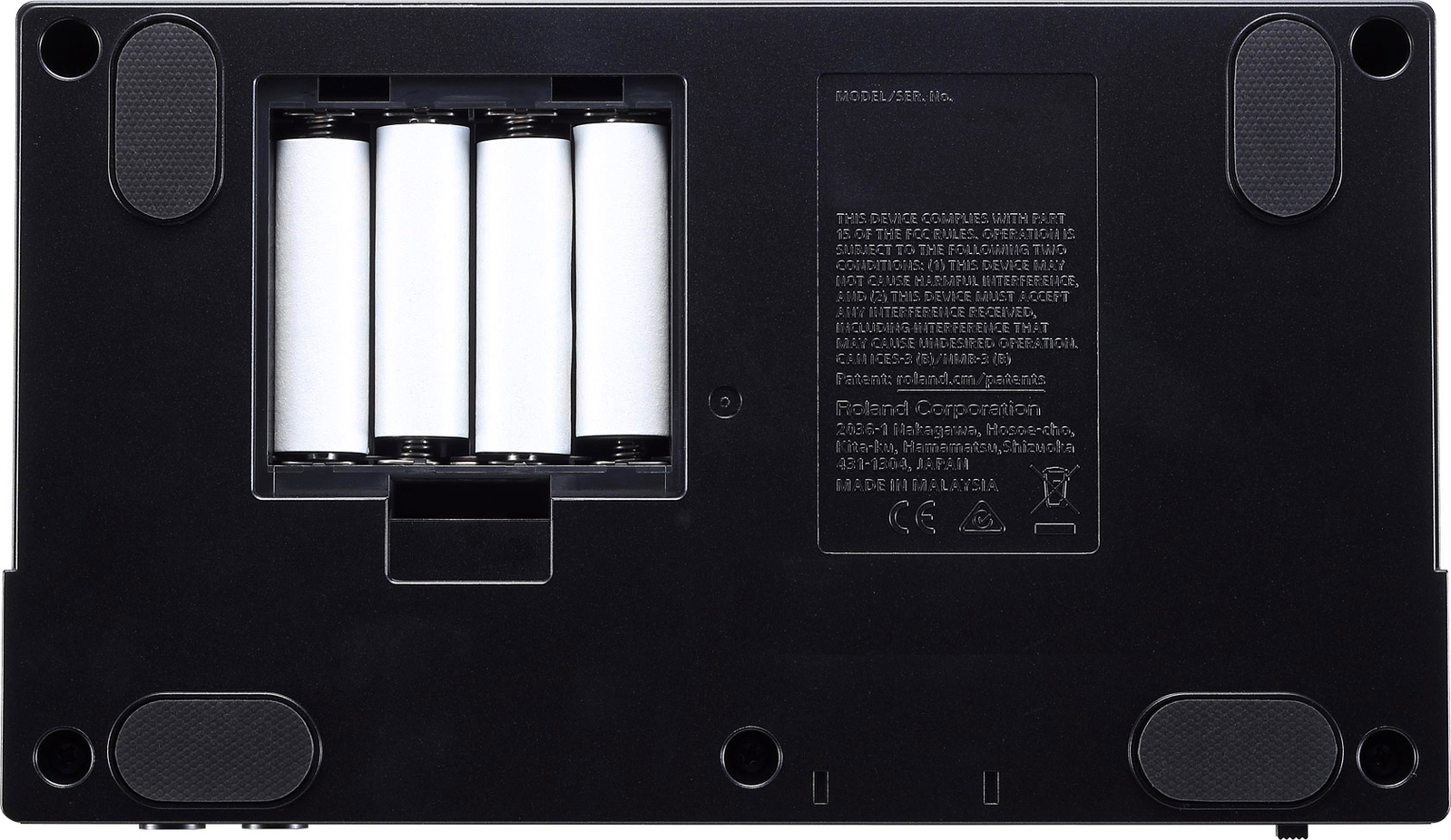

Power Supply:

• Ni-MH battery (AA, HR6) x 4

• Alkaline battery (AA, LR6) x 4

• Obtained via USB port (USB bus power)

Current Draw: 500 mA

Expected battery life under continuous use
Alkaline battery: Approx. 4.5 hours
Ni-MH battery: Approx. 5.5 hours (When using batteries having a capacity of 1,900 mAh.)
* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.

Accessories:

• Leaflet "Read Me First"

• Alkaline battery (AA, LR6) x 4

Dimensions: 224(W) x 132(D) x 60.1(H) mm / 8-13/16(W) x 5-3/16(D) x 2-3/8(H) inches
Weight (including batteries): 705 g / 1 lb 9 oz
