Roland PM-200

HIGH-RESOLUTION SOUND MONITORING, FINE-TUNED FOR ROLAND’S V-DRUMS

Delivering rich, dynamic sound in a streamlined package, the PM-200 is the ultimate monitoring solution for Roland’s V-Drums. Packing 180 watts of power, the PM-200 features a custom full-range speaker system and rugged cabinet specially optimized for reproducing the famously expressive V-Drums sound and response. And with integrated mixing and direct output capabilities, it’s easy to interface with other devices at home or on stage.

FEATURES

• Premium all-in-one monitor designed for use with V-Drums electronic percussion products

• Equipped with 180 watts of power, a custom 12-inch speaker, and horn tweeter

• Angled design provides ideal sound coverage for the seated player

• Integrated mixer with independent volume controls and global EQ

• Dedicated V-Drums input, plus 1/4-inch and 1/8-inch line inputs for connecting electronic percussion pads, smartphones, and music players

• Two XLR direct outputs, with selectable stereo or dual mono output for a V-Drums module connected in stereo

• Unique full-width bar handle for easy floor adjustment and carrying convenience

Pro-Level Sound for Playing V-Drums

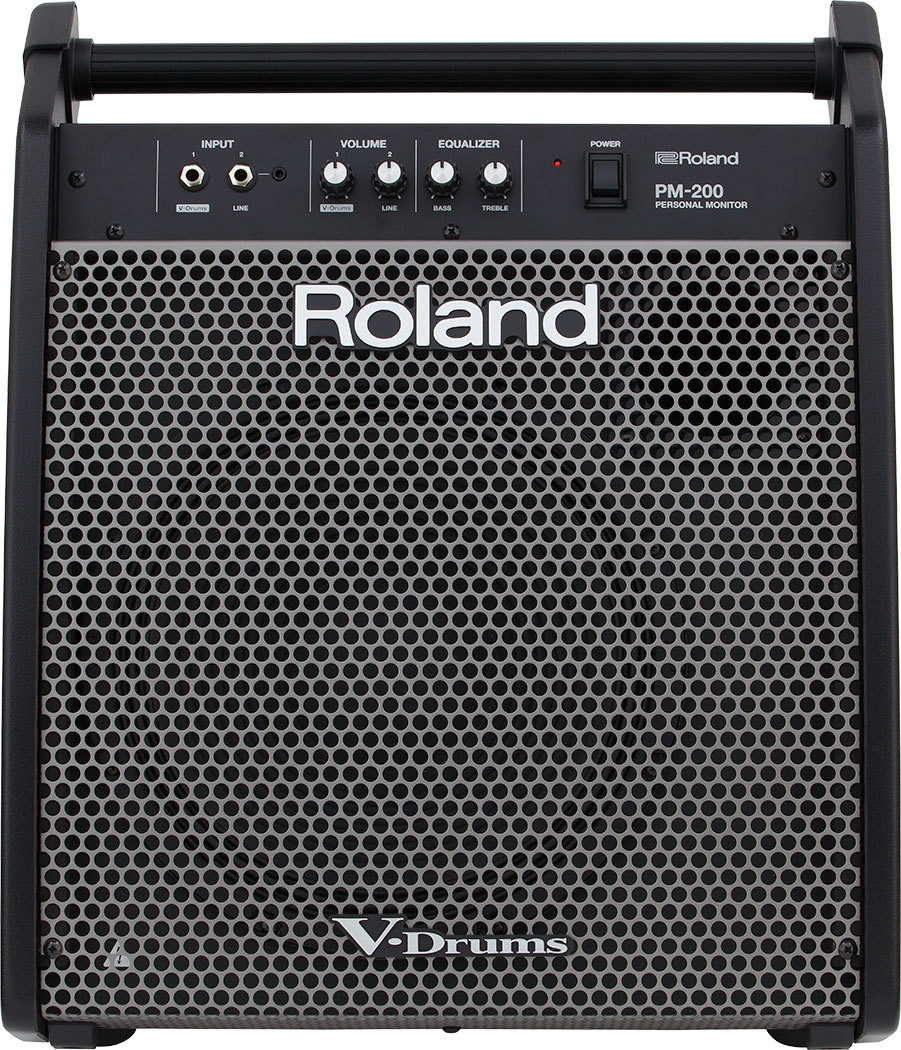

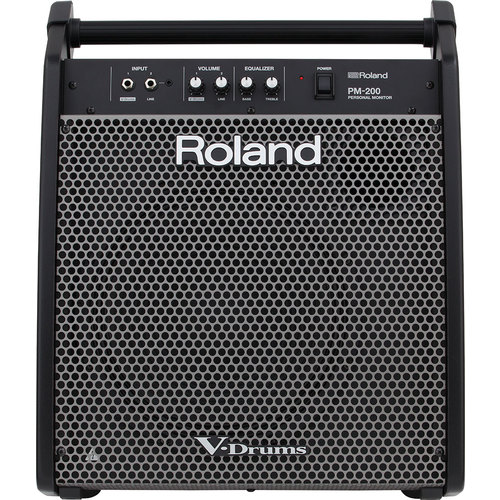

The PM-200 is the perfect complement to any V-Drums set. The custom 12-inch speaker and horn tweeter project big, full-range sound, and 180 watts of power provides ample headroom for both home playing and stage use. The front face is angled for optimal sound monitoring while seated at the V-Drums, and a full-width bar handle on top offers a convenient way to carry the monitor and adjust its floor position.

Versatile Onboard Mixing
With its integrated mixer, the PM-200 allows you to monitor backing music and external devices along with your kit. There’s a dedicated V-Drums input, plus 1/4-inch and 1/8-inch line inputs for connecting electronic percussion pads, smartphones, and music players. Independent volume controls are provided for the V-Drums and line input sections, and a two-band equalizer is on hand for shaping the overall sound.

Direct Outputs for Recording and Stage Performing

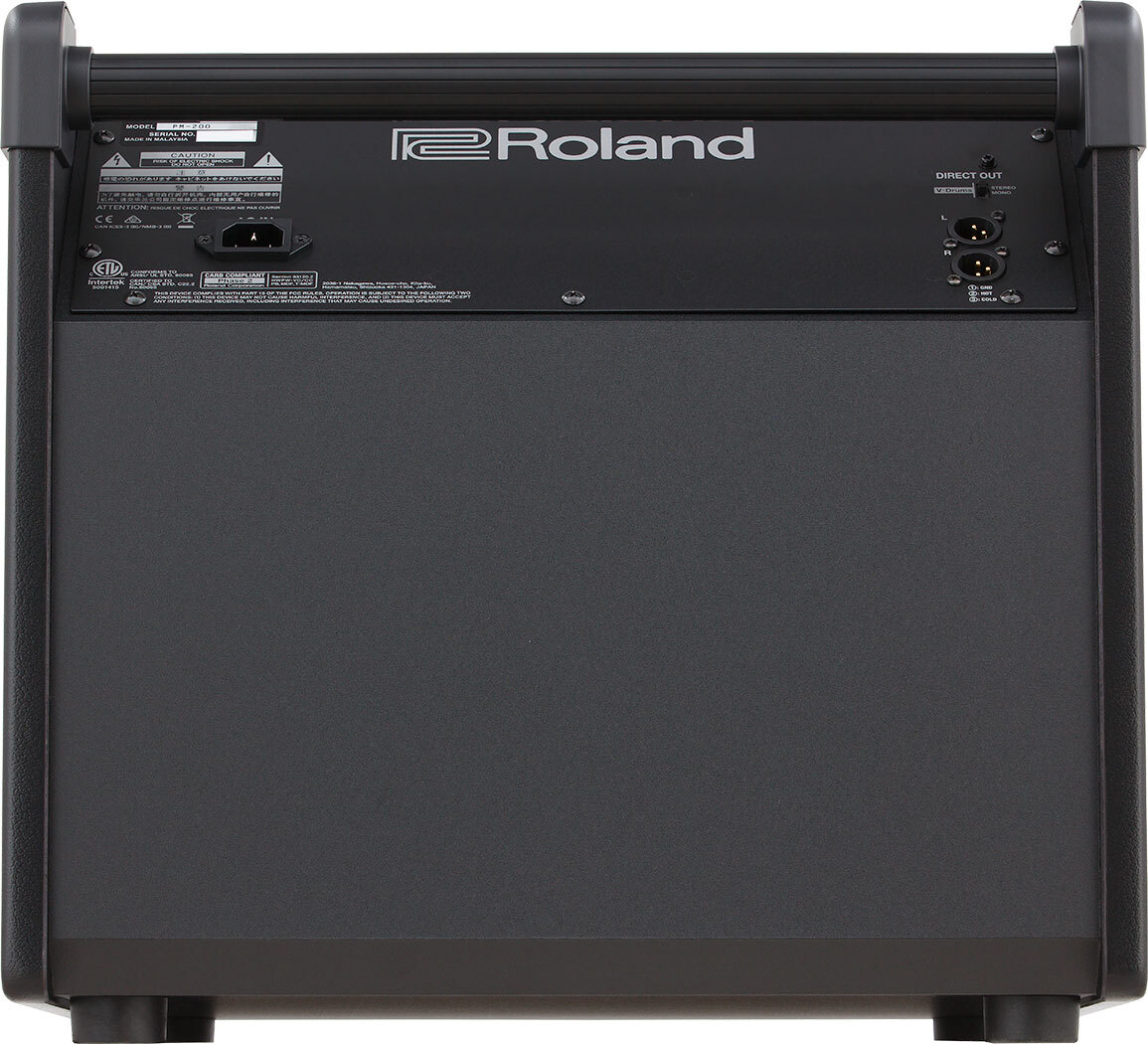

The PM-200 is also equipped with two XLR direct outputs to send sounds to a mixer or recording device, providing additional flexibility for using the monitor in stage, rehearsal, and studio applications. And while the PM-200 is a mono monitor, its inputs support stereo connections, enabling you to pass true stereo sound to the direct outputs. When a V-Drums module is connected in stereo to the V-Drums input, a convenient rear panel switch allows you to output its sound in dual mono or stereo to suit the needs of your setup.

SPECIFICATIONS

Rated Power Output: 180 W
Nominal Input Level: V-Drums INPUT: -6 dBu (10 k ohms)
LINE INPUT: -6 dBu (10 k ohms)
Speaker: 30 cm (12 inches) Woofer x 1, Horn Tweeter x 1
Controls:

• POWER switch

• V-Drums VOLUME knob

• LINE INPUT VOLUME knob

• BASS knob

• TREBLE knob

• DIRECT OUT switch

Indicators: POWER
Connectors:

• V-Drums INPUT jack: Stereo 1/4-inch phone type

• LINE INPUT jack: Stereo 1/4-inch phone type, Stereo miniature phone type

• DIRECT OUT connector: XLR type

• AC IN jack

Power Consumption: 64 W
Accessories: Owner's manual, Power cord

Dimensions
Width: 458 mm / 18-1/16 inches
Depth: 469 mm / 18-1/2 inches
Height: 420 mm / 16-9/16 inches
Weight: 21.0 kg / 46 lbs 5 oz

* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
