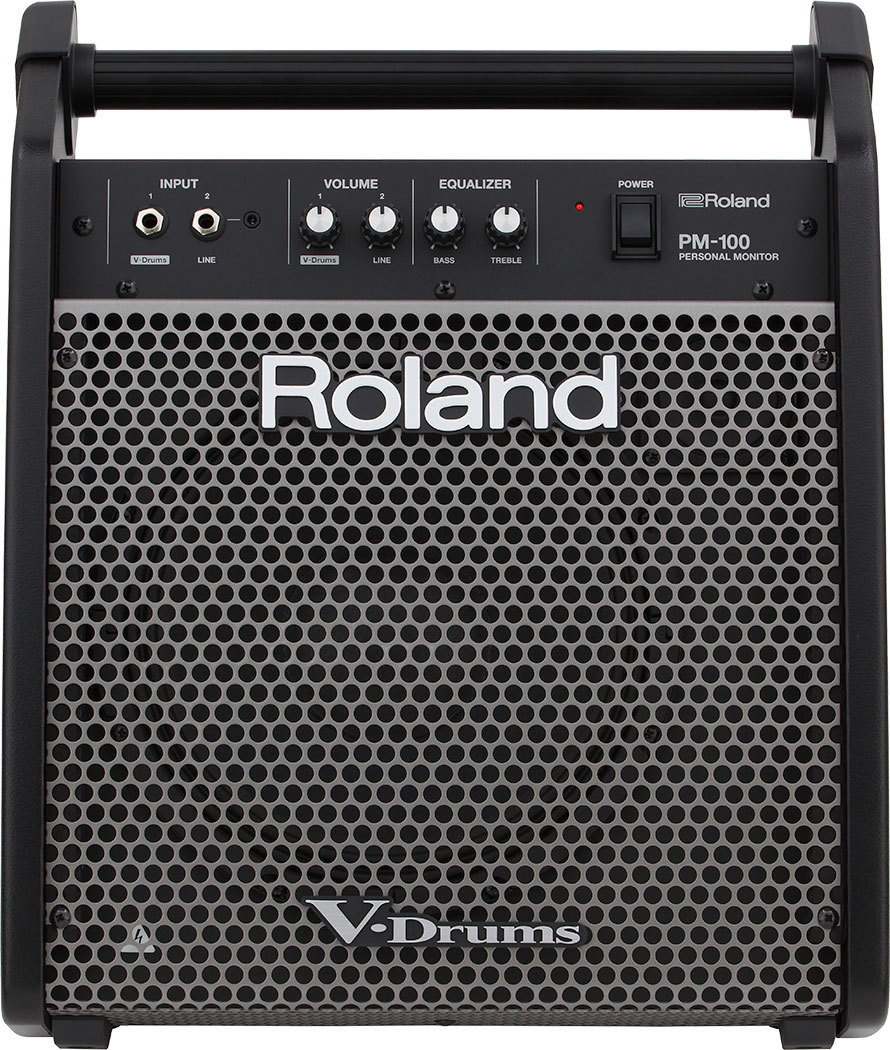

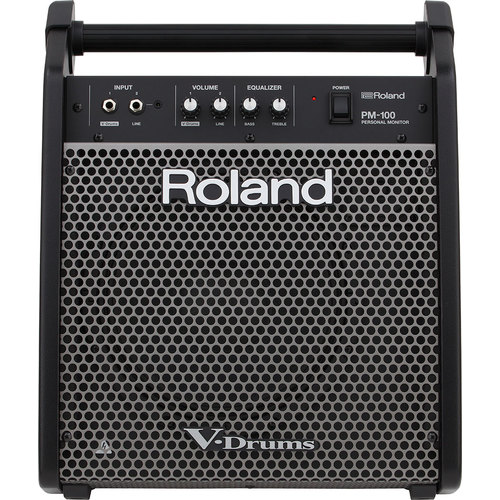

Roland PM-100

HIGH-RESOLUTION SOUND MONITORING, FINE-TUNED FOR ROLAND’S V-DRUMS

Delivering rich, dynamic sound from a minimal footprint, the PM-100 is the ideal compact monitoring solution for Roland’s V-Drums. Equipped with 80 watts of power, the PM-100 features a custom full-range speaker system and rugged cabinet specially optimized for reproducing the famously expressive V-Drums sound and response. And with onboard mixing capabilities, you’re able to connect music players and other devices for practice and enjoyment while playing at home.

FEATURES

• Premium all-in-one monitor designed for use with V-Drums electronic percussion products

• Full-range audio system with 80 watts of power, custom 10-inch speaker, and tweeter

• Angled design provides ideal sound coverage for the seated player

• Integrated mixer with independent volume controls and global EQ

• Dedicated V-Drums input, plus 1/4-inch and 1/8-inch line inputs for connecting electronic percussion pads, smartphones, and music players

• Unique full-width bar handle for easy floor adjustment and carrying convenience

Pro-Level Sound for Playing V-Drums
The PM-100 is the perfect complement to any V-Drums set. Its compact size is ideal for playing at home, and the powerful custom speaker system delivers rich, full-range sound with inspiring punch and presence. The front face is angled for optimal sound monitoring while seated at the V-Drums, and a full-width bar handle on top offers a convenient way to carry the monitor and adjust its floor position.

Versatile Onboard Mixing
With its integrated mixer, the PM-100 allows you to monitor backing music and external devices along with your kit. There’s a dedicated V-Drums input, plus 1/4-inch and 1/8-inch line inputs for connecting electronic percussion pads, smartphones, and music players. Independent volume controls are provided for the V-Drums and line input sections, and there’s also a two-band equalizer for shaping the overall sound.

SPECIFICATIONS

Rated Power Output: 80 W
Nominal Input Level: V-Drums INPUT: -6 dBu (10 k ohms)
LINE INPUT: -6 dBu (10 k ohms)
Speaker: 25 cm (10 inches) Woofer x 1, 5 cm (2 inches) Tweeter x 1
Controls:

• POWER switch

• V-Drums VOLUME knob

• LINE INPUT VOLUME knob

• BASS knob

• TREBLE knob

Indicators: POWER
Connectors:

• V-Drums INPUT jack: Stereo 1/4-inch phone type

• LINE INPUT jack: Stereo 1/4-inch phone type, Stereo miniature phone type

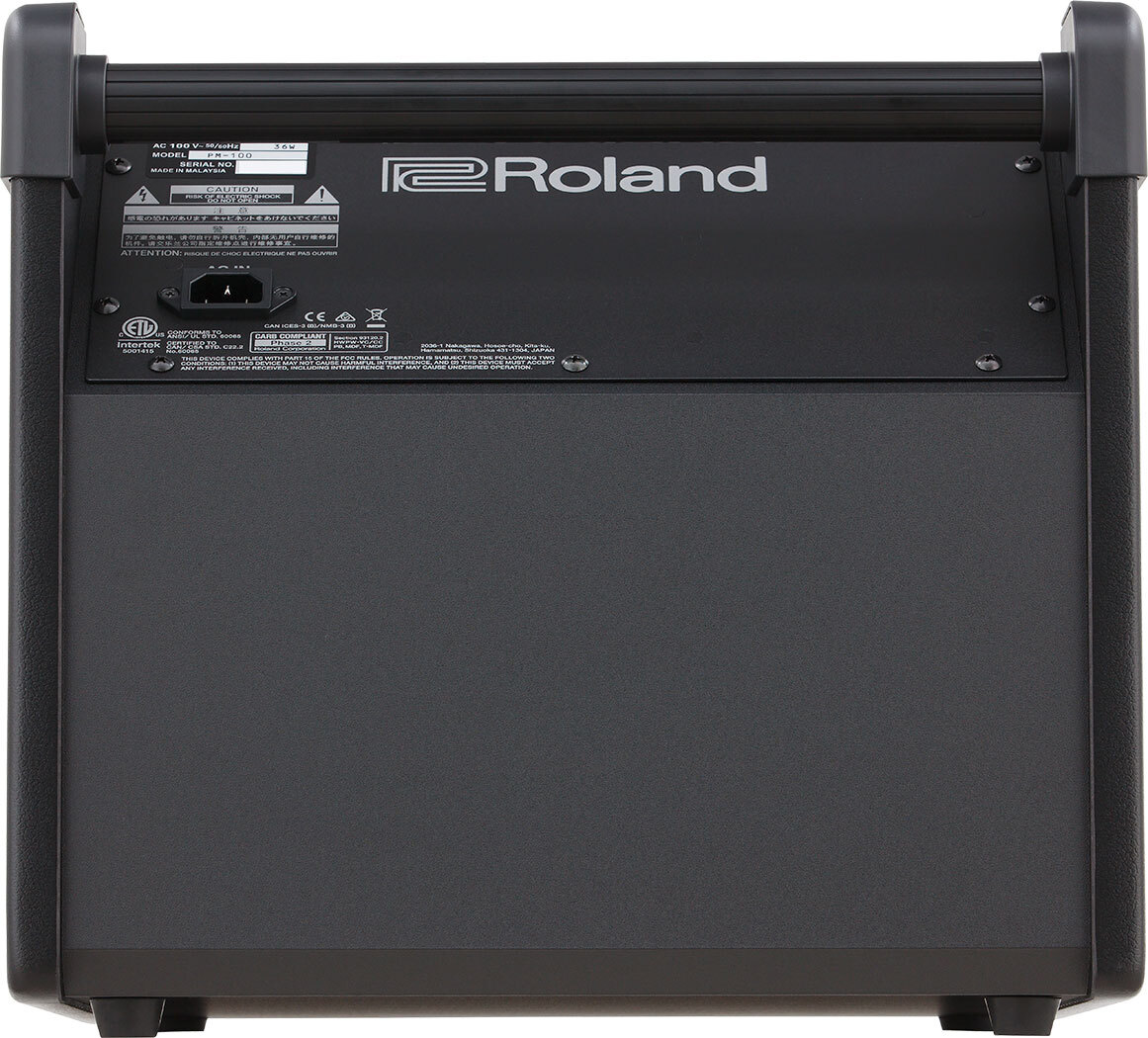

• AC IN jack

Power Consumption: 36 W
Accessories: Owner's manual, Power cord

Dimensions
Width: 388 mm / 15-5/16 inches
Depth: 407 mm / 16-1/16 inches
Height: 354 mm / 13-15/16 inches
Weight: 13.5 kg / 29 lbs 13 oz

* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
