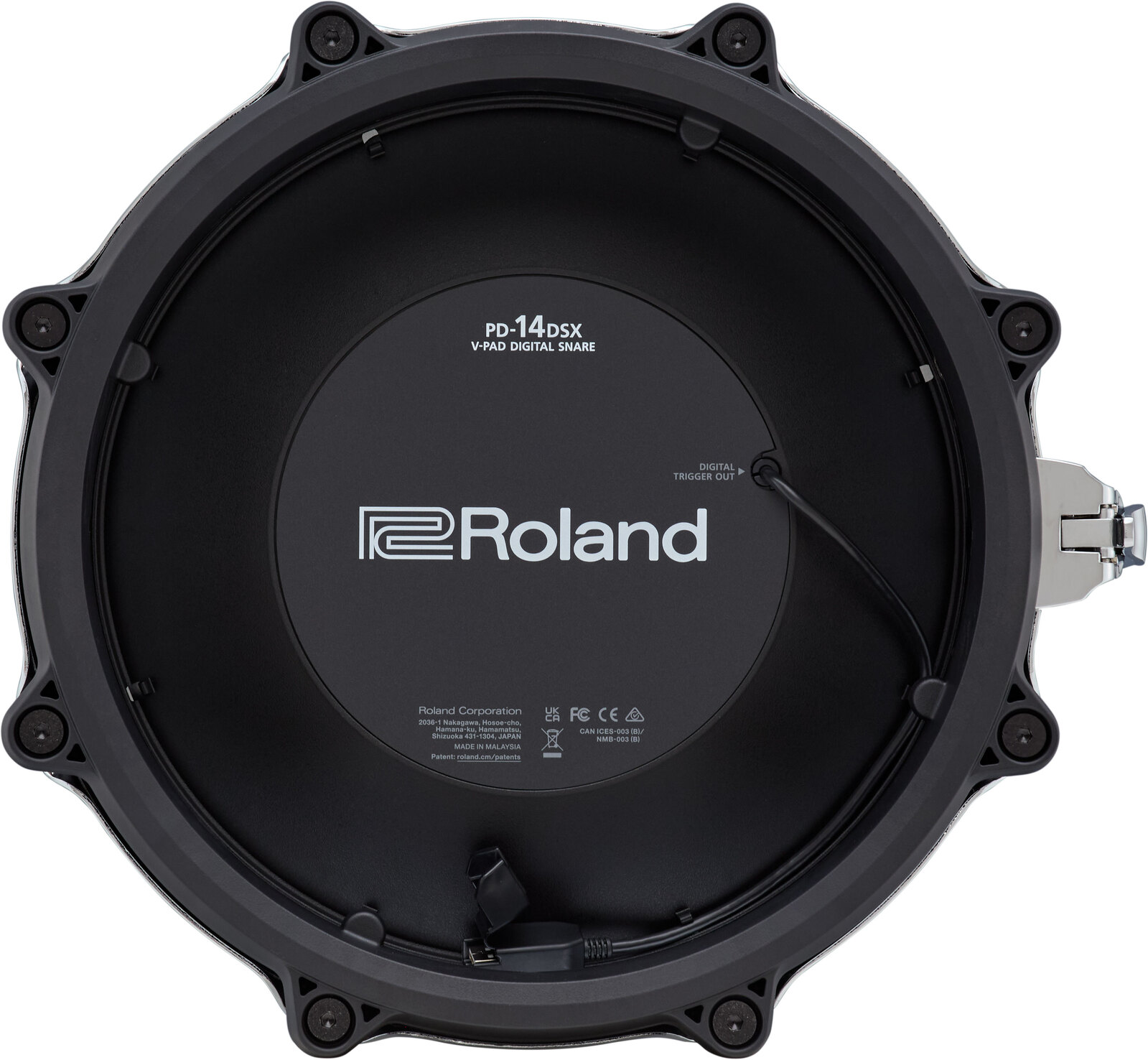

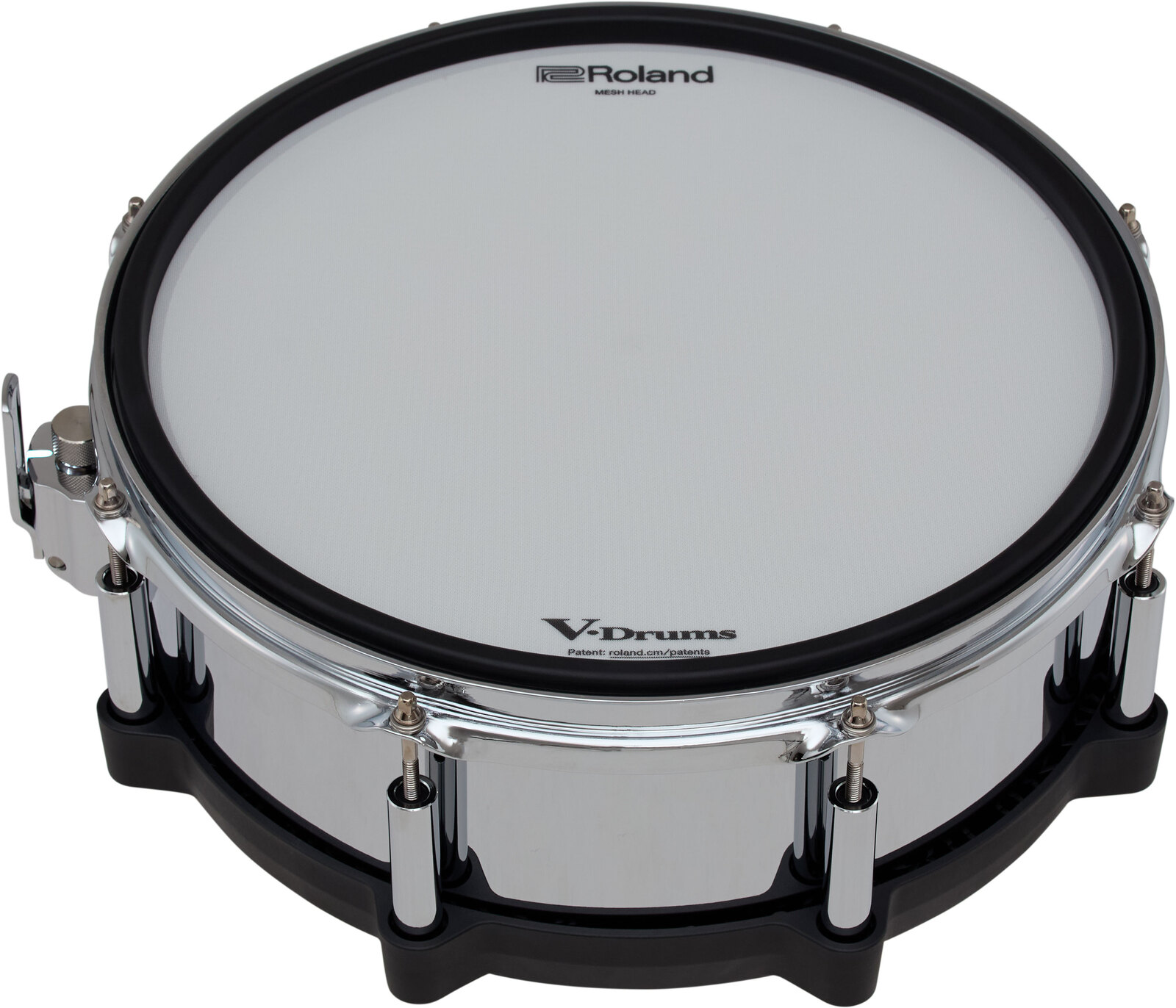

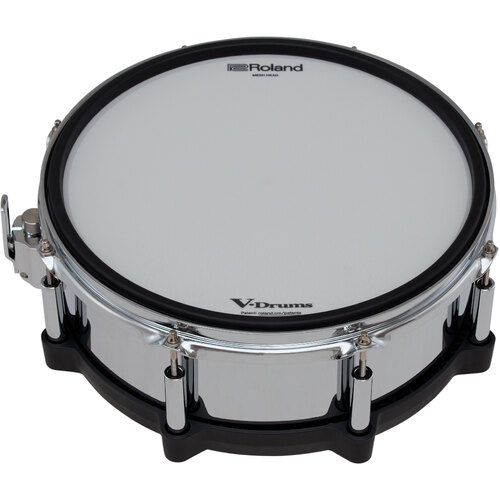

Roland PD-14DSX

Digital 14-Inch Snare Pad with Advanced Sensors and a Traditional Throw-Off Lever

The PD-14DSX is included with every V-Drums 7 Series kit. When paired with the deep capabilities of the flagship V71 module, this advanced snare pad offers the most natural playing experience in electronic drumming, with ultra-detailed positional sensing and over 16,000 velocity variations across the entire pad surface. The multi-sensor trigger system and high-speed digital communication translate every nuance, from hard hits to the softest articulations. Hand position is automatically detected, allowing for seamless transitions between headshots, rimshots, and cross-stick playing.

A newly designed pad structure provides a natural look and feel, with a rubber hoop set inside of the triple-flange hoop and rim height like a standard acoustic snare. The PD-14DSX is also fitted with a throw-off mechanism to turn the virtual snares on or off with the quick flip of a lever, while the strainer knob enables you to dial in snare tension with a twist. Additionally, the knob includes a button to control assignable functions in the module.

FEATURES

• Advanced 14-inch digital snare designed for use with the V71 sound module

• Multiple sensors for high-resolution triggering and positional detection

• Automatic hand detection for seamless transitions between snare techniques

• Throw-off lever to turn snares on/off, with LED indicator that syncs with the module

• Knurled knob for snare tension adjustment and remote control of assignable functions

• Triple-flange hoop with the same rim height as a standard acoustic snare drum

• Three-ply mesh head provides natural rebound, playing feel, and response

• Also works with the TD-50X and TD-27 modules (some functions are not supported)

SPECIFICATIONS

Pad size: 14 inches
Shell depth: 4.3 inches
Tension rods: 8
Head: 3-ply mesh head (Floating mid-layer structure)

Available playing methods (Triggers)

• Head shot (High resolution positional detection)

• Rim shot (Depth detection)

• Cross stick (Automatic switching)

• Brush sweep

Sensor system

• Multi element sensor system

• Head sensor

• Position sensors x 3

• Rim sensor

• Cross stick sensors x 3

• Built-in sensing processor

Strainer (Throw off)

• Strainer lever

• Strainer knob

• Strainer switch

• Strainer indicator

Connector: DIGITAL TRIGGER OUT plug (compatible with Roland drum sound module equipped with DIGITAL TRIGGER IN port)

Power supply: Supplied from DIGITAL TRIGGER IN port (DC 5 V)
Current Draw: 120 mA

Dimensions: 410 (W) x 378 (D) x 150 (H) mm / 16-3/16 (W) x 14-15/16 (D) x 5-15/16 (H) inches

Weight: 5.0 kg / 0.2 oz

Accessories

• Owner's Manual

• Connection cable

• Drum key
