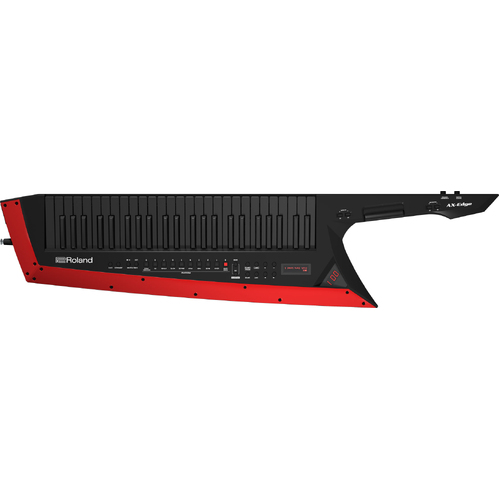

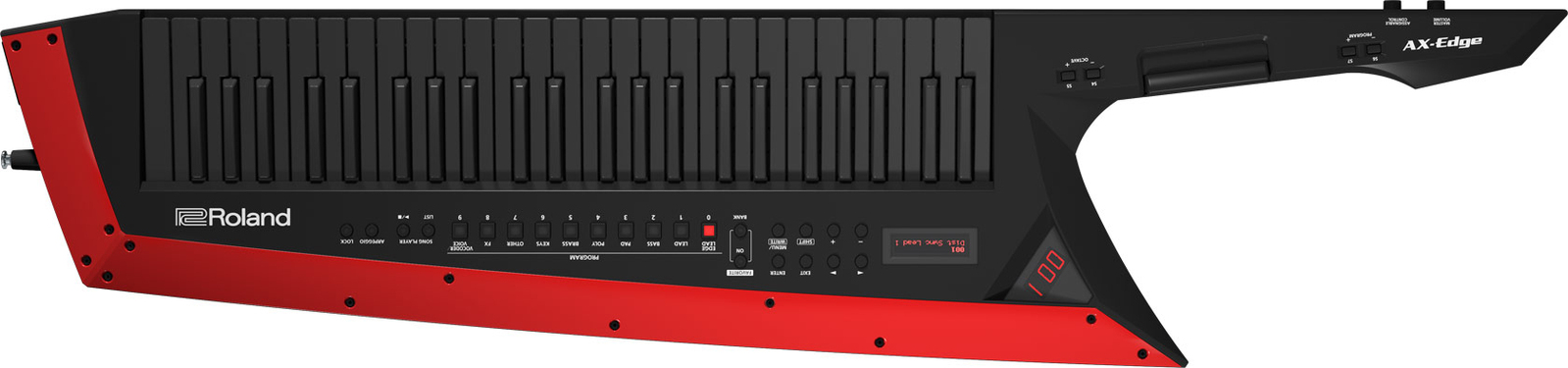

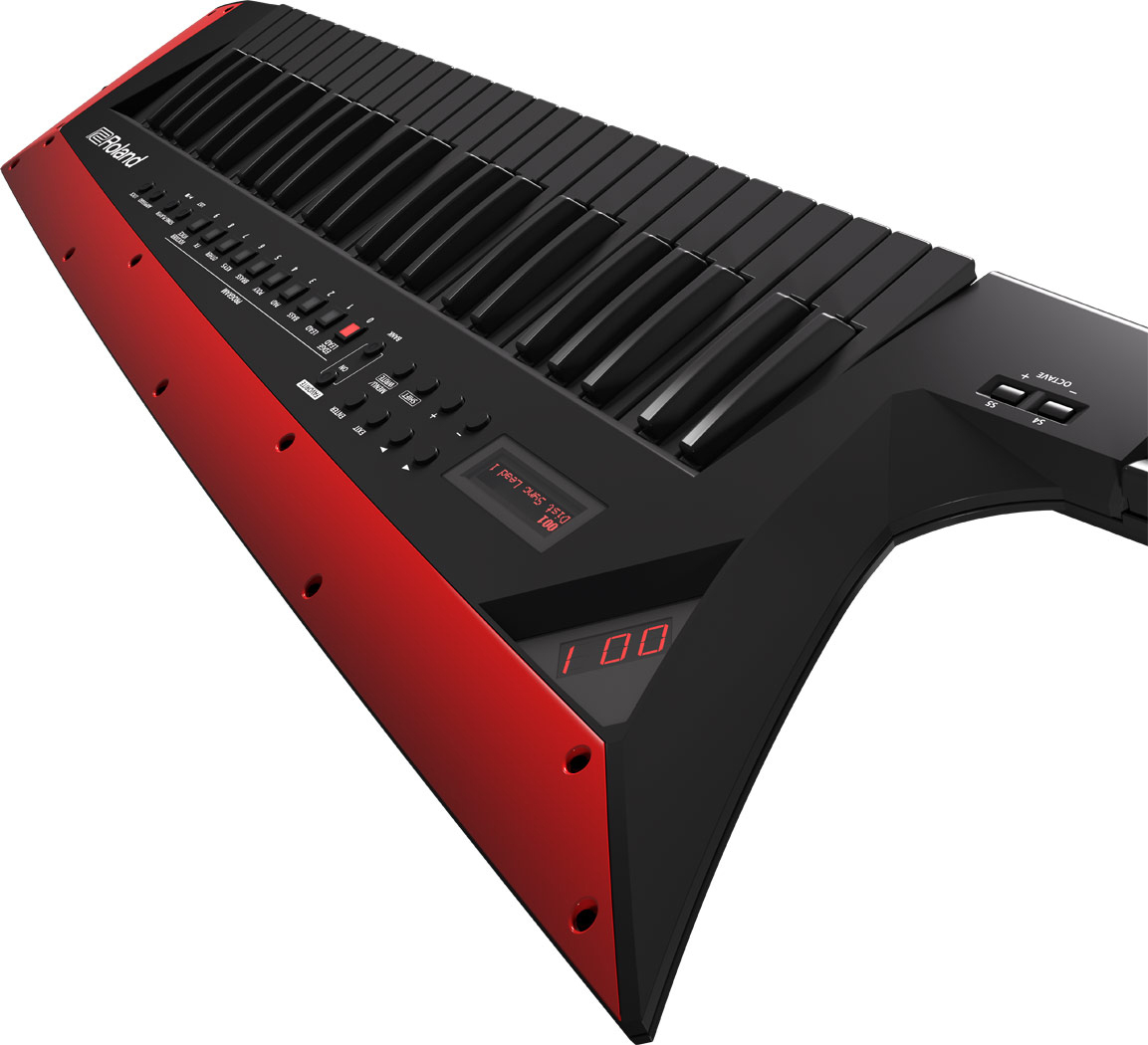

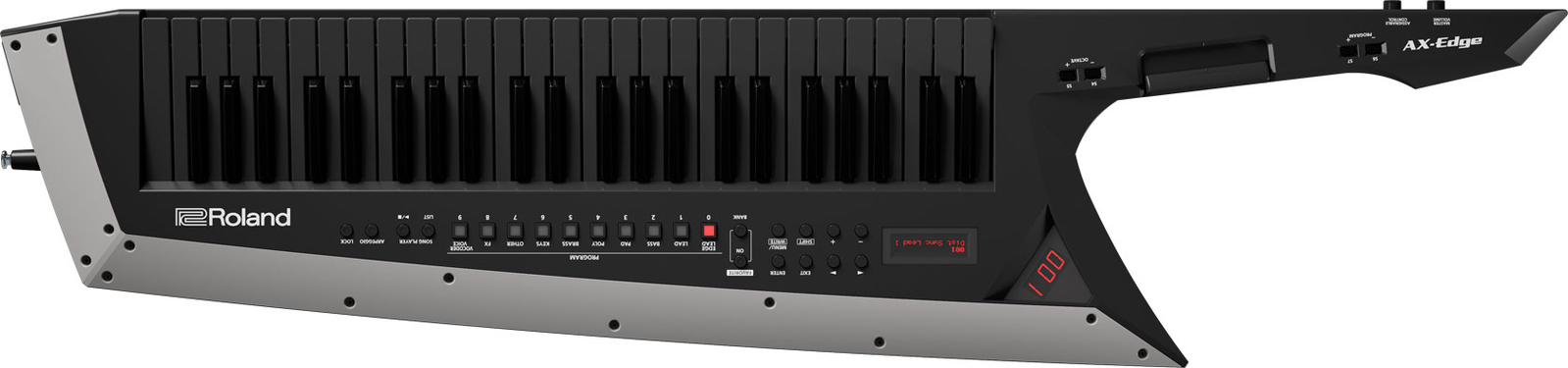

Roland AX-Edge Black

Step into the Spotlight

Today’s audiences crave dynamic performances that stand out. As an artist, you want to connect with your fans and take your moment in the spotlight. The AX-Edge builds on decades of refinement and learning from artists the world over about what makes the ultimate performance synthesizer. The AX-Edge has a sleek, modern design with a customizable look via interchangeable Edge Blades, 49 full-sized keys, and a sound set crafted specifically for keytarists. And throughout the AX-Edge, you’ll find thoughtful design features that give you the freedom and confidence to truly express yourself on stage.

FEATURES

• 49 full-sized keys with velocity and channel aftertouch

• 4 parts + vocoder with mic Input

• 320 programs and over 500 preset tones for keytarists

• 79 types of part multi-effects and part EQ, 79 types of program multi-effects, chorus, reverb, master compressor, and master EQ

• Tone Remain function switches sounds seamlessly without unnatural sound cutoff

• Ribbon controller, modulation bar, and assignable controls for expressive performance

• Up to 4 hours of battery-powered* operation; can also be powered via AC adaptor
  *Rechargeable Ni-MH batteries only.

• Bluetooth MIDI and editor app for wireless sound customization

• Weighs just 9 lb. 5 oz./4.2 kg (without batteries)

• Available in black and white models with removable Edge Blade for custom look

• One extra Edge Blade included to complement your AX-Edge model

• Audio file playback via external USB memory

• Master MIDI controller functionality for remote operation of sound modules, plug-ins, and more

• Dual display system optimized for live performance

Give Your Stage Presence the Edge

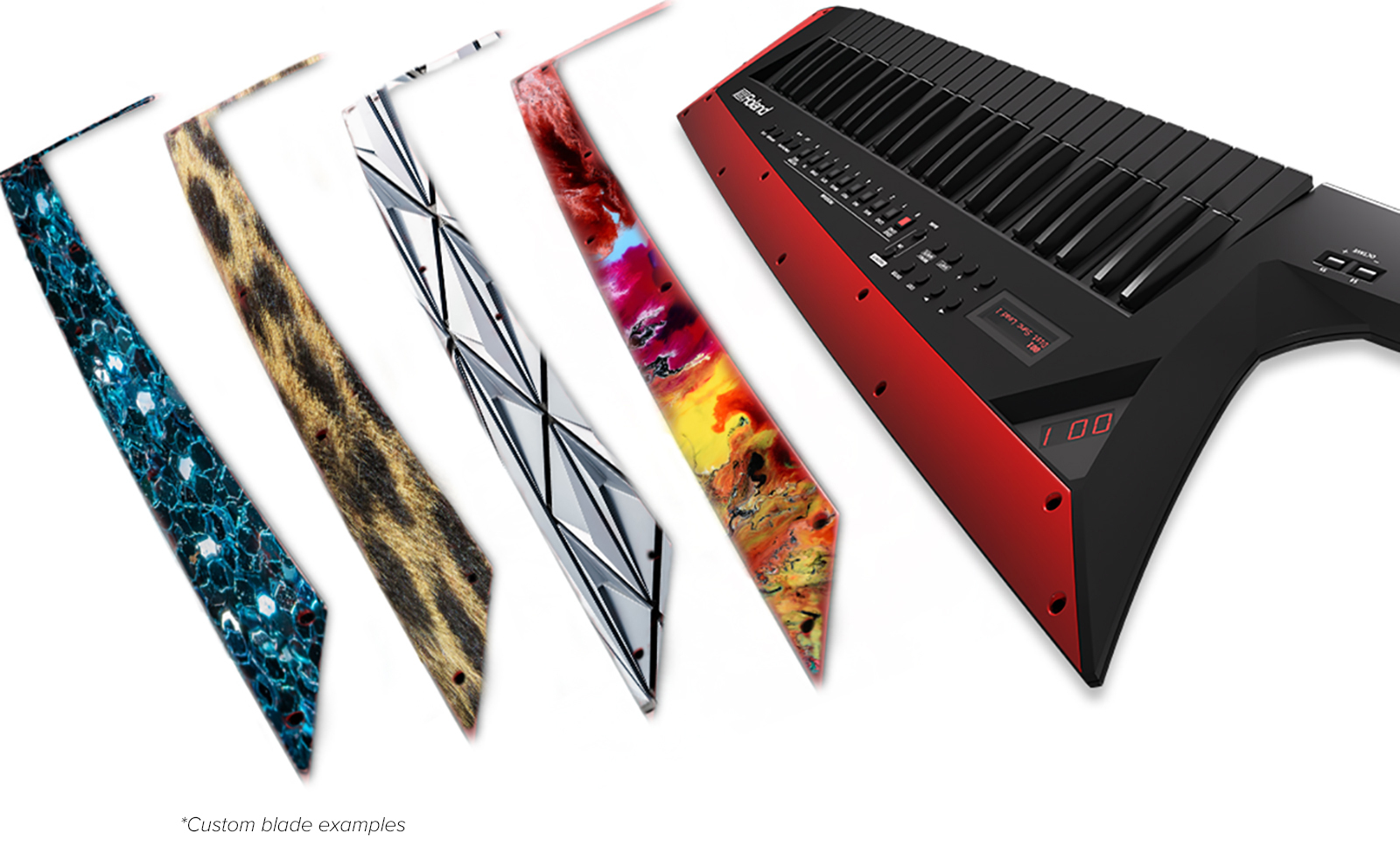

Stage presence is everything, and you work hard to develop your image as a solo performer or band. The AX-Edge is designed to not only look stunning on stage, but also to match your own unique style. It’s available in black or white, and each color has individual design elements that make it stand out, like the “none-more-black” keys and removable Edge Blades. The AX-Edge comes with an extra Edge Blade in the box (a silver Edge Blade for the black model and a gold Edge Blade for the white) and you can even create your own original designs. Create a look that complements your band’s style or swap out Edge Blades to keep things fresh.

From Stage-Ready Classics to Custom-Made Tones

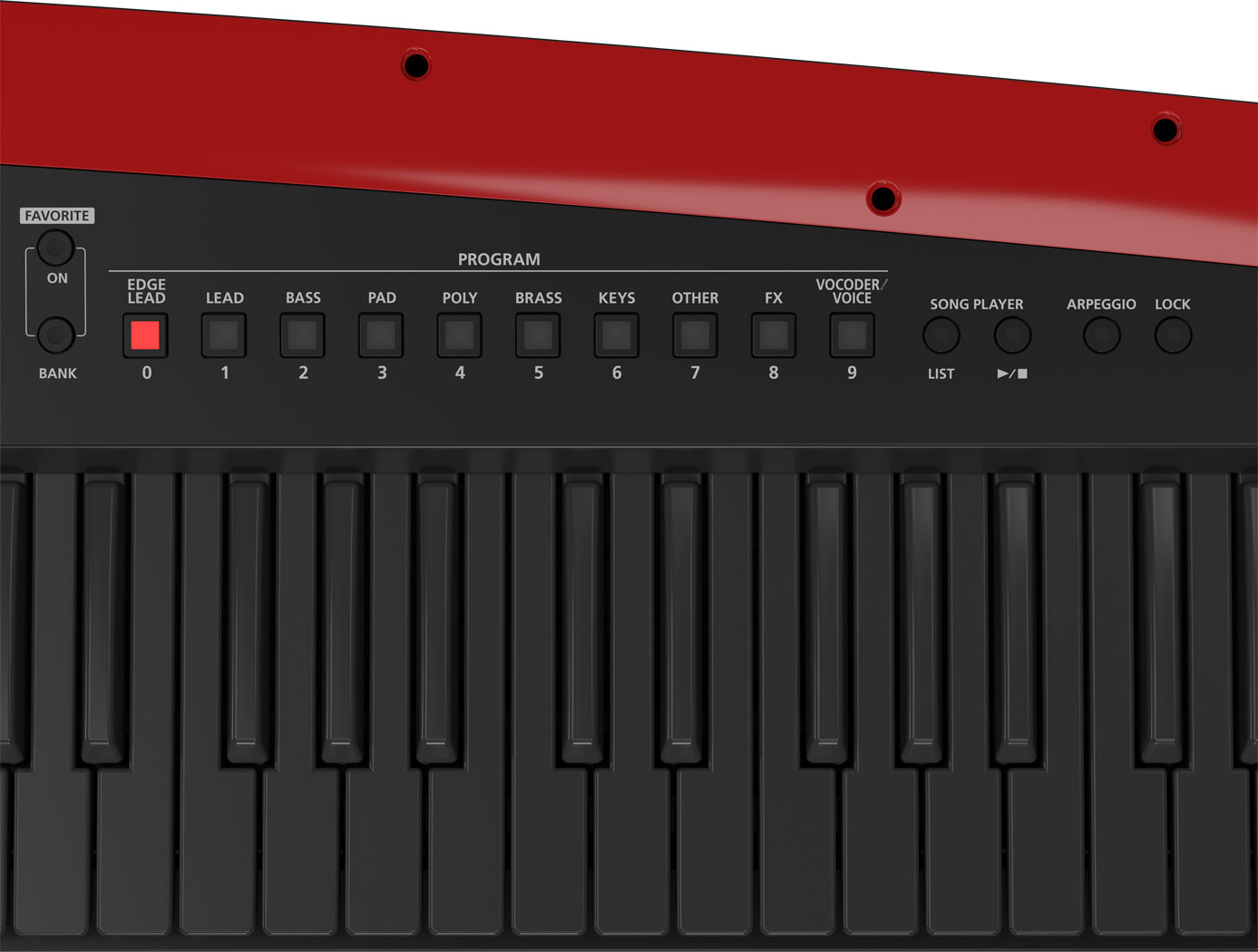

We didn’t cram generic preset sounds into the AX-Edge—it has a curated sound set driven by our ZEN-Core Synthesis System. The onboard sounds are optimized for stage performance to produce sounds that cut through, even in a loud band. Dedicated buttons for favorite sounds give you instant access to edgy leads, big fat basses, and all manner of keyboard sounds perfect for the performing keytarist, whether it’s taking a solo or sharing the limelight with your bandmates. Customize your sounds wirelessly by connecting to the AX-Edge editor app with Bluetooth MIDI or take advantage of available ZEN-Core Sound Packs and Wave Expansions. Splits and layers utilize the expansive, full-sized keyboard, and a wealth of stunning new effects, including a master compressor and EQ, give you polished, studio-quality tone in any venue. And thanks to the Tone Remain function, you can switch sounds seamlessly without notes or effect tails being cut off prematurely.

Take Control of Your Performance—with Both Hands
Unlike keyboardists who perform behind a traditional keyboard rig, keytar players know the thrill of tearing it up right in front of their adoring fans. And when your moment comes, the AX-Edge gives you the hands-on control to nail your performance, giving it subtle nuance or over-the-top intensity. The AX-Edge’s neck controls, refined over years of development and artist feedback, are highly intuitive and truly take your performance to another level. While your right hand will appreciate the supremely playable keyboard, your left hand will love the modulation bar, pressure sensitive pitch ribbon, and easy-to-reach controls for portamento, hold, octave switch, and program change. If desired, many controls can be reassigned to functions that perfectly suit your performance style.

The Stage-Ready, Performance-Focused Powerhouse
As a gigging keyboard player, a lot can fall on your shoulders. You cover lots of different sounds and parts, often acting as the backbone of a performance and filling in any gaps. With this reality in mind, the AX-Edge has thoughtful performance features that aid you in the heat of battle. An innovative dual display system keeps you in command at all times, while the onboard arpeggiator and song player can handle backing duties while you concentrate on slaying your audience. And the built-in vocoder, which can be layered with internal sounds, is just the thing for unique backing vocals or funky, retro lead parts.

Modern Convenience
While they may not stand out as much as its striking good looks and killer sound set, the AX-Edge has several convenient features that greatly expand its usability for today’s keytarist. The USB memory function provides full backup capability, so you’re ready if disaster strikes. It’s also a capable master controller for rack modules or plug-in synths. And Bluetooth MIDI and nearly four hours of battery life* free you from wires, so you can throw caution to the wind and leave it all on the stage.

*Rechargeable Ni-MH batteries only.

SPECIFICATIONS

Keyboard: 49 keys (with velocity and channel aftertouch)
Sound Generator: ZEN-Core
Parts: 4 parts + Vocoder part
Tones: User Program: 320, Preset Tone: Over 500, User Tone: 256

Effects

• Part Multi-effects: 90 types
• Part EQ
• Vocoder
• Program Multi-effects (IFX): 90 types
• Chorus: 9 types
• Reverb: 7 types
• Master Compressor
• Master EQ

Other Functions

• Favorite
• Song Player
• Arpeggio
• Vocoder
• MIDI Master Keyboard
• Sound Edit

* You can use the smartphone AX-Edge Editor app (Android version/iOS version) to edit the AX-Edge's sounds.

Controllers

• Ribbon Controller
• Modulation Bar
• Assignable Control knob
• Master Volume knob
• Assignable buttons x 7
• Pedal
• Aftertouch

Bluetooth: MIDI: Bluetooth Ver. 4.1 (Bluetooth LE)
Display: 16 characters 2 line LCD, (3 x 7) segment LED
External Storage Device: USB flash drive

Connectors

• PHONES jack: stereo 1/4-inch phone type
• OUTPUT jacks (L/MONO, R): 1/4-inch phone type
• MIC INPUT jack: 1/4-inch phone type
• PEDAL jack
• MIDI connectors (IN, OUT)
• USB MEMORY port
• USB COMPUTER port (supports USB MIDI)
• DC IN jack

Power Supply: DC 9 V: AC adaptor or rechargeable Ni-MH battery (AA, HR6) (sold separately) x 8
Current Draw: 1,000 mA
* Battery life for continuous use (differs depending on the conditions of use)
Rechargeable nickel metal hydride batteries: approximately 4 hours
* Carbon-zinc or alkaline batteries cannot be used

Accessories

• Owner's manual
• Leaflet "USING THE UNIT SAFELY"
• AC adaptor
• Power cord

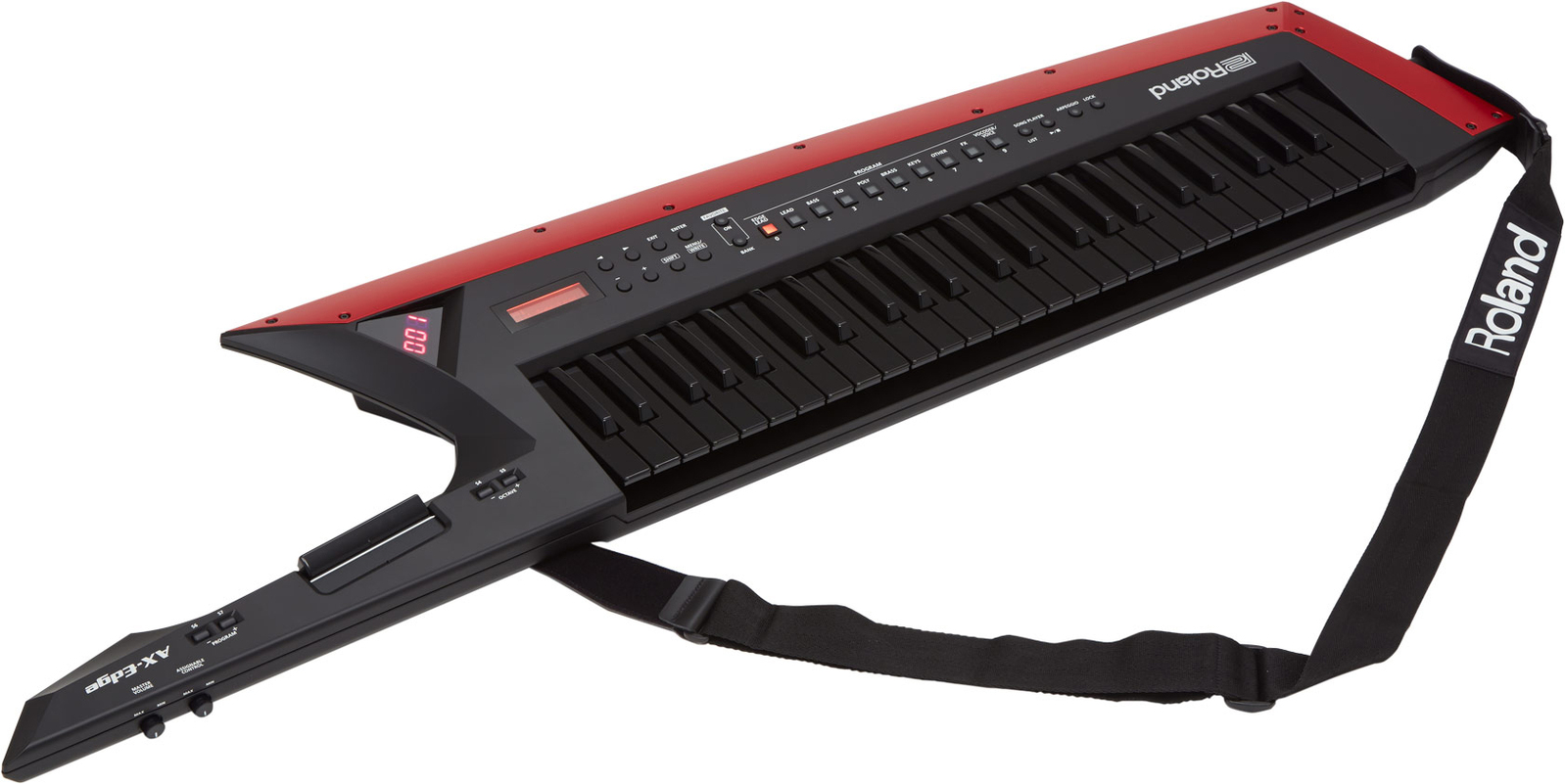

• Strap
• Blade panel (including Hex key, screws)
• Ferrite core (including Band for fastening the core)

Options (sold separately)

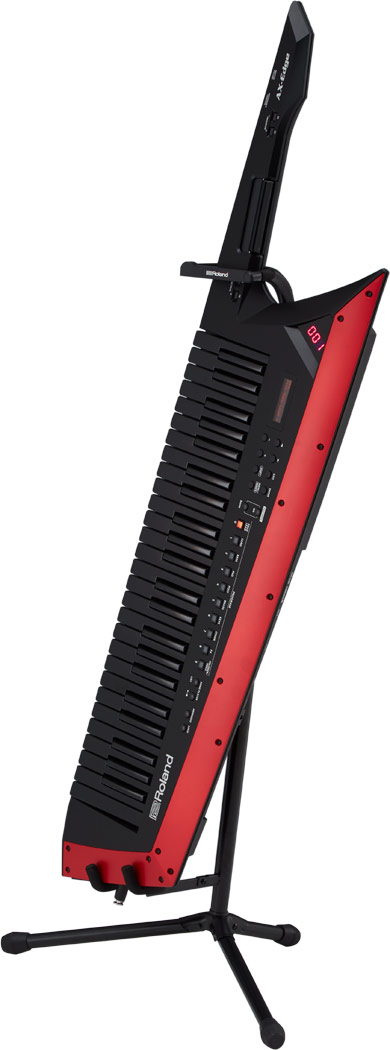

• AX-Edge stand (ST-AX2)
• Pedal switch: DP series
• Expression pedal: EV-5

Dimensions
Width: 1,252 mm / 49-5/16 inches
Depth: 291 mm / 11-1/2 inches
Height: 85 mm / 3-3/8 inches
Weight (excluding AC adaptor, Batteries): 4.2 kg / 9 lbs. 5 oz.
