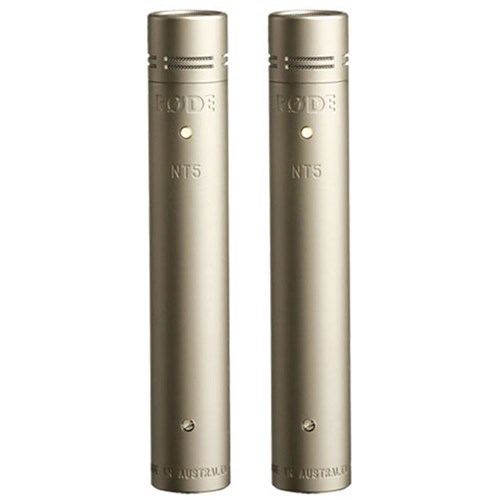

RODE NT5 Matched Pair

The RØDE NT5 is a premium small-diaphragm condenser microphone designed for critical recording applications. Featuring a 1/2-inch gold-sputtered cardioid condenser capsule, it delivers a smooth, balanced sound with very low self-noise. Its exceptionally accurate cardioid polar pattern and wide frequency response make the NT5 ideal for recording everything from acoustic instruments to drum overheads and cymbals to live performances and dialogue on-location. Expanding the NT5's versatility, an interchangeable omnidirectional capsule (NT45-O) is also available separately. The NT5 is also available as a certified match pair for stereo recording.

FEATURES

• Premium small-diaphragm condenser microphone

• 1/2-inch gold-sputtered cardioid condenser capsule

• Very low self-noise

• Exceptionally accurate cardioid polar pattern and wide frequency response

• 10-year warranty

SPECIFICATIONS

Acoustic & Electrical Specifications
Active Electronics: JFET impedance converter with bipolar output buffer
Capsule: 0.50"
Polar Pattern: Cardioid
Address Type: End
Frequency Range: 20Hz - 20kHz
Output Impedance: 100Ω
Maximum SPL: 143dB SPL
Maximum Output Level: 13.9mV (@ 1kHz, 1% THD into 1KΩ load)
Sensitivity: -38.0dB re 1 Volt/Pascal (12.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-Weighted): 16dBA
Power Requirements: P24 and P48
Output Connection: XLR

Mechanical Specifications
Weight (g): 101
Dimensions (mm): 20 (H) x 118 (W) x 20 (D)

Warranty
1 year with free extension to 10 years following registration

Box Contains

2 x NT5
1 x ZP1
2 x RM5
2 x WS5 Windshield
