RockBoard QuickMount Type B

The RockBoard QuickMount system is designed to eliminate the need for cumbersome hook & loop tape that attracts dust and dirt and is difficult to remove from pedals.

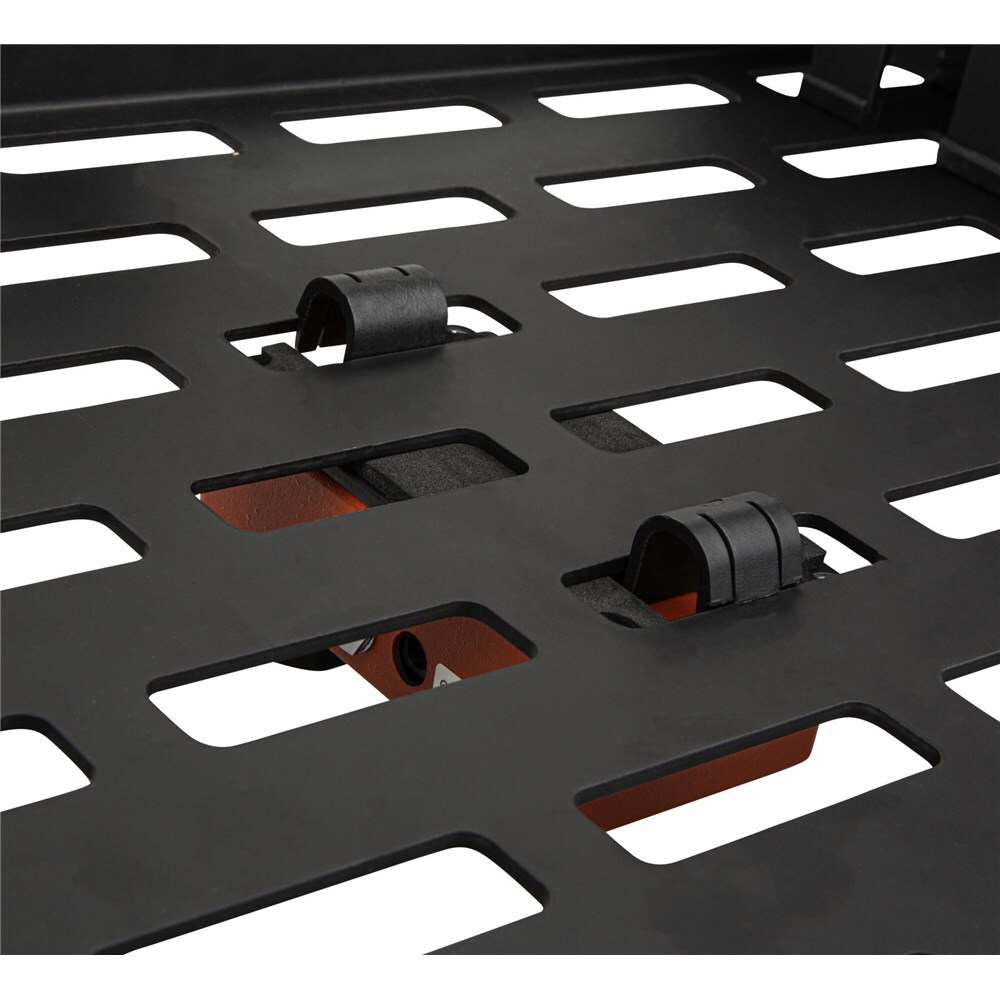

The QuickMounts fit perfectly into the RockBoard slot grid of our pedalboards and allow instant, secure mounting of effects pedals. Most RockBoard QuickMount pedal mounting plates fit a variety of different pedals.

The QuickMount Type B mounting plate is designed to fit effect pedals from EarthQuaker Devices, JHS Pedals, Seymour Duncan and effect pedals with the same format from other manufacturers.

SPECIFICATIONS

• QuickMount Pedal Mounting Plate for EarthQuaker Devices, JHS Pedals, Seymour Duncan and many other effects pedals with standard size housings

• Mounting hole distances (W x D): 57-59 x 110-112 mm / 2 1/4"-2 21/64" x 4 21/64"-4 13/32", 59 x 89 mm / 2 21/64" x 3 1/2"

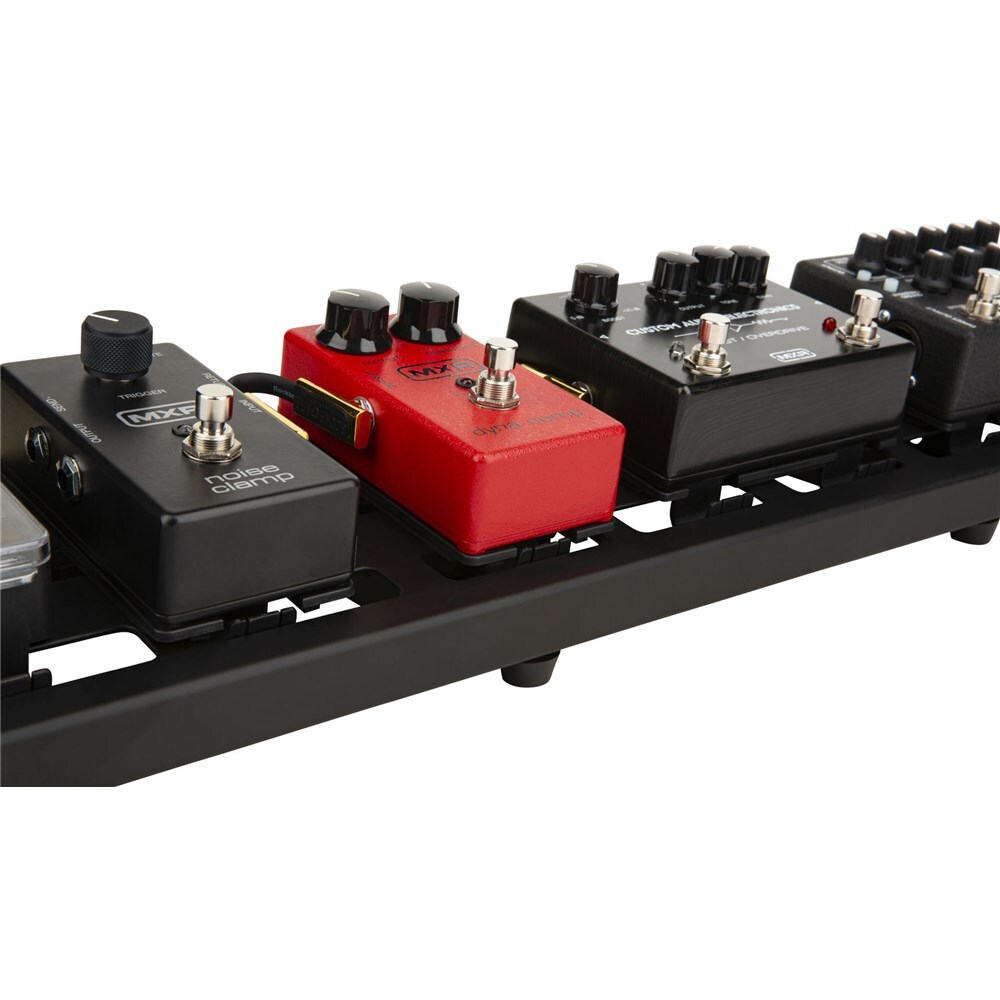

• Safely mounts your effects pedals on RockBoard pedalboards

• Replaces sticky hook and loop tape

• Mounts on top of existing effects pedal back plates, removable without any residue

• No permanent modifications necessary

• Made of carbon-reinforced composite plastic

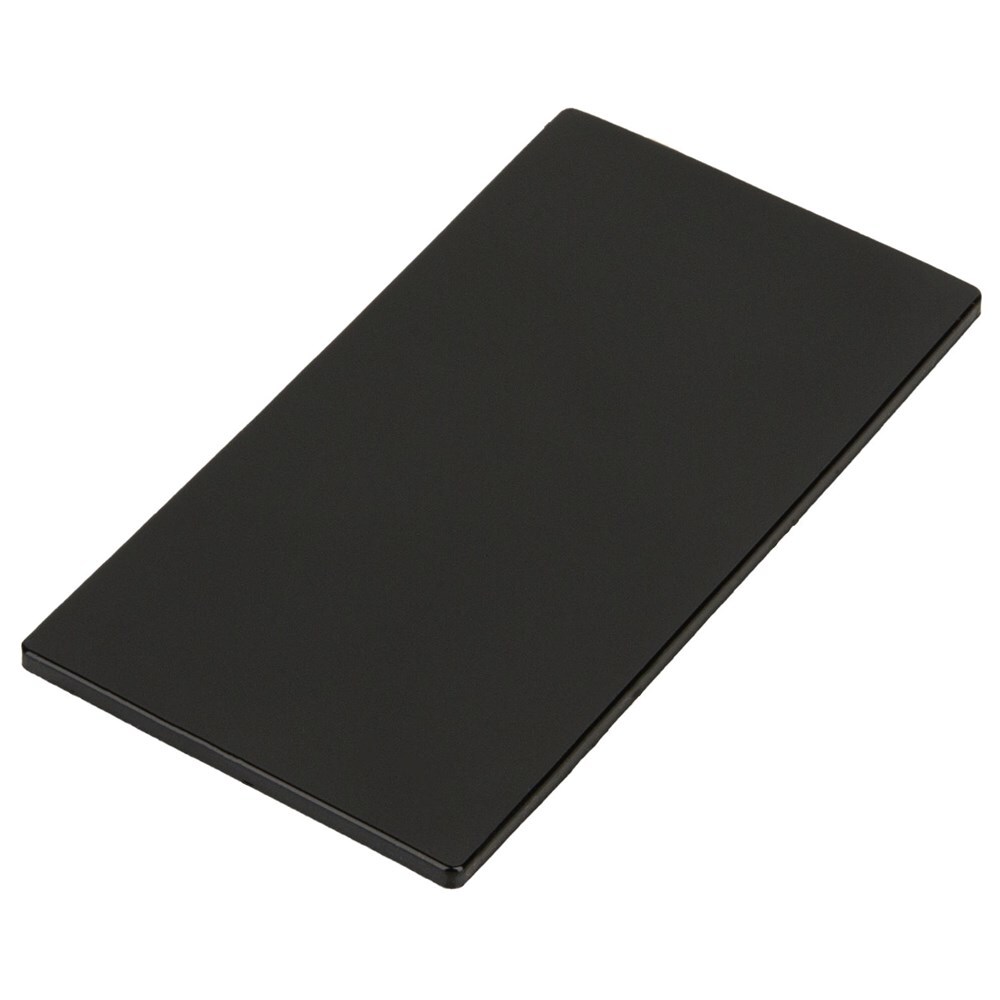

• Including replacement mounting screws and silicone adhesive pad for use with pedals without back plate screws or different mounting hole configurations
