RockBoard MOD 4 & U2 Transmitter

The MOD 4 Patchbay is the easiest solution to consolidate ALL connections of a pedalboard in ONE central access point. The setup for any gig is done in seconds!

The MOD 4 provides an easy-to-realize wireless connection between your instrument and your pedalboard. It uses digital wireless technology that guarantees impressive sound quality, easy setup and reliable connections for active musicians. The wireless system operates in the 2.4 GHz ISM band and can be used worldwide without restrictions. With a usable frequency range of 20 Hz - 20 kHz and a latency of only 5 ms, nothing is left to be desired.

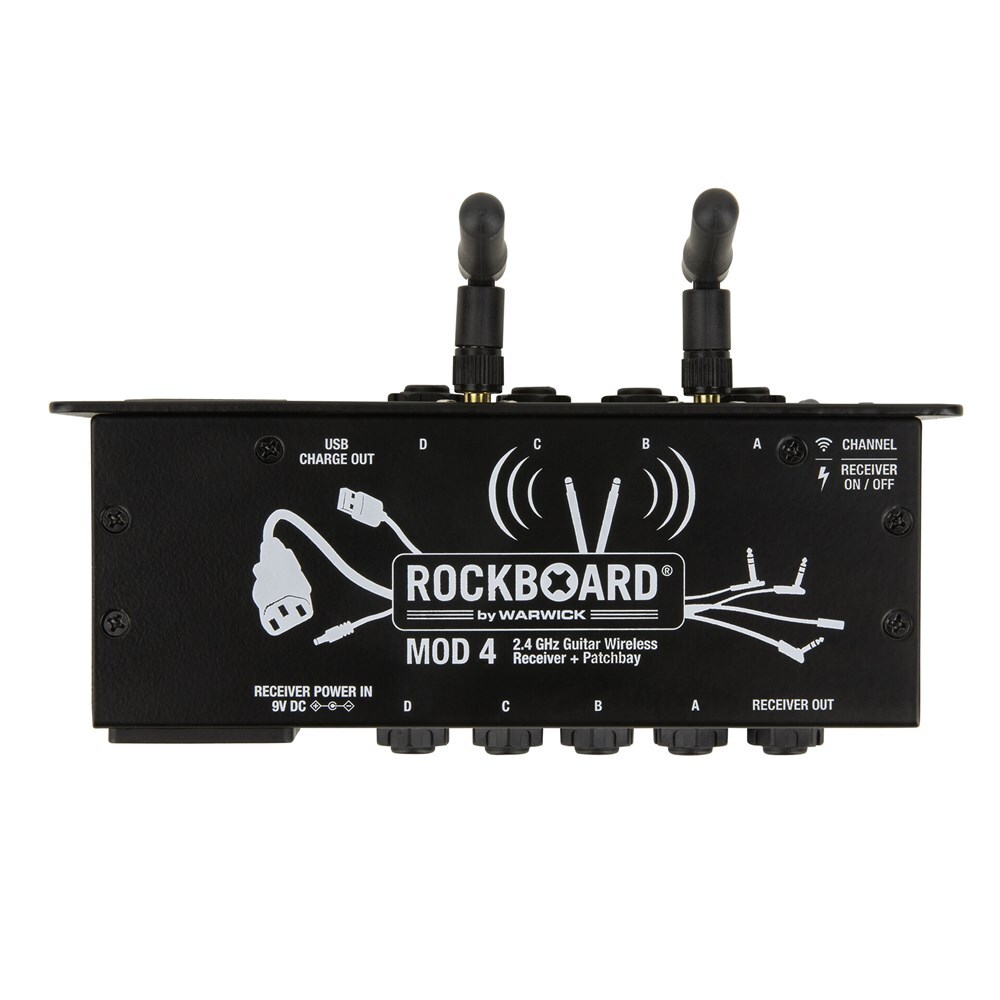

The patchbay section is designed to route pedalboard connections from the underside of the board to the outside, providing you with a central access point to your setup and keeping your cable runs tidy and organized. The A, B, C and D TRS jacks are wired as direct, through-connections from the front of the MOD 4 to the corresponding jacks on the back. This allows you to set up your effects chain in a way that when you're getting ready for the gig, all you have to do is plug cables into the front of the board instead of fumbling around underneath. With four TRS-Through connections, the MOD 4 integrates perfectly into a setup. It is the ideal solution to position some of your pedals in the front end before the amp (distortion, compressor, etc.) and some in the effects loop (such as reverb, delay) (4-cable method).

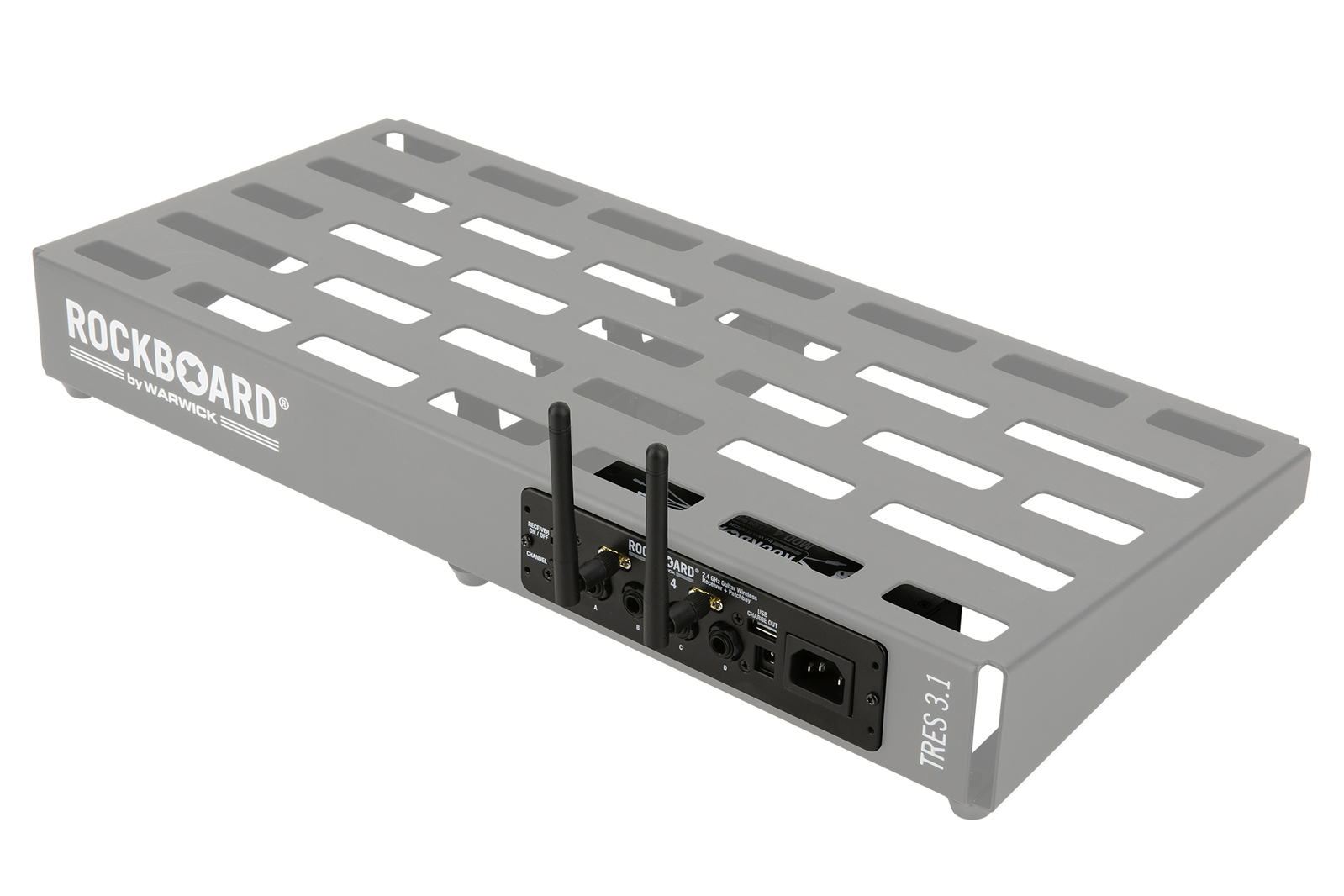

Compatible with almost all of our pedalboards with one or more MOD slots (not available on the compact DUO series), the All-In-One Patchbay allows yupou to organize all required cable connections in one efficient module. This way, you can keep all pedals permanently and neatly wired underneath the board and organize all connections to and from your effects setup in one convenient spot.

The removable front panel makes it possible to use this ingenious module with pedalboards from other manufacturers, e.g. using our 'Mounting Rack'.

Details at a glance

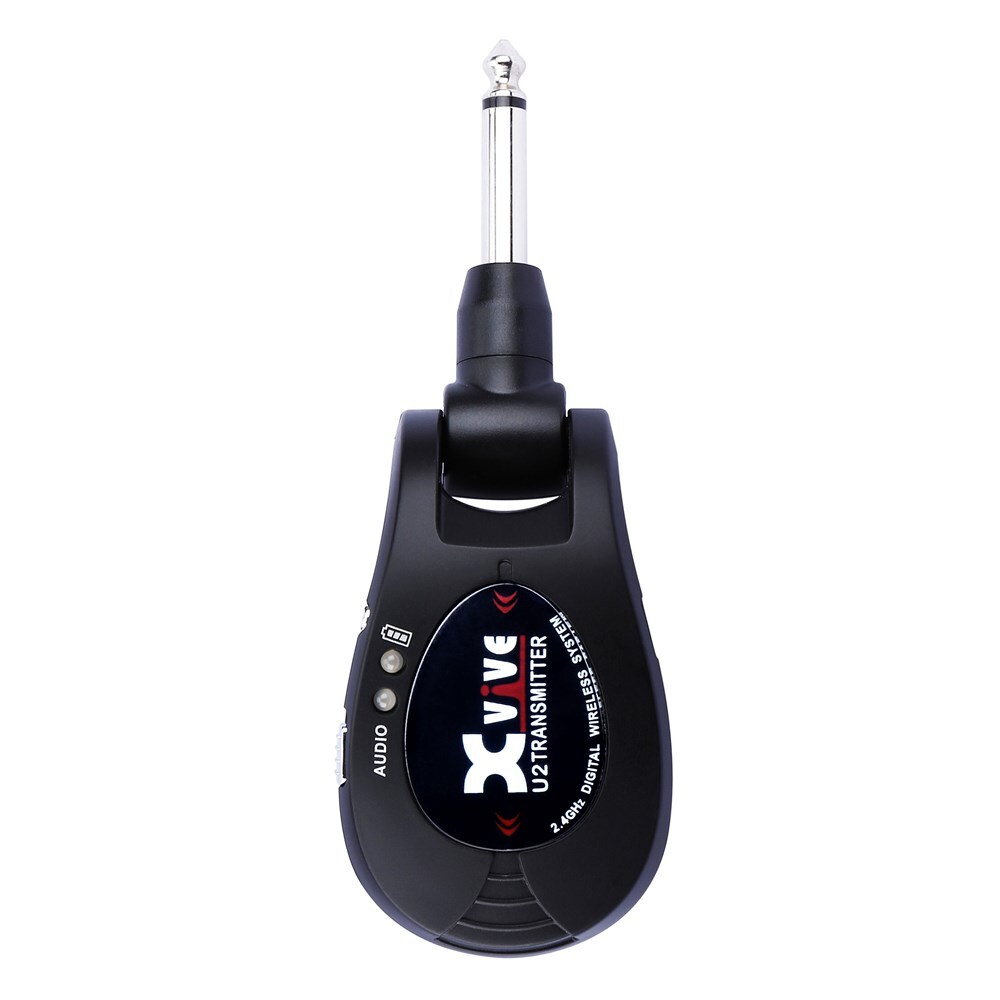

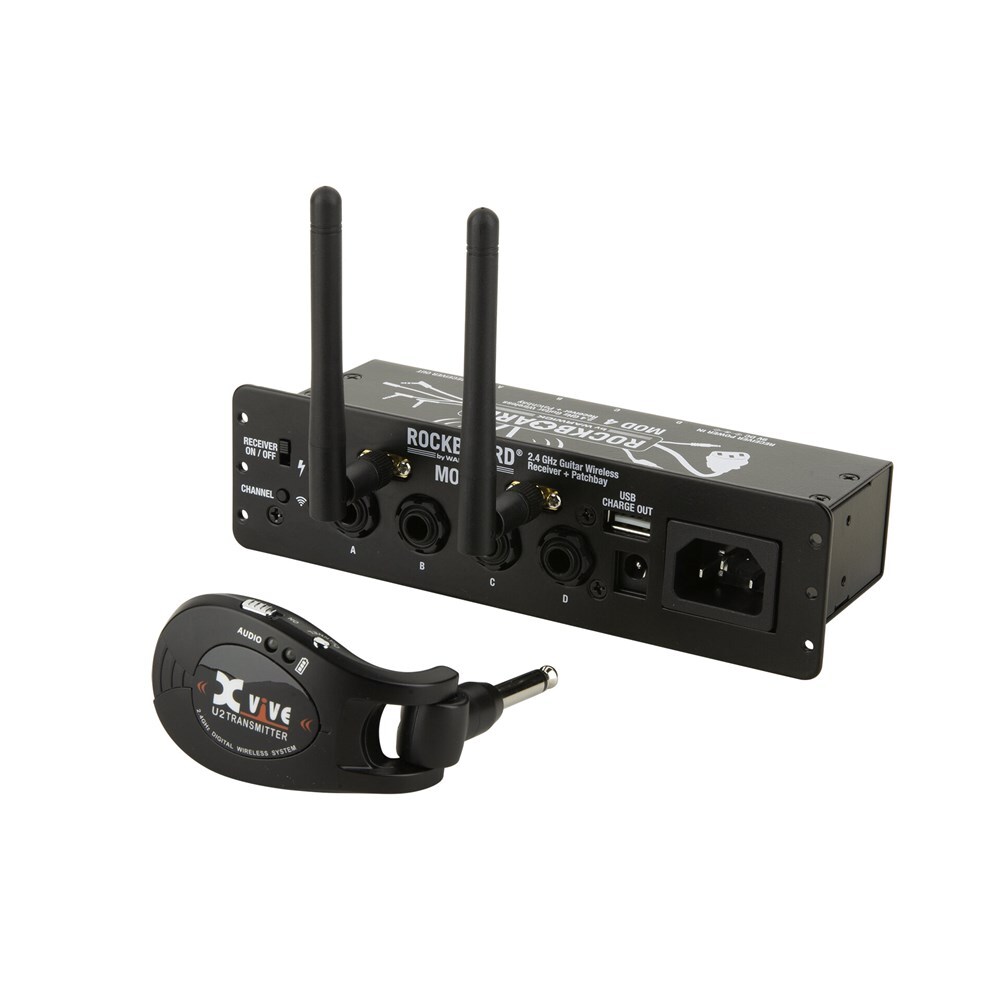

• wireless system receiver + patchbay for pedalboards, incl. XVive U2 wireless transmitter
• compatible with XVive U2 guitar wireless system
• 2.4 GHz ISM band for worldwide use
• 30 m / 100 ft. approx. range (without obstacles)
• 24-bit / 48 kHz uncompressed digital transmission
• 20 Hz - 20 kHz frequency range
• 5 ms latency
• > 103 dB dynamic range
• - 85 dBm RF sensitivity
• 0.2% total harmonic distortion
• 4 selectable channels
• fits MOD slots in RockBoard pedalboards
• compatible with a wide variety of other pedalboards
• acts as the central access point to your effects setup

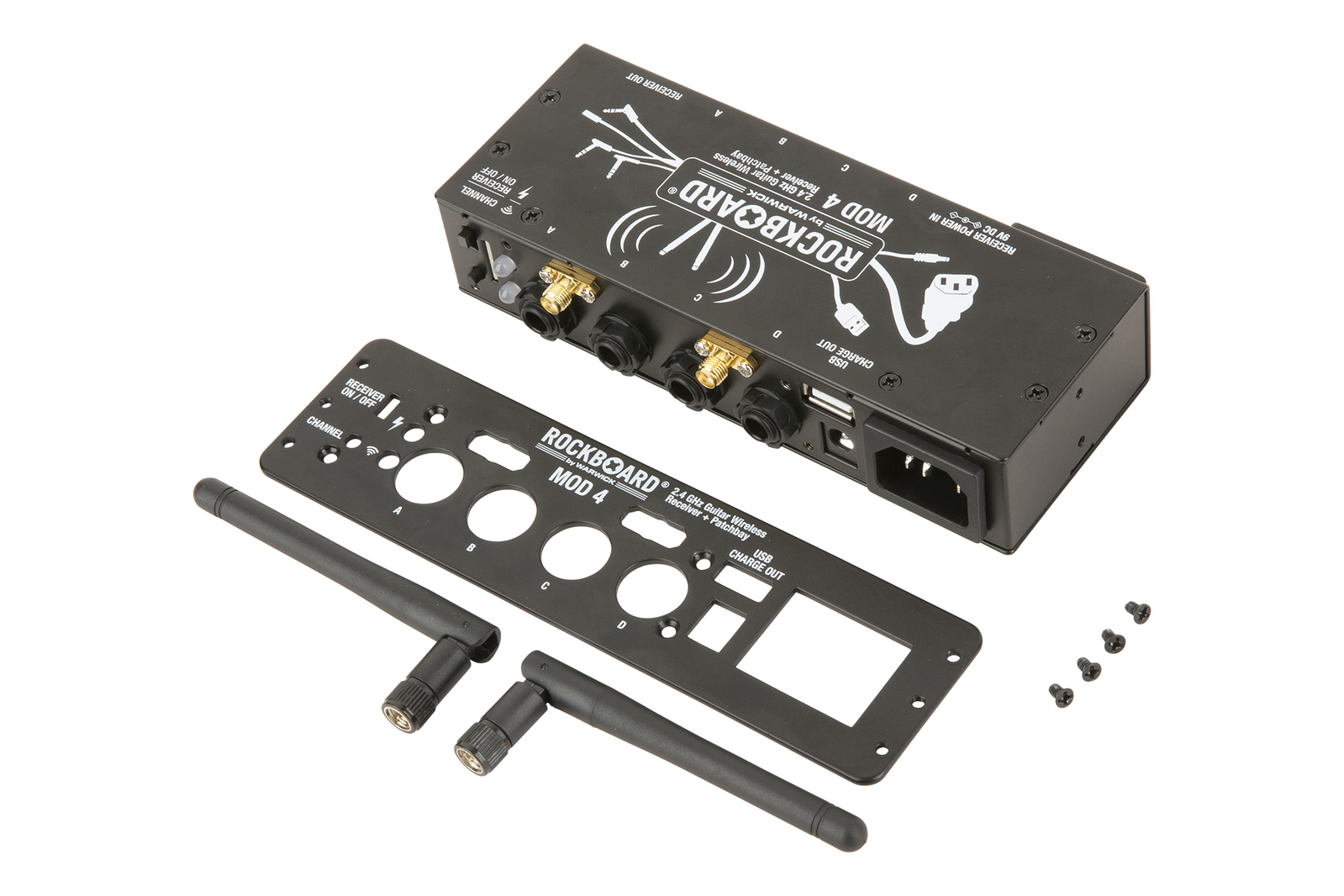

• detachable front plate for mounting on top or underneath pedalboards

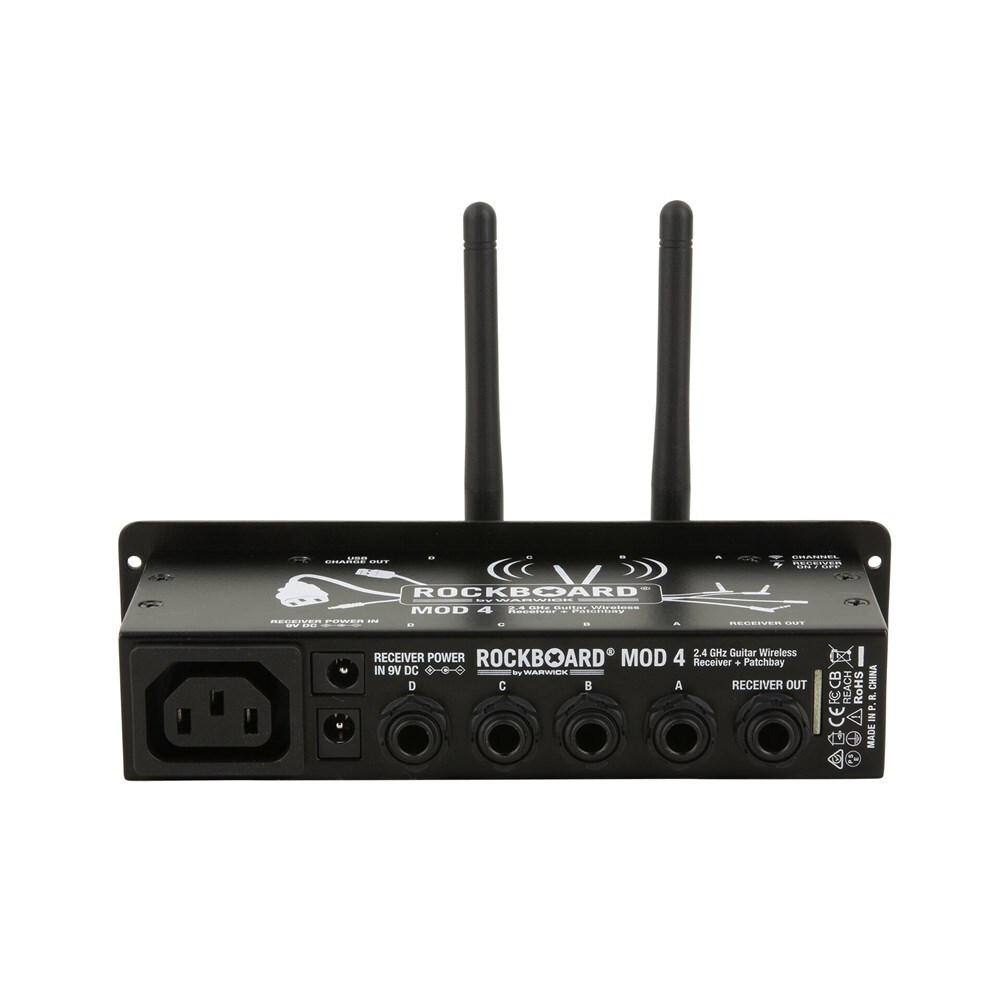

• 4x 6.3 mm / 1/4" stereo thru (TRS)
• 1x 6.3 mm / 1/4" mono receiver audio output (TS)
• 1x DC 2.1 x 5.5 mm barrel thru
• 1x AC IEC thru
• 1x USB Type A charge output
• power supply via optional 9V DC power adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center
• battery operation not supported
• current draw 500 mA
• passive operation possible (patchbay only, without wireless system)
• dimensions with front plate (W x D x H) 175 x 85 x 47 mm / 6 57/64" x 3 11/32" x 1 27/32"
• dimensions without front plate (W x D x H) 160 x 85 x 33 mm / 6 19/64" x 3 11/32" x 1 19/64"
• weight 500 g / 1.1 lbs

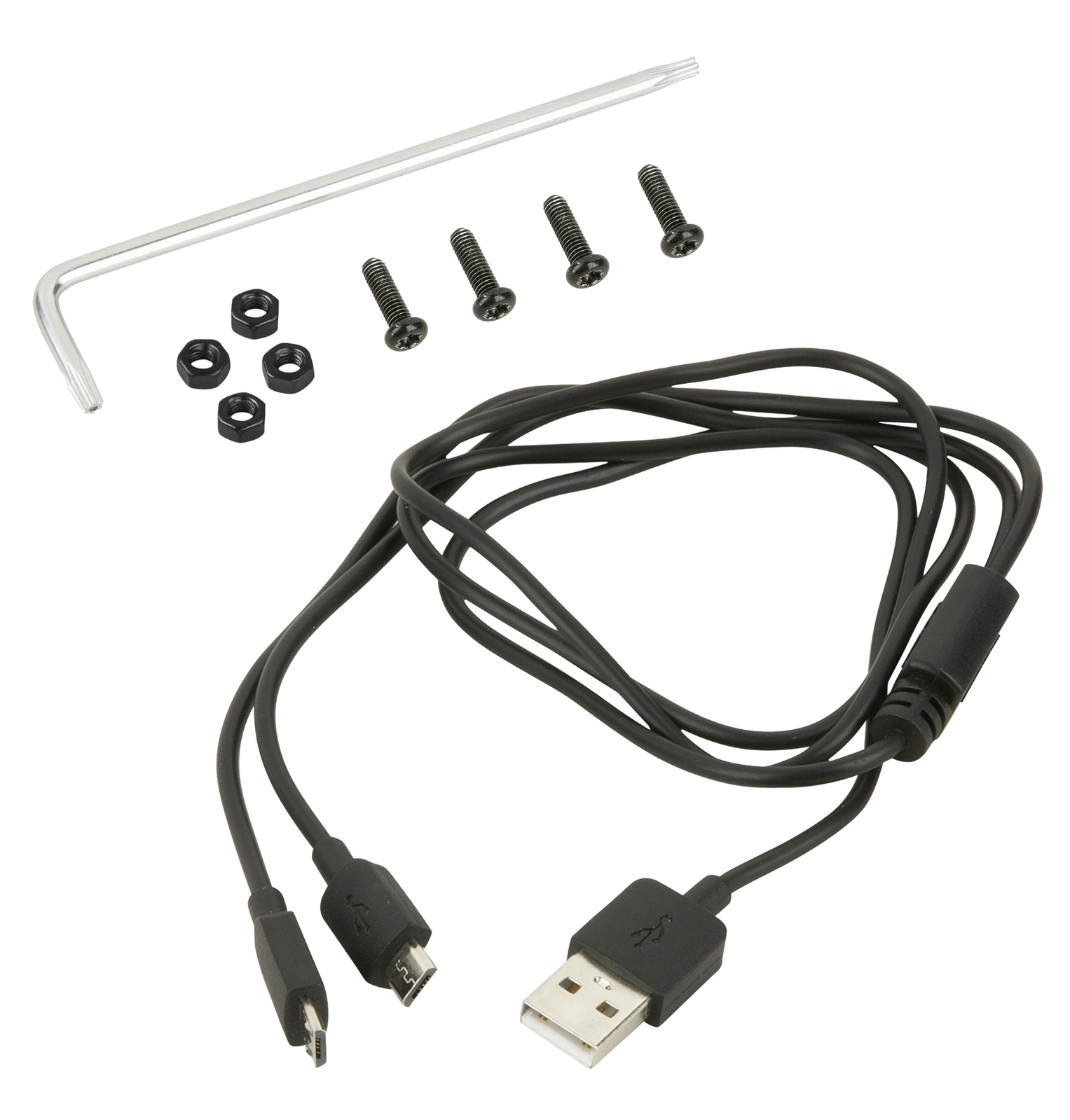

• incl. XVive U2 wireless transmitter, two antennas, USB charging cable, mounting screws, and counter nuts
