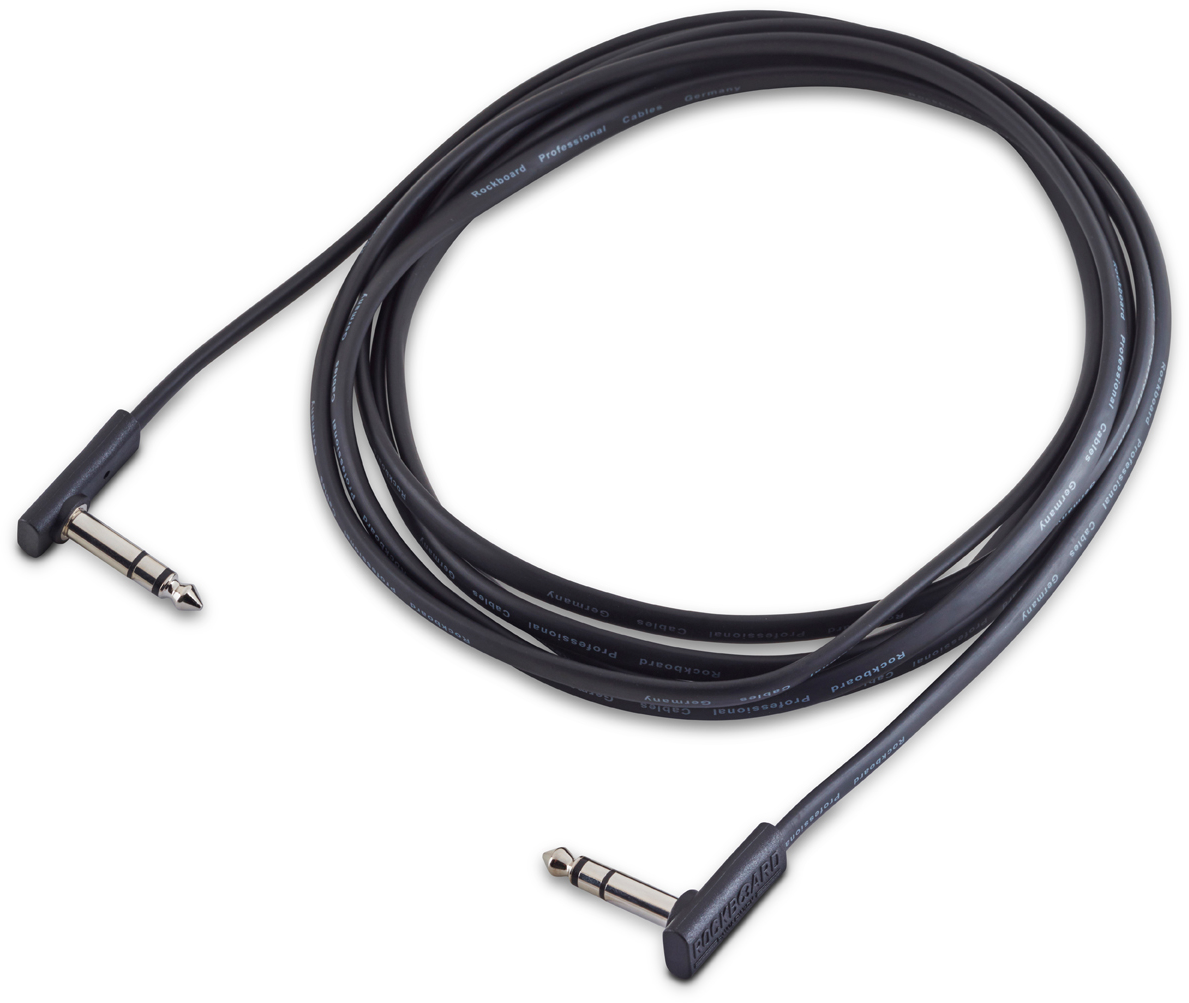

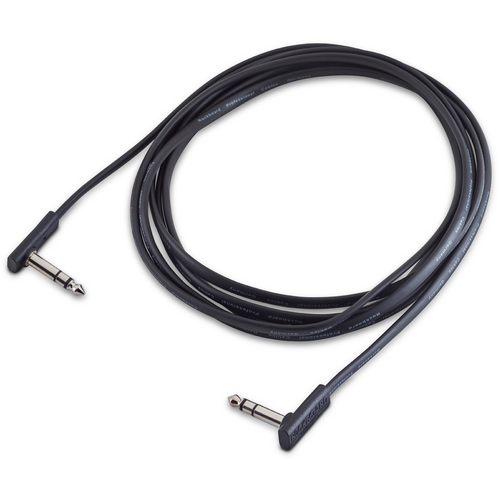

RockBoard Flat TRS Cable Black 300cm

The RockBoard Flat TRS cable is designed to be extra flat and compact to make the most of the available space on the pedalboard. The slim and angled 6.3 mm jack plugs and the flat conductor cable effectively reduce twisting. With six different lengths available, almost any application can be easily realized. This ensures accurate and clean wiring on the pedalboard, with pristine signal quality.

SPECIFICATIONS

• Flat TRS cable with rectangular profile

• For connecting foot controllers and expression pedals

• Compact and super flat angled plugs

• Flexible copper conductor 20 x 0.12 mm

• Twisted copper shielding 34 x 0.12 mm

• PE (polyethylene) signal insulation

• Outer PVC insulation

• Capacitance of less than 10 pF/decimeters

• Conductor resistance of less than 10 mOhm/decimeters

• Angled 6.3 mm TRS audio plugs

• Operating temperature: -15º C to +70° C

• Outer dimensions cable (W x H): 7 x 3 mm (rectangular)

• Outer dimensions plugs (W x H): 12.5 x 7.5 mm

• Black

• Length 30 cm (118 7/64")
