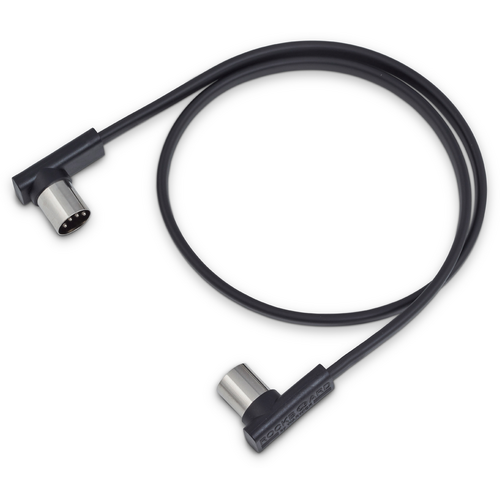

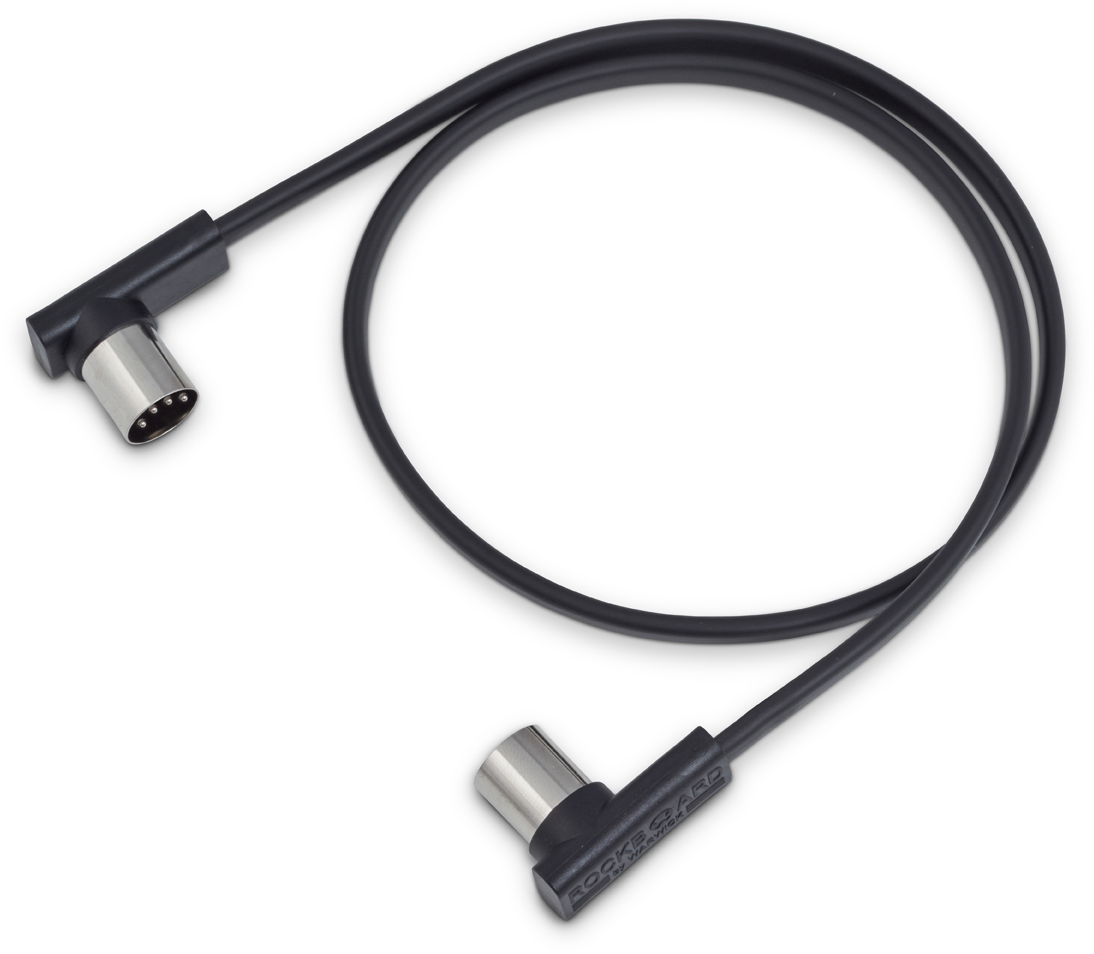

RockBoard Flat MIDI Cable Black 60cm

The RockBoard® Flat MIDI Cables were developed on the basis of the successful design of the patented RockBoard® Flat Patch Cables. Due to the flat angled plugs and 7 different available lengths, a space-saving and clean installation with short distances can be easily realized. The flat, rectangular conductor cable effectively reduces twisting and prevents damage to the cable core. The 5-pin pinout makes the realization of almost any MIDI application possible.

SPECIFICATIONS

• Flat MIDI cable

• Flat rectangular cable, prevents cable breakage and cable jams

• Compact and super flat angled DIN 5-pin plugs

• Flat rectangular cable, prevents cable breakage and cable jams

• 5 x flexible oxygen-free copper conductors 7 x 0.12 mm

• Suitable for Clock/SYNC capabilities & phantom power

• Maximal rated current 1A

• Outer insulation: PVC (Polyvinylchloride)

• Operating temperature: -20° C to +60° C (-4° F to 140° F)

• Dimensions plug (L x W x H): 33 x 15 x 10 mm (1 19/64" x 19/32" x 25/64")

• Dimensions cable (W x H): 6.5 x 3.5 mm (1/4” x 9/64”)

• Length: 60 cm (23 5/8")

• Black
