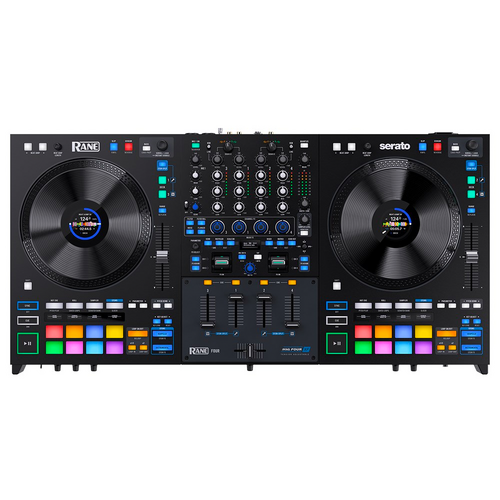

Rane FOUR

RANE has produced the ultimate DJ setup, in collaboration with Serato, providing superior Stems control.

Fusing the renowned industrial-grade build and sound quality of RANE hardware with the powerful new Stems capabilities of Serato DJ software, ensures the RANE FOUR will always be by your side, no matter the battle.

Dedicated STEMS controls - Harness The Power of STEMS
The most advanced Serato Stems DJ controller with dedicated Stems pad mode, independent Acapella/Instrumental buttons, and exclusive STEM-SPLIT feature for the ultimate Stems workflow and experience

Dedicated Pad Displays - Focus On Your Performance, Not Your Laptop
The 8 OLED displays above the 16 Performance Pads offer visual feedback for all pad modes. See Cue, Loop, Sample names, Roll and Loop lengths, beat divisions, Pitch Play tuning, Stem elements and FX

Creative FX - Creative Performance Features
Add flavor to your individual Stems and tracks with the 22 hardware Main FX and 4 knob-controlled Channel FX like Reverb, Scale Down Echo, Recycler, Riser, Filter, Filter Roll, Noise, Flanger and more

4-Channel Mixer - Four Channels of Performance Possibility
4-Channel mixer with full EQ control, intuitive FX assignment, enhanced Sampler routing and quick-access jog wheel deck selection buttons and 2 external Line/Phono ins for external turntables or decks

MAG FOUR Crossfader - Creative FX and MAG FOUR Crossfader
Access Serato DJ Pro with Pitch 'n Time. Complement your performance using the MAG FOUR tension-adjustable crossfader with contour control to adjust the slope of the crossfader curve

8.5" Jog Wheels - Be In Full Control of Your Mix!
Mix with 8.5" responsive jog wheels and 8 pads with Stems, Hot Cue, Saved Loop, Roll, Sampler, Slicer and Combo Pad mode enabling 2 modes at once - one for the top pads and one for the bottom ones

Serato DJ Pro Included
From the main stage to the underground, Serato DJ Pro is the trusted DJ software app for the DJing elite. Renowned for its reliability and packed with features to empower outstanding performances

Serato Pitch ‘n Time DJ Included
A renowned Time-Stretching and Key-Shifting algorithm that gives you the creative freedom to shift and sync the key of your tracks, or to speed up and slow them down to extreme tempos

Expand your Performance
RANE FOUR features switchable phono/line inputs for mixing with external devices, decks, and turntables. It is also DVS-ready for DJing with Serato Control Vinyl (DVS Expansion Pack required)

Twelve MKII - For Precision Control At Its Finest!
Expand your DJ setup with the 12" motorized turntable controller, featuring a solid steel construction to provide you with the ultimate precision control and no-latency response.

LC6000 - Your Performance Expansion Controller
Add one or two LC6000's to gain independent control over the third and fourth decks of the RANE FOUR. Enhance your performance using a full-size jog wheel with display and responsive performance pads

SPECIFICATIONS

Digital Audio
Converters: Cirrus Logic, 24-bit PCM, 48 kHz
Digital Signal Processing: 32-bit, Floating Point, Double precisio
Dynamic Range (A-weighted, unity gain):

• ADC: 113 dB

• DAC: 113 dB

• CD Input to Analog Output: 110 dB

• CD Input to USB Output: 113 dB

• USB Input to Analog Output: 113 dB

Inputs
Microphone 1/2 (Combo XLR/1/4" [6.35 mm] TRS):

• Analog Gain: 25 dB

• Maximum Input: 110 mV

• Gain Trim: Off to +26 dB (unity at center)

• Tone Control: 2-band

Line/Phono Inputs 3/4 (RCA stereo pairs, switchable):

• Line: Line

• Maximum Input: 4 Vrms

• Gain Trim: Off to +12 dB

• Tone Control: 3-band, full-cut to +10 dB

• THD+N (20 kHz BW @ 1 kHz: 0.004%

• Phono: RIAA

• RIAA Curve: +/-0.25 dB

• Gain (@ 1 kHz): 31.5 dB

• Maximum Input (@ 1 kHz): 106 mV

• Dynamic Range (A-weighted): 102 dB

Outputs
Main Outputs (XLR):

• Gain Trim: Off to 0 dB

• Maximum Output: 8 Vrms

• THD+N (20 kHz BW @ 1 kHz): 0.004%

• Frequency Response: Flat - 20-20kHz

Main Outputs (RCA stereo pair):

• Maximum Output: 4 Vrms

• THD+N (20 kHz BW @ 1 kHz): 0.004%

• Frequency Response: Flat - 20-20kHz

Booth Outputs (1/4”):

• Gain Trim: Off to 0 dB

• Maximum Output: 8 Vrms

• THD+N (20 kHz BW @ 1 kHz): 0.004%

• Frequency Response: Flat - 20-20kHz

Headphone Outputs (1/4"/6.35 mm and 1/8"/3.5 mm TRS):

• Maximum Output: 4 Vrms Voltage: (no load)

• Output Power: 50 mW (50 ohms)

• Dynamic Range (A-weighted): 108 dB

Pads
(16) on/off multi-color back-lit pads (8 per deck, 9 modes each

Wheel Displays
(2) 320 x 240 Color LCD’s

Pad & FX Displays
(9) 128 x 32 Monochrome OLED’s

Faders

• (1) MAG FOUR tension-adjustable crossfader with contour

• (4) Standard channel faders

Connections

• (2) XLR outputs (Main)

• (2) 1/4” outputs (Booth)

• (1) RCA stereo output pair (Main)

• (2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)

• (2) RCA stereo input pairs (Deck 3-4)

• (1) 1/4” (6.35 mm) TRS output (Headphones)

• (1) 1/8” (3.5 mm) TRS output (Headphones)

• (2) USB Type-B ports

• (1) IEC power cable input

Power
Connection: IEC
Voltage: 100–240 V, 50/60 Hz
Consumption: 20 W

Dimensions
Dimensions (width x depth x height):

• 30.8” x 15.9” x 4.2”

• 782.32 x 403.8 x 106.6 mm

Weight (including platters):

• 18.25 lbs.

• 8.27 kg
