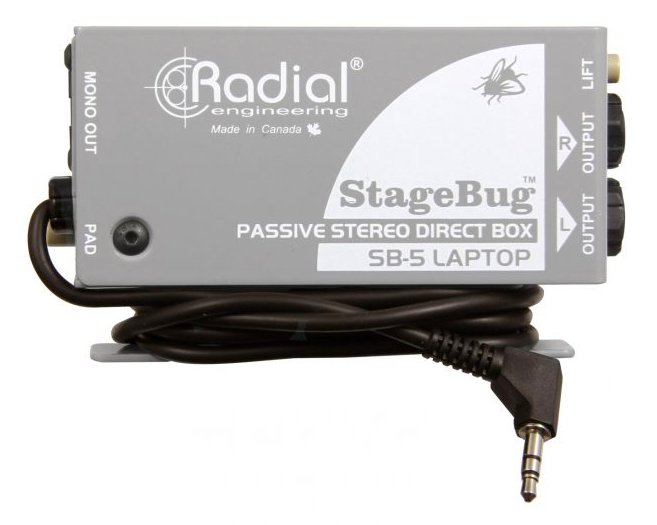

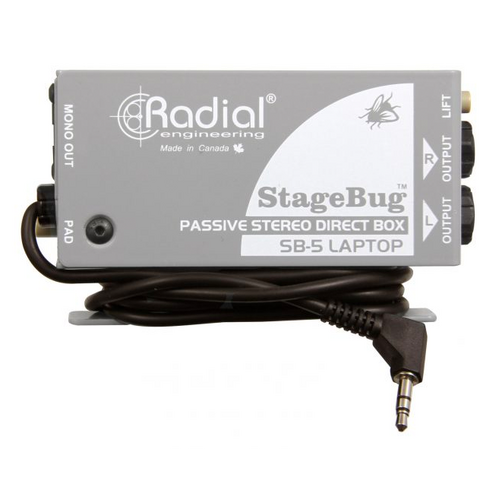

Radial StageBug SB-5

The Radial StageBug SB-5 is a compact & portable stereo direct box designed to accommodate laptop computers, tablets, and other consumer audio products when amplifying the signal through a PA system.

• Stereo direct box for laptops, smartphones, and tablets

• Cable with 3.5mm stereo plug to connect to mobile devices

• Transformer isolation eliminates hum and buzz

• Plug & play easy to use, no power required

• Compact design fits in your laptop bag

The easy way to connect to the PA
The StageBug SB-5 provides an easy to use professional interface for connecting any mobile playback device to a mixer or PA system, with a built-in cable and 3.5mm stereo plug to connect directly to your laptop, smartphone, or tablet. Inside, a pair of custom wound transformers isolate the signals to prevent hum and buzz, and balance the audio to feed long cable runs without noise. Left and right 1/4" TRS outputs are provided for stereo operation, or a mono XLR output can be used to save channels on the PA system. The SB-5 works without any power required, and features additional ground lift and pad switches to eliminate ground loop noise and prevent distortion from high output audio sources.

FEATURES

Input Cable
Connecting to the SB-5 is done with an integral 1.5 meter (5ft) cable terminated with a 3.5mm (1/8”) TRS connector. Attached to ensure cable is not lost when stored.

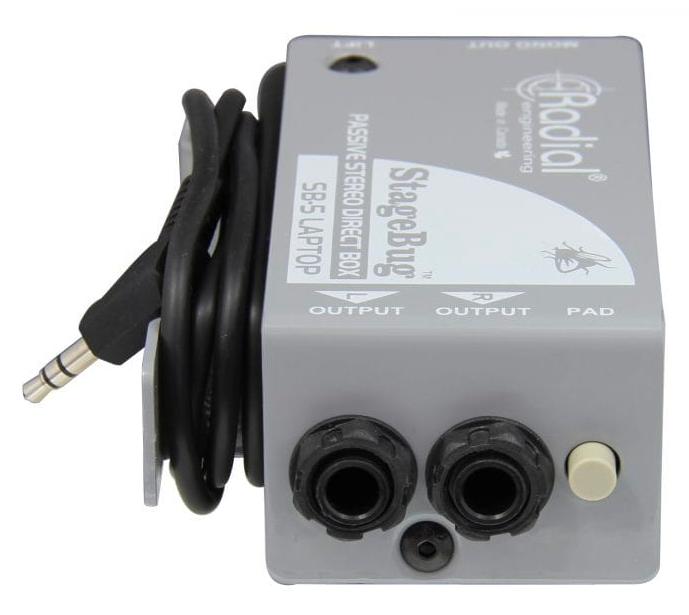

1/4" TRS Out
Set of connectors are balanced TRS for standard mic level output.

Pad
Reduces the input sensitivity by 15dB for louder sources.

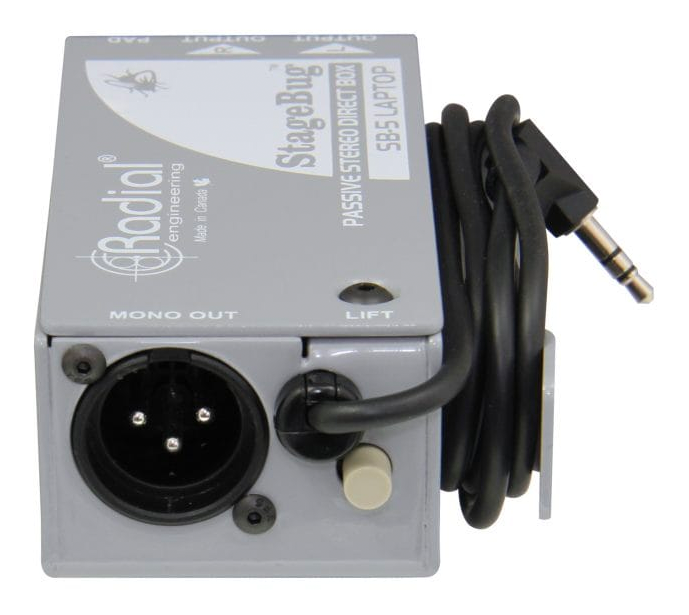

XLR Out
Summed mono output combines the left and right inputs to save valuable mixer channels.

Strain Relief
Retains the integral cable to ensure pulling it will not harm the internal circuit board and solder connection.

Lift
Used to help eliminate hum and buzz caused by ground loops.

SPECIFICATIONS

Audio circuit type: Passive, transformer based
Number of channels: Two channels
Frequency response: 20Hz ~ 20KHz (± 1dB)
Dynamic range: 100dB
Total harmonic distortion: 0.01% @ 1kHz
Phase Deviation: 2° @ 100Hz; 5° @ 50Hz
Input Impedance: 40k Ohms, unbalanced
Output Impedance: 2.8k Ohms, balanced
Maximum Input: +20dB
Features: Input pad, Mono Sum, Ground lift
Input Connectors: 3.5mm
Output Connectors: 1/4" TRS, XLR
Construction: 14 gauge steel chassis & outer shell
Size (L x W x D): 4.5" x 1,85" x 1.35" (114mm x 47mm x 34mm)
Weight: 0.55 lbs (250 grams)
Shipping size (L x W x D): 8" x 5" x 3" (203mm x 127mm x 76mm)
Shipping weight: 0.8 lbs (365 grams)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
