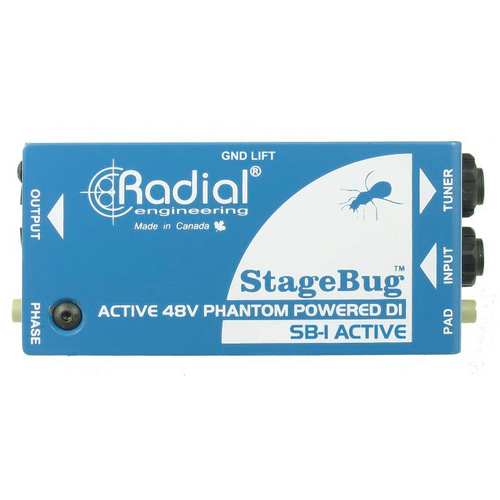

Radial StageBug SB-1
Compact Active DI
The StageBug... small size, big heart, huge sound!

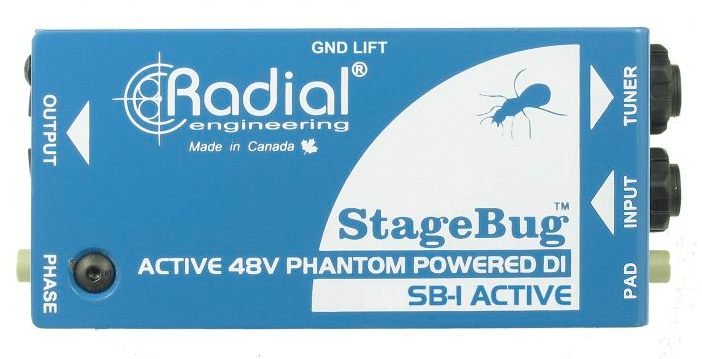

The StageBug SB-1 is a compact active direct box designed to fit inside a guitar case for artists who prefer to travel light.
-
Active direct box for acoustic guitar
-
Ultra compact to fit in your guitar case
-
Plug & play easy to use feature set
-
48V phantom powered, no batteries needed!
Ultra-compact DI
The design begins with standard ¼ instrument input with a thru-put to feed your tuner or your on-stage amp. The ultra-quiet active circuit at once converts the signal from high to low impedance to reduce susceptibility to noise. The signal is then buffered and balanced for long cable runs to the PA system. 48 volt phantom provides the power, so the SB-1 does not require batteries or external supply to make it work. You simply plug in and you are ready to go!
FEATURES
PAD
Reduces the input sensitivity by 10dB for louder instruments such as an active bass guitar or keyboard so that they can be used without distortion.

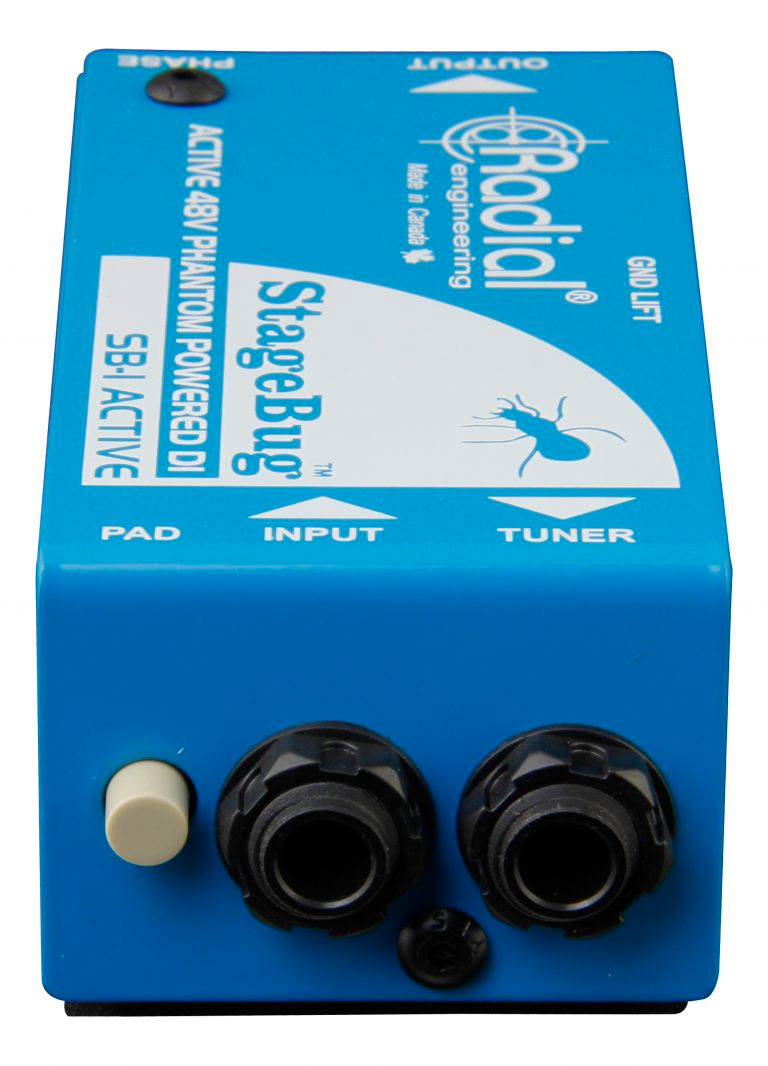

Input
Unbalanced hi-Z input connection for your guitar or bass.
Tuner Out
Always on, this thru connector is used to feed your tuner or your on-stage amplifier.

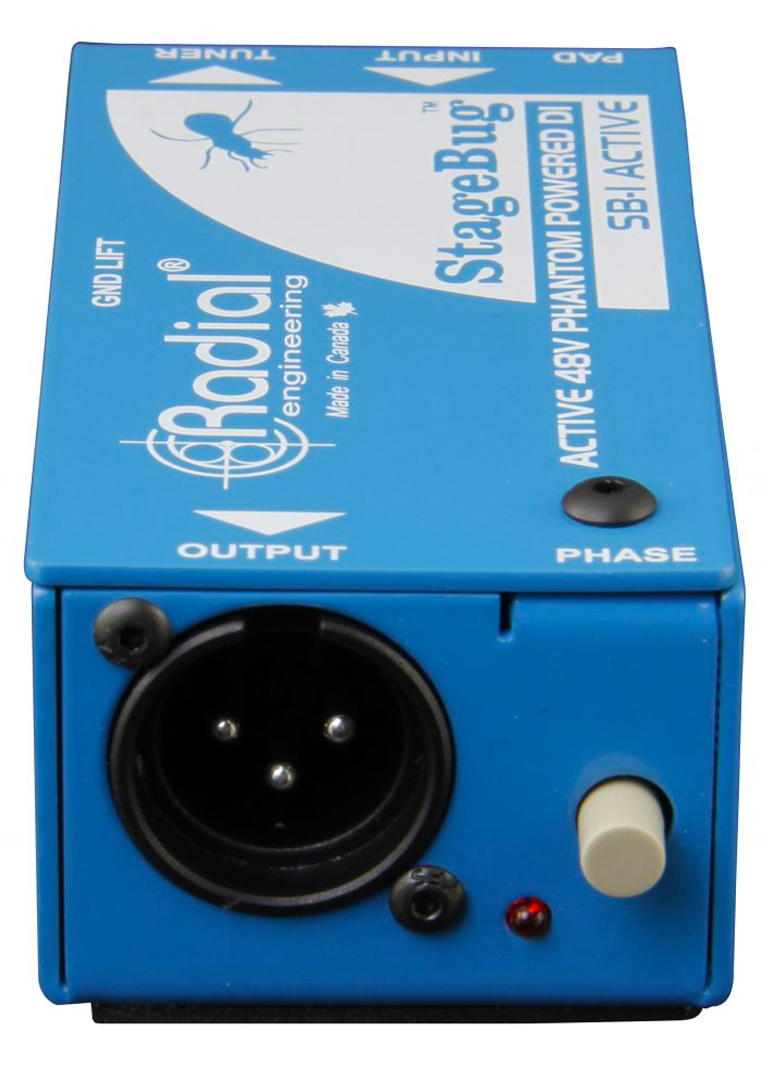

Output
Sends the lo-Z balanced output signal to the PA system or audio workstation.
Phase
180° polarity reverse helps tame hot spots on stage that can cause feedback.
Ground Lift
Disconnect pin-1 at XLR output to reduce hum and buzz caused by ground loops.
SPECIFICATIONS
Audio circuit type: Active Buffer with Phase Splitter
Number of channels: 1
Frequency response: 20Hz to 20KHz
Dynamic range: >100dB
Gain: +1.3dBu/+4.4dB
Clip Level: +3.3dBu/+12.3dBu
Total harmonic distortion: <0.006%
Intermodulation Distortion: <0.01%
Phase Deviation: 25/12° Maximum
Input Impedance: 800K/23K
Output Impedance: 330 Ohms
Equivalent Input Noise: -101dBu
Noise Floor: -97dBu
Maximum Input: +2dBu/+8dBu
Features: Input pad, 180° polarity reverse, Ground lift
Input Connectors: 1/4"
Output Connectors: XLR
Construction: 16 gauge steel chassis & outer shell
Size (L x W x D): 4.5" x 1,85" x 1.35" (114mm x 47mm x 34mm)
Weight: 0.55 lbs (250 grams)
Shipping size (L x W x D): 8" x 5" x 3" (203mm x 127mm x 76mm)
Shipping weight: 0.8 lbs (365 grams)
Power: 48V phantom power, 5mA
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
