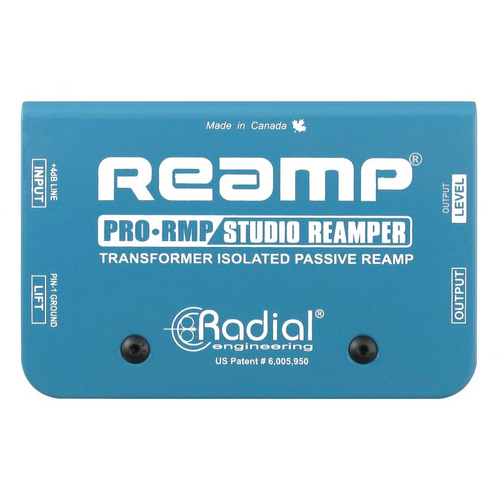

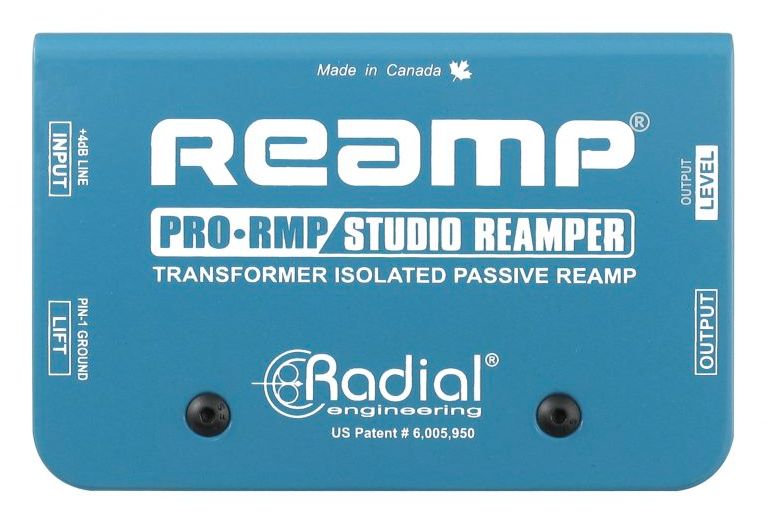

Radial ProRMP

Studio Reamper

For years, Reamping has been the ‘secret weapon’ for countless recordings by the biggest names in the business! Few realize that recording engineers not only Reamp guitars, but often Reamp bass, keyboards, drums and even voice as a means to bring creative new tones and sonic signatures to their music.

• Play pre-recorded tracks through amps and pedals

• On board level control for fine tuning amp level

• Transformer isolated to eliminate buzz and hum

• Opens the door to creative new tones and textures

Reamping for every studio
The Radial ProRMP is a 100% passive Reamper. This means it does not require any external powering. The magic behind the ProRMP's great tone is a custom wound transformer that at once converts the balanced line level source to a hi-z output for your amp while also acting as an electrical isolator to eliminate troublesome ground loops that can often cause buzz and hum in the sound. Plug and play easy to use, the ProRMP connects from the recorder to your amp and effects units and does all the impedance matching for you. Just adjust the level to suit!

FEATURES

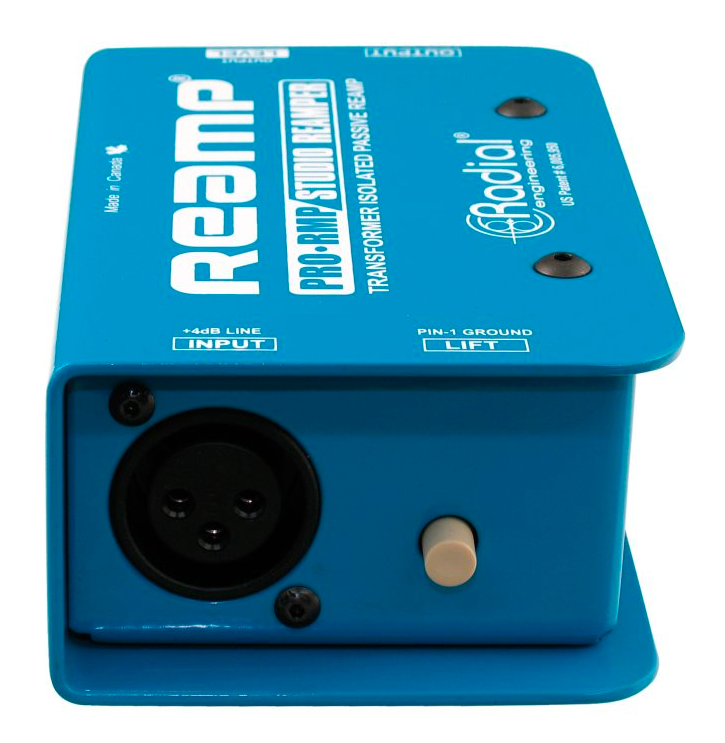

XLR Input
Receive balanced +4dB line level signal from the recording system or mixer.

Lift
Disconnects ground at the XLR pin-3. Helps eliminate hum and buzz caused by ground loops.

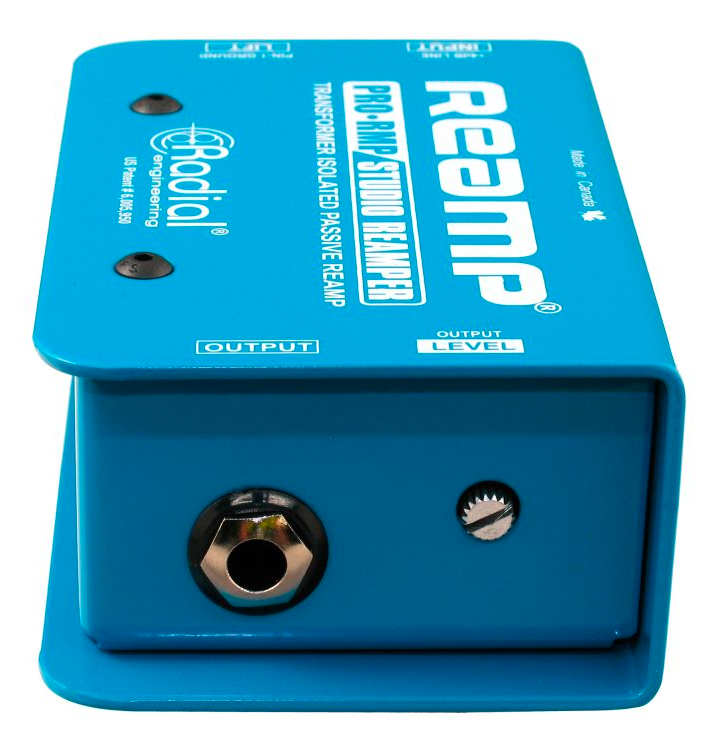

Output
Hi-Z 1/4" output connects to guitar amp or effect pedals. This output provides the primary ground path for the ProRMP.

Level
Lets you set the output from your recording system so that it matches the level from your guitar.

SPECIFICATIONS

Audio circuit type: Passive, transformer isolated
Frequency response: 20Hz ~ 20KHz (+0/-1dB)
Dynamic range: >137dB
Gain: >-10dB
Total harmonic distortion: 0.003%
Phase Deviation: 0.3° @ 100Hz; 5° @ 20Hz
Input Impedance: 1600 Ohms
Output Impedance: 1850 Ohms
Common Mode Rejection Ratio: 100dB @ 60Hz (unbalanced source)
Equivalent Input Noise: >-98dBu Noise plus gain
Noise: -111dBu
Maximum Input: >+26dBu
Features: Input pad, 180° polarity reverse, Ground lift
Input Connectors: XLR
Output Connectors: 1/4"
Construction: 14 gauge steel chassis and outer shell
Size (L x W x D): 3.3" x 5.0" x 2" (84 x 127 x 48mm)
Weight: 1.55 lbs (720 g)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
