Radial HotShot ABo

Footswitch Selector for Balanced Outputs

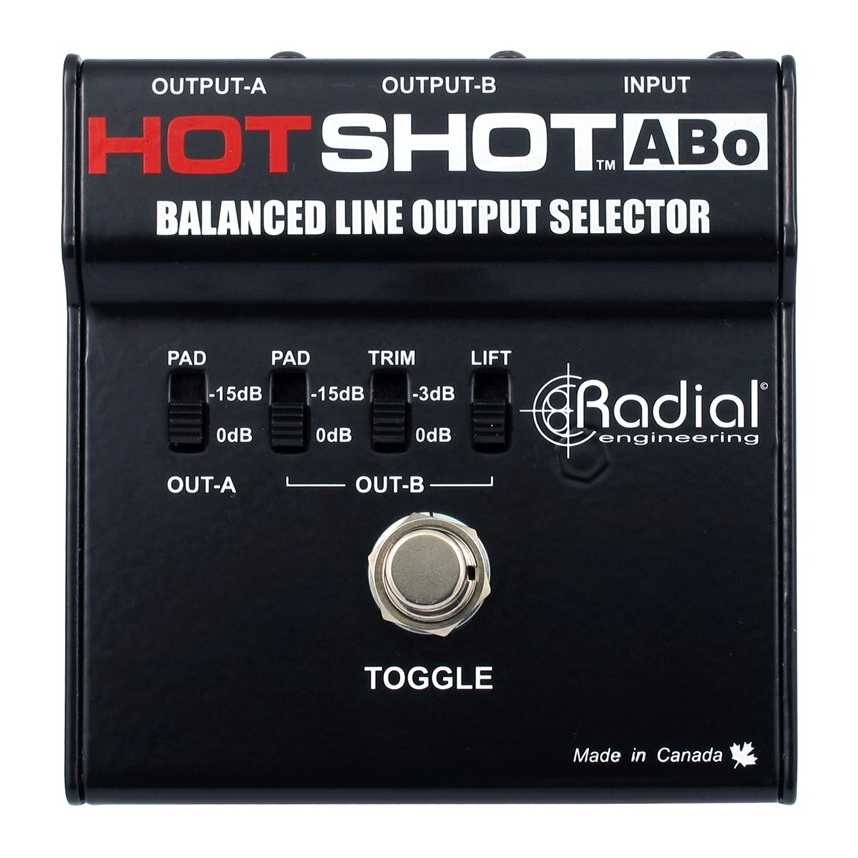

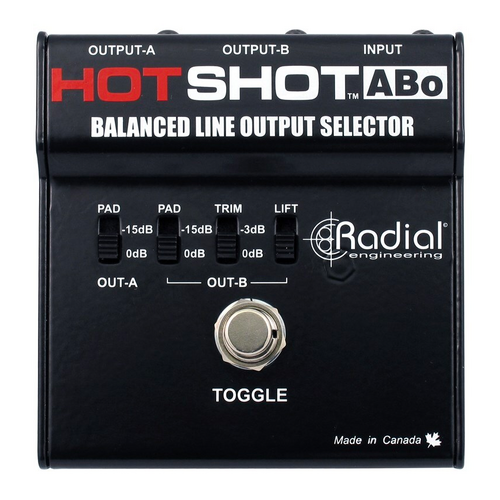

The HotShot ABo is a latching footswitch that will take a balanced input on stage and switch it between two different destinations, without requiring any power to operate.

• Redirect a balanced signal to two different destinations

• Toggle outputs or mute with a latching footswitch

• Selectable output pads to match signal levels

• Completely passive operation, no power required

Reroute signals on stage
The Hotshot ABo takes a balanced XLR input and provides the ability to switch the signal between two destinations using a passive footswitch on stage. This makes it ideal for a variety of applications, including driving two channels on a mixing console for dry and wet effects routing, diverting a dynamic mic from the PA system to the monitors or an intercom system, or for temporarily muting the signal when coughing. The ABo uses a latching footswitch, so it will stay on the last output selected until you hit the footswitch again.

FEATURES

Output-A
XLR sends a balanced signal to microphone snakes and mixing consoles. Rugged glass-filled nylon connector is 100% isolated from the chassis.

Pad
Inserts a -15dB Pad on either Input-A or Input-B.

Trim
Reduces the input level of input-B by 6dB. Used to match signal levels.

Output-B
XLR sends a balanced signal to microphone snakes and mixing consoles.Rugged glass-filled nylon connector is 100% isolated from the chassis.

Toggle
Heavy-duty latching footswitch selects between Input-A and Input-B.

Lift
Disconnects ground on pin-1 of INPUT-B. Used to reduce hum and buzz caused by ground loops.

Input XLR
Receives a balanced signal from a microphone or other audio source. Rugged glass-fi lled nylon connector is 100% isolated from the chassis.

SPECIFICATIONS

Audio circuit type: Passive, true-bypass
Frequency response: 20Hz ~ 20kHz
Dynamic range: Unlimited
Features: Input pad, Ground lift
Input Connectors: One XLR input
Output Connectors: Two XLR outputs
Construction: 14-Gauge Steel
Size (L x W x D): 3.9" x 3.6" x 2" (99 x 92 x 51mm)
Weight: 1.25 lb (0.56 kg)
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
