From Pedal to Performance

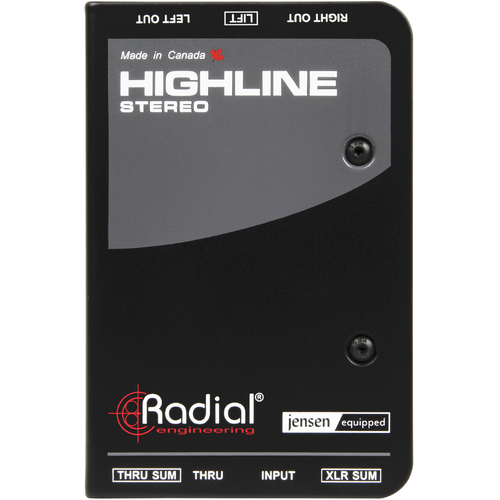

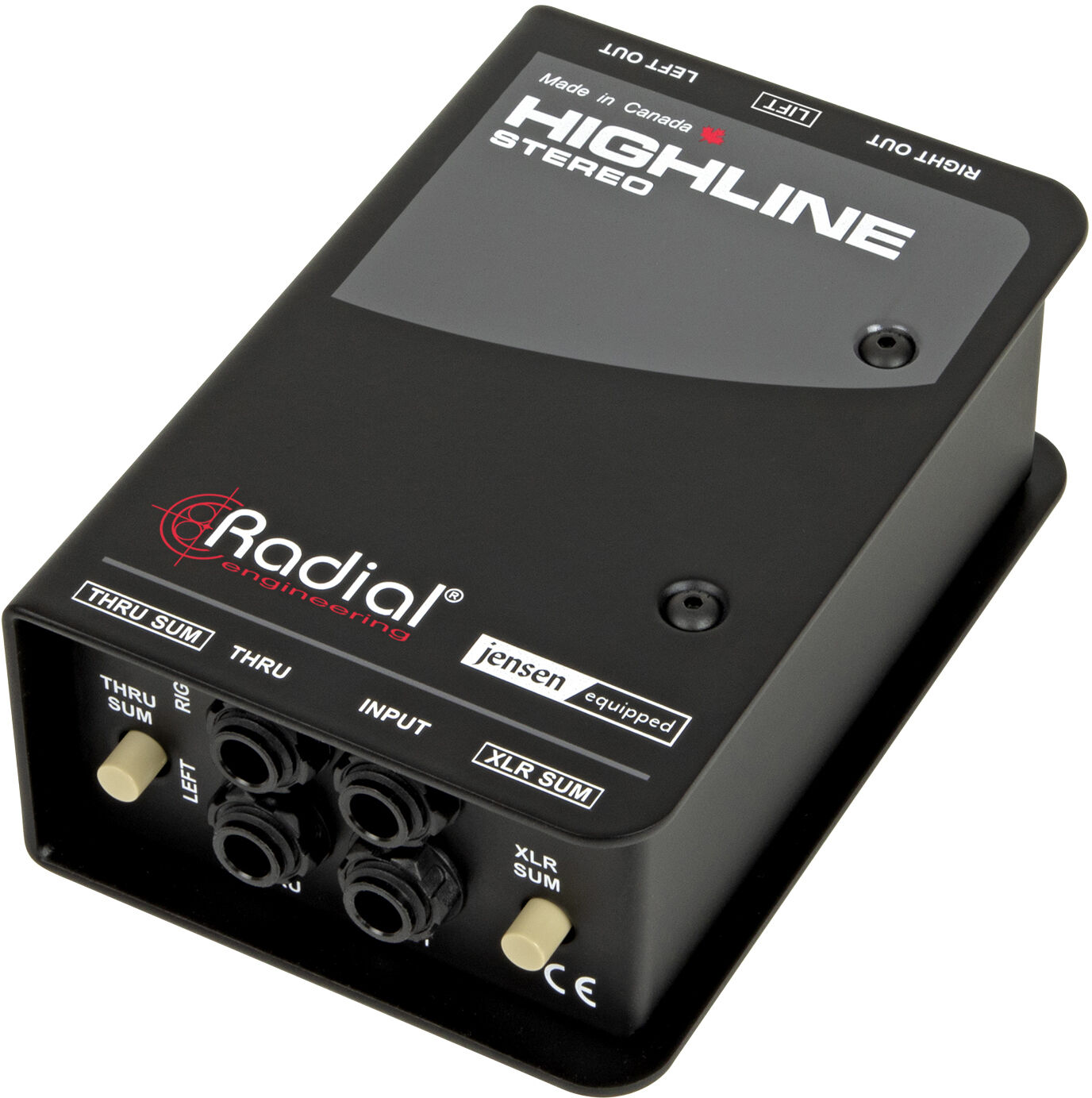

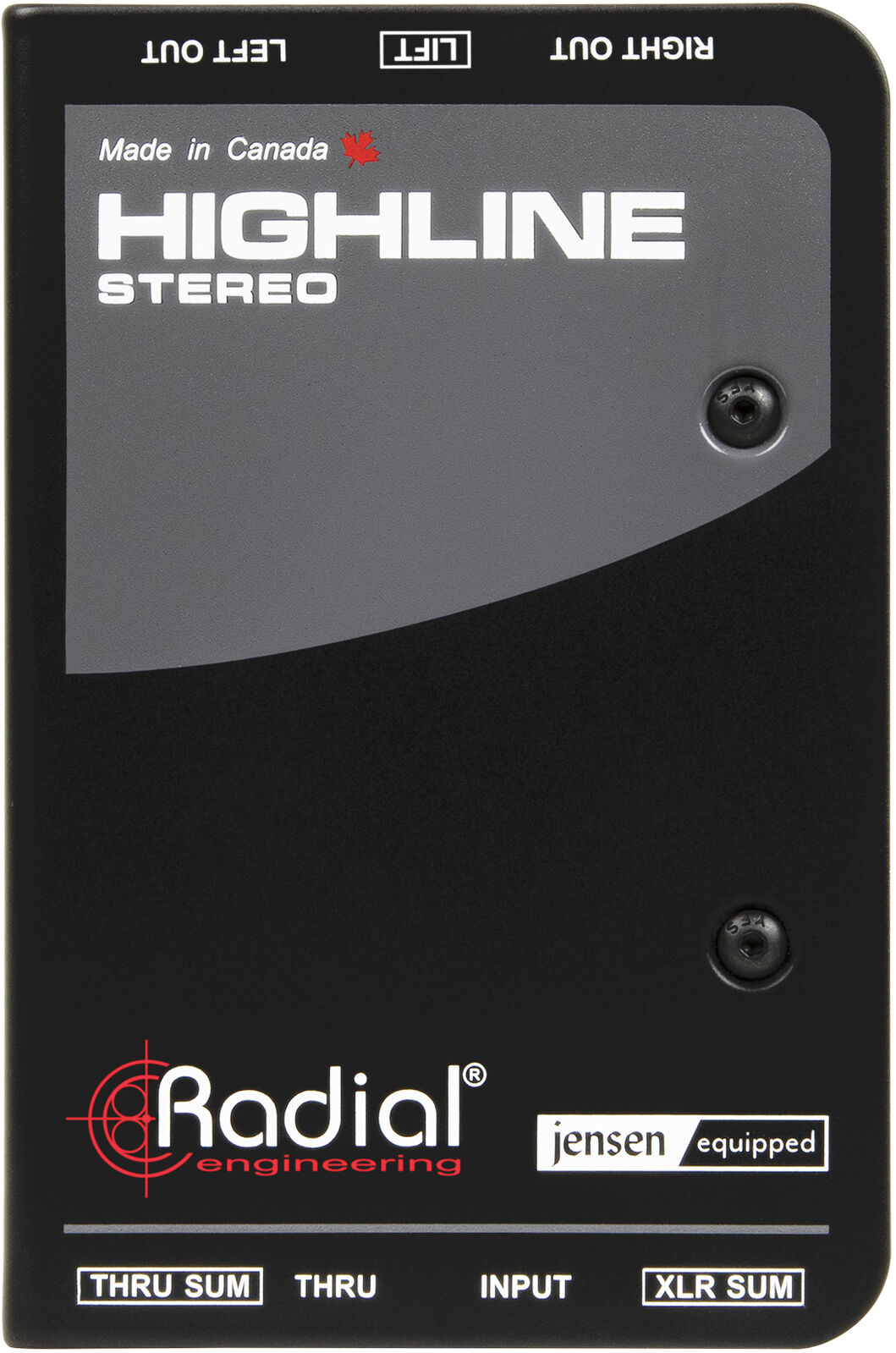

The Highline Stereo is a two-channel passive line isolator designed to deliver guitar and amp modelers to the PA system with zero coloration, noise, or distortion. A pair of industry-leading Jensen transformers provide isolation to protect your gear from phantom power, while also delivering a flat frequency response from 10Hz to over 70kHz. The Highline Stereo is built to handle the toughest touring environments, with a heavy gauge steel enclosure and switches rated at over 20,000 cycles, so you can depend on it to deliver your sound night after night without fail.
FEATURES
-
Two channel isolator with stereo Thru outputs
-
No loss of signal strength or tone when connecting to a mixer
-
Radial’s renowned reliability & build quality
-
Precision-wound Jensen Transformers
-
XLR and Thru Sum options for added versatility
Elevate your tone
The Highline Stereo is a full-featured line isolator that is specifically designed to address the needs of instrumentalists who use amp modelers, allowing them to seamlessly connect to a PA or a recording system while maintaining their full signal integrity with no added noise or distortion. The Highline features premium Jensen 1:1 transformers, which retain the full volume level from the pedalboard to the PA, while also providing galvanic isolation that eliminates ground loop noise for a clean and noise-free signal. The balanced outputs of the Highline Stereo allow for long cable runs to the PA, and the device also blocks phantom power so it never reaches the pedalboard. The Highline Stereo can be easily reconfigured for multiple setups with the use of two summing switches: these allow you to connect to the PA or your stage monitors in either stereo or mono.
Designed for amp modelers
Guitarists and bassists who use utilize amp modelers on their pedalboard have a unique set of problems: While amp sims can produce line-level outputs, they often still use 1/4" unbalanced connectors that won't support long cable runs without degrading the tone of the instrument, and they are particularly susceptible to noise from ground loops when connected directly to the PA. The Highline Stereo addresses these issues by inserting 1:1 Jensen transformers into the signal path, which provide isolation to reduce noise, protect against phantom power, and ensure that the audio signals remain at line level for direct connection to the PA system.

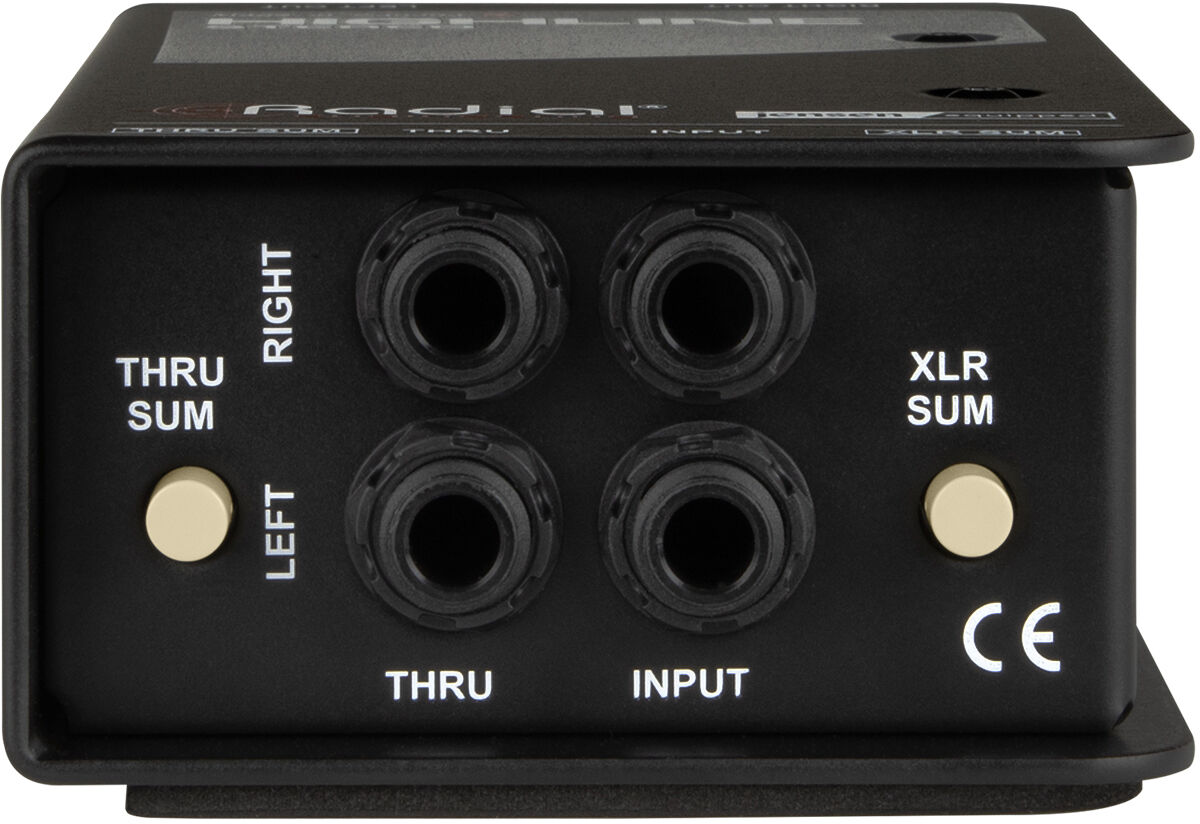

Input
Left and right 1/4" input jacks to connect to the balanced or unbalanced outputs from amp simulators & guitar pedals.
Thru
Left and right 1/4" outputs to feed a stage amplifiers.
Sum Thru
Sums the left and right input channels to mono at both Thru outputs, allowing you to feed a stereo signal to the mixer while monitoring locally with a single amplifier.
Sum XLR
Sums the left and right input channels to mono at both XLR outputs, allowing you to retain your pedalboard settings when there's only room for a mono input on the mixer.

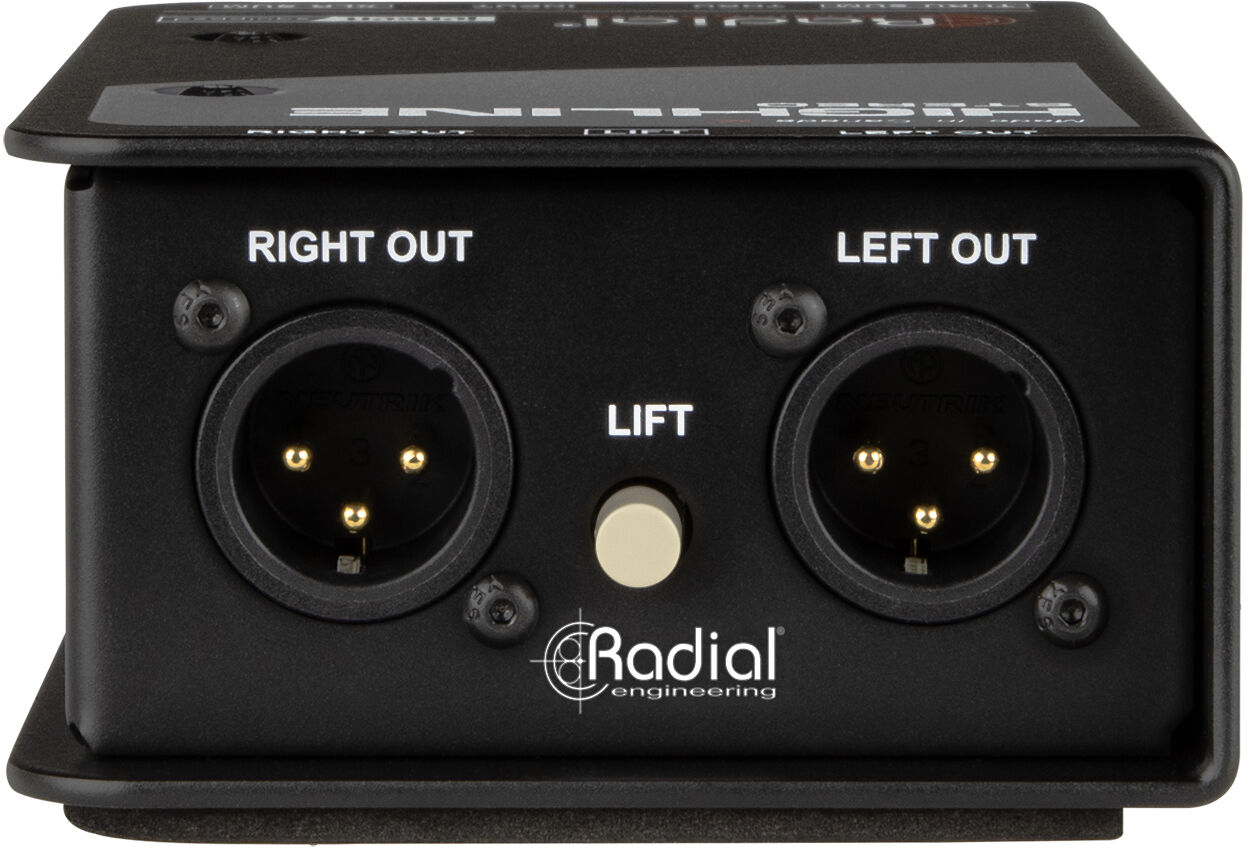

Output
Stereo XLR outputs provide a balanced & isolated signal for feeding the input of a mixer.
Lift
Ground lift switch eliminates hum and buzz from ground loops
SPECIFICATIONS
Audio circuit type: Passive, transformer based
Transformer: JT-11-YMPC
Number of channels: Two channels (dual mono)
Frequency response: 20Hz ~ 20KHz (± 0.05dB)
Total harmonic distortion: <0.05% from 20Hz ~ 20kHz / -10dB, 0.0008 @1kHz / -10dB
Phase Deviation: ±0.3° from 20Hz ~ 20kHz / -10dB
Signal to Noise: 112dB
Features: Ground lift
Extras: XLR Sum, Thru Sum
General
Construction: 14-gauge steel outer shell & 16-gauge chassis
Finish: Durable powder coat
Size (L x W x D): 5" x 3.3" x 1.8" (127mm x 84.1mm x 45.5mm)
Shipping size (L x W x D): 6.5" x 4" x 3" (165mm x 102mm x 76mm)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
