Radial Catapult Mini RX

Radial Catapult Mini RX - RJ45 Input to Male XLR Output

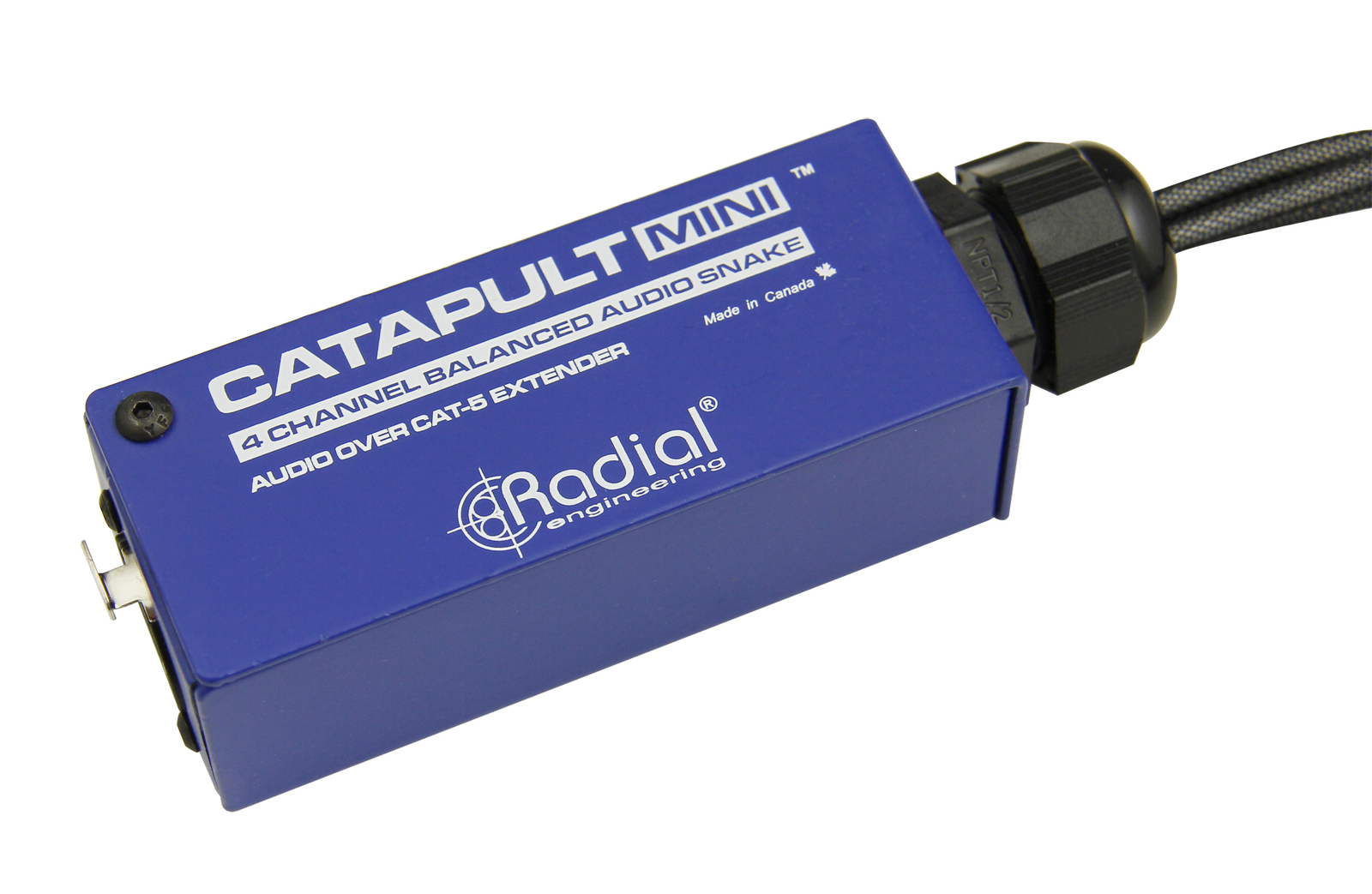

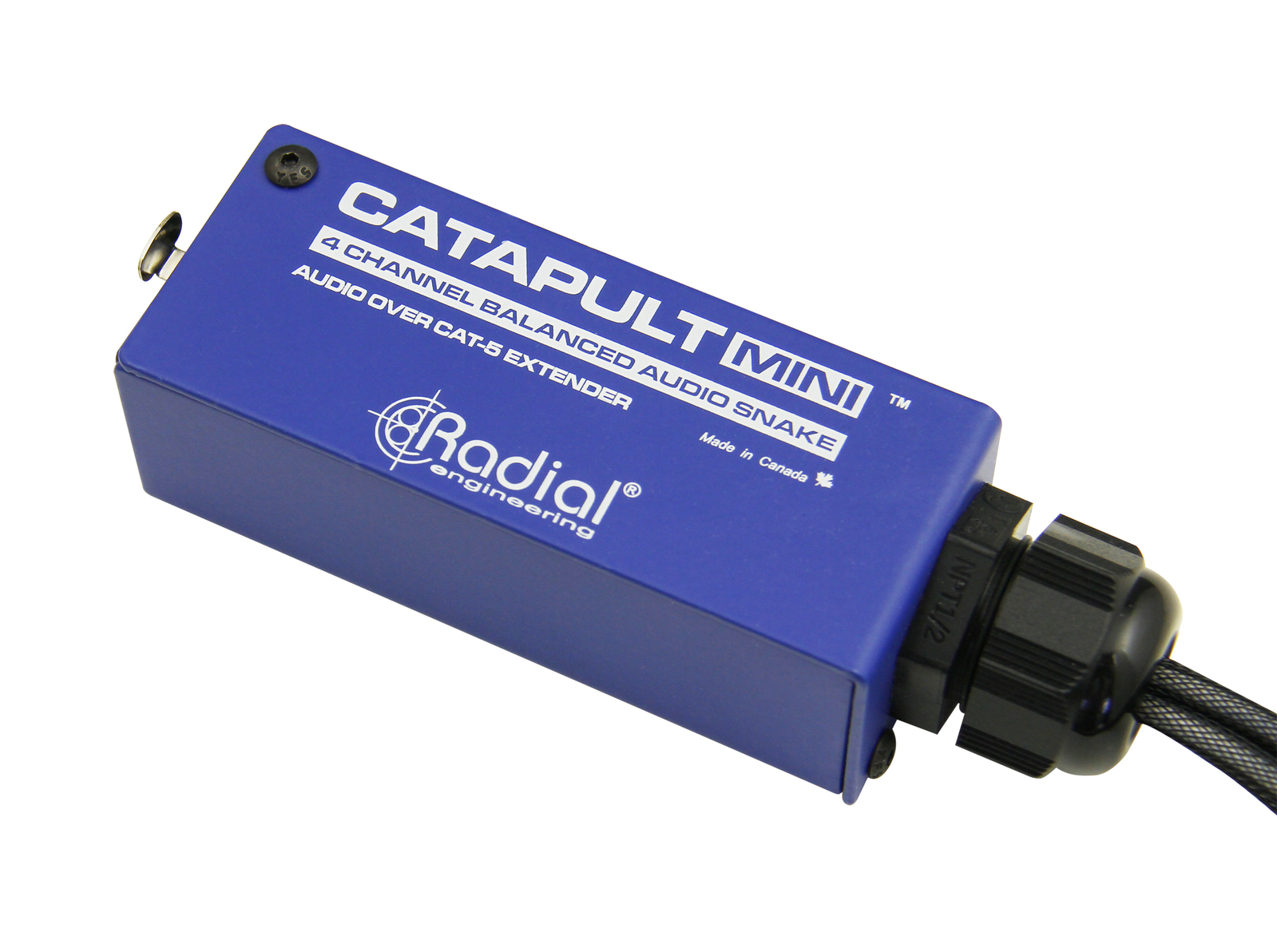

The Catapult Mini is a compact passive audio snake that allows you to send four channels of analog audio over standard Cat 5 or Cat 6 Ethernet cable.

Analog audio over Cat 5 wiring
The Catapult Mini System works like a typical four-channel analog audio snake; they allow you to send mic or line-level signals from one location to another without signal loss, noise, or interference, and without any digital audio conversion needed. What makes the Catapult system unique is that it utilizes Cat 5 Ethernet cable, which is widely available, lightweight, and economical. Simply connect a shielded Cat 5 cable between any two Catapult modules and they will use the analog conductors in the cable to deliver four balanced audio lines to any destination.

Straight-wire passive operation
Catapult modules require no power to operate, and since they keep the signal in the analog realm, no digital conversion is necessary. Straight-wire connection from the XLRs to the RJ45 connector on a Cat 5 cable ensures that your audio passes through without coloration or distortion.

Utilize pre-existing cable installations
As many buildings are already pre-wired for Cat 5, you can take advantage of this to transmit audio between distant rooms without the need to install or supply new cabling. This eliminates the need for bulky and expensive multi-channel audio cable, and allows contractors to benefit from installed network cable and easily connect from one room to another.

FEATURES

• Receives four channels of analog audio over Cat 5 or Cat 6 Ethernet cable.

• Durable coat keeps your Catapult Mini looking great for years.

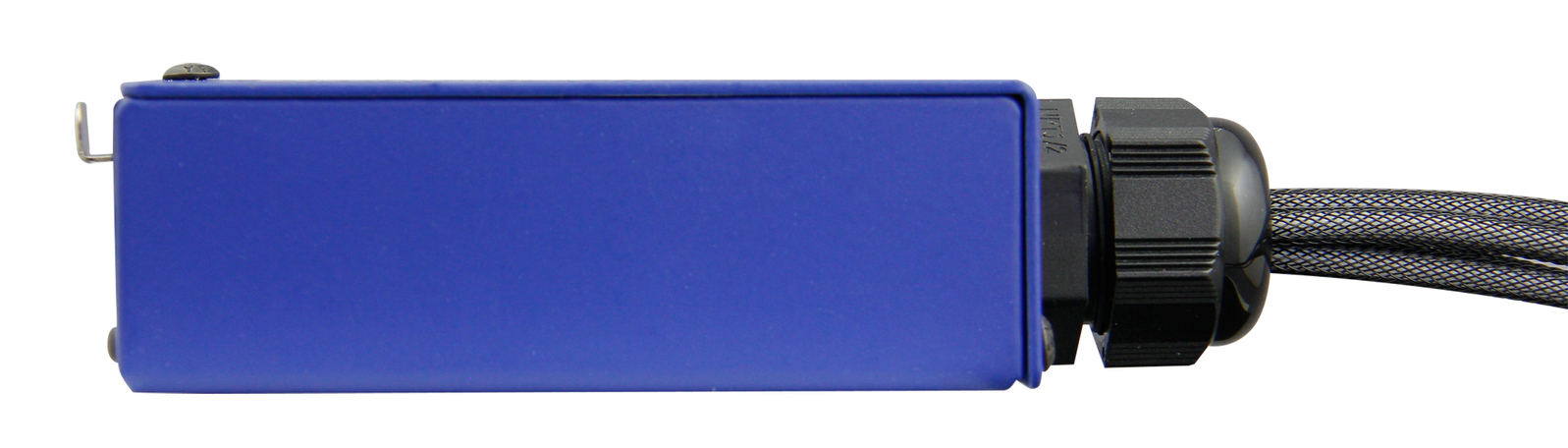

• 16-gauge steel housing to handle any touring environment.

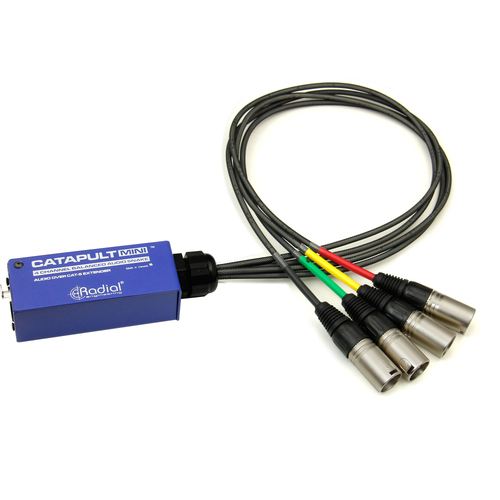

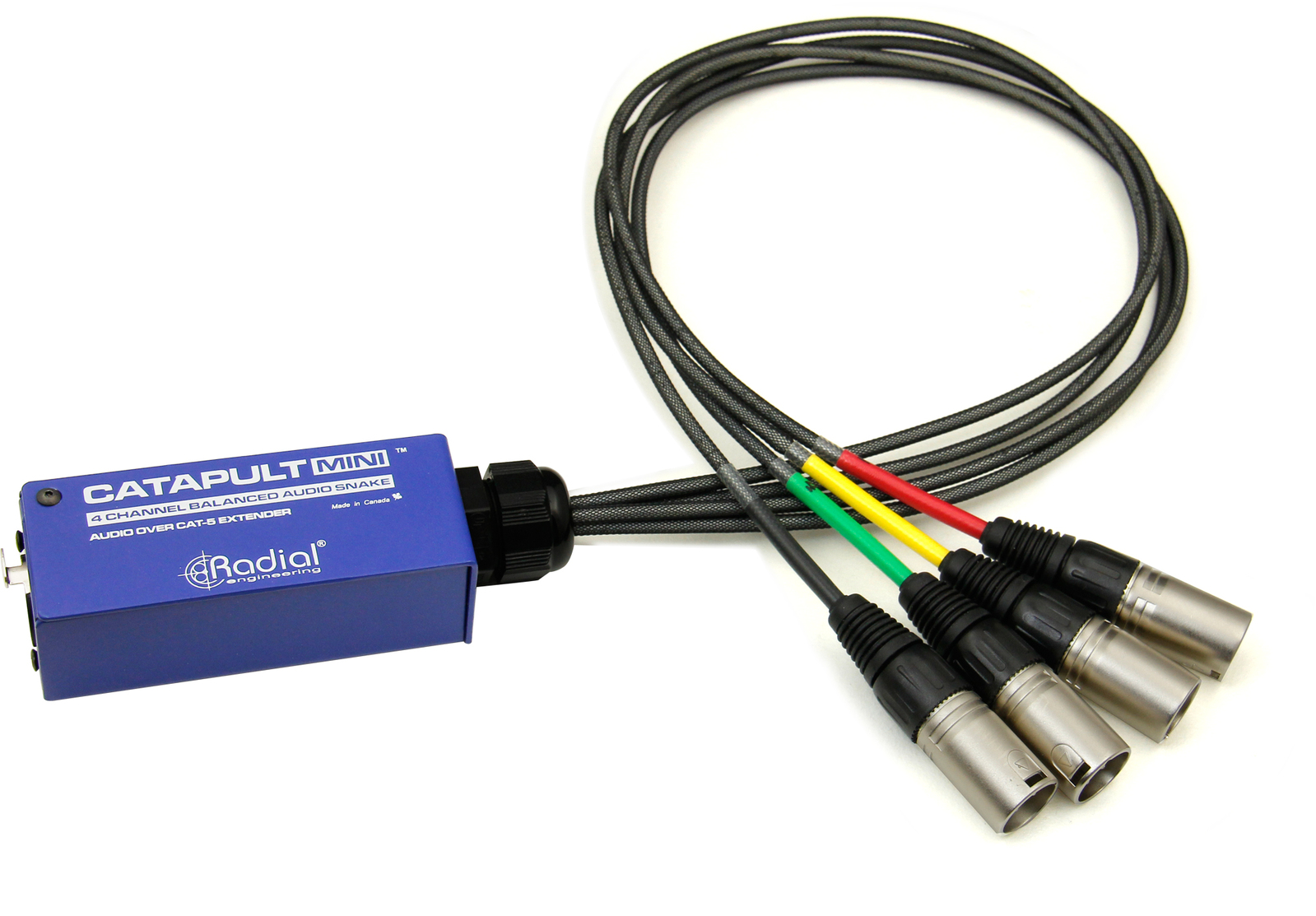

• Identify channels at a glance with color-coded heatshrink labels.

• Expando mesh sheathing provides extra durability and protects cables from damage.

• Male XLR outputs allow you to plug directly into the inputs of a mixer or recording interface

SPECIFICATIONS

Audio circuit type: Passive splitter
Frequency response: 7Hz ~ 20KHz
Dynamic range: 140dB
Total harmonic distortion: 0.0005% @ 1kHz
Common Mode Rejection Ratio: >103dB
Maximum Input: +35dBu
Switches: Ground lift
Input Connectors: RJ45
Output Connectors: Male XLR
Construction: 16-gauge steel chassis & outer shell
Size (L x W x D): 4.125" x 1.56" x 1.31" (105 x 40 x 33mm)
Weight: 0.85lb (0.4kg)
Shipping size (L x W x D): 6.25" x 4.25" x 3" (159 x 108 x 76mm)
Shipping weight: 1.1lb (0.5kg)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
