Radial Bassbone V2

Bass Preamp & Boost

The Bassbone V2™ is a two channel bass preamp with a number of customizable features to suit any type of setup or playing style, while providing superb audio quality ideal for a live stage or studio recording.

FEATURES

• Two-channel bass preamp for 1 or 2 basses

• Shared effects loop with footswitch

• Variable clean boost circuit and EQ controls

• PZB booster and piezo input for upright bass

• Built-in Radial DI with balanced output for the PA

The ultimate bass control center
The Bassbone V2 combines high quality audio performance with the ability to take control of your tone and configure each feature to match your ideal setup. Seamlessly switch between upright and electric basses, while tailoring the signal from the upright with a three band EQ, high-pass filter, and a high impedance input for a more natural tone. You can engage your effects pedals with a single footswitch, and assign them to either input individually, or share them across both. A wet/dry control for the effects loop provides the ability to blend the original bass signal in with the output from the pedals, preserving the tone and clarity of your instrument. The Bassbone V2 also features a powerful clean boost that can be activated with a footswitch, or reconfigured as a mute switch for silent tuning on stage.

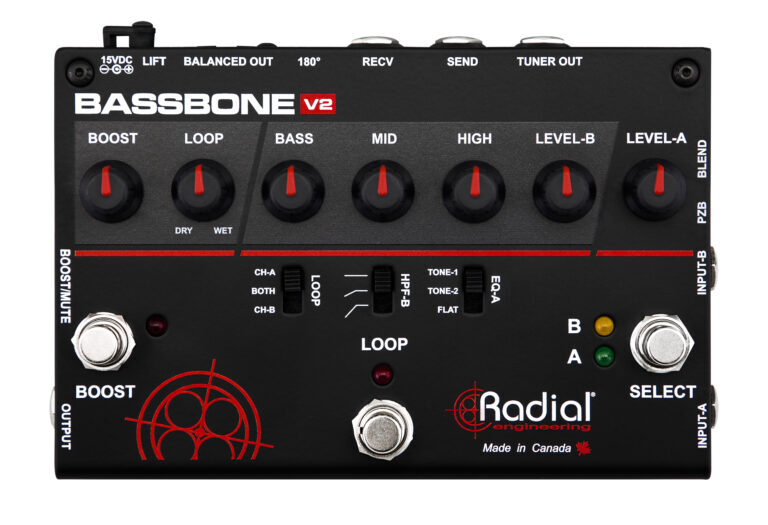

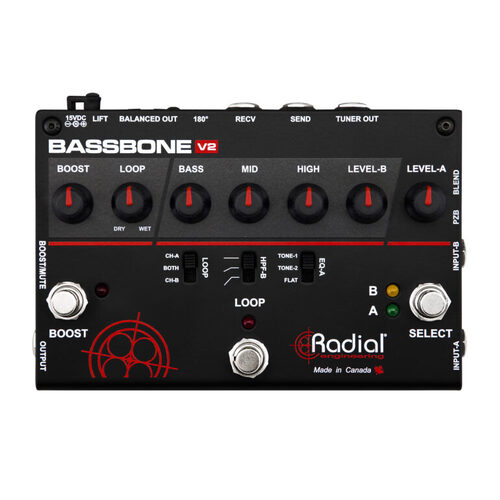

CONTROLS

Boost
Controls the amount of signal boost from unity-gain to +8dB.

Boost Footswitch
Activates power booster or the mute function. Large, easy to see LED indicator.

Loop Wet/Dry
Rotary control lets you mix the original ‘dry’ bass sound with the ‘wet’ effects loop.

Loop Assign
Three position switch used to assign the effects loop to one or both channels.

3 Band EQ
Active EQ on channel-2 lets you carve your tone to suit any playing style or instrument.

HPF-2
High pass filter on channel-2 rolls-off excessive low frequency resonance and cleans up signal. Choose between 35Hz, 60Hz and off.

Loop Footswitch
Turns the effects loop on and off.

EQ-1
Three position switch selects between flat and two preset EQ contour curves on channel-1.

Level-1 and Level-2
Adjusts instrument level for each channel.

Select Footswitch
Selects between channels when used with one bass. Selects between instruments when used with two basses.

SPECIFICATIONS

Audio circuit type: Discrete class-A FET input with low noise ICs.
Frequency response: 20Hz ~ 18kHz
Dynamic range: 85dB
Gain: Unity gain device
Total harmonic distortion: 0.05% @ -15dBu
Intermodulation Distortion: 0.2% @ -20dBu
Input Impedance: 220K Ohms input A, 220K/10M Ohms input B
Output Impedance: 300 Ohms at XLR
Equivalent Input Noise: -92dBu at XLR
Noise Floor: -100dB
Maximum Input: +7 dBu
Features: 180° polarity reverse, Ground lift, HPF, Boost
Input Connectors: 1/4"
Output Connectors: 1/4", XLR
Construction: 14 gauge steel
Size (L x W x D): 5.5" x 4.2" x 2" (203 x107 x 48mm)
Weight: 2.55lb (1157 grams)
Power: +15VDC/400mA adapter included
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable

For more information, click here to visit the manufacturers website.
