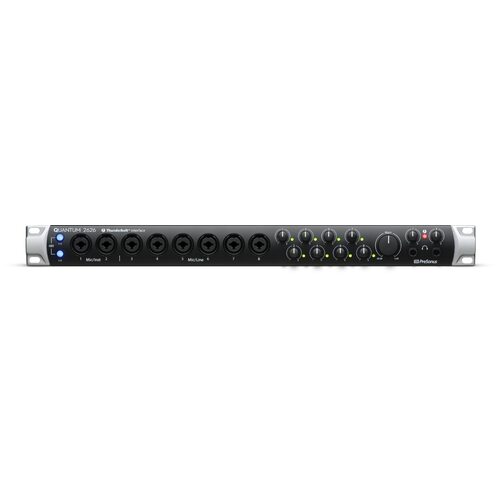

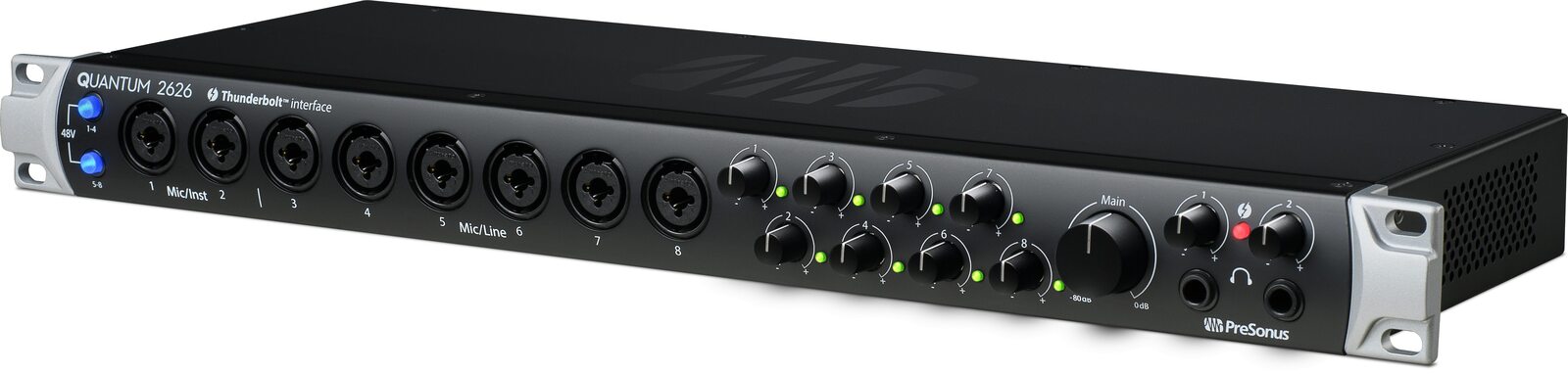

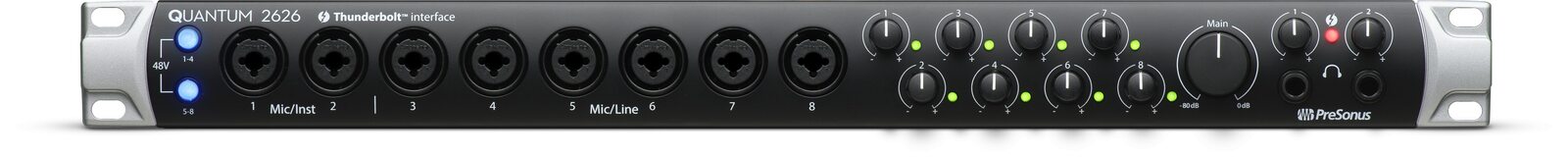

PreSonus Quantum 2626

Thunderbolt Audio Interface

$1,299.00
RRP $1,529.40


See more from PreSonus

SKU: PRE-QUANTUM2626


Contact Us for Availability
This item is currently out of stock, click below to request an ETA, and we will be in touch soon.

More info.

Make 4 payments of $324.75 over 8 weeks and get it now!


Calculate Shipping



Free Shipping - $0.00
Free Shipping Australia-wide


The Speed of Sound

With a barely measurable round-trip latency of less than 1 ms*, it's no wonder Sound on Sound magazine dubbed Quantum-series Thunderbolt™ audio interfaces the “fastest audio interfaces on the planet.” Superb high-definition digital conversion and the ultra-transparent analog XMAX mic preamp design mean that your audio will always sound its best—whether you’re recording with or without your favorite plug-ins engaged in real-time.

Timeless audio

Every design decision during Quantum 2626 audio interface’s engineering was made with one goal in mind: blazing-fast speed without any sonic compromise. The Quantum-series proprietary Thunderbolt driver was written from the ground up to deliver ultra-low-latency performance while maximizing efficiency. Cutting-edge 24-bit, 192 kHz converters with 115 dB of dynamic range and superior low-jitter clocking—coupled with our ultra-transparent, pure analog XMAX preamps—result in superb audio quality with the lowest round-trip latency of any audio interface available (< 1 ms*).

*192 kHz, 64 sample buffer in Studio One 4.5 on a MacBook Pro 2016, 2.7 GHz Intel Core i7 running macOS 10.12.5

Superior Sound

Audiophile-grade digital converters, low-jitter clocking, and transparent preamps add up to a superior recording and listening experience. The Quantum 2626 audio interface operates at up to 192 kHz for ultra-high-definition mixing and recording. High-quality converters on every input and output provide 115 dB of dynamic range to capture complex musical harmonics smoothly and naturally with no audible distortion. And our lauded XMAX Class A analog microphone preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound so you’ll hear every breath, transient, and detail in your recordings.

Expansive audio

Impressive speed combined with stunning sound quality means that the Quantum Thunderbolt audio interface is an ideal recording solution for any size of studio. Need more mic preamps? Connect the PreSonus DigiMax DP88 to your Quantum interface’s ADAT/dual S/MUX ports. Once synced, the DigiMax DP88 preamps can be remotely controlled via Studio One or UC Surface. Want to insert your favorite gear? The Quantum 2626 features two direct preamp outputs with dedicated returns, so you can insert your favorite analog compressor and your favorite plug-ins with ease.

Award-winning recording software included

While compatible with any macOS or Windows recording application, the Quantum 2626 ships as a complete recording studio with Studio One Artist music production software included. Easy to learn, Studio One enables you to compose, record, and produce without getting distracted by the tools. Need a new loop or sample for your latest production? Studio One lets you shop, audition, and purchase new content right from your production environment—including powerful extensions for Studio One like the Presence XT Expansion packs and the PreSonus Channel Strip Collection.

The Quantum leap.

Industry-leading speed and pristine audio quality combined with jaw-dropping expandability are the hallmarks of the Quantum interface design. Record and monitor from your favorite DAW with any plug-in engaged. Insert your favorite outboard analog gear with ease. Regardless of your studio’s size, Quantum audio interfaces will streamline your recording process—you’ll make better music, faster.

Technical Specifications

Microphone Preamp


Type XLR Female (via Combo), Balanced
Maximum Input Level +10 dBu (Balanced, min. gain)
Gain Control Range 60 dB
Frequency Response 20 Hz to 20 kHz (±0.15 dB, unity gain, 48 kHz)
Dynamic Range > 110 dB (A-wtd, min. gain)
Total Harmonic Distortion < 0.005% (1 kHz, min. gain)
EIN < -131 dBu (max gain, 40Ω, 22 kHz BW, A-wtd)
Input Impedance 1.6 kΩ
Phantom Power +48V, > 8 mA per input

Instrument Inputs


Type ¼” TS Female (via Combo), Unbalanced
Maximum Input Level +15 dBu (Unbalanced, min. gain)
Gain Control Range 60 dB
Frequency Response 20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz)
Dynamic Range > 106 dB (A-wtd, min. gain)
Total Harmonic Distortion < 0.005% (1kHz, min. gain)
Input Impedance > 1 MΩ

Line Inputs


Type ¼” TRS Female (via Combo), Balanced
Maximum Input Level + 18 dBu (Balanced, min. gain)
Frequency Response 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)
Dynamic Range > 118 dB (A-wtd, min. gain)
Total Harmonic Distortion < 0.005% (1 kHz, min. gain)
Input Impedance 10 kΩ

Main and Line Outputs


Type ¼” TRS Female, impedance balanced, DC Coupled (Line Outputs only)
Maximum Output Level +18 dBu (Balanced)
Frequency Response 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)
Dynamic Range > 118 dB (A-wtd)
Total Harmonic Distortion < 0.0035% (1 kHz, +4 dBu)
Output Impedance 51Ω

Headphone Outputs


Type ¼” TRS Female, Stereo, Unbalanced, x2
Maximum Output Level 175 mW/channel (56Ω load)
Frequency Response 20 Hz to 20 kHz (±0.5 dB, 48 kHz)
Dynamic Range > 110 dB (A-wtd)
Total Harmonic Distortion < 0.03% (1 kHz)
Headphone Impedance (working range) 16Ω to 300Ω

Crosstalk


Input to Input < -110 dB
Output to Output < -115 dB
Input to Output < -120 dB

Signal Level LEDs


Clip -0.5 dBFS
Signal -50 dBFS

Digital Audio


Connection Type Thunderbolt 3 (Thunderbolt 1 and 2 compatible)
ADC Dynamic Range 115 dB (A-wtd)
DAC Dynamic Range 115 dB (A-wtd)
Bit Depth 24 bits
Internally Supported Sample Rates 44.1, 48, 88.2, 96, 176.4, 192 kHz

Clock


Jitter < 70 ps RMS (20 Hz – 20 kHz)
Jitter Attenuation > 60 dB (1 ns in => 1 ps out)

Power


  12 VDC, 5A, external power supply

Physical


Dimensions
Height 1.75" (44.45 mm)
Depth 7" (177.8 mm)
Width 19" (482.6 mm)
Weight 6 lbs (2.72 kg)

For more information, click here to visit the manufacturers website.
