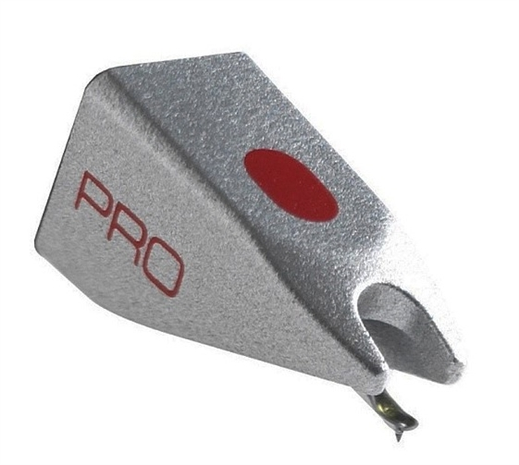

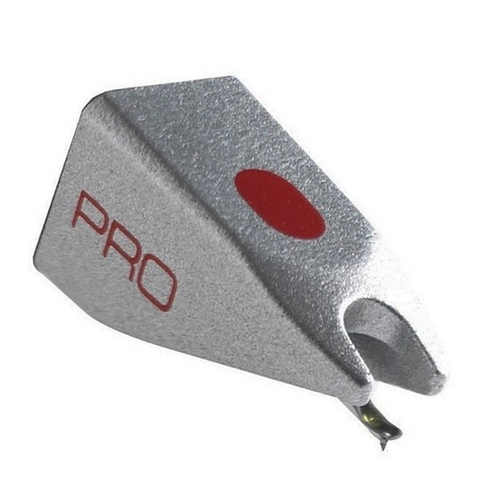

Ortofon Pro Silver Stylus X1

1 x Pro Replacement Stylus for Concorde or OM Cartridges

The Ortofon DJ Pro concorde twin pack represents the perfect combination of performance, durability and value for money - it is the ideal cartridge and needle pack for beginning DJ's that would to upgrade from other inferior, generic cartridges. The Pro is up to the challenge for whatever is thrown at it, scratching, back-cueing and club mixing - the Pro does it all, and does it well. It comes packed with a spherical stylus and a robust cantiliver. The output is above middle of the road and it possesses a well balanced sound quality and solid tracking.

Made in Denmark.

SPECIFICATIONS

Output voltage at 1000Hz, 5cm/sec.: 5 mV
Channel balance at 1kHz: 1.5 dB
Channel separation at 1kHz: 20 dB
Channel separation at 15 kHz: 15 dB
Frequency range at -3dB: 20-20,000 Hz
Frequency response: 20-20,000 Hz 3dB/-2dB
Tracking ability at 315 Hz at recommmended tracking force: 70 µm
Compliance, dynamic lateral: 7 µm/m N
Stylus type: Spherical
Stylus tip radius: R 18 µm
Tracking force range: 3.0-5.0 g (30-50 mN)
Tracking force recommended: 4.0 g (40 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 750 Ohm
Internal inductance: 450 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 200-600 pF
Cartridge weight: 18.5 g.
